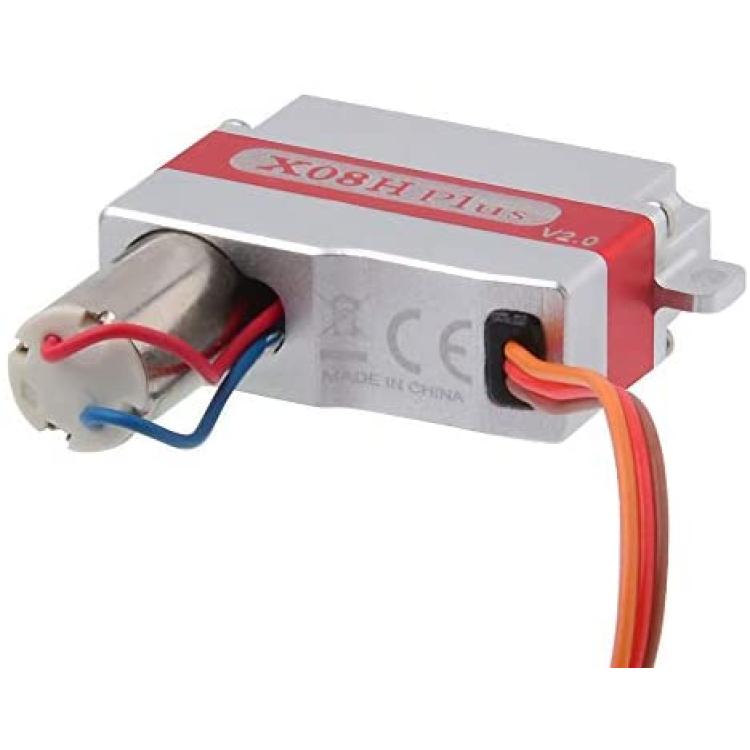

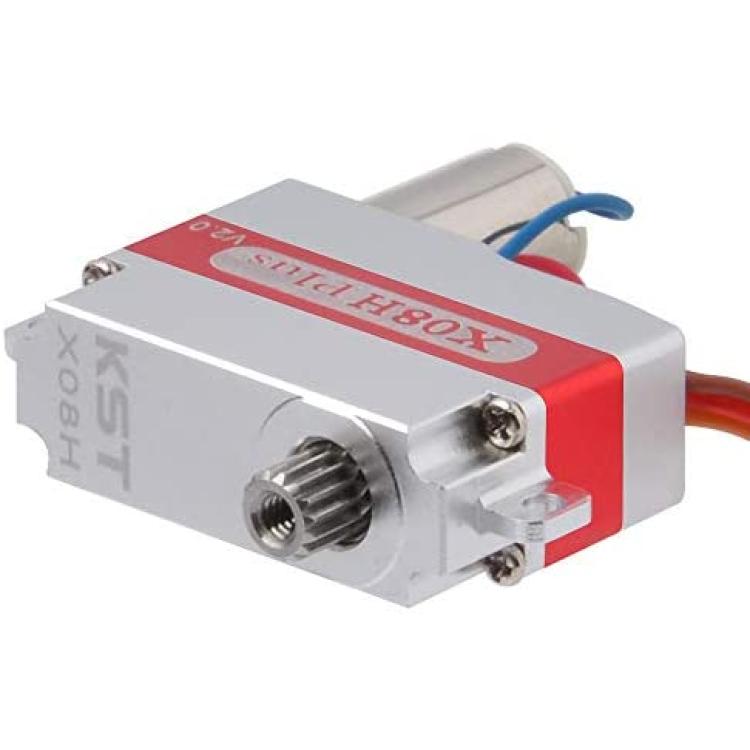

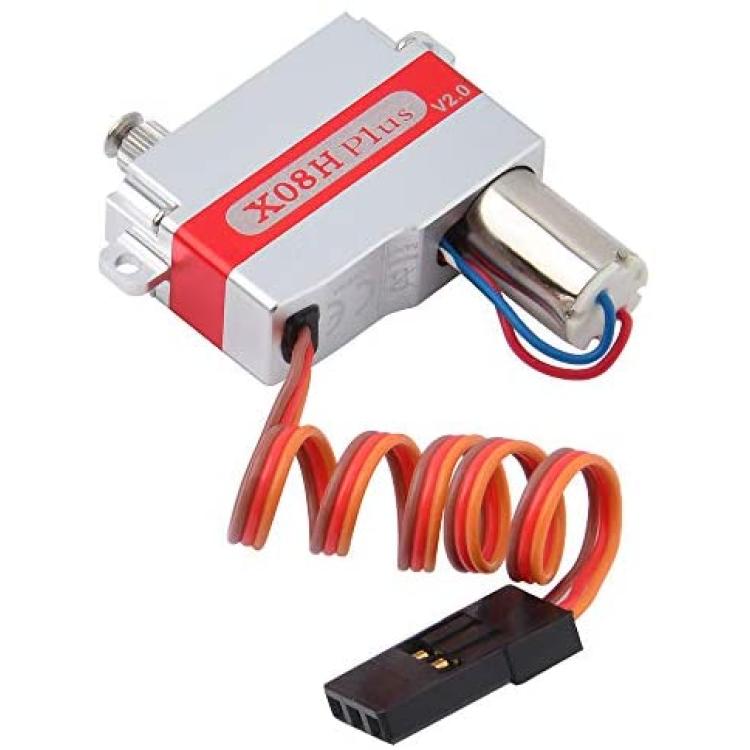

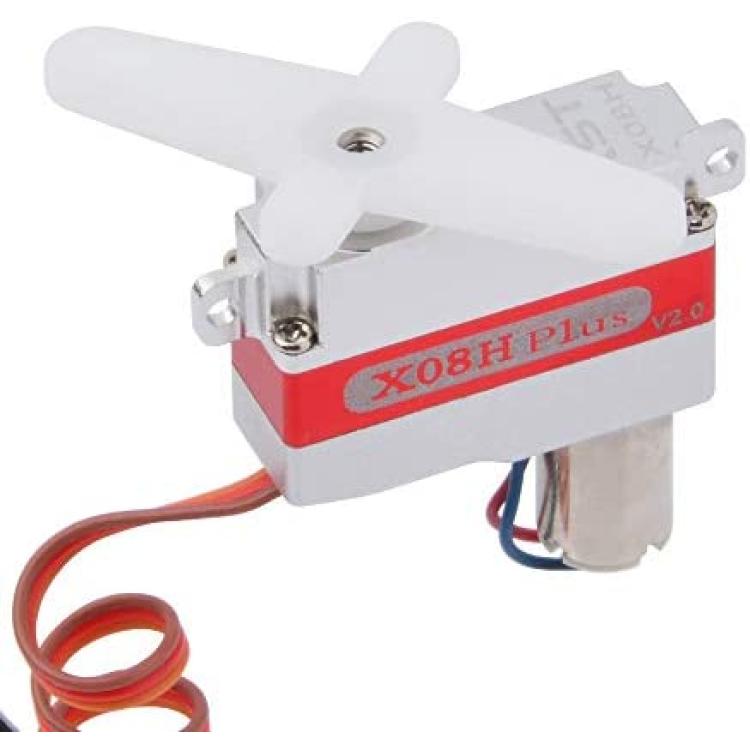

KST X08H Plus 9.5g 5.3Kg High Voltage Full Metal Cased Digital Servo Motor for UAV RC Car Boat Robot Arm Helicopter Airplane Parts

The KST X08H Plus is a very light (9.5 g) low/medium/high voltage metal cased servo. It is based on the well regarded KST X08 V5 servo but with a larger motor fitted.
It is especially good for ailerons on F5J gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The X08 Plus can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop free, and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears, and is very tough.
The KST X08 Plus's high torque, good speed, and 8mm thinness make it suitable for many high performance glider, pylon racers and EDF applications. With up to 5.3 kg.cm torque the KST X08 is appropriate for F5J, F5D, F3J and many types of high performance models.
The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.
Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC3.8-8.4V
Torqure
2.40kg.cm @3.8V
3.85kg.cm @6.0V
4.85kg.cm @7.4V
5.30kg.cm @8.4V
Speed:
0.18sec/60deg @3.8V
0.15sec/60deg @6.0V
0.12sec/60deg @7.4V
0.09sec/60deg @8.4V

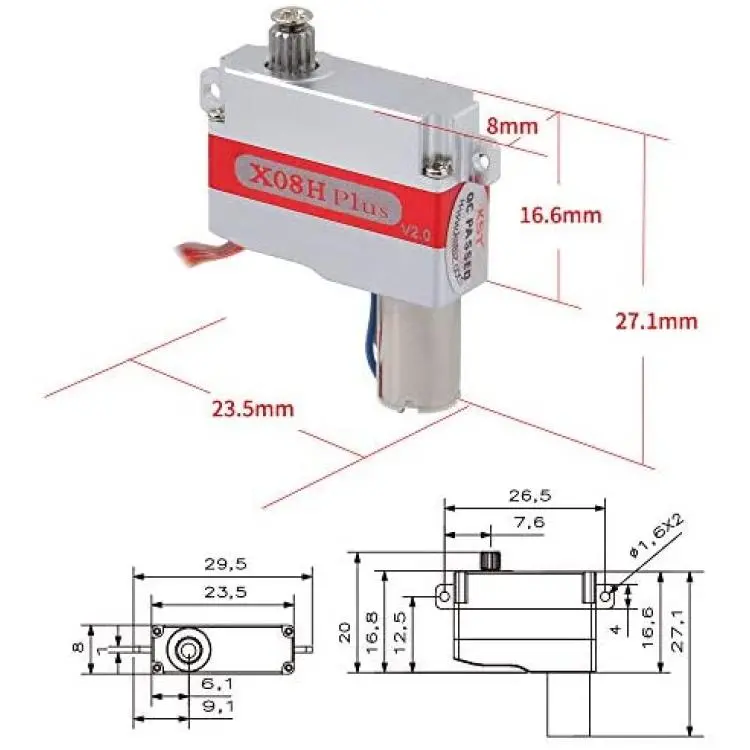

Size: 23.5*8*16.8mm
Weight: 9g
Motor: Coreless

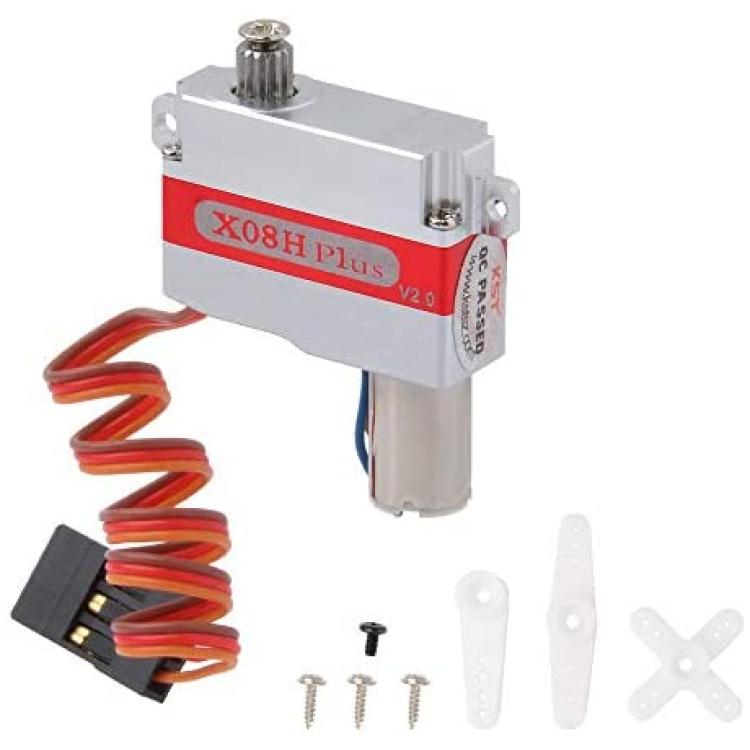

Package include:
1x KST X08H PLUS Servo Motor (with accessories)
