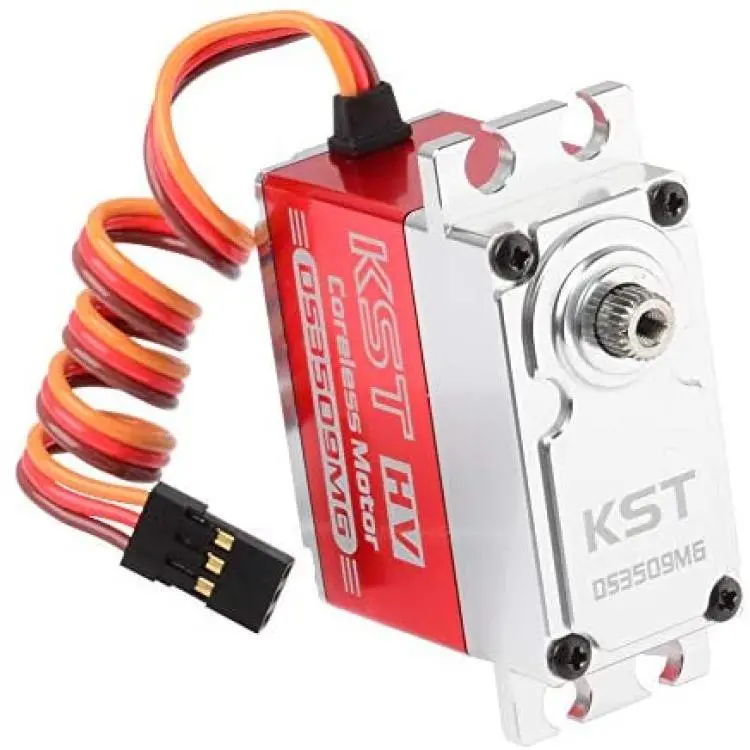

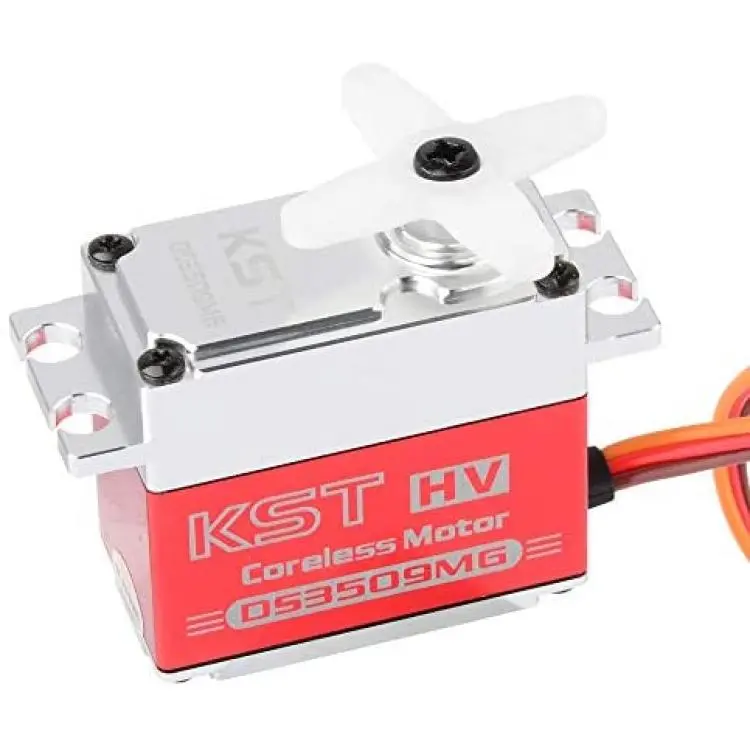

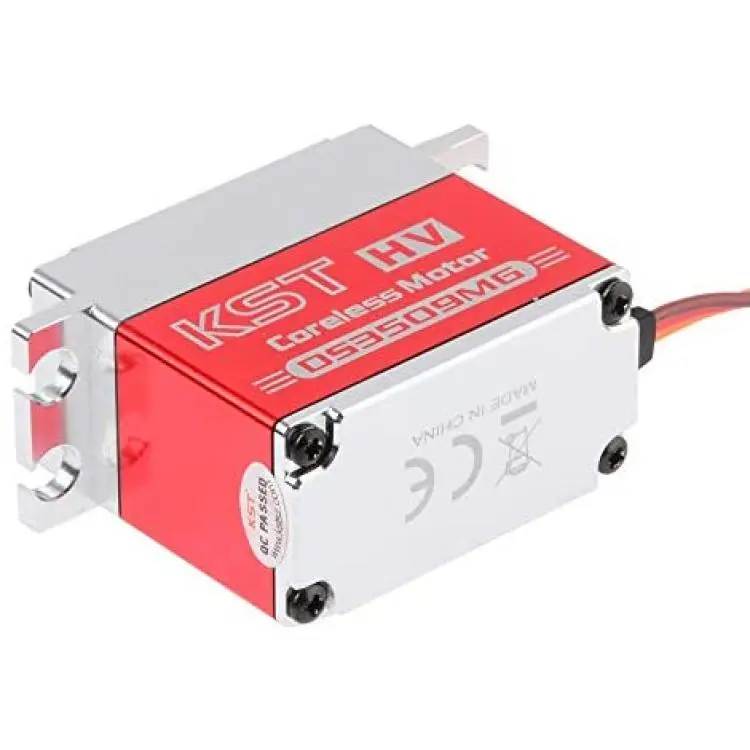

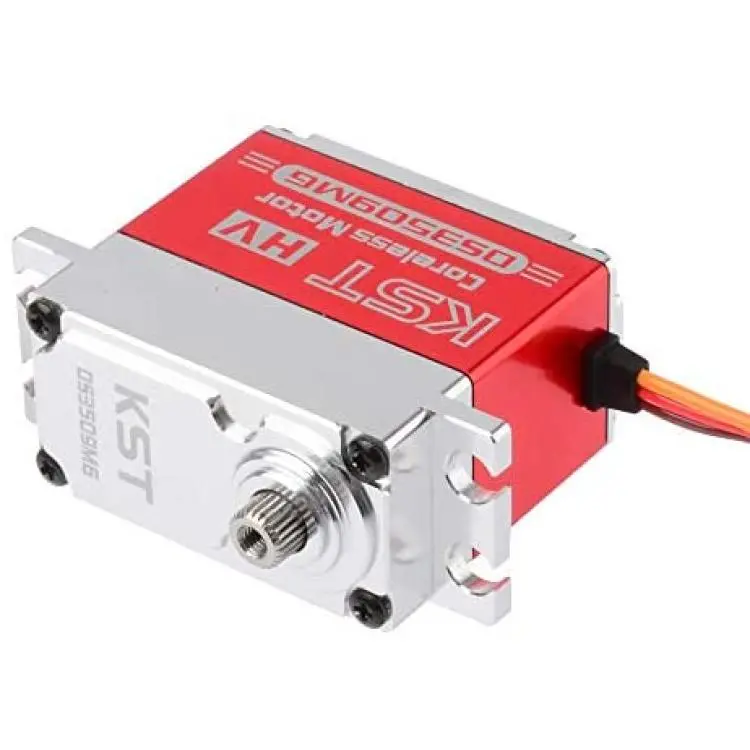

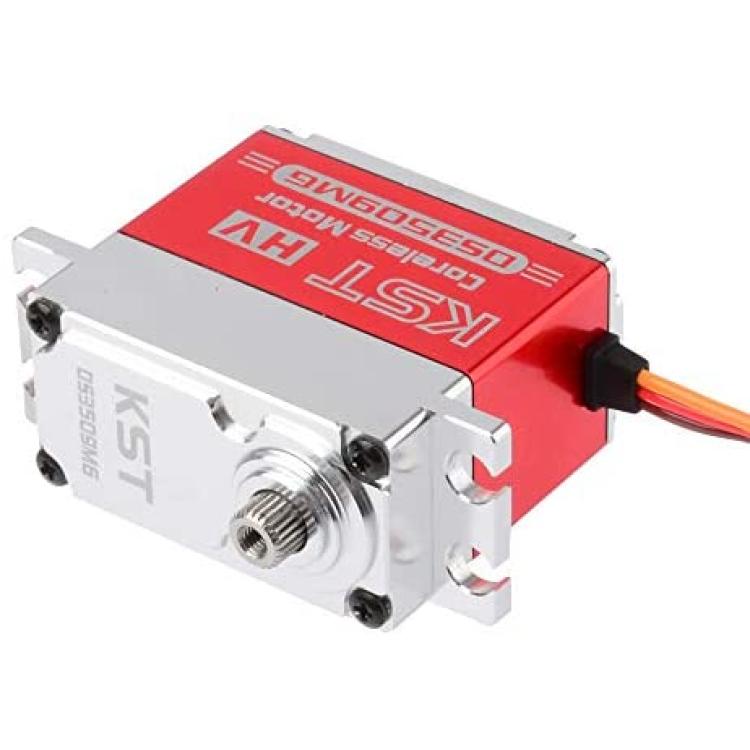

KST DS3509MG 32kg 0.14sec Digital HV Metal Gear Servo Motor for UAV RC Car Robot Arm Helicopter Airplane Parts
About this product
*KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
*Operating Voltage: DC 6.0V-8.4V;Motor: Φ20mm Coreless .
*Torque: 35Kg.cm @ 8.4V;32Kg.cm @ 7.4V;30Kg.cm @ 6.0V.
*Speed:0.12sec/60° @ 8.4V;0.13sec/60° @ 7.4V;0.14sec/60° @ 6.0V .
*Size: 40.50*21*38mm,Weight: 78g.
Description
KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
Product Specification
Brand:KST
Mode Number?DS3509MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
SPECIFICATIONS:
Operating Voltage: DC 6.0V-8.4V.

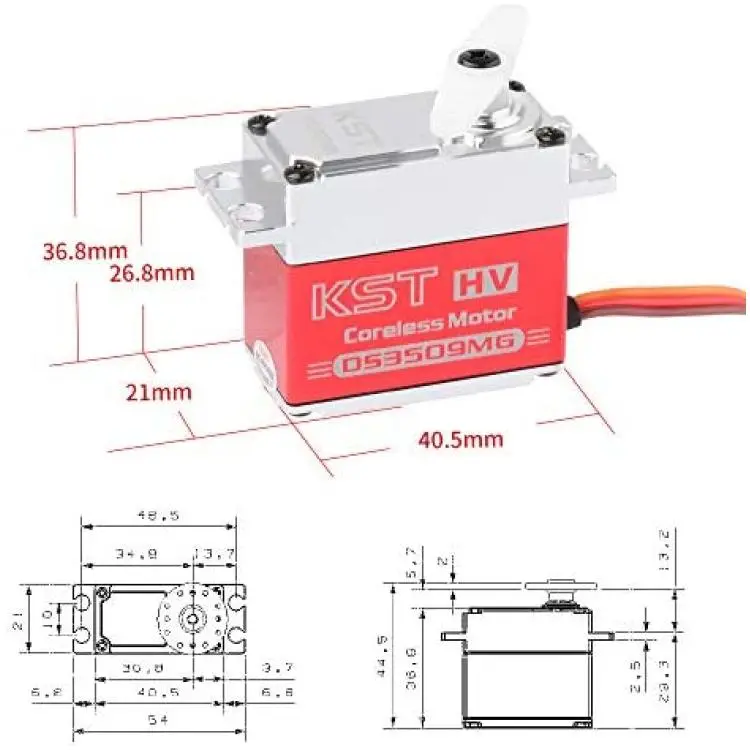

Size: 40.50*21*38mm.
Torque: 35Kg.cm @ 8.4V;32Kg.cm @ 7.4V;30Kg.cm @ 6.0V .
Speed:0.12sec/60° @ 8.4V;0.13sec/60° @ 7.4V;0.14sec/60° @ 6.0V .
Weight: 78g.
Working Frequency: 1520us/333Hz, 900us-2100us.
Motor: ?20mm Coreless
Ball Bearing: 2BB
Package include:

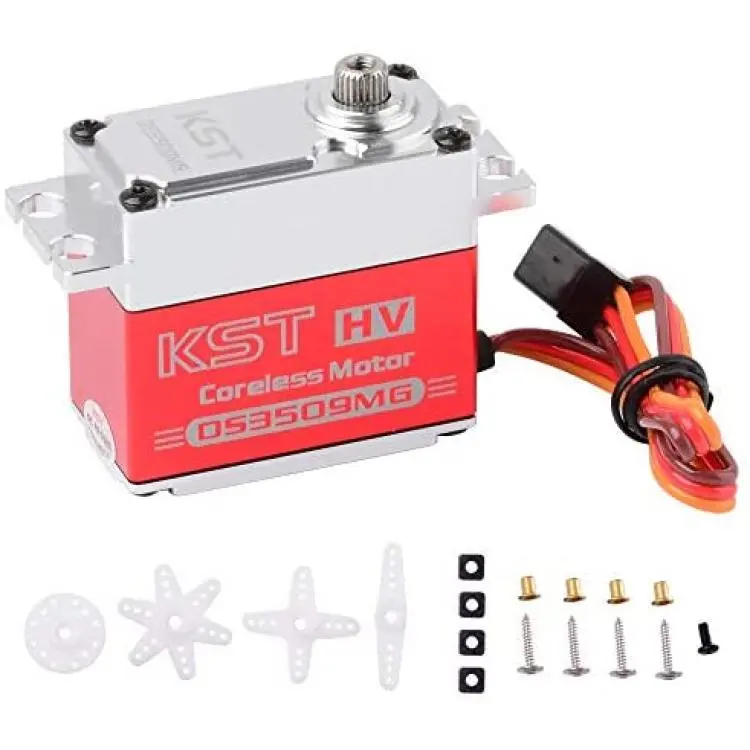

1x KST DS3509MG Servo Motor (with accessories)
