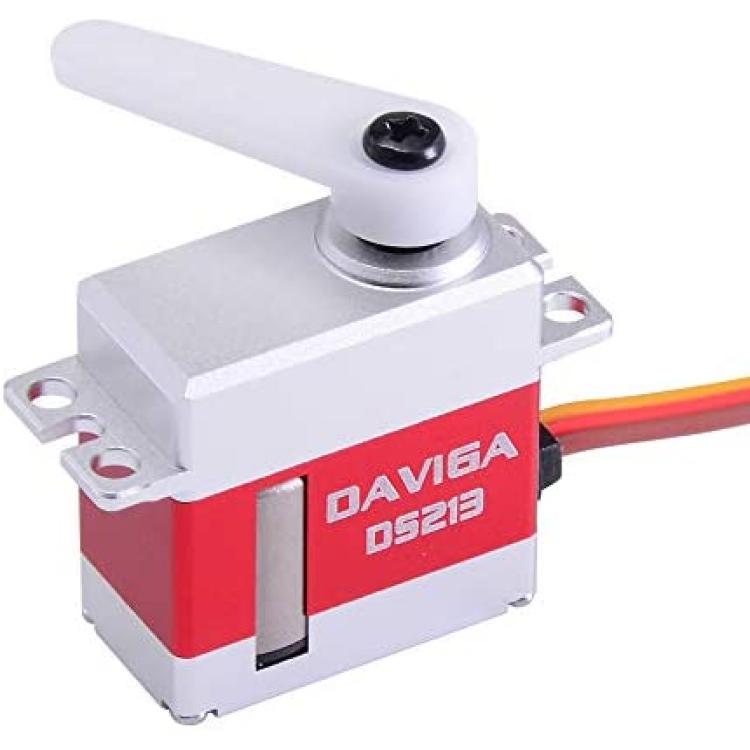

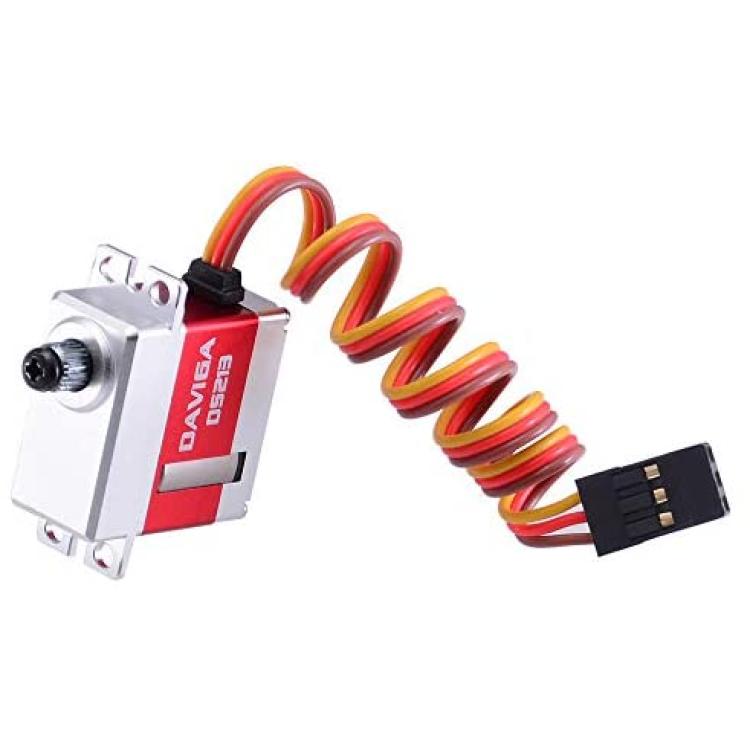

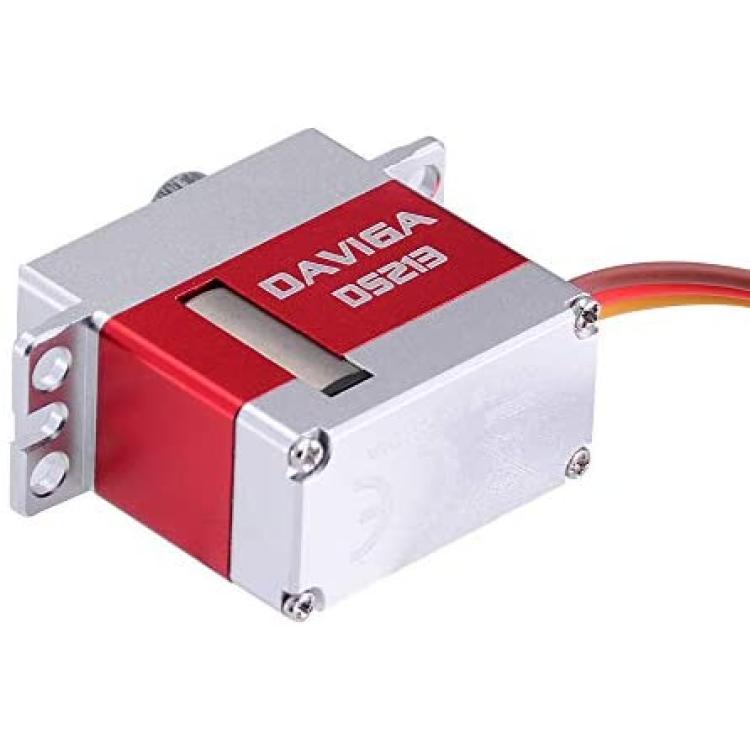

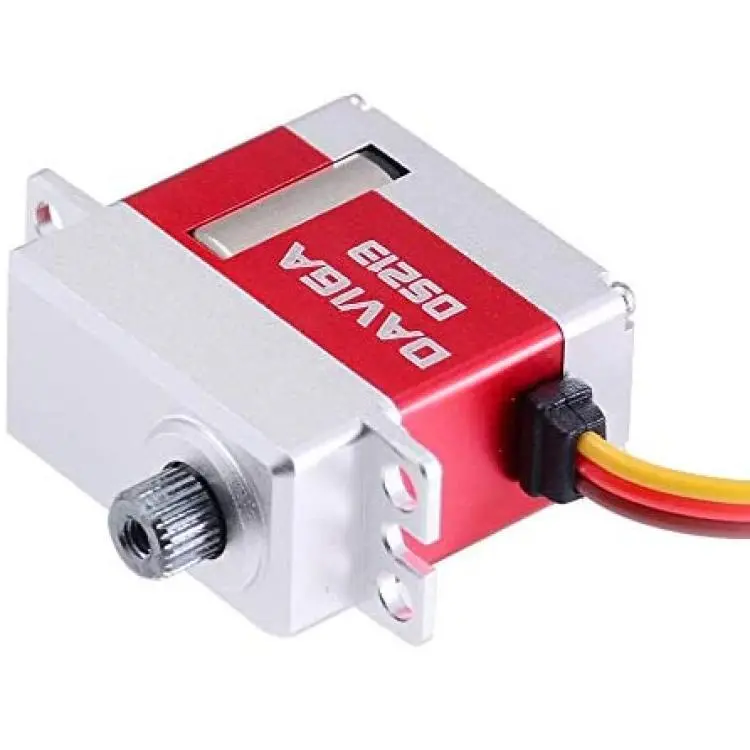

KST Daviga DS213 6V 3kg 0.07sec Metal Gear Servo Motor for UAV RC Car Robot Arm Helicopter Airplane Parts
About this product
*KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
*Operating Voltage: DC4.8V-6.0V;Working Frequency: 1520μs / 333hz, 900μs-2100μs.
*Torque: 3.00Kg.cm @ 6.0V 2.50Kg.cm @ 4.8V;
*Speed: 0.07sec/60° @ 6.0V 0.08sec/60° @ 4.8V.
*Size: 23.00* 12* 24.50mm; Weight: 16g.
Description
KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys and Arduino experiments
Product Specification
Brand:KST
Mode Number?DS213 Daviga
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
SPECIFICATIONS:
Operating Voltage: DC4.8V-6.0V
Torque:
3.00Kg.cm @ 6.0V
2.50Kg.cm @ 4.8V
Speed:
0.07sec/60° @ 6.0V
0.08sec/60° @ 4.8V
Working Frequency: 1520?s / 333hz, 900?s-2100?s

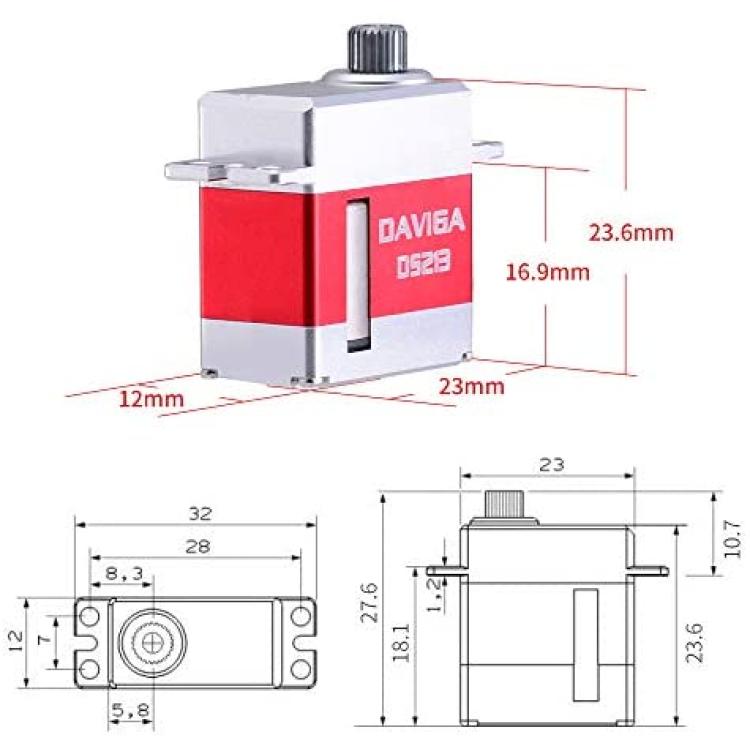

Size: 23.00* 12* 24.50mm
Weight: 16g
Motor: ?12mm Coreless
Ball Bearing: 2BB
Package include:

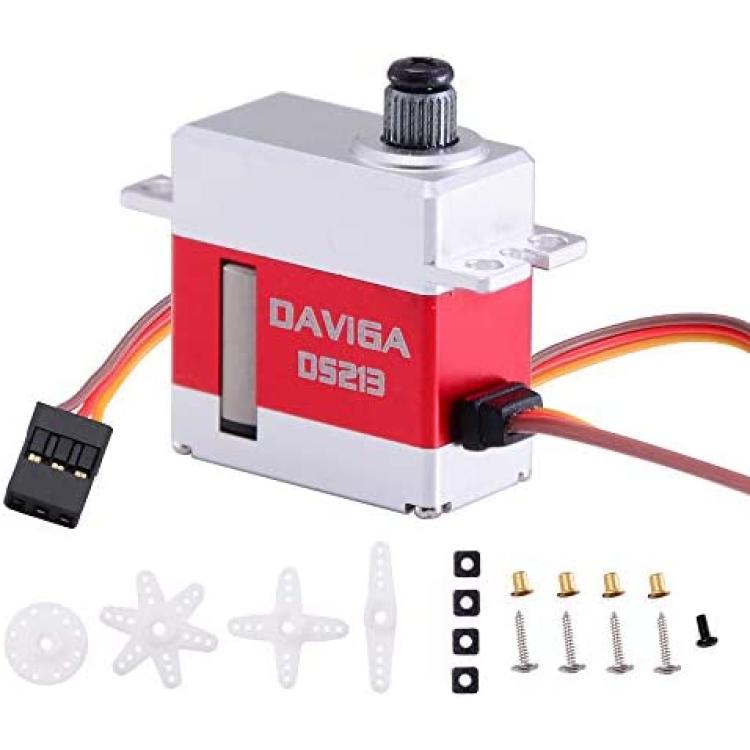

1x KST DS213 Daviga Servo Motor (with accessories)
