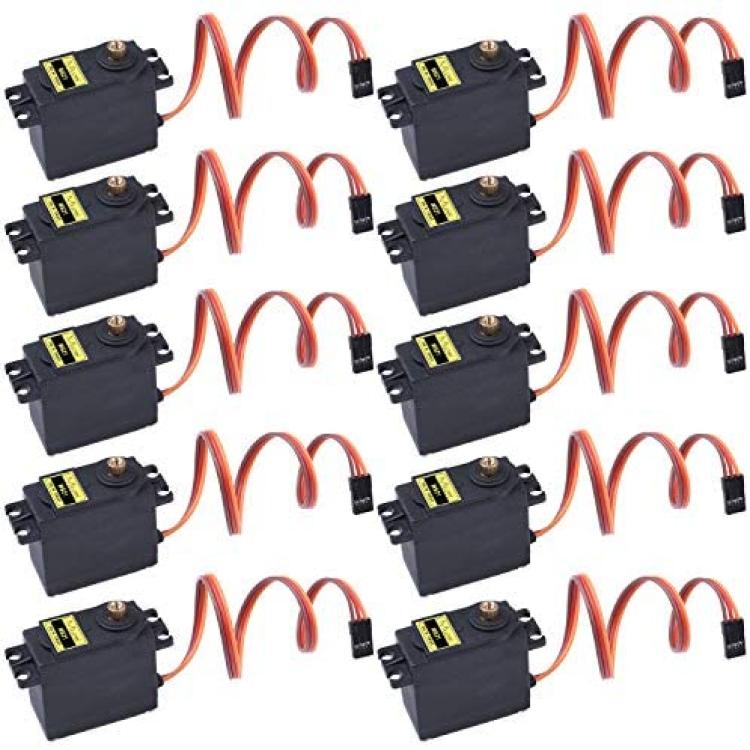

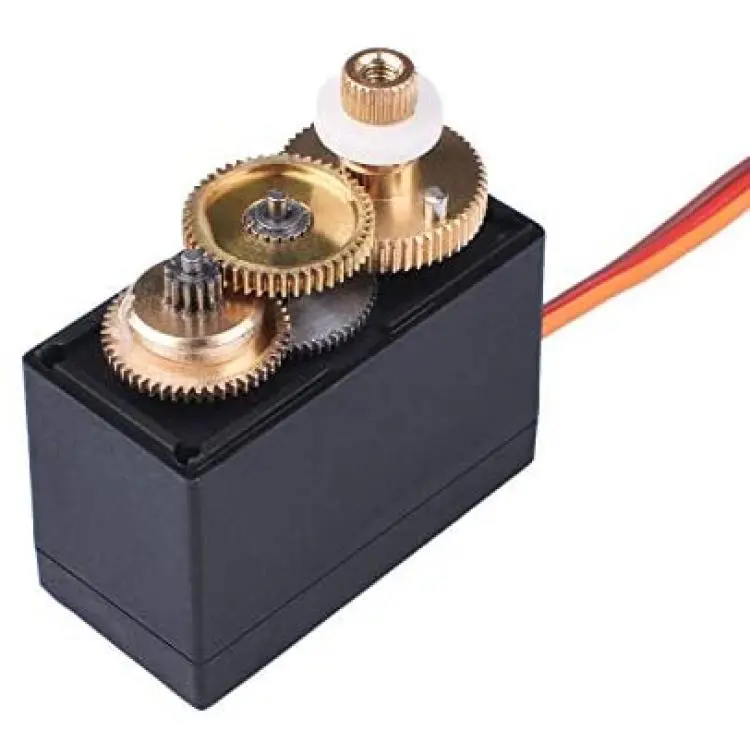

Miuzei 10 Pcs MG996R Servo Motor Metal Gear Torque Digital Motor Kit for RC Airplane Model Car Helicopter Boat Robot AVR Toys Drone Arduino

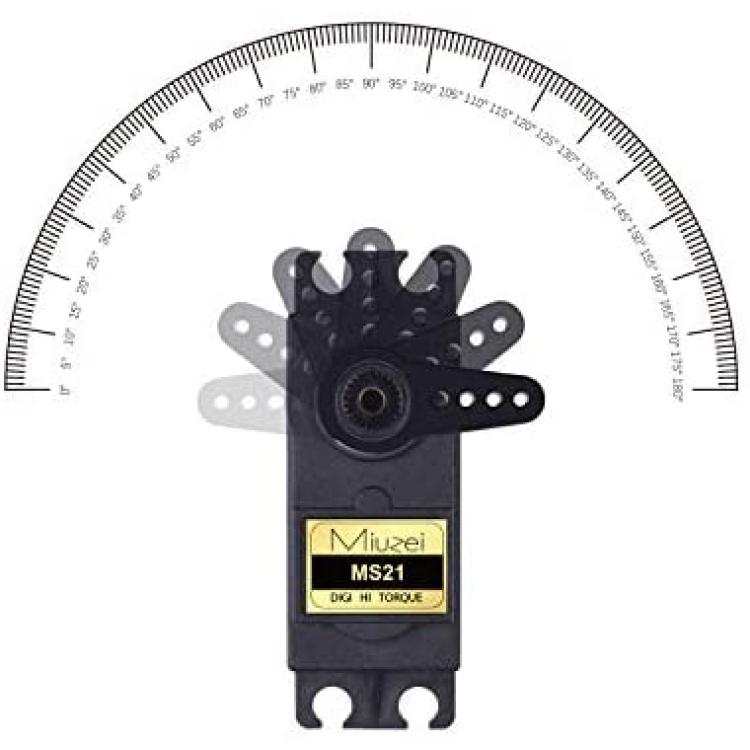

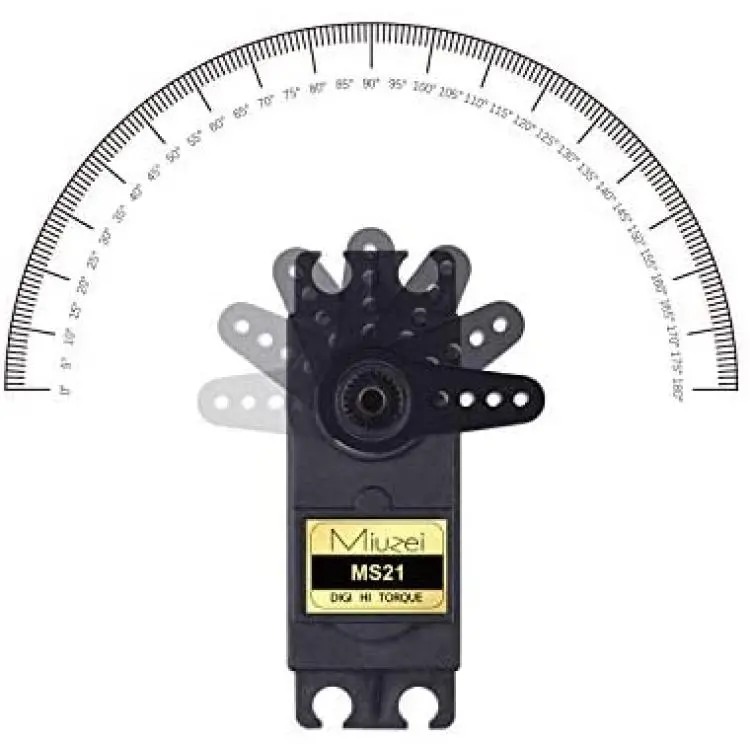

The Miuzei MG 996R Servo Motor Metal Gear Servos Kit Rotates from 0-180 Degrees.

Product Specification
Mode Number?MS21

1:Apply Environmental Condition?
Operating Temperature Range:-10??50?
Operating Voltage Range:4.8V?6.0V


2. Appearance Inspection?

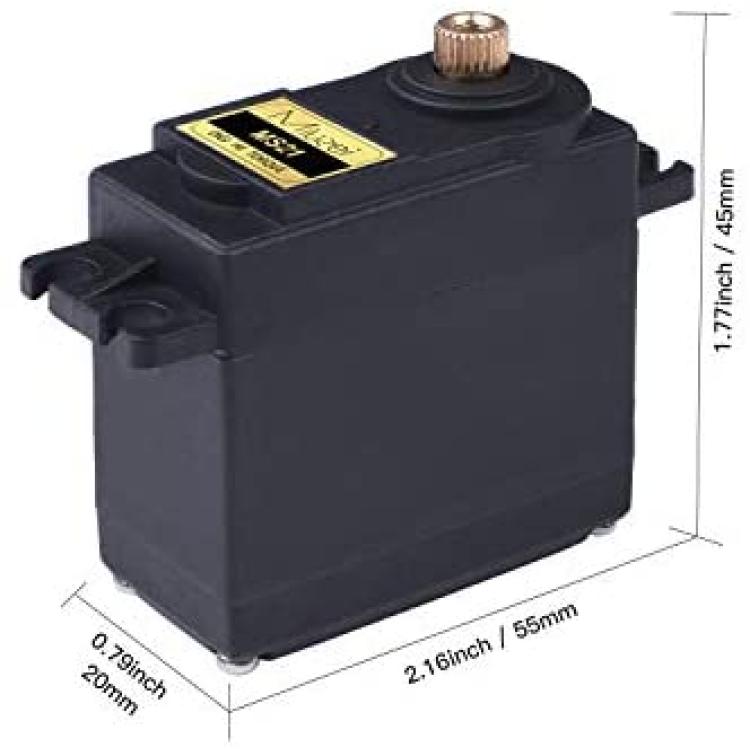

Dimensions:Please refer to the image5.

3. Electrical Specification (Function of the Performance)?
3.1 Operating speed (at no load) 0.22±0.01 sec/60°(4.8V ) 0.19±0.01 sec/60°(6V)
3.2 Running current (at no load) 500±30mA (4.8V ) 600±30mA(6V)
3.3 Stall torque (at locked) 11±0.20kg·cm (4.8V ) 13±0.20kg·cm(6V)
3.4 Stall current (at locked) 2200±40mA (4.8V ) 2400±50mA(6v)
3.5 Idle current (at stopped) 6±1mA (4.8V ) 6±1mA(6v)
3.6 Running life(at no load) >>200000 Turns(4.8V ) >>180000 Turns(4.8V )
3.7 Temperature drift(at 25°C) ?4°C(4.8V) ?5°C(6V)

4. Mechanical Specification?
Limit angle:210°± 1°
Weight:60 ± 1 g

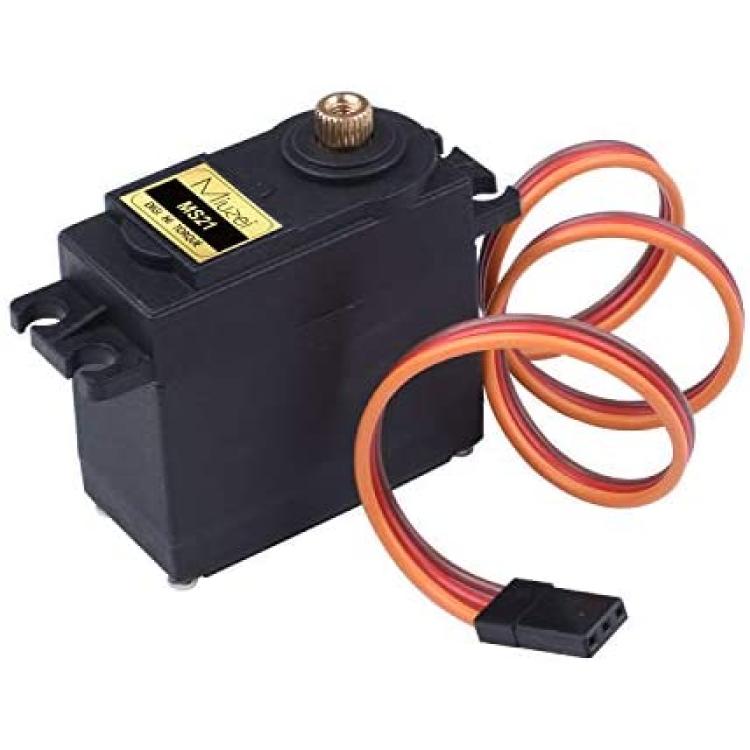

Connector wire gauge:?22 PVC
Connector wire length:300 ± 5 mm
Spline:25T

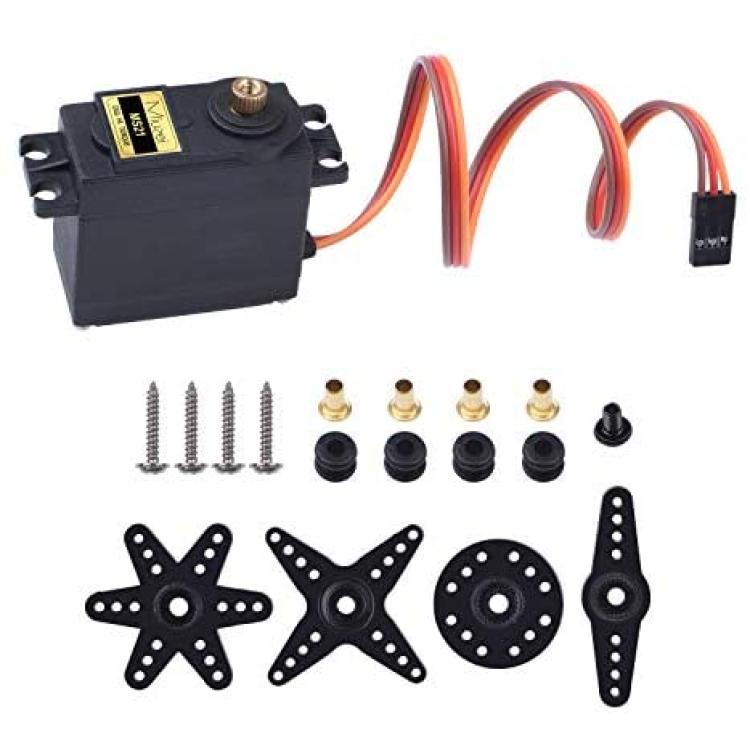

Horn type:Cross,round,star and bar-type
Excessive play:?0.5°

5. Control Specification?
Control system:Change the pulse width
Amplifier type:Analog controller/Digital controller
Operating trave:120°±10°(900?2100 ?sec)
Left&Right travelling Angle deviation:?6°
Centering deviation:? 1°
Neutral position:1500 ?sec
Dead band width:6?sec
Rotating direction:Counter Clockwise (900?2100?sec)
Pulse width range:900?2100 ?sec
Maximum travel:About 120°(900?2100 ?sec)

If there any problem with our product, feel free contact with us to get technical support and services from Amazon mail.
