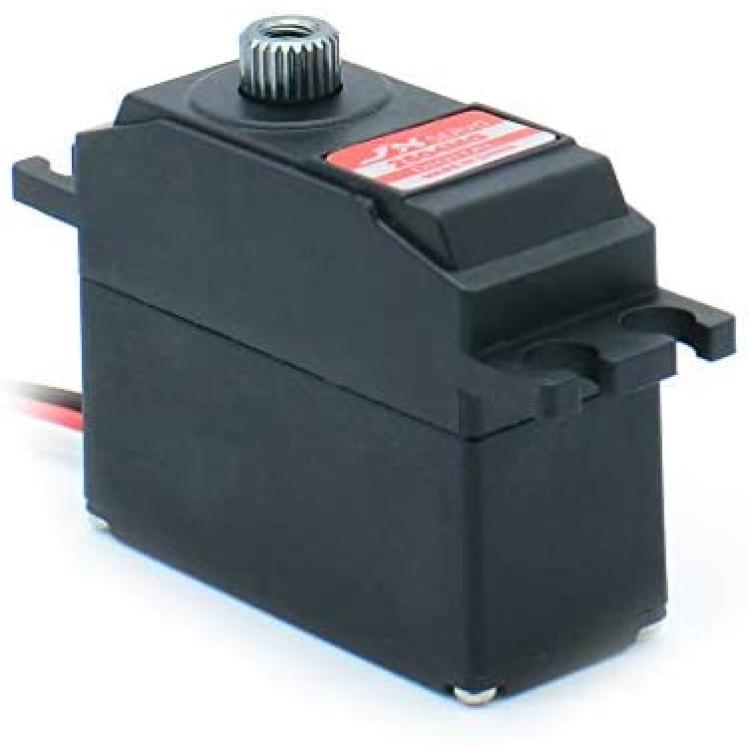

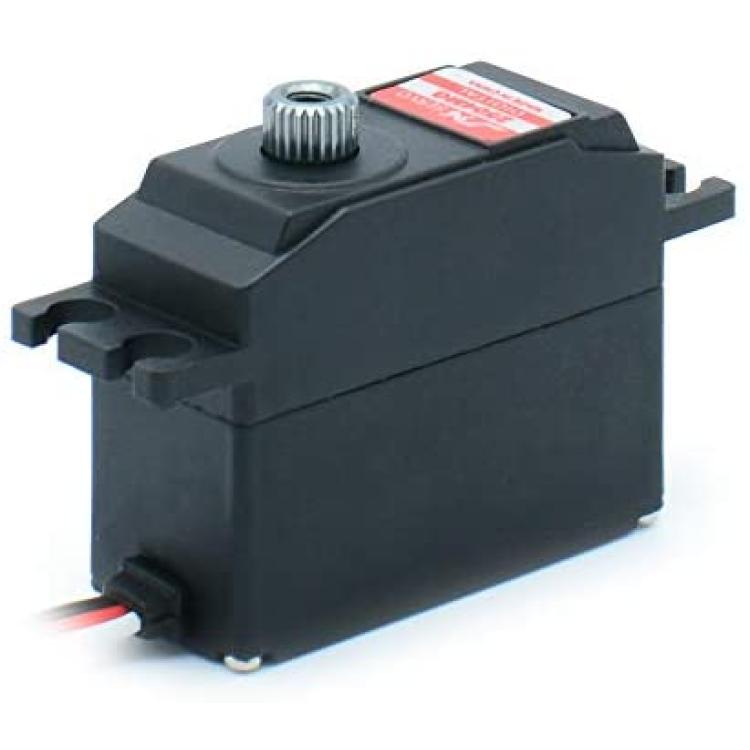

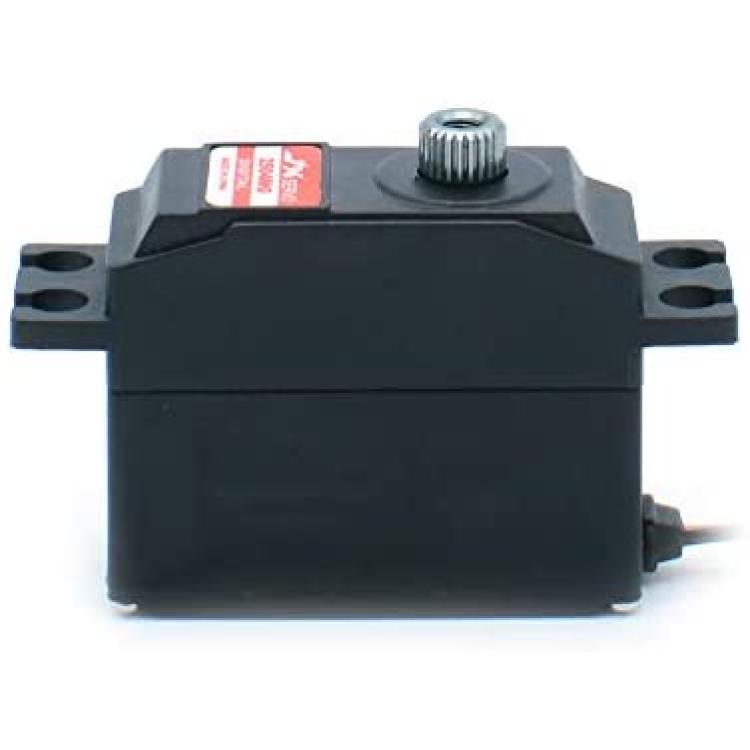

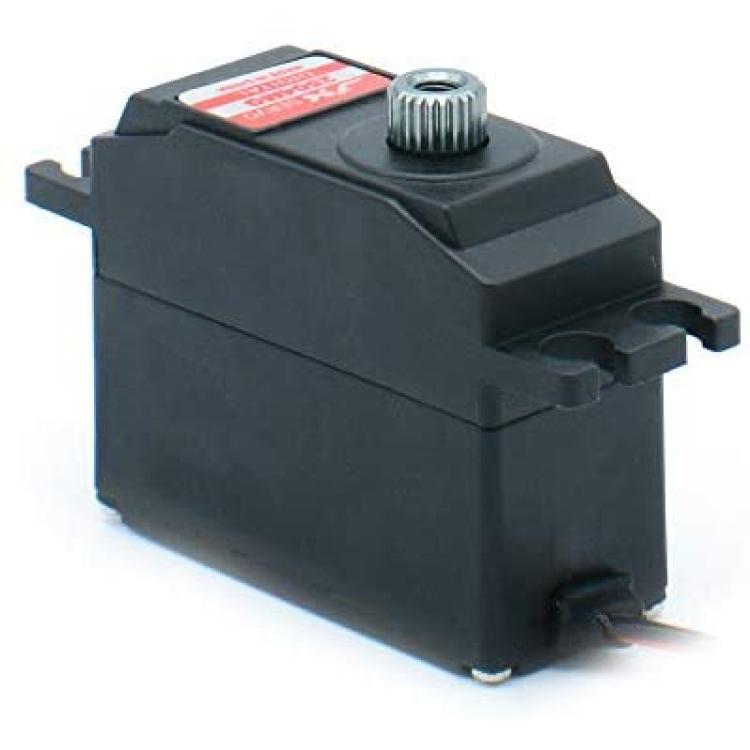

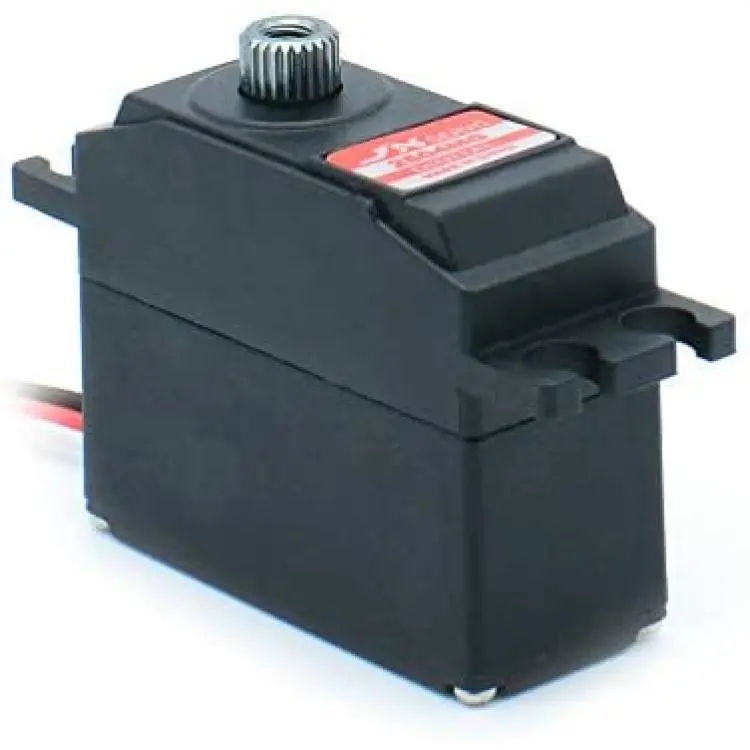

JX Servo PDI-2504MG 4.5kg 25g Waterproof Metal Gear Digital Coreless Low Profile Servo Motor for 1/8 1/10 RC Car Robot Arm Boat Airplane Helicopter
About this product
*Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc. Great for truck, Boat, Racing Car, Helicopter and Airplane.
*Operating Speed (4.8V): 0.12sec/60° Operating Speed (6V): 0.10 sec/60°
*Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in) Stall Torque (6V): 4.52kg.cm (62.7oz/in)
*Dimensions: 36X15X32.4 mm /1.42 X0.59X1.28 in .
*Weight: 25.65 g (0.90oz).
Description
Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
Product Specification
Brand:JX
Mode Number?PDI-2504MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
-- High performance digital coreless servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Dead band: 1?s
Working frequency: 1520?s / 330hz
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)
Stall Torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 36X15X32.4 mm /1.42 X0.59X1.28 in
Weight: 25.65 g (0.90oz)
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Package Information:
1x JX PDI-2504MG Servo Motor (with accessories)
