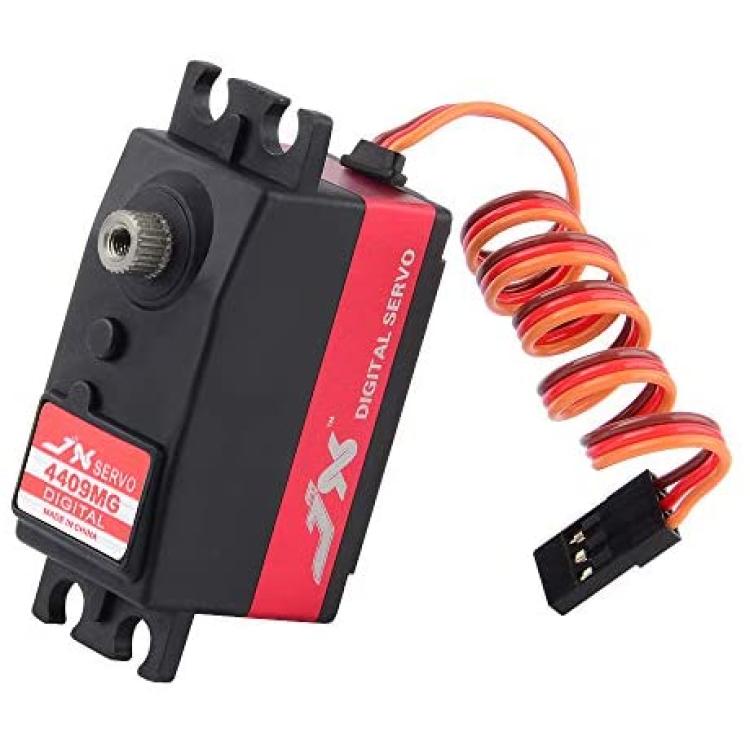

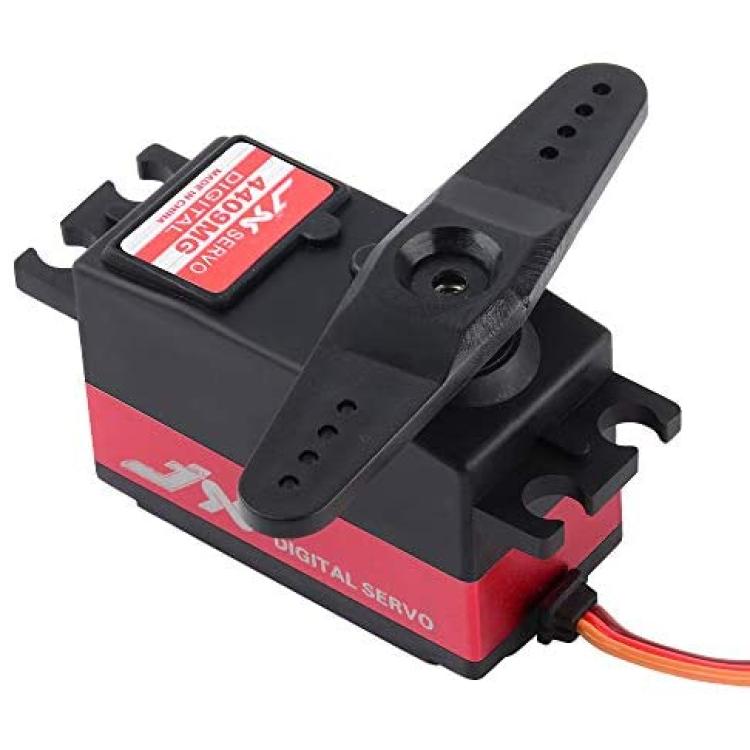

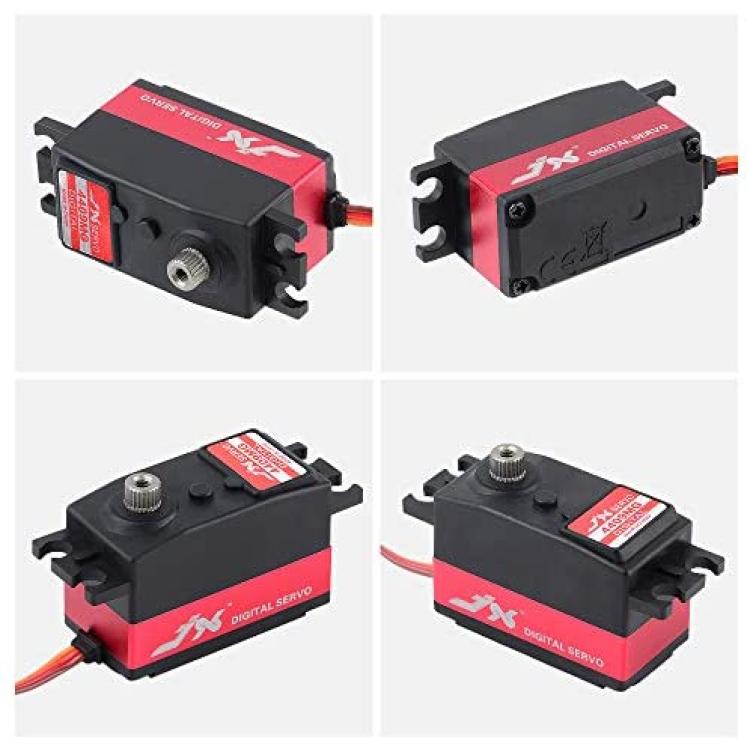

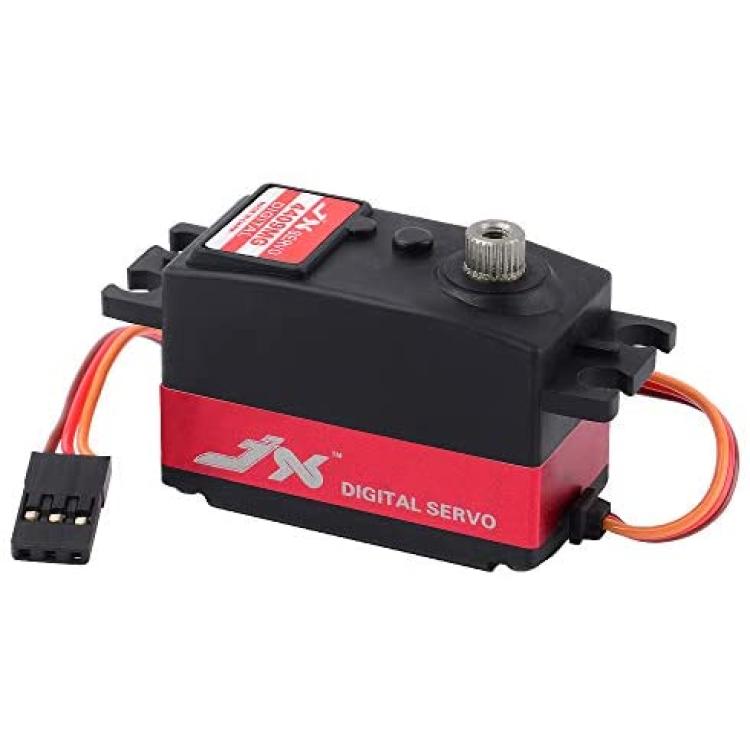

JX Servo PDI-4409MG 9kg Coreless Metal Gear Standard Digital Servo Motor for RC Car Robot Arm Helicopter Airplane Parts
About this product
*Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
*Working frequence:1520μs / 330hz
*Motor:high quality core motor;Connector Wire Length:JR 265 mm
*Operating Speed (4.8V):0.13 sec/60°; Operating Speed (6V): 0.11 sec/60°.
*Stall Torque (4.8V):7.8 kg.cm; Stall Torque (6V):9.2 kg.cm .
Description
FEATURE:
High-performance standard digital servo
High-precision metal gear
High-quality brushed motor
Dual ball bearing
SPECIFICATIONS:
Dead band:2?s
Working frequence:1520?s / 330hz
Motor:high quality core motor
Operating Speed (4.8V):0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V):7.8 kg.cm
Stall Torque (6V):9.2 kg.cm
Metal Teeth:25T

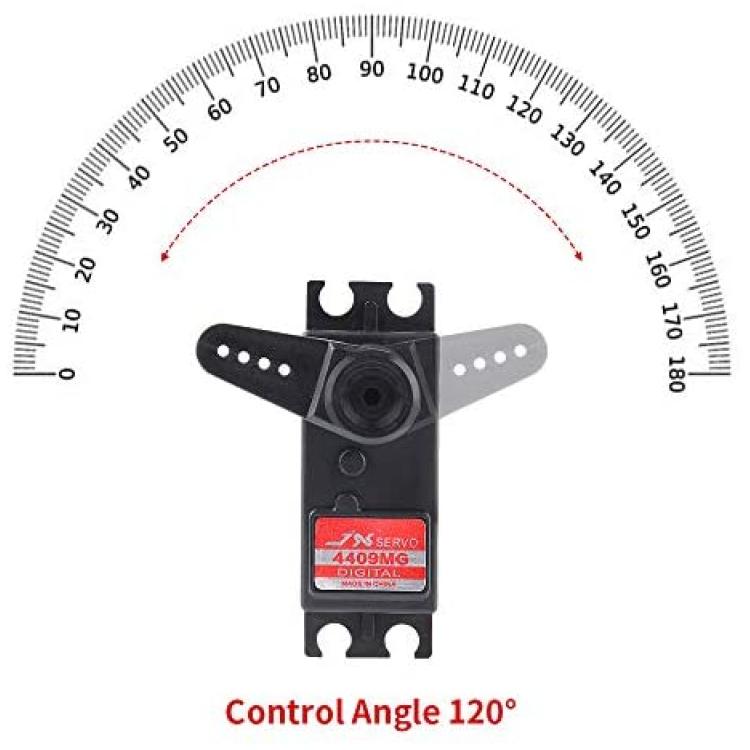

Control Angel:120 Degree
Dimensions:40.5X20.3X28mm
Weight:44.5 g
Connector Wire Length:JR 265 mm
Bearing:2BB

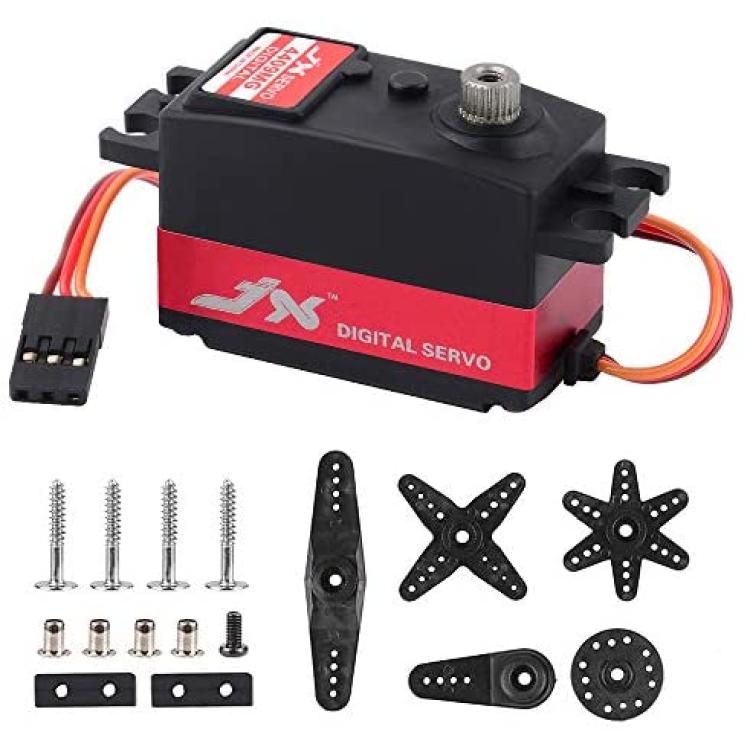

Package include:
1x JX Servo PDI-4409MG (with accessories)
