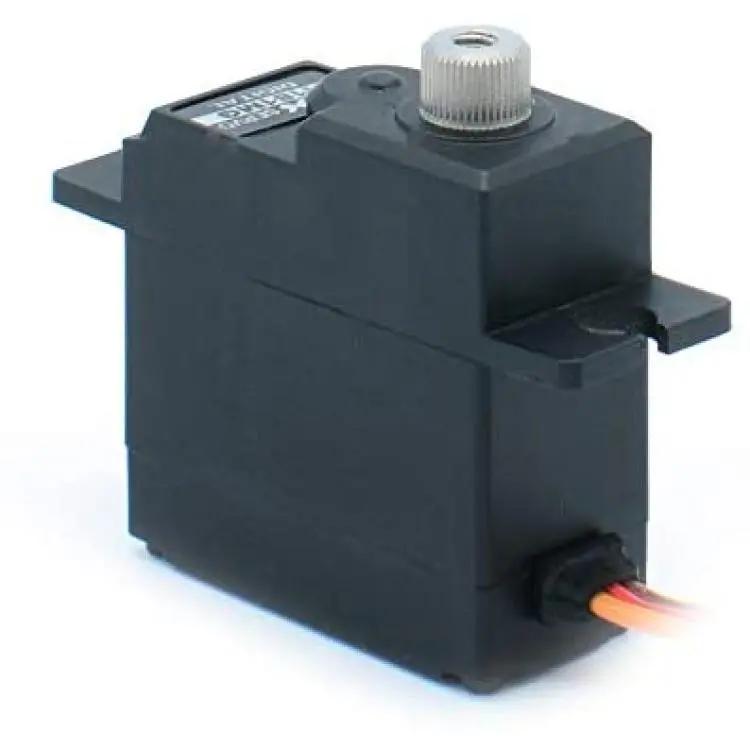

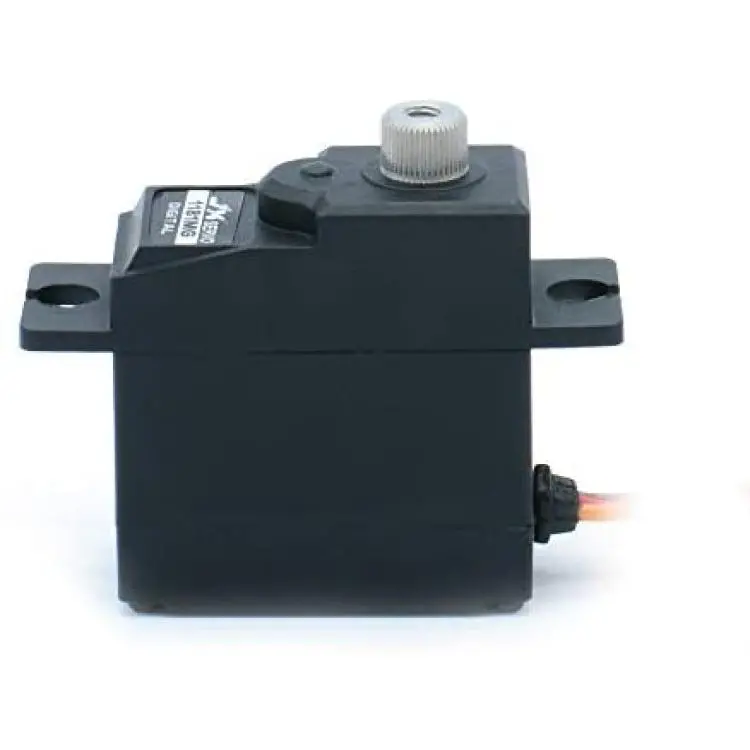

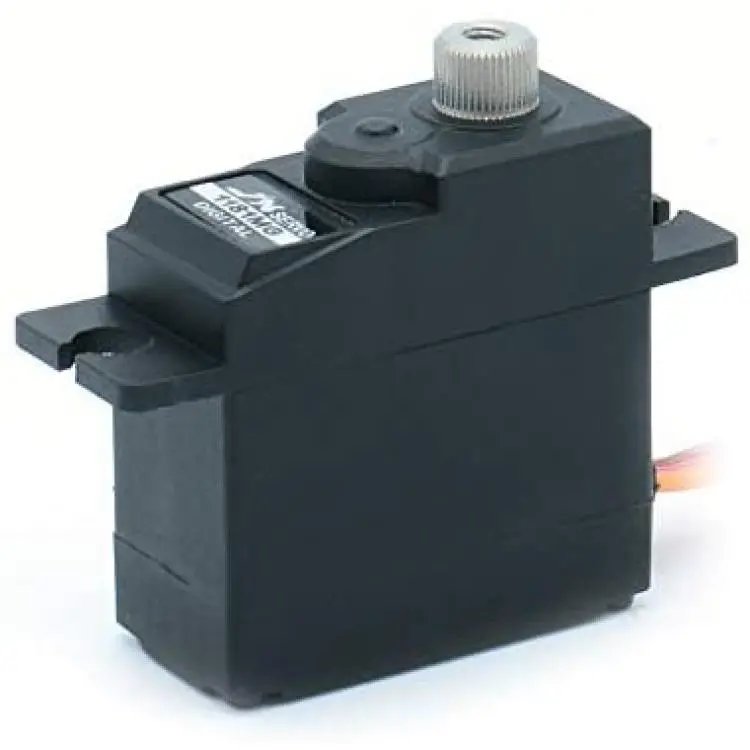

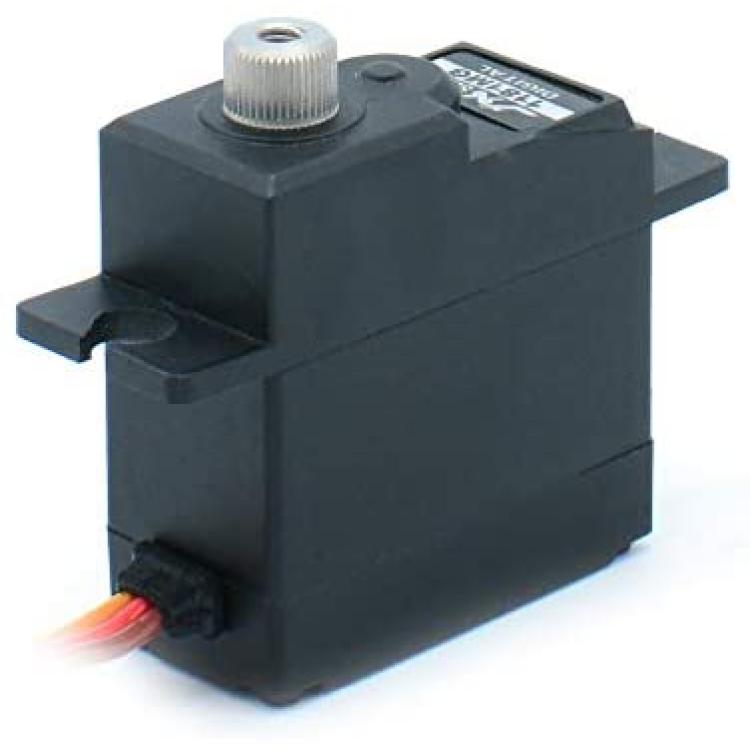

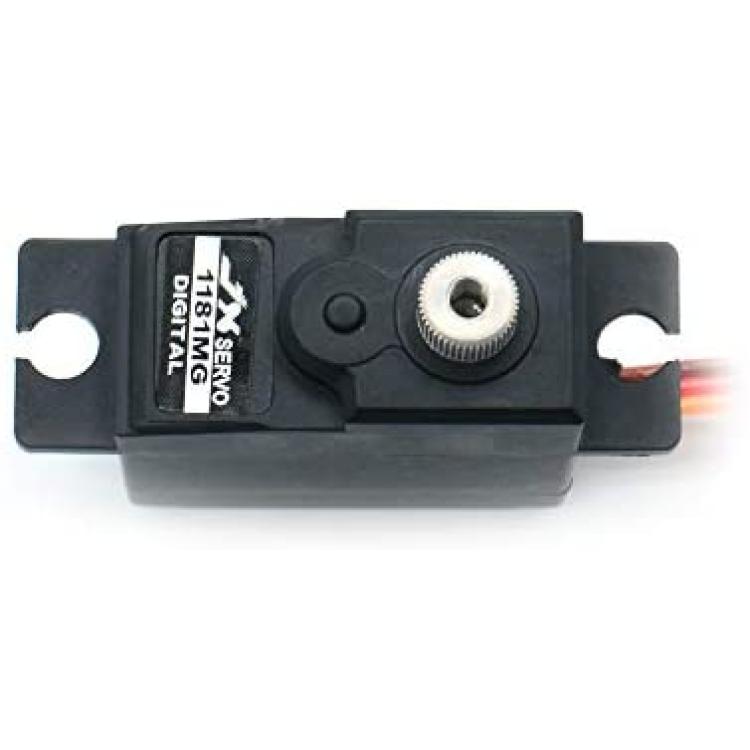

JX servo PDI-1181MG 17.5g 3.5kg Metal Gear Analog Servo for 1/8 1/10 Scale RC Car Boat Robot Arm Helicopter Airplane
About this product
*Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc. Great for truck, Boat, Racing Car, Helicopter and Airplane.
*Operating Voltage: DC4.8~6.0 V Operating Speed (4.8V): 0.13sec/60° Operating Speed (6V): 0.11 sec/60°
*Stall Torque (4.8V): 3.0kg.cm Stall Torque (6V): 3.5 kg.cm
*Dimensions:28x13x29.7cm,Weight: 17.5 g .
*Motor: core motor
Description
Brand:JX
Mode Number?PDI-1181MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
SPECIFICATIONS:
Dead band: 2?s
Working frequence: 1520?s / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm
Stall Torque (6V): 3.5 kg.cm
Dimensions:28x13x29.7cm
Weight: 17.5 g
Connector Wire Length: JR 180 mm
Package Information:
1x JX PDI-1181MG Servo Motor (with accessories)
