JX Servo PS-1171MG 17g 6V Stall Torque 3.5 kg.cm Metal Gear Analog Servo Motor for RC Car Robot Arm Helicopter Airplane Parts
About this product
*Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
*Stall Torque (4.8V): 3.0kg.cm (42 oz/in),Stall Torque (6V): 3.5 kg.cm (49 oz/in).
*Operating Speed (4.8V): 0.13sec/60° ,Operating Speed (6V): 0.11 sec/60°.
*Dimensions:29.5x11.6x30.2cm/1.17x0.46x1.20in, Weight: 17.5 g (0.61oz).
*Connector Wire Length: JR 180 mm (7.08in)
Description
17g Metal Gear Analog Servo Motor JX Servo PS-1171MG for RC Robot Arm Helicopter Airplane Parts
Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
Product Specification
Mode Number?PS-1171MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
SPECIFICATIONS:
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V): 3.5 kg.cm (49 oz/in)
Dimensions:29.5x11.6x30.2cm/1.17x0.46x1.20in
Gear Teeth:25T
Control Angle:120 Degree
Weight: 17.5 g (0.61oz)
Connector Wire Length: JR 180 mm (7.08in)
Package include:

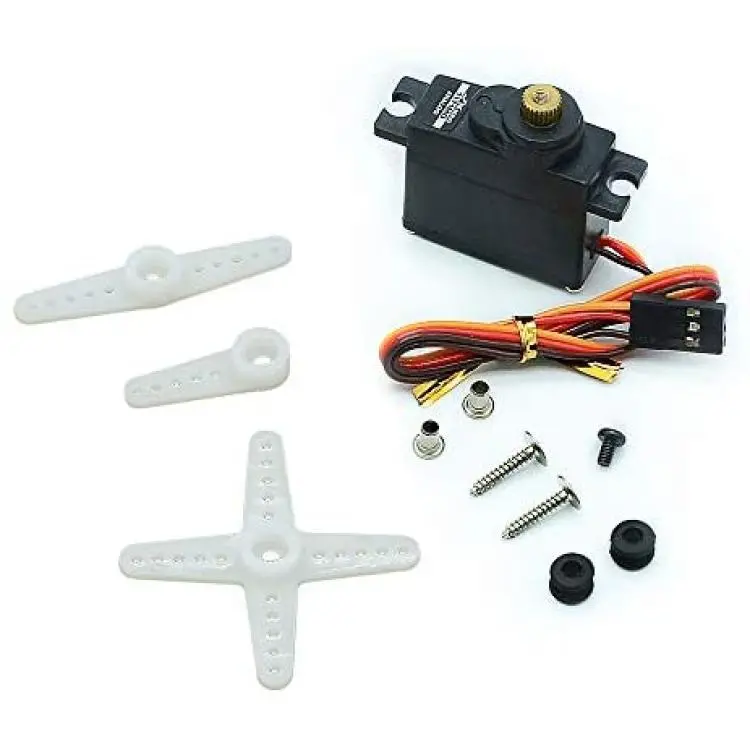

1x JX Servo PS-1171MG (with accessories)
