VGEBY 60A RC Brushless ESC + 3650 RC Brushless Motor + M0900 9kg RC Metal Gear Servo RC Parts(60A Brushless ESC)
About this product
*★ MORE POWERFUL: ESC using 32-bit microprocessor, more powerful, stable performance.
*★ HIGH PERFORMANCE: Better throttle handle, faster acceleration, more violence, better linearity, more responsive.
*★ POWERFUL FUNCTION: Powerful throttle and brake functions, such as throttle acceleration, throttle curve and throttle flexibility, etc., can be adjusted to better meet the drivers needs.
*★ DESIGNED FOR: 3650 Brushless motor and +60A brushless ESC with 9kg servo are specially designed for RC crawler vehicles. Special designed for DIY RC model, wonderful upgrade parts for RC car model.
*★ GUARANTEE: If you are not satisfied with our product received, you can apply for unconditional return and refund within 180 days. In terms of any problem of this product, you can send emails to us at any time. We will reply you as soon.
Description
Specification:
Condition: 100% Brand New
Item Type: RC Parts
Material: Plastic + Metal
Color: Black + Blue
Optional Type: 60A Brushless ESC; 60A+3650-3300KV; 60A+3650-3300KV+9kg Servo
60A ESC:
Current: 60A
Maximum Current: 460A
BEC: Yes
Lipo: 2-3s
Programming: Yes
BEC Output: 6V / 3A
PWM: 8-24 KHZ
Size: Approx. 49 x 40 x 35mm / 1.9 x 1.6 x 1.4in
Single ESC: Applicable to 1/12 and 1/10 RC vehicle (supporting 2S / 3S lithium battery)
Brushless Motor:
Speed: 3300KV
Maximum Current: 69A
Maximum Wattage: 900W
Maximum Speed: 50000
Tank Diameter: Approx. 36mm / 1.4in
Length: Approx. 50mm / 2in
Shaft Diameter: Approx. 3.175mm / 0.1in
Shaft Length: Approx. 15mm / 0.6in
Plug Type: 4.0mm
DM0900 9KG Servo:
Torque: 9.6kg-cm / 4.8V; 10.5 kg-cm /6.0V
Speed: 0.14s / 60 / 4.8V; 0.13 S / 60 / 7.4 V
Net Weight: 58 g / 2 oz(approx.)
Size: Approx. 40 x 20 x 37.5mm / 1.6 x 0.8 x 1.5in

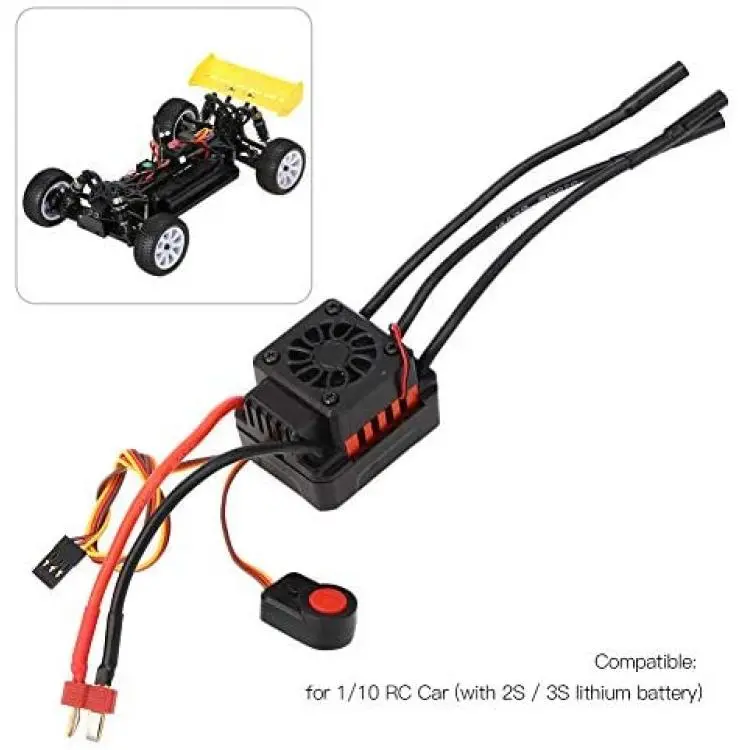

Compatible: for 1/10 RC Car (with 2S / 3S lithium battery)

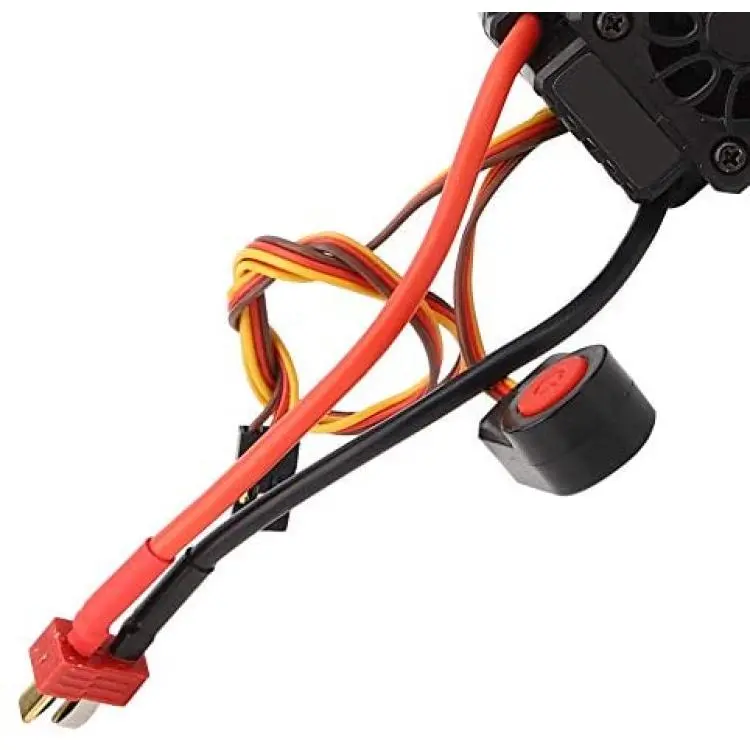

T-type plug at the input end of ESC, 4.0mm round hole at the output end, and 3.175mm diameter of the motor outlet shaft
Package List:
1 x 60A Brushless ESC
1 x Manual
or
1 x 60A ESC
1 x 3650 Brushless Motor
1 x Aluminum Motor Radiator Â
1 x Manual
or
1 x 60A ESC
1 x 3650 Brushless Motor
1 x 9kg Metal Gear Servo
1 x Aluminum Motor Radiator Â
1 x Manual
2 x Bag of Screw Accessory
Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
