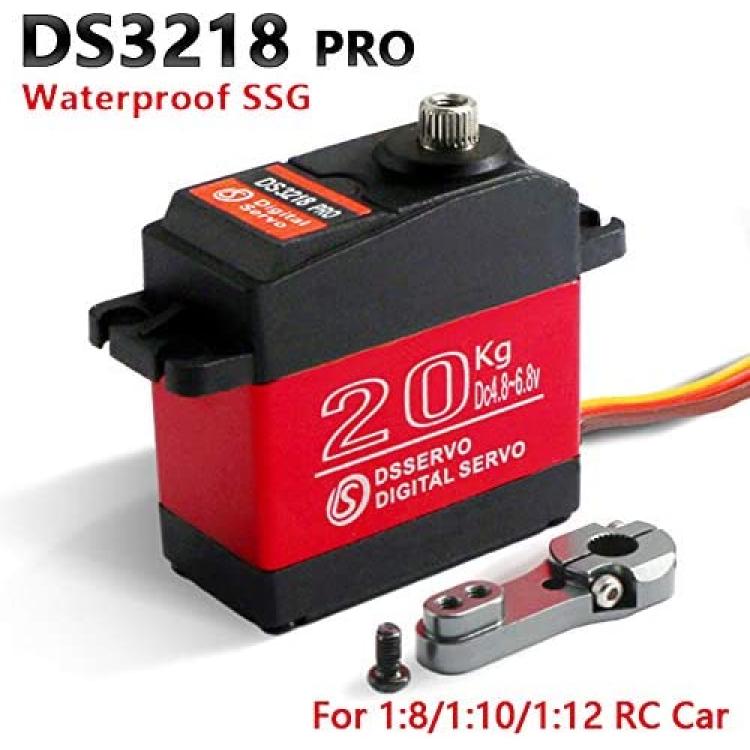

ZOSKAY 6V 20kg/0.09S High Speed Servo DS3218 PRO Waterproof High Torque Metal Gear Standard Digital Servo for 1/8 1/10 Scale RC Cars (Control Angle 270)
About this product
*Stall Torque (5V): 21 kg/cm (291.5oz/in), Stall Torque (6.8V): 23.5 kg/cm (326.2 oz/in),Speed : 0.12 sec/60°(5V) / 0.09 sec/60°(6.8V)
*standard servo Compatible with 1:10 and 1:8 scale Crawler/Buggy/Truck RC Car, mechanical arm, Quadcopter Drone and other remote control equipment.
*High speed stainless steel gear ,accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.
*Waterproof performance: IP66 any application where waterproof standard servos are used
*High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, high precision, control is more delicate and smooth operation.
Description
Middle High speed stainless steel gear With Plastic Top and Bottom
Used For: 1/10 1/8 scale Crawler / Buggy / Truck
Waterproof performance:IP66
Stall Torque (5V): 21 kg/cm (291.5oz/in)
Stall Torque (6.8V): 23.5 kg/cm (326.2 oz/in)
Speed : 0.12 sec/60°(5V) / 0.09 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Dead brand: 3?s
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 50-333Hz
Operating travel:270°?PWM 500-2500?s?
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Features:
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings
Control Method: PWM
Pulse Width: 500~2500 ?sec
Bearing Type: Ball Bearing x 2
Temperature: -20?~70?
Connector wire length: 300±5mm
Package Included:
1 x 20KG High speed stainless steel gear Digital Servo
1 x 25T Adjustable metal servo arm
