BIEHOL B3650 4300KV Brushless Motor+60A ESC +Program Card Combo for 1/10 RC Car Truck

??Feature:

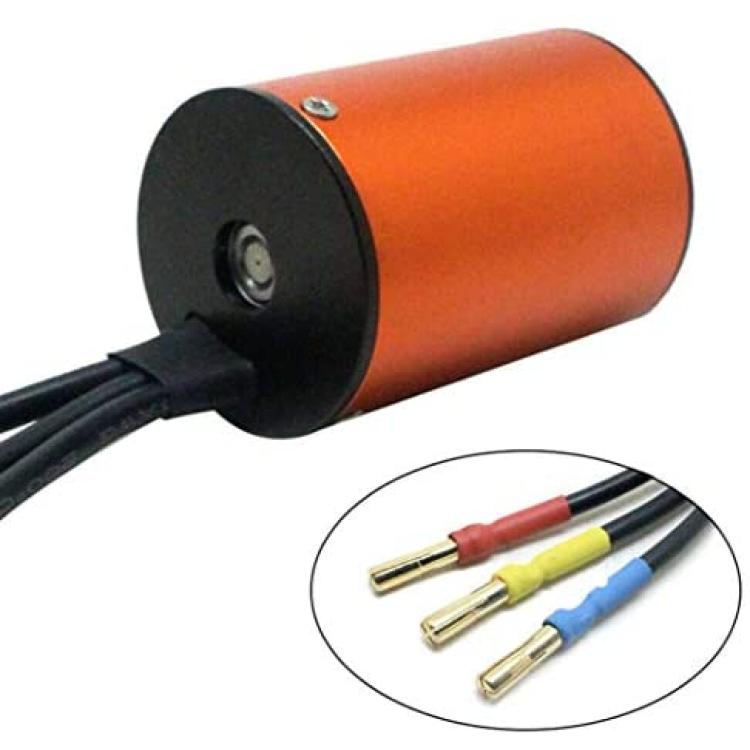

??Motor Specifications:

??Watts: 900W

??Max voltage: <12V

??Max Amps: 75A

??KV(RPM/Volt): 4300KV

??Max RPM: 50000

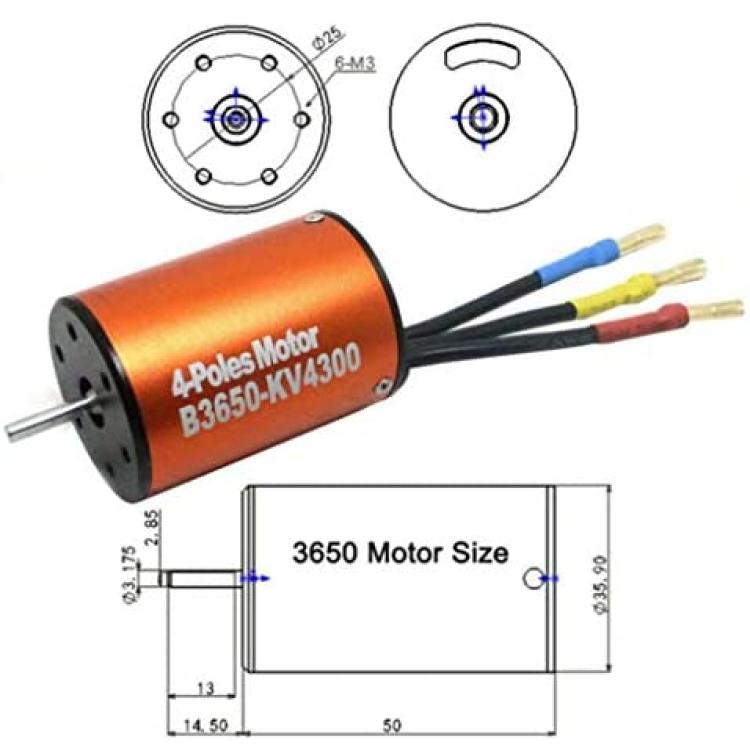

??Diameter: 36mm

??Length: 50mm

??Shaft length: 15mm

??Shaft diameter: 3.175mm

??Plug type: 4mm golden banana plug

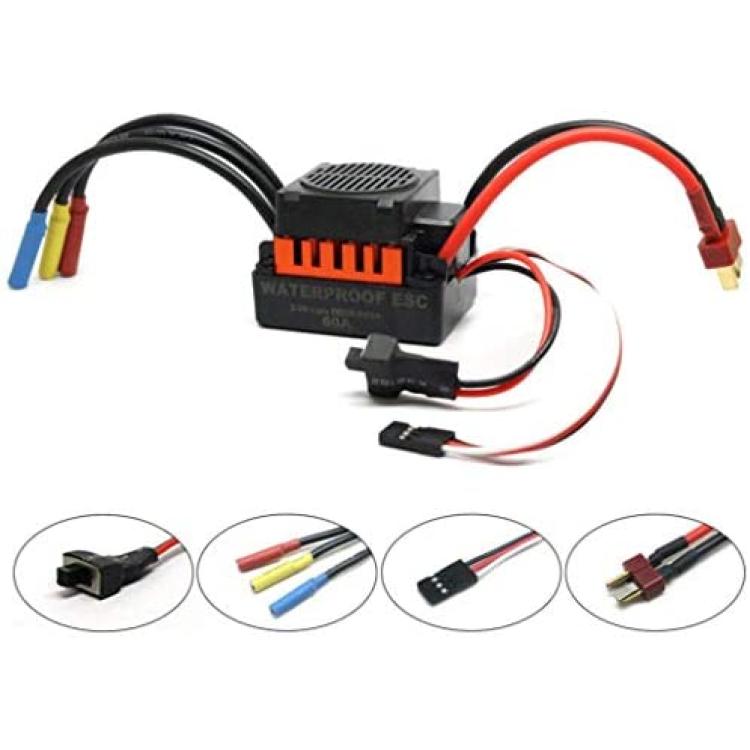

??ESC Specifications:

??Item name: waterproof ESC

??Continue current: 60A

??Burst current: 320A

??Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-C-d

??BEC output: 5.8V / 3A

??Power supply plugs: T plug male

??Motor plugs: 4mm banana plug female

??Dimension: 50 x 35 x 34mm / 2.0 x 1.4 x 1.3in (without cables)

??Package Information:

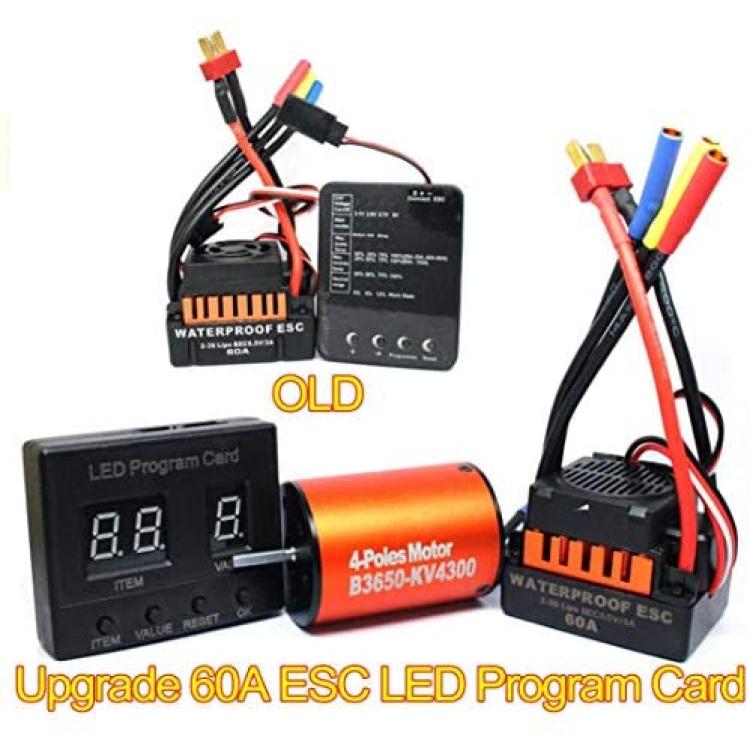

??Digital LED Display Program Card Specifications:

??1, Running Mode

??(1)Forward / Brake (2)Forward / Reverse / Brake

??2, Drag Brake Force

??(1) 0% (2) 5% (3) 10% (4) 15% (5) 20% (6) 25% (7) 30% (8) 40%

??3, Low Voltage Cut-off

??(1) Non Protection (2) 2.6V/Cell (3) 2.8V/Cell (4) 3.0V/Cell (5) 3.2V/Cell (6) 3.4V/Cell

??4, Start Mode

??(1) Level 1 (Soft) (2) Level 2(Ordinary) (3) Level 3 (4) Level 4

??5, Brake Force

??(1) 25% (2) 50% (3) 75% (4) 100%

??6, Reverse Force

??(1) 25% (2) 50% (3) 75% (4) 100%

??7, Initial Brake Force

??(1) Drag Brake Force (2) 0% (3) 20% (4) 40%

??8, Neutral Range

??(1) 6%(Narrow) (2) 9%(Normal) (3) 12%(Wide)

??9, Timing

??(1) 0.00º (2) 3.75º (3) 7.50º (4) 11.25º (5) 15.00º (6) 18.75º (7) 22.50º (8) 26.25º

??10, Motor type

??(1) Brushless Motor

??11, Over?Heat Protection

??(1) 95ºC / 203ºF (2) Non Protection

??Weight : 27g

??Fit RC Car 35A 60A 80A 120A ESC

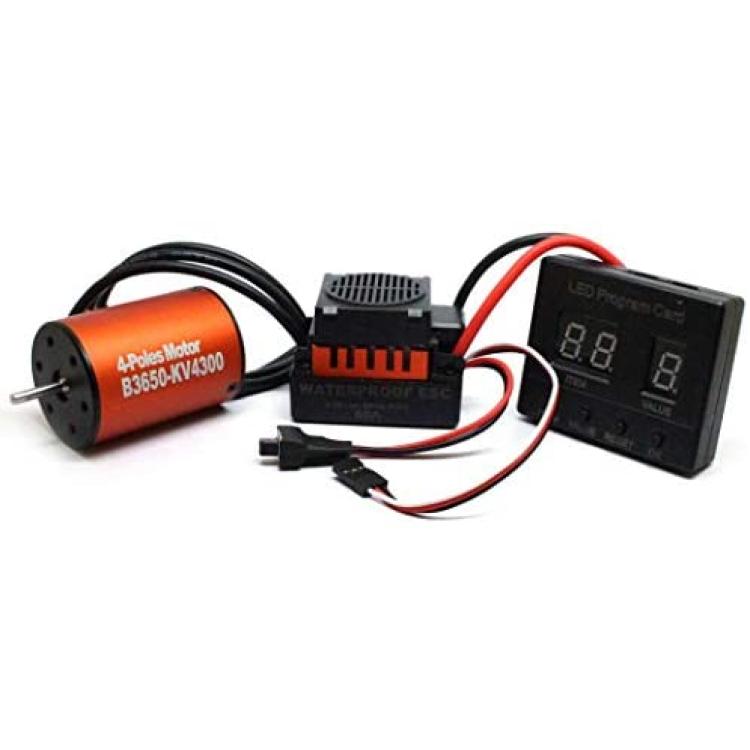

??Package List:1 x 3650 4300KV Motor;1 x Waterproof 60A Brushless ESC;1 x Program Card
