Yakamoz DC12V 16mm 5/8'' Metal Self-Locking Latching Push Button Switch Red Led Power Symbol Car DIY Switch Black
Availability: Pre-Order, Inquiry Price
About this product
*Great for Electric Switch, Relay, Power Button Switch, Critical Lights, Chassis Lamp, Fog Lamps, Door Switch, Led Switch or any circuit controls on over 500,000 cycles.
*Mounting Hole Size: Φ16mm, Switch Rating: 3A/250AC, Switch Combination : 1NO1NC

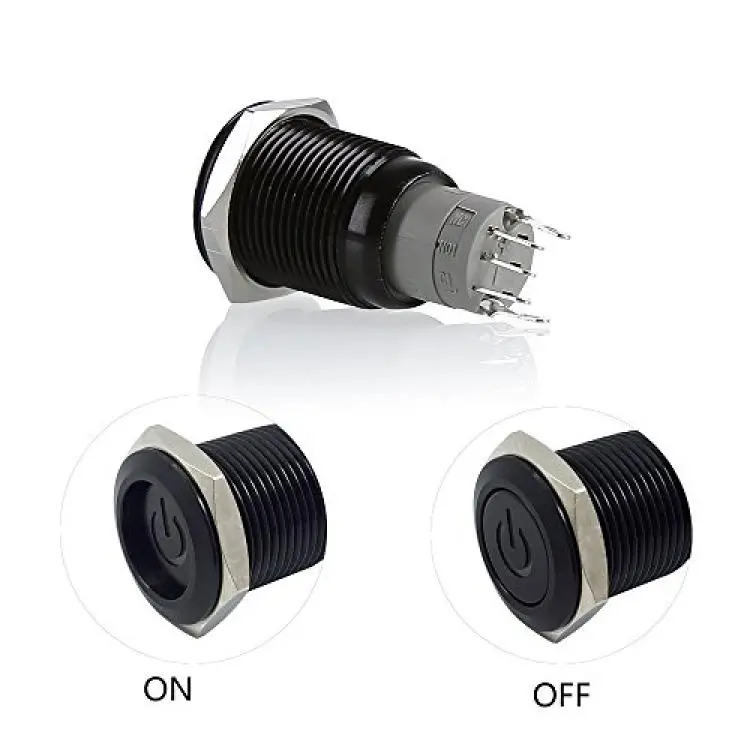

*Operation Type: Latching/ Self-Locking [Push it - ON, push it again - OFF]

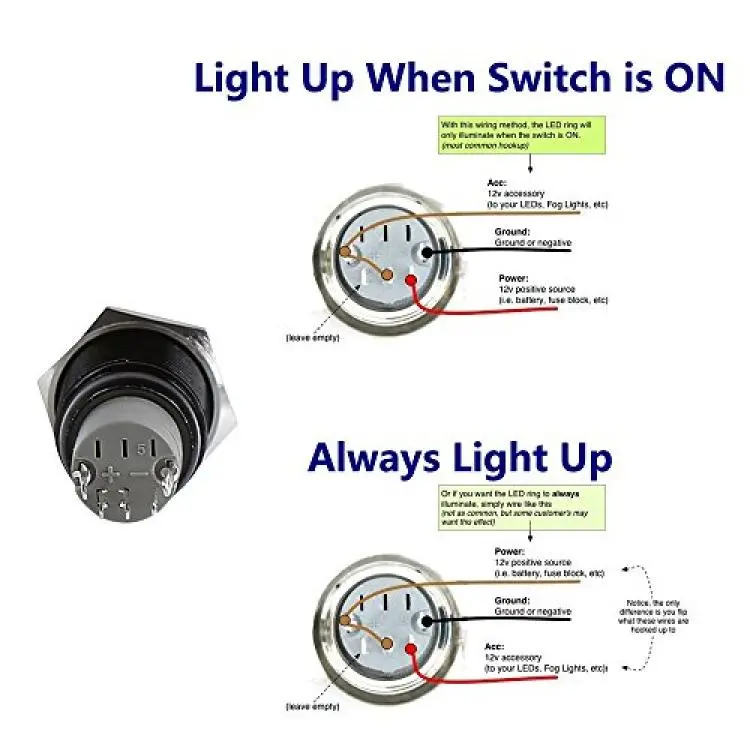

*Ring LED can be on all the time or only when switch is on which depends on how you wire it.
*High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
Description
Specification
Mounting Hole Size: ?16mm
Switch Rating: 3A/250AC
Switch Combination : 1NO1NC/2NO2NC
Operation Type: Latching/ Self-Locking [Push it - ON, push it again - OFF]
Head Shape: Flat
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Power Symbol Illuminated
LED Color: Red
LED Voltage: 12V
Degree of Protection: IP65, IK08
Pins: 5
Switch Shell Color: Black
Operation Pressure: about 4N
Mechanical Life: 500,000 cycles
LED Life: 40,000 hours
Package Include:
1 X Push button switch
