Yakamoz DC12V 19mm 3/4'' Red Ring Led Metal Momentary Push Button Switch Car DIY Switch Silver with Wired Connector Adapter
Availability: Pre-Order, Inquiry Price
About this product
*Great for Ignition Starter, Relay, Horn Button Switch, Critical Lights, Chassis Lamp, Fog Lamps, Door Switch, PC Power Switch or any circuit controls on over 500,000 cycles.
*Mounting Hole Size: Φ19mm, Switch Rating: 5A/250AC, Switch Combination : 1NO1NC/ 2NO2NC
*Momentary Type: Resetable [Push & Hold ON, Release OFF]

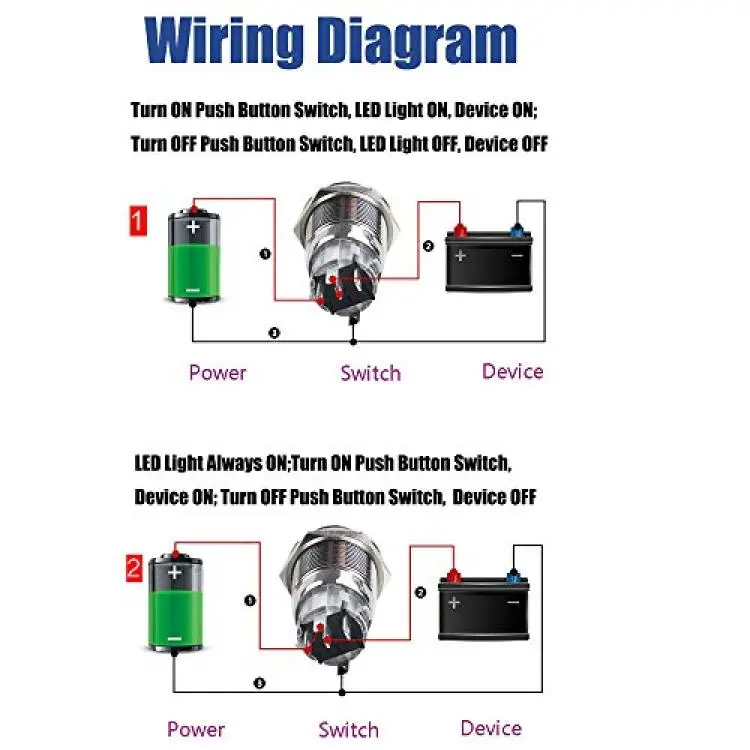

*Ring LED can be on all the time or only when switch is on which depends on how you wire it.
*High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment.
Description
Brand new and durable,mechanical life for 500,000 cycles.
Be widely used widely for circuits control in electromagnetic starter, contactor, relay and other electric circuits. Such as motor starting, power starting device or access control button.
Feature

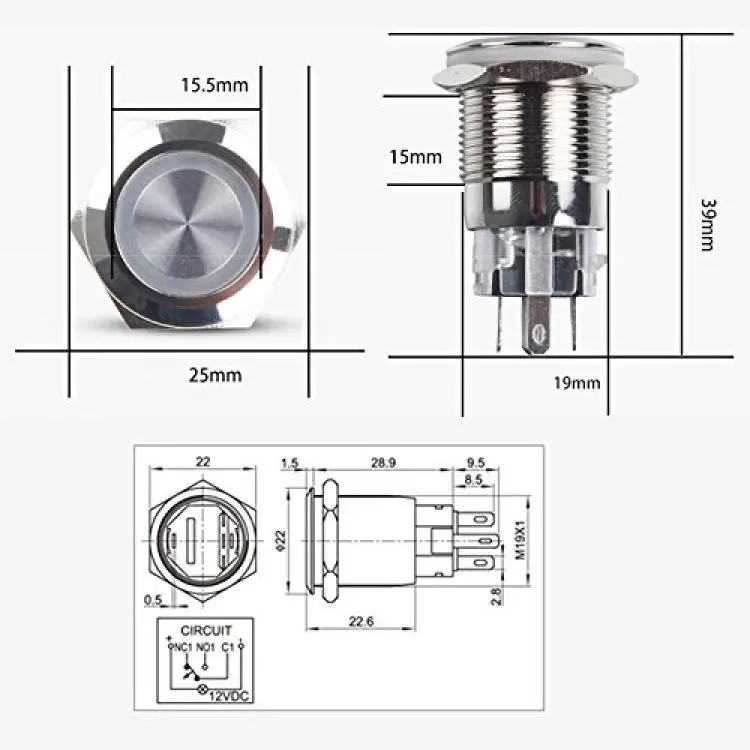

Mounting Hole Size: ?19mm
Switch Rating: 5A/250AC
Contact Resistance: ? 50m?
Insulation Resistance: ? 100m?
Ambient Temperature: -20? - +55?
Switch Combination : 1NO1NC/ 2NO2NC
Momentary Type: Resetable [Push & Hold ON, Release OFF]
Head Shape: Flat
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring Illuminated
LED Color: Red
LED Voltage: 12V
Degree of Protection:IP67, IK10
Pins: 5
Switch Shell Color: Silver
Operation Pressure: about 4N
Mechanical Life: 500,000 cycles
LED Life: 40,000 hours
Package Include:
1 X Push button switch

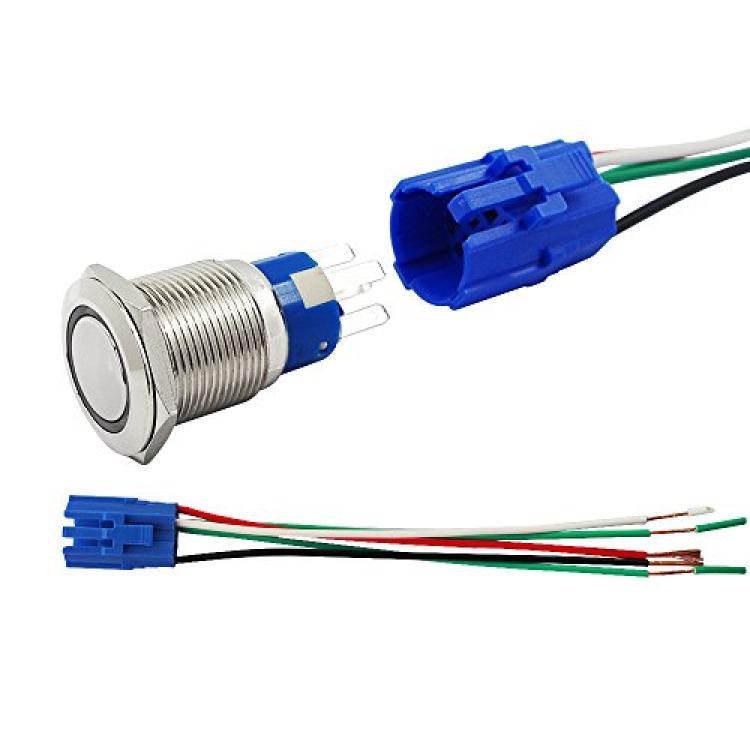

1 X Wiring Socket Plug Adapter
