NEJE 7W Engraving Module,2.5W Output Power,Suitable for NEJE Master 2 Engraving Machine,CNC Machine/Router/Arduino/3D Printer,etc.(2.5W Module)

About this product

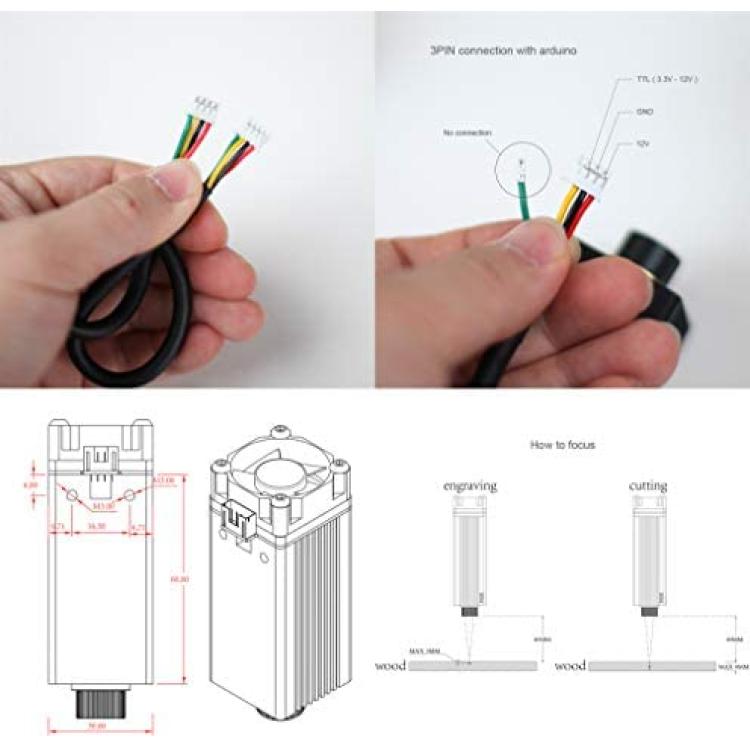

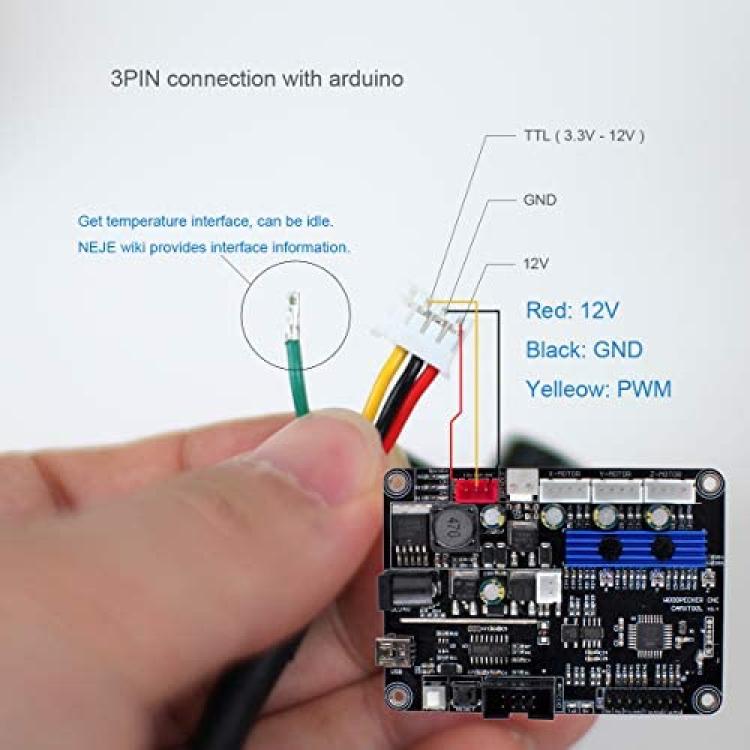

*✅【Easy to Use】12V input, 3.3-12V PWM/TTL control,Can be used for cutting machine, engraving machine, CNC, Arduino.Recommended application machine: NEJE MARST 2 engraving machine to design.If you want to compatible with other CNC equipment, Must correspond NEJE engraving module application interface voltage: 3.3 ~ 12V, Duty Cycle: 1% ~ 100%, frequency: 0-20 kHz.

*✅【Original Diodes】Osram 5.6mm Original diodes, High-quality, Ensure service life! The maximum power 445-450nm 5.6mm diode！NEJE lens is Clear focus, Not stray light, Adjustable focal length.

*✅【20000 hours service life】Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hour 100% power aging test, Ensure long time working！

*✅【Application Material 】Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)

*✅【NEJE Services and Note】The interface specifications of this engraving head and other brands of engraving machines are slightly different. It requires some professional knowledge when installing and using other brands of machines.If you need help, please contact us. We will reply within 24 hours.
