DIHORSE Desktop 30W Fiber Laser Marking and Engraving Machine for Permanent Metal and Various Non-metal Gold Sliver Rings Jewelry Engraving (MAX, 30W, 7.87'' x 7.87'', 50MM Rotary Axis)
About this product
*Marking Machine Application: Fits for all metal and varies non-metal materials. Such as gold, silver, copper, alloy, aluminum, steel and stainless steel, plastic, ceramic, etc. Best for varies industries including jewelery, cell phone, keyboards, auto parts, electric appliances, kitchenware, knives, glasses, stainless steel products, electronic components, sanitary equipments, buckles, communication apparatus, etc. Able to engrave codes, decorative maps, LOGO, serial numbers, etc.
*Technical Parameters: Output power: 30W. Voltage: 110V, 60Hz. Marking size: 7.87" x 7.87". Laser wavelength: 1064nm.
*50MM Rotary Attachment: Professional for round material marking/engraving, ideal for marking rings, pens, tube, etc.
*Guarantee: 2-year warranty for whole machine; 24/7 full after sales service, our engineers will help you by Whatsapp, Skype, Teamviewer, Wechat, etc.
*Free shipping to your address; service to door with all charges paid, except customs duty which need paid through your account
Description
Working video for reference:
30W machine working on aluminum jewelry:
30W machine mark white and black on stainless steel:
30W machine engrave on guns:

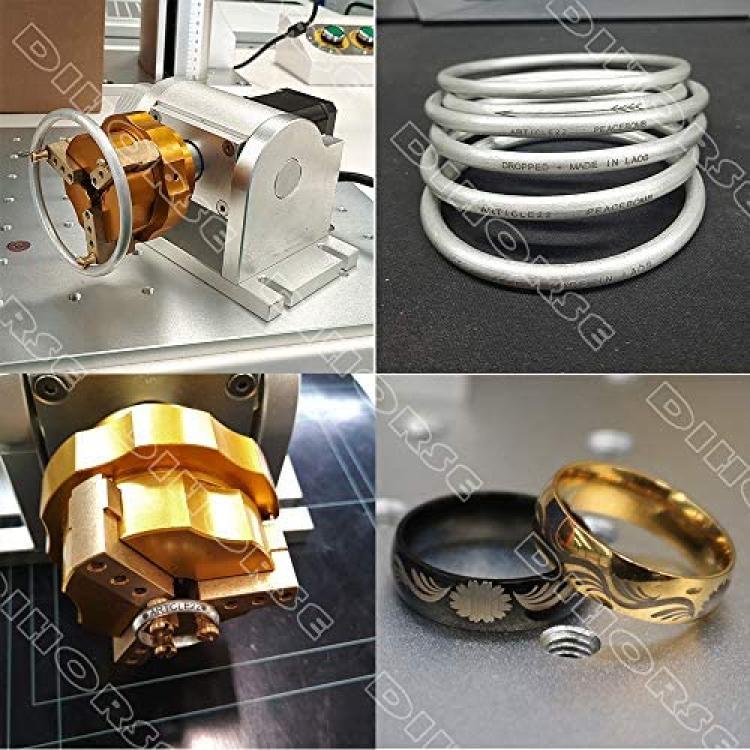

50MM rotary:
Technical Parameters:
Laser Power: 30W
Power Supply Requirements: 110V 60Hz
Working Area: 7.87" x 7.87"
Laser Wavelength: 1064nm
Engraving Depth: ?0.4mm
Marking Speed: 0-7000mm/s
Marking Lines: 1-10 lines
Minimum Character: 0.15mm
Response Time: 0.5ms
Repeatability Accuracy: ±0.002mm
Resolution Ratio: 0.01mm
Min.line with: 0.01mm
Certificate: With FDA & CE Certificate
Operation System: Microsoft Windows 7/8/10/XP
Control Software: EZCAD
Marking Content: Text, pattern, date, bar code, etc.
Graphic Format Supported: BMP, JPG, TGA, AI, DXF, PNG, TIF, DXF, DST, etc.
Unit Power: ?0.8 KW
Beam Diameter: <30um
Cooling Mode: Air Cooling
Frequency of pulse: 20-100 KHz
Laser Module Life: >100000 hours
Operation Temperature: 32-104? (0-40?)
Package Weight: 249 pounds
Package Dimensions(L*W*H): 35" x 29" x 45"
Packing list:
1 X 30W Fiber Laser Machine
1 X 50MM Axis Rotary
1 X Computer
4 X Replaceable switch
1 X USB flash disk
1 X Power cable
1 X Pedal
1 X Ruler
Please contact us for special work need or configuration details.
Notice:
Whole machine warranty is 2 years starting from production time. Within 2 years, any fault caused by non-artificial reason we should maintain it freely. During warranty period, the seller offers free repair or spare parts. Out of warranty period, the buyer should afford round-trip courier charges and spare parts fees.
