Medium/Heavy Duty Designer Commercial Door Closer - LYNN Hardware DC7016 (US10B Dark Bronze) Surface Mounted, Grade 1- ADA & UL 3 Hour Rated, Adjustable Size 1-6 for entrances & Aluminum storefronts
About this product
*USAGE: Perfect for medium and high traffic entrances such as aluminum storefronts, restaurants, and other public places. Use on doors weighing up to 330 lbs, Manufactured from Cast Aluminum, Wrought Steel arm, Heat Treated Piston, Powder Coated Finished Body to enhance corrosion resistance, Tri-Pack (Regular, Top Jamb, and Parallel Arm Mounts) standard, Non Handed, Adjustable Back Check Valve
*MATERIAL: Grade 1 Medium/Heavy Duty Cast Aluminum. Wrought Steel arm. Powder Coated Finished Body to enhance corrosion resistance. Heat Treated Piston.
*CERTIFICATIONS: BHMA/ANSI 156.4 Grade 1 to 2,000,000+ cycles, UL/c UL Fire Rated Listed - 3 hrs
*COMPARABLE CLOSERS: Norton 1600, Dorma 640, LCN 1260, Cal-Royal 300, Hager 5300, Sargent 1130, Dor-O-Matic S660, Parker 900, Yale 50 and Lawrence LH5016 and Inox Hardware DC6114 and Inox DC6126
*Tri-Pack (Regular, Top Jamb, and Parallel Arm Mounts) standard, Non Handed, Adjustable Spring Power Size 1-6, Back Check, Closing Speed & Latching Speed valves all come standard
Description
Designer and Architect #1 recommended line of Commercial Door Closers. LYNN Hardware closers are beautifully designed and architectually pleasing to give your entry, storefront, or opening a sharp looking closing devise.
LYNN Hardware DC7016 - - This Door Closer is a Perfect solution for Medium to high traffic entrances and doorways. This model is the most popular on aluminum storefronts, but can be used in a variety of different application such as factories, schools, offices, restaurants, and other public spaces.
SPECIFICATIONS:
--Medium/Heavy Duty Automatic Door Closer, Grade 1
--Non-Handed
--Adjustable Power Sized 1-6 (preset at 3)

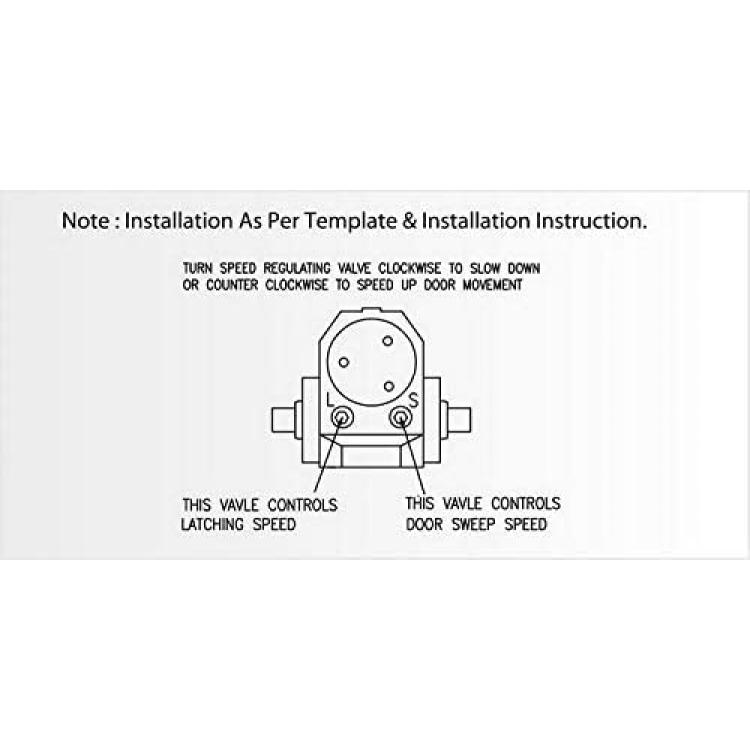

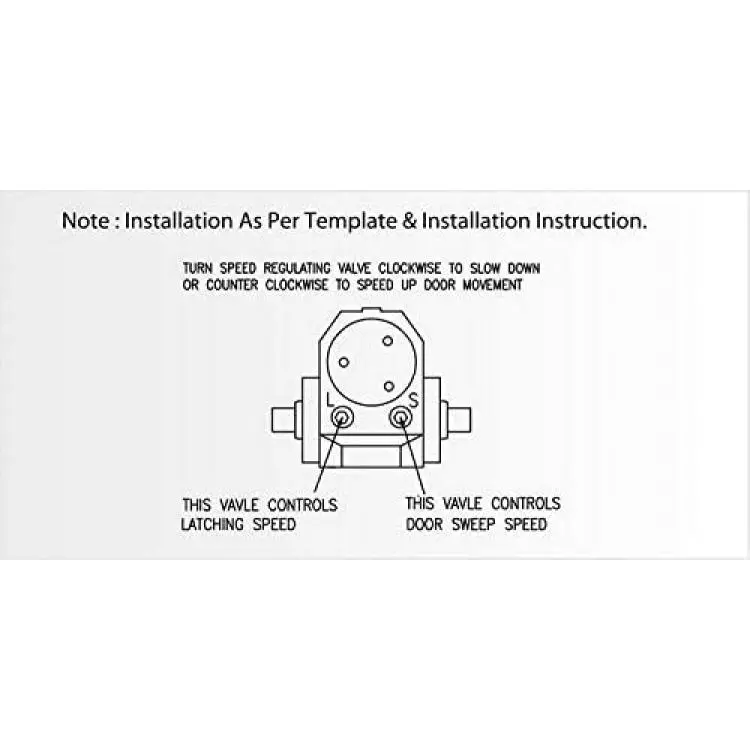

--3 Adjustable Valves (Latch, Sweep, and Backcheck)
--COLOR: Dark Bronze (US10B Duronotic)
---Screw/bolt Pattern: 9-1/16" c-c width x 3/4" c-c height

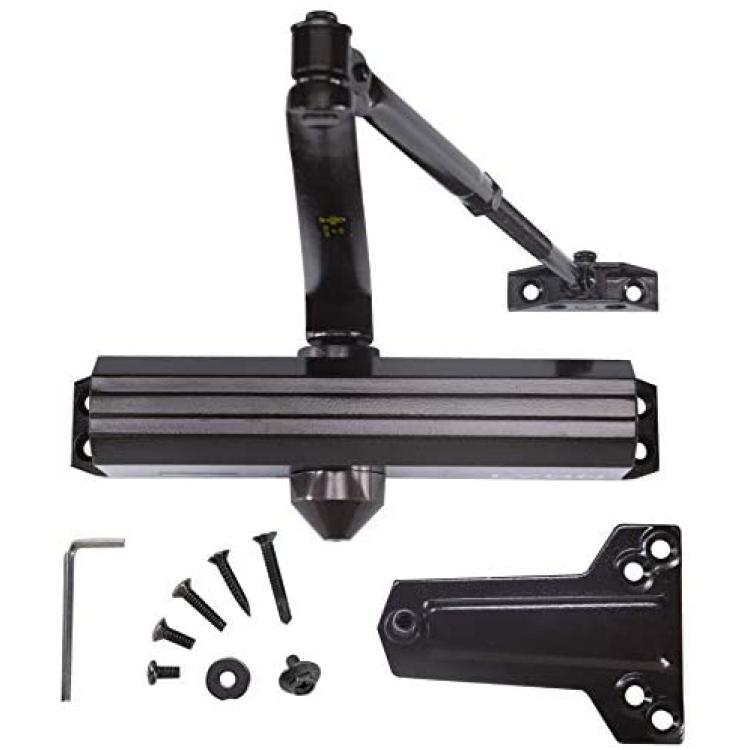

INCLUDED:
--(1) Grade 1 Heavy Duty Cast Aluminum Commercial Door Closer
--Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations
--Machine and Wood Screws
--Installation Guide & Mounting Templates
USAGE: Perfect for Medium to Heavy traffic entrances such as aluminum storefronts, office buildings and restaurants. Use on doors weighing up to 330 lbs
WARRANTY: 10 years
CERTIFICATIONS: BHMA/ANSI 156.4 Grade 1 to 2,000,000+ cycles, UL/c UL Fire Rated Listed - 3 hrs
COMPARABLE CLOSERS:Norton 1600, Dorma 7200 & 7300, LCN 1250 & 1260, Cal-Royal 300, Hager 5300, Sargent 1130, Dor-O-Matic S660, Parker 900, Yale 50, Lawrence LH5016, Inox Hardware DC6114 & DC6126
Other LYNN Hardware Closers:
DC9016 = Extra Heavy Duty Door Closer
DC8016 = Heavy Duty Door Closer
DC7016 = Medium/Heavy Duty Door Closer
DC6003 = Medium Duty Door Closer
<
