NOYITO 12mm Chassis Switch Metal Button Switch with 22inchs Extension Cable Red Yellow Blue Green Switch Symbol Suitable for Computer DIY Switch (12mm, Yellow Symbol)

NOYITO 12mm 16mm Chassis Switch Metal Button Switch With 23inchs Extension Cable User Manual Download Link:



Product Description:

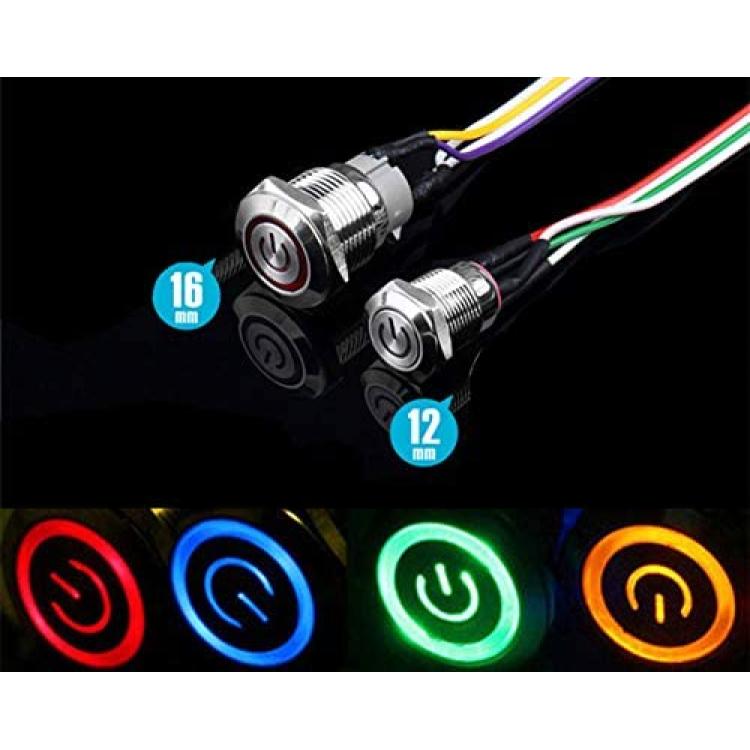

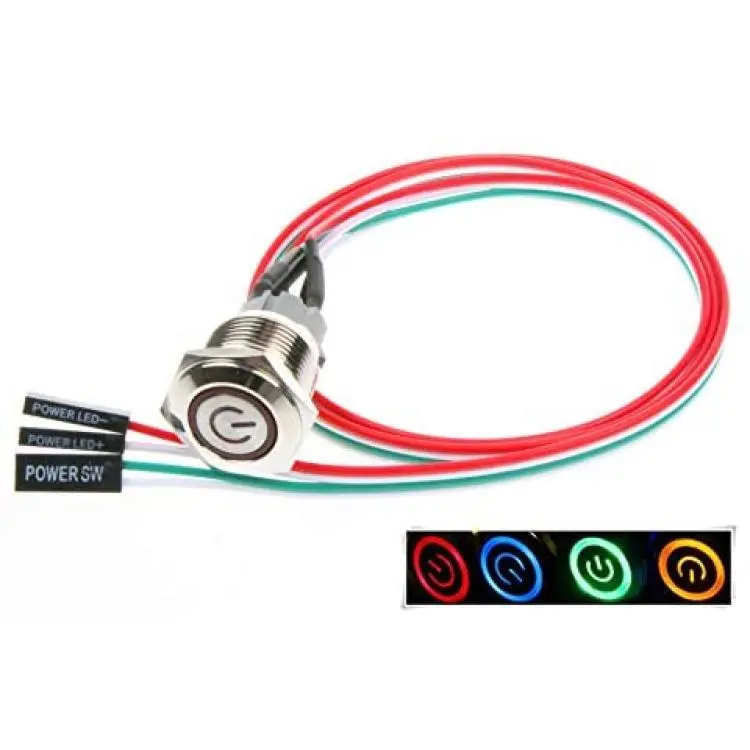

This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red Yellow Blue Green LED ring With switch symbol.
Suitable for DIY Computer Switch and Restart Button .

Metal Button Technical Parameters
LED Parameters:
LED Type: High brightness LED lamp , Cool.
Rated Voltage : 3-6V.
Rated Current: ?20mA.
Switch rated load:
12mm switch - AC/DC 220V 3A Max;
16mm switch - AC / DC 220V 5A Max.

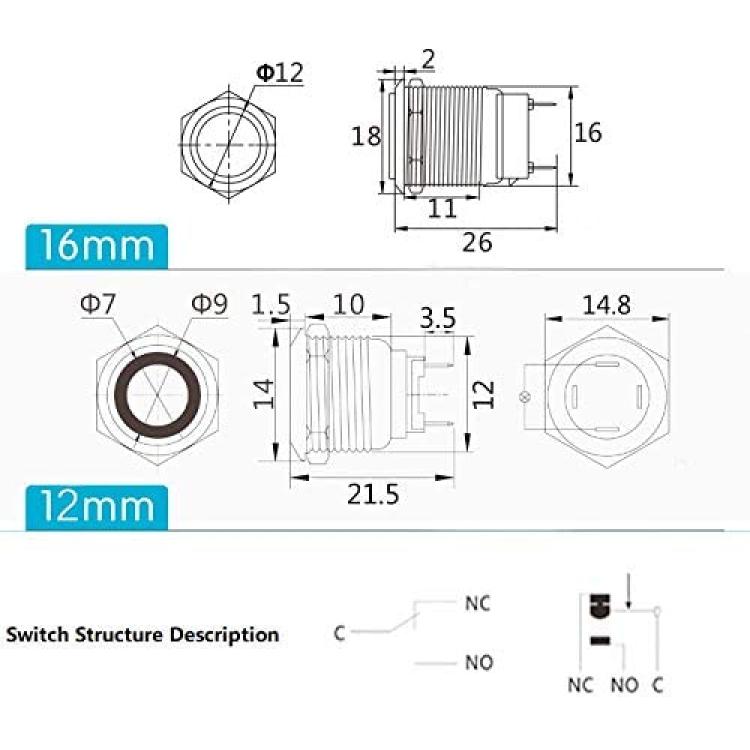

Switch Type : Fast moving single contact.
Contact resistance : ?50m?.
Insulation resistanace : ?1000M?.
Insulation strength : 2000VAC.
Ambient temperature : -20°C - +55°C.

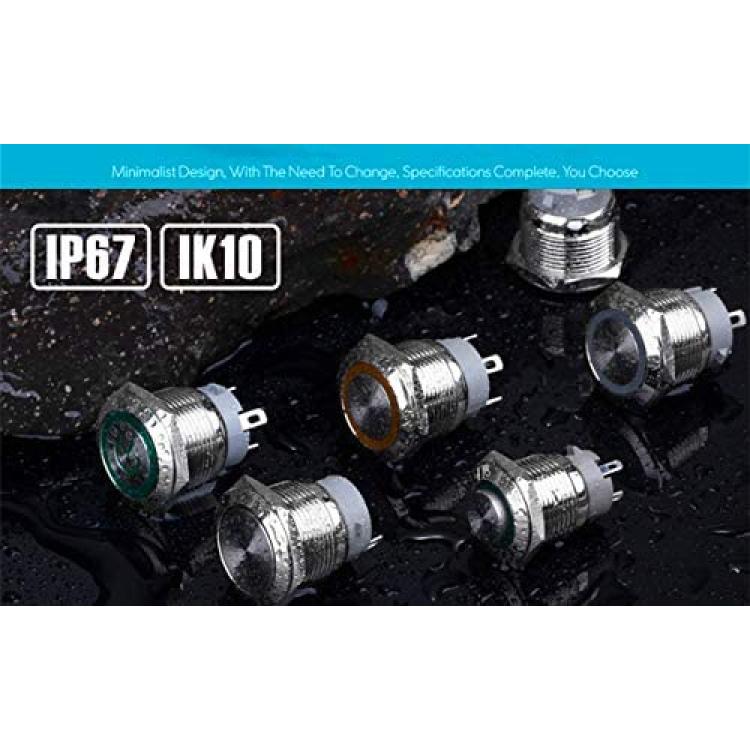

Waterproof grade IP67,
Explosion grade IK10(for metal material)
Operating pressure : 2.5- 4.5 N.
Outer Shell: Stainless steel.
Press key : Stainless steel.
Base seat : Engineering plastic.
Touchpoint: Silver alloy.

[About after-sales service]
Our aim is to provide the best products and services for every customer. So if you need any help when using our products, you can contact us.
We are also looking forward to your feedback on the use of the product., which will be valuable for us to develop new products.

Package Included:

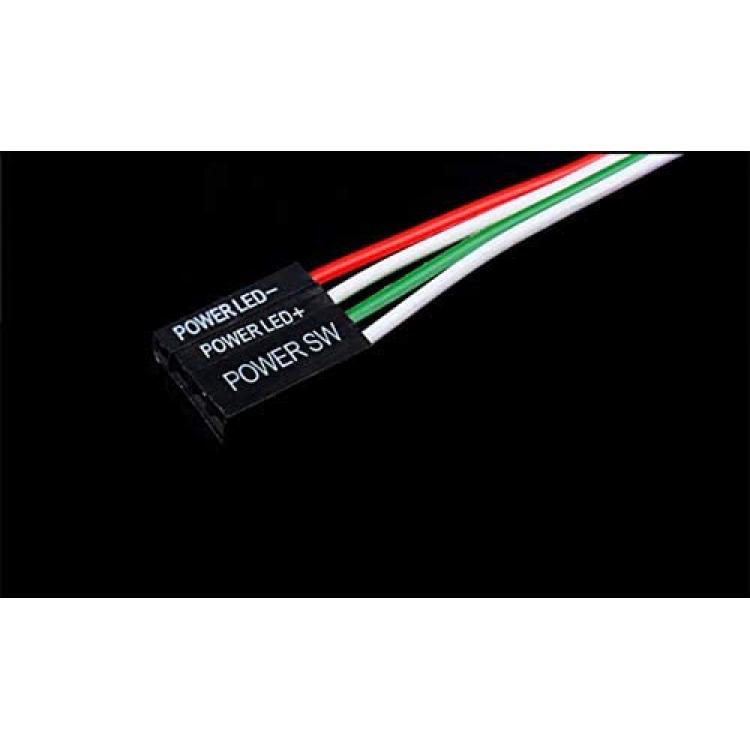

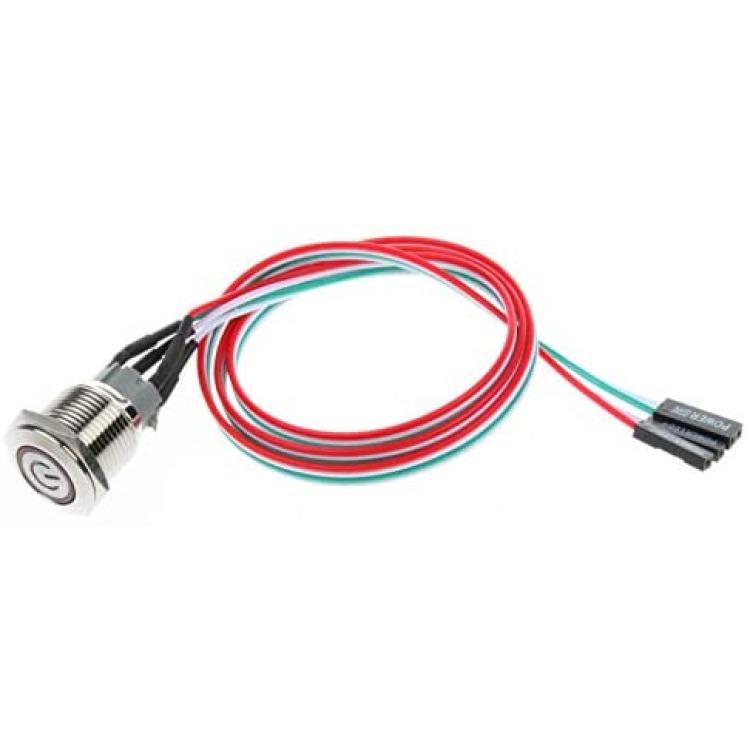

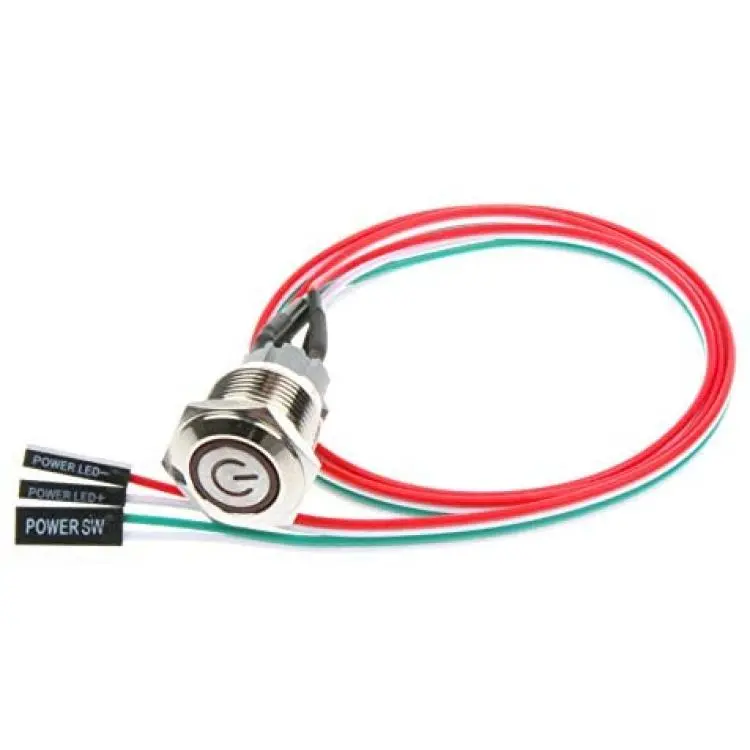

NOYITO Chassis Switch Host Metal Button Switch With 22inchs Extension Cable
