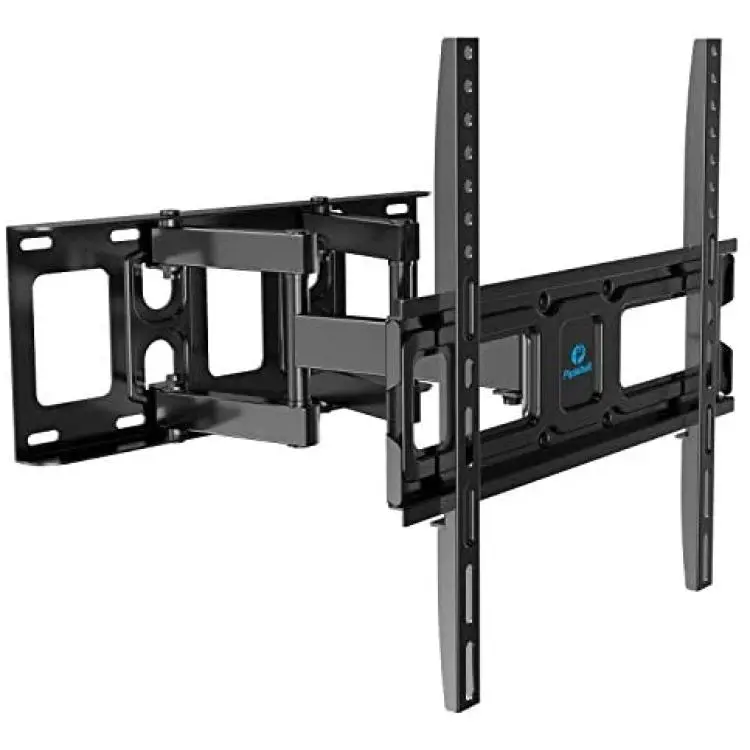

TV Wall Mount Bracket Full Motion Dual Swivel Articulating Arms Extension Tilt Rotation, Fits Most 26-55 Inch LED, LCD, OLED Flat&Curved TVs, Max VESA 400x400mm and Holds up to 99lbs by Pipishell
About this product

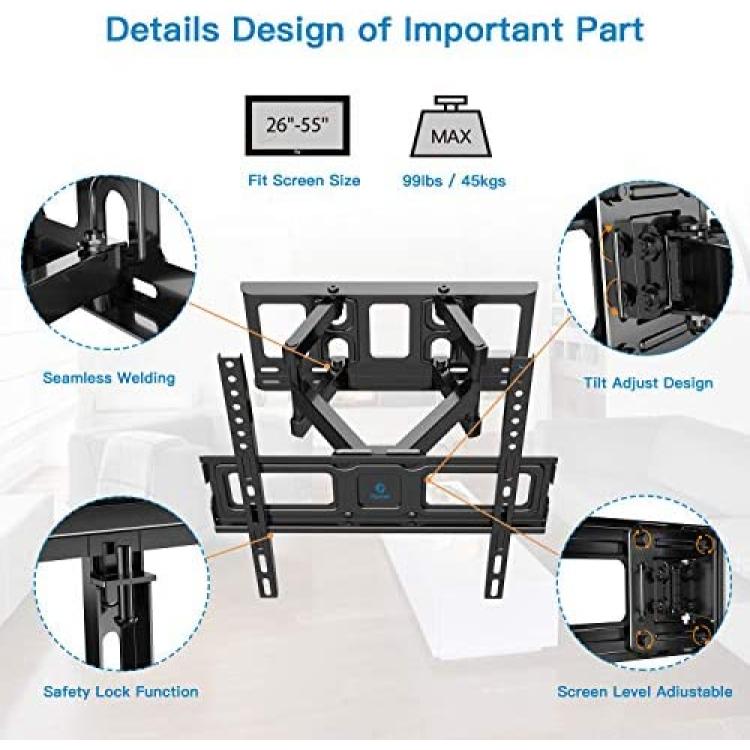

*Ultra strong double arms: Articulating TV mount are sophisticated engineered and tested with 4 times load-bearing to eliminate the risk when fully extended. It has a reinforced wall panel to give you confidence of TV installation (max weight 99lbs).

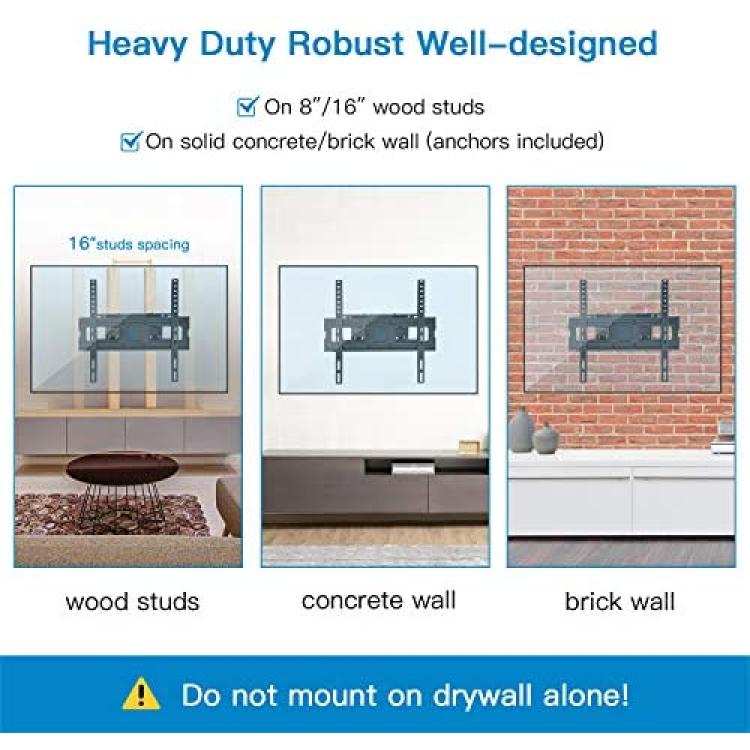

*Universal TV compatibility: TV mount is compatible with 26-55 inch TV with VESA mounting holes from 100x100 - 400x400mm. Please check VESA pattern, weight, size of TV before purchasing. Can be mounted to max 16in wood stud and concrete/brick walls.

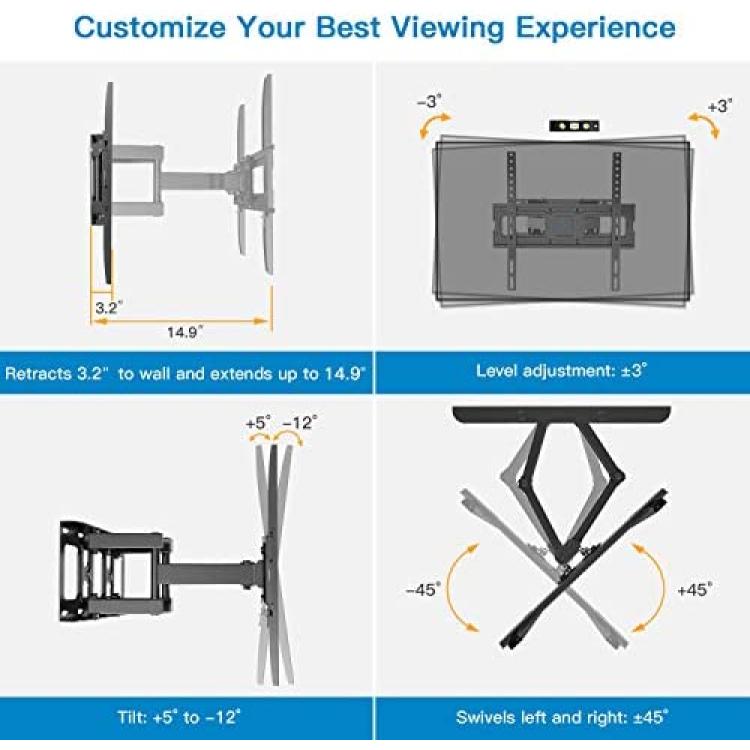

*Optimized viewing experience: Eliminate annoying glare with vertical tilt angle ranging from +5 to -12 degree and customize viewing angle with +/-45 degree full motion swiveling left to right and rotates +/-3 degree to enhance viewing experience.
*Save space and long extension: The stable and sturdy TV wall mount allows TV to be closer to the wall at 3.2 inch saving valuable space and extends out 14.9 inch without bending. so you can move your TV into the perfect position when needed.
*Easy installation: Our wall mount is easy to install and includes a full step by step installation guide and all the standard mounting hardware. And comes with 5 years friendly customer service.
Description
Specifications:
Fits 26" to 55" flat panel TVs
Supports TV weight up to 99lbs (45kg)

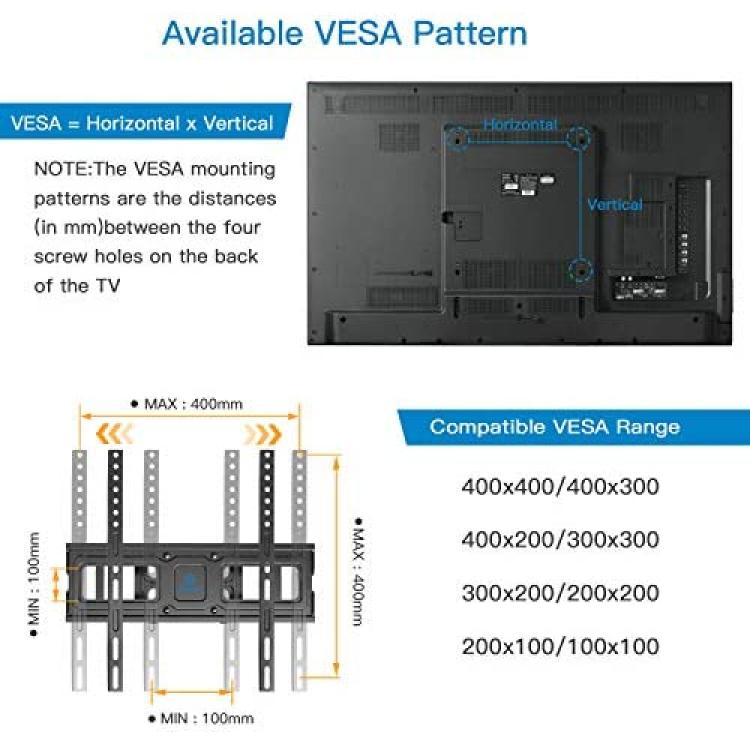

Fits VESA mounting hole patterns: 100x100mm/200x100mm/200x200mm/300X200mm/300x300mm/400x200mm/400x300mm/400X400mm
Low-profile design with a scratch-resistant finish, offers a stylish look and save your space. Tilts downwards from 0° to 8° for enjoy a comfortable view of your show.
Open wall plate enhances cable management options. Click, lock and release offers seamless adjustment, safely and easily place your TV where you want it most.
Wall mounting studs distance up to 16".
Package includes:
1x TV wall mount
1x Standard mounting hardware
1x User manual
First, please check your wall for wood studs. Of course! It can be mounted on concrete wall and brick wall, but you need to use additional anchors when installing. Please pay attention to the wall mounting studs distance is 16 inch maximum.Next, the weight of your TV should be less than 99lbs/45kg and your TV should be at least 26 inch.Then, please check the VESA pattern, VESA = horizontal × vertical. Mounting holes distance on the back of TV must be less than 16" (400mm) horizontally and 16" (400mm) vertically.Finally, please check the TV back area inside the 4 mounting holes to make sure there are not any cables outlet. Otherwise, the plate may block the plugs.Fits 26" to 55" flat panel TVs and supports TV weight up to 99lbs / 45kg.Can use with your existing TV, also use together with SONY/SAMSUNG/VIZIO/LG/Hisense/TCL/SHARP/Toshiba/Panasonic/philips/SKYWORTH and more.Fits VESA mounting hole patterns: 100x100mm/200x100mm/200x200mm/300X200mm/300x300mm/400x200mm/400x300mm/400X400mm ( In inches: 4"x4"/8"x4"/8"x8"/12"x8"/12"x12"/16"x8"/16"x12"/16"x16").Tilt adjusts -12 degrees forward or 5 degrees backward. Swivel up to 45 degrees meets different viewing needs. Rotate 3 degrees for perfect TV level adjustment. Extends up to 14.9" and folds 3.2" from the wall to save space. Wall mounting studs distance up to 16".Related Products
