XiaoR Geek Smart Robot Car Chassis Kit Stainless Steel Tank Chassis with 2WD Motors for Arduino/Raspberry Pi/Jetson Nano DIY Remote Control Robot Car Toys - Free Tools (Mini Chassis-Stainless Steel)
Availability: Pre-Order, Inquiry Price
About this product
*【High strength robot tank base】This is an agile tracked chassis, low noise and easy to control, which is a good partner for you to learning robotics.The robot chassis uses high strength stainless steel which makes it extremely solid and durable.
*【Nice damping effect】The track is made of engineering plastic that basically assured the good elasticity, excellent damping effect and large road grip of the product. What’ s more, The high speed motors and premium tracks also allows it to move swiftly everywhere.
*【More interesting functions】 XiaoR GEEK Tank Mobile Platform is fully compatible with most popular controllers in the market such as Arduino, Raspberry Pi, Jetson Nano, Micro:bit and so on. Users are able to add various sensors, servos, turntables and controllers with multiple mounting holes on the robot platform.
*【Develop DIY ability】The tracked tank chassis is assembled.
Description

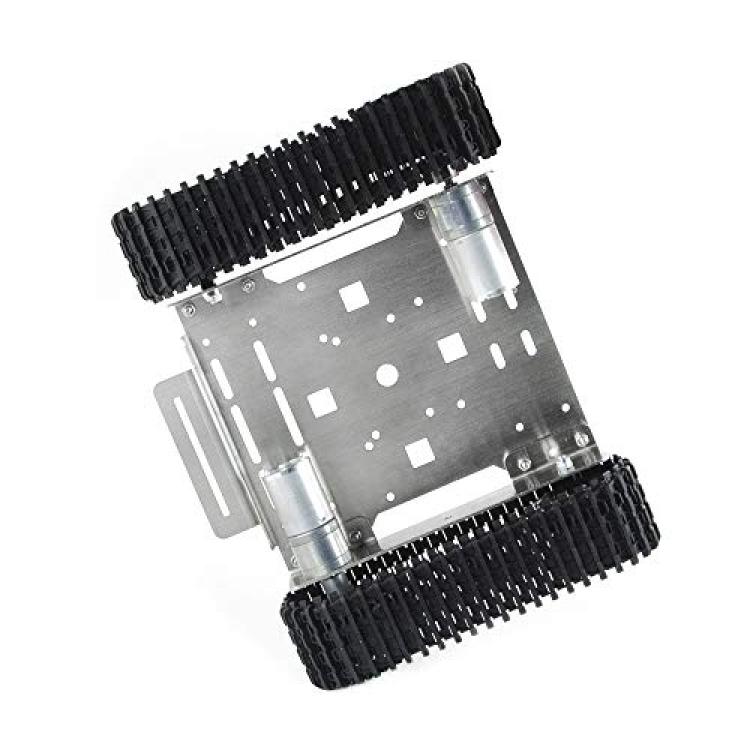

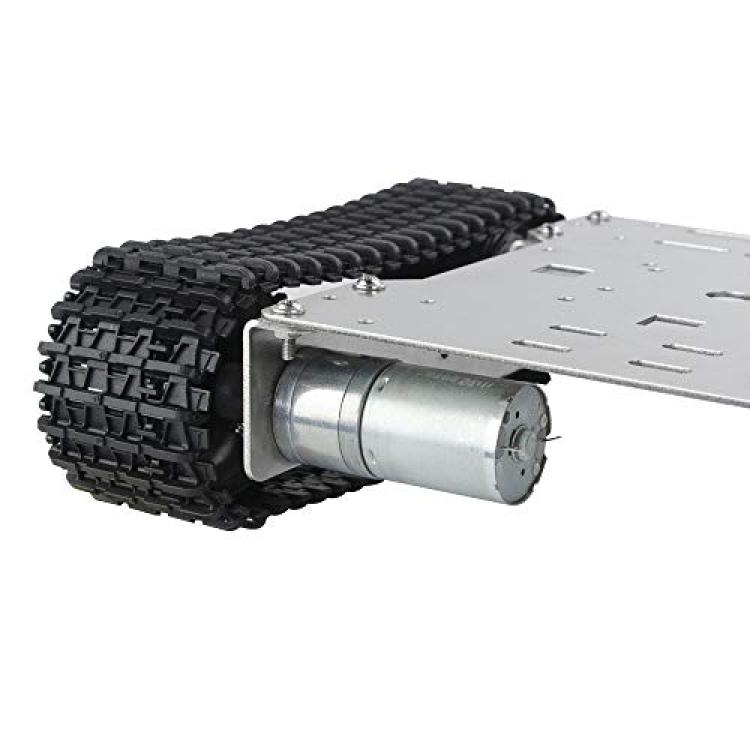

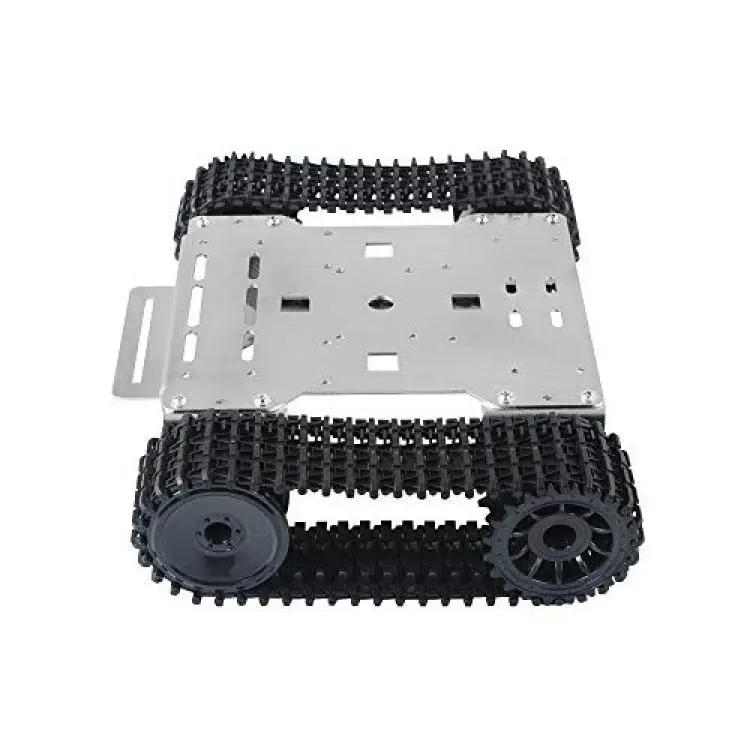

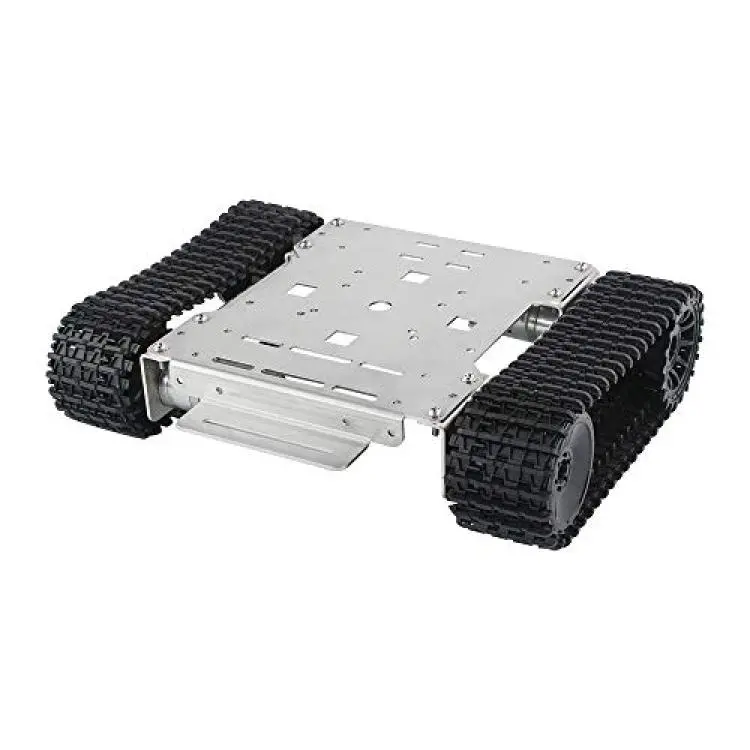

XiaoR Geek Robot Tracked Tank Chassis Kit
This is an agile tracked chassis, low noise and easy to control, could be a good partner for your tank-liked robots.
Specification
Base Material: Stainless steel
Track: engineering plastic
Wheel: engineering plastic
Net Weight: 1.2kg
Climbing degree: 30 degrees
Product Size: 106*205*60mm
Motor parameter:Â
Type: GM25-370
Output rate: 150 + 10% for RPM
Load current: 200 mA (Max)
Locked-rotor current: 4500 mA (Max)
KgNaN locked-rotor torque: 9.5kgNaN
Load speed: 100 + 10%rpm
The load torque: 3000 gNaN
Load current: 1200 ma (Max)
Load noise: 56 dB
Working voltage: 9V
Axis stretch size: 14.5 mm
Axial clearance: 0.05-0.50 mm
Screw size: M3.0
Outer Diameter: 25mm
Shaft diameter : 4mm, D type(thick:3.5mm)
Shaft length: 12mm, (D type:8 mm)
Package includes:
1* Mini tank chassis(Assembled)
