XiaoR Geek Smart Robot Car Chassis Kit Aluminum Alloy Big Tank Chassis with 2WD Motors for Arduino/Raspberry Pi DIY Remote Control Robot Car Toys - Free Tools (Black)
Availability: Pre-Order, Inquiry Price
About this product
*【High strength robot tank base】This is an agile tracked chassis, low noise and easy to control, which is a good partner for you to learning robotics.The robot chassis uses high strength aluminum alloy which makes it extremely solid and durable.
*【Nice damping effect】The track is made of engineering plastic that basically assured the good elasticity, excellent damping effect and large road grip of the product. What’ s more, The high speed motors and premium tracks also allows it to move swiftly everywhere.

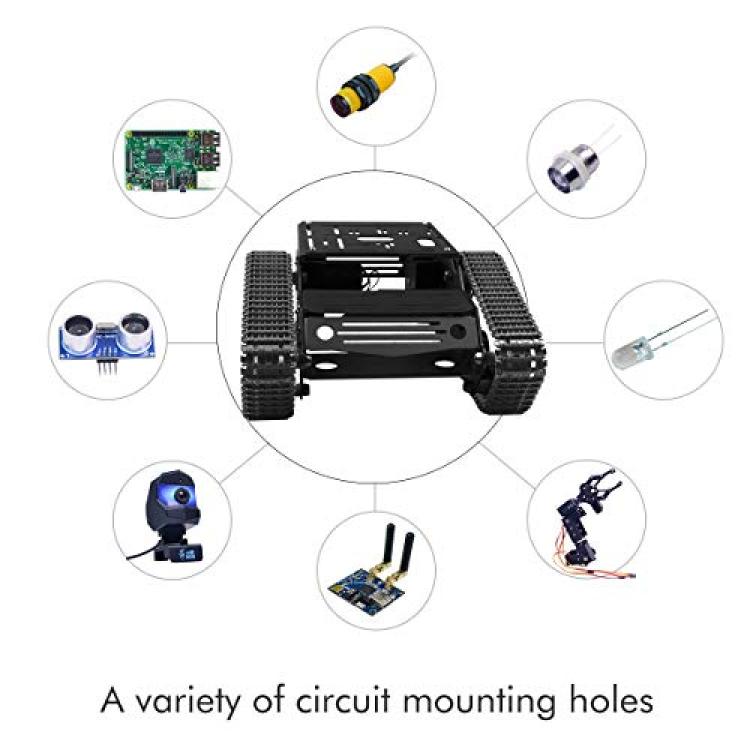

*【More interesting functions】 XiaoR GEEK Tank Mobile Platform is fully compatible with most popular controllers in the market such as Jetson Nano, Raspberry Pi, UNO R3, Mega 2560 and so on. Users are able to add various sensors, servos, turntables and controllers with multiple mounting holes on the robot platform.
*【Develop DIY ability】The tracked chassis is unassembled, you need to get it done by yourself and enjoy the fun of DIY. What’s more, we have step by step instructions for you.
Description

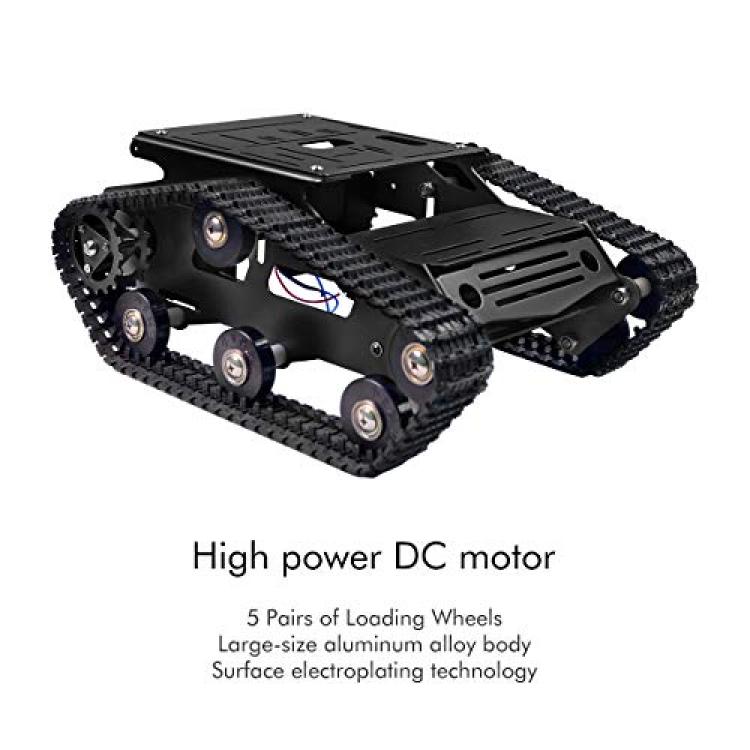

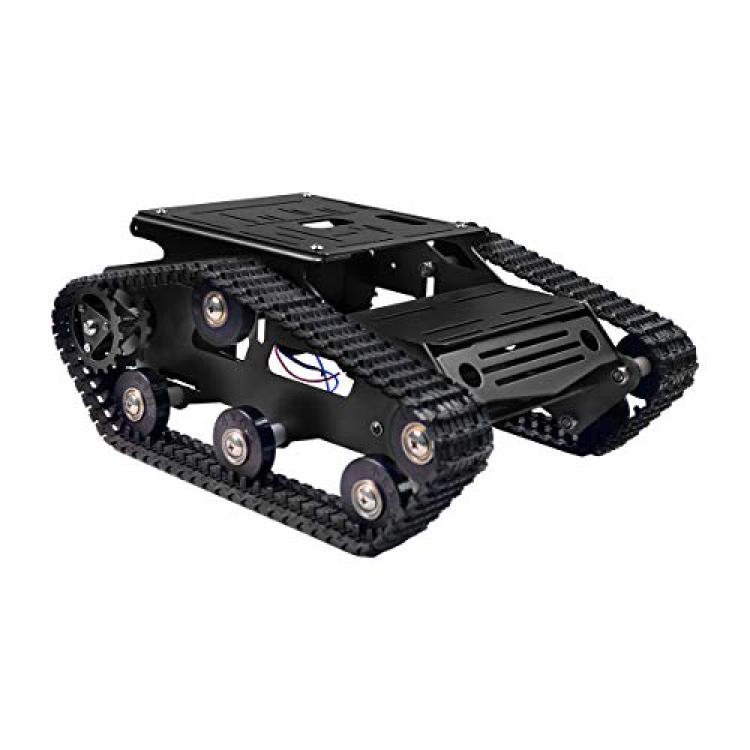

XiaoR Geek Robot Tracked Tank Chassis Kit
This is an agile tracked chassis, low noise and easy to control, could be a good partner for your tank-liked robots.

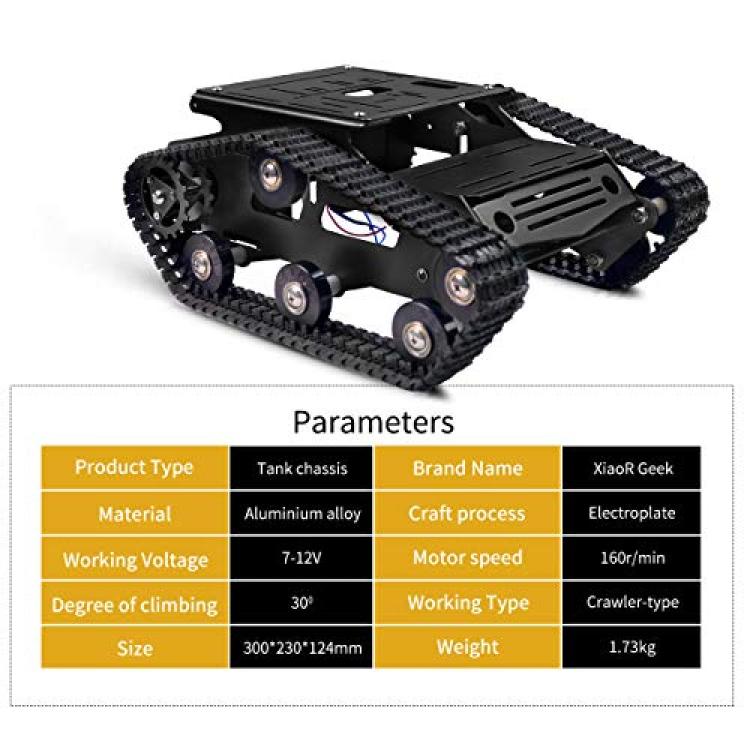

Specification
Base Material: aluminium alloy
Processing Method: electroplating
Track: engineering plastic
Wheel: engineering plastic
Net Weight: 1.2kg

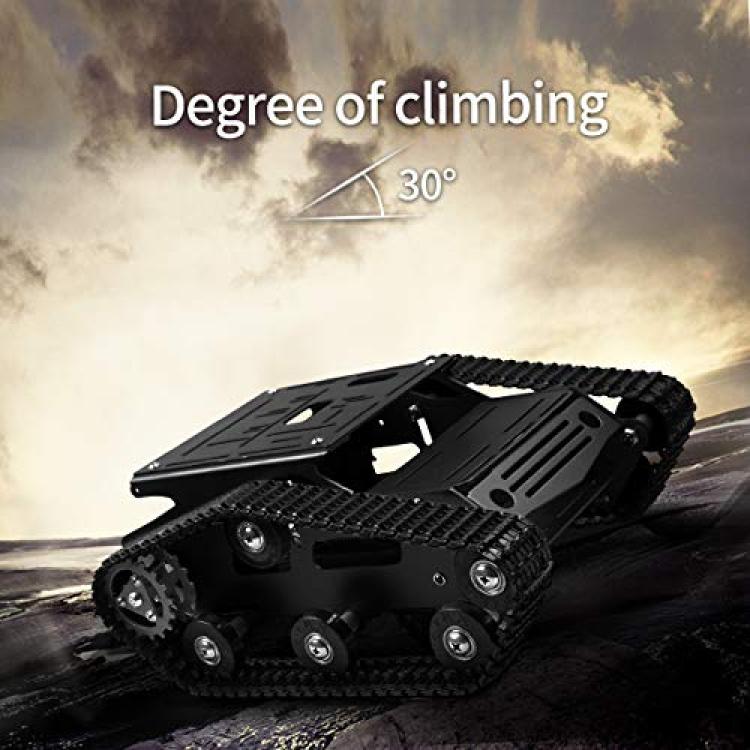

Climbing degree: 30 degrees

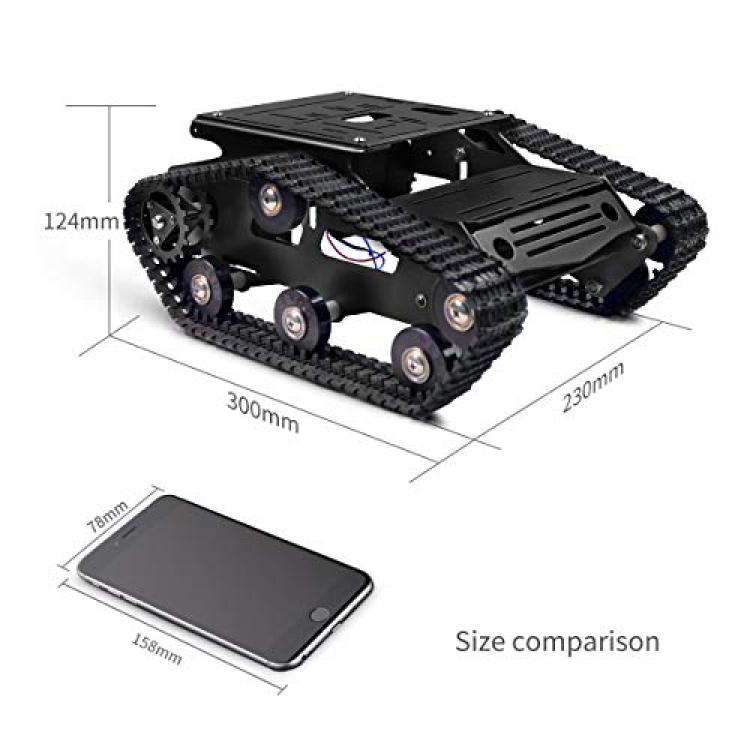

Product Size: 300 *230 *124 mm(L*W*H) /11.81*9.06*4.89”
Motor parameter:
Type: GM25-370
Output rate: 150 + 10% for RPM
Load current: 200 mA (Max)
Locked-rotor current: 4500 mA (Max)
KgNaN locked-rotor torque: 9.5kgNaN
Load speed: 100 + 10%rpm
The load torque: 3000 gNaN
Load current: 1200 ma (Max)
Load noise: 56 dB
Working voltage: 9V
Axis stretch size: 14.5 mm
Axial clearance: 0.05-0.50 mm
Screw size: M3.0
Outer Diameter: 25mm
Shaft diameter : 4mm, D type(thick:3.5mm)
Shaft length: 12mm, (D type:8 mm)
Package includes:
1 x Wrench
1 x Screwdriver
2 x Motor
2 x Track
2 x Drive Wheel
10 x Driven Wheel
1 x Instruction
1 Set Base
1 Set Screw Accessory
