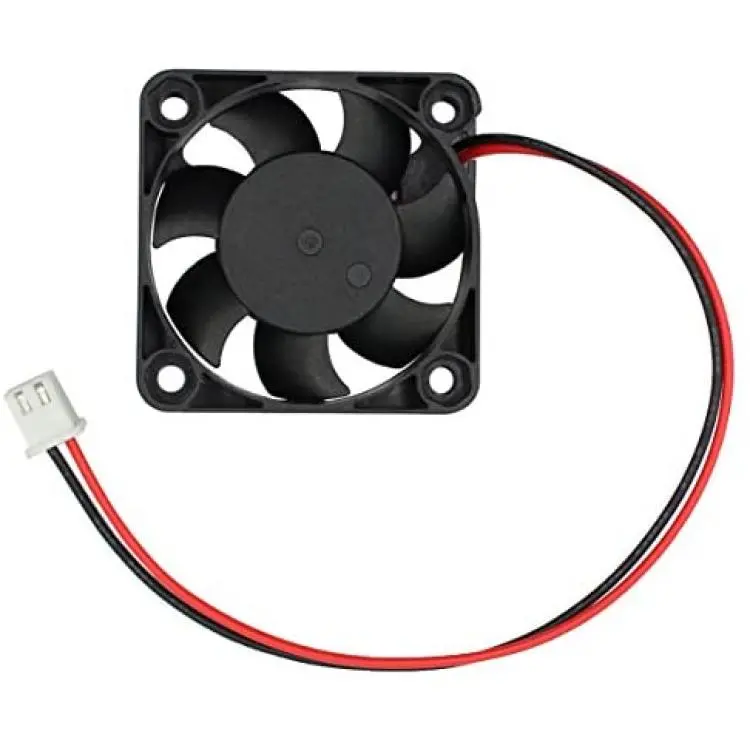

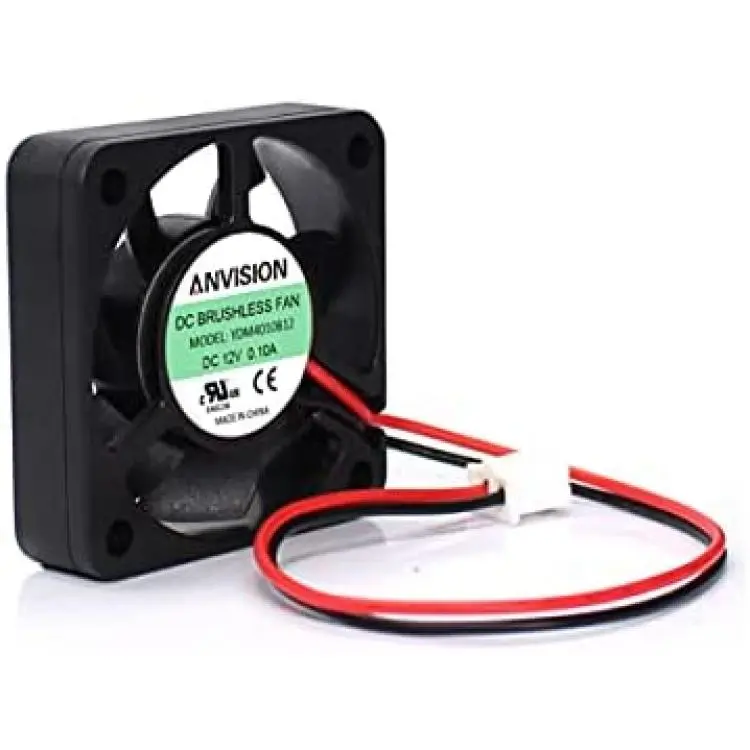

ANVISION 2-Pack 40mm x 10mm DC 12V Brushless Cooling Fan, Dual Ball Bearing, YDM4010B12
About this product
*Rated Voltage: 12V DC, Current: 0.1A
*Airflow: 7.56CFM, Speed: 6200PRM, Noise: 27.50dBA
*Bearing Type: Dual Ball Bearing

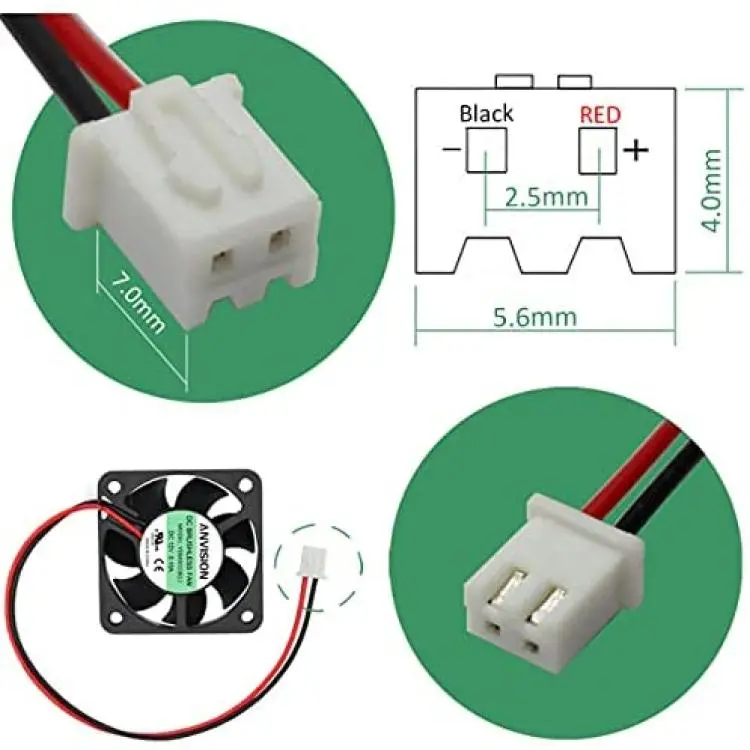

*Lead Wire: 2-pin-2.5mm connector, length: 150mm / 5.90inch

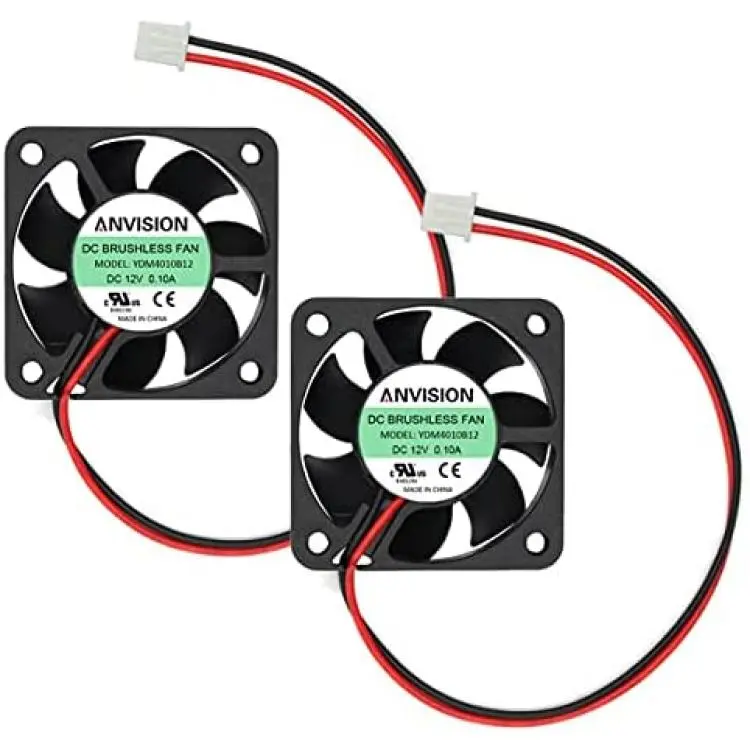

*Warranty: two years, Package: 2x DC brushless fans
Description

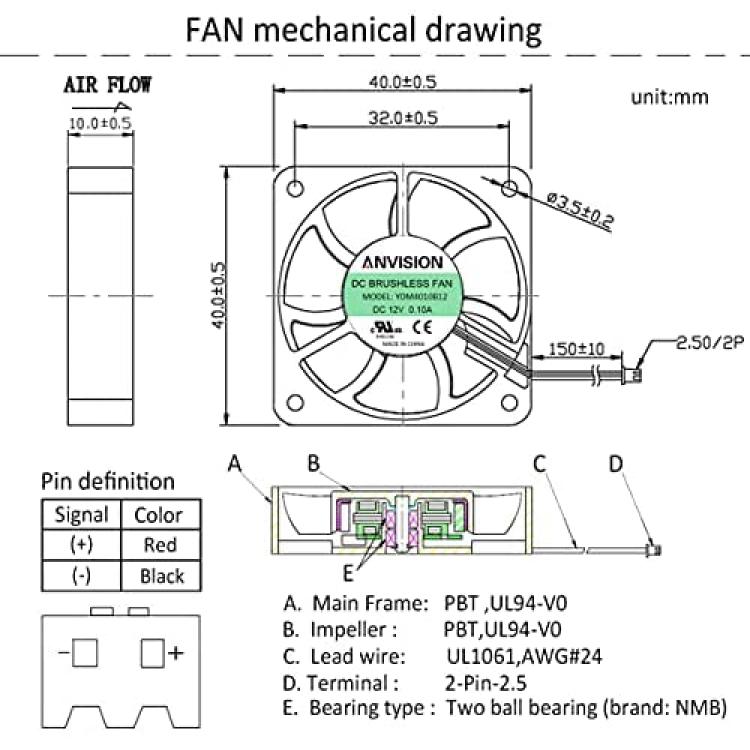

Dimension: 40*40*10mm
Housing: Black PBT (UL94V-0)

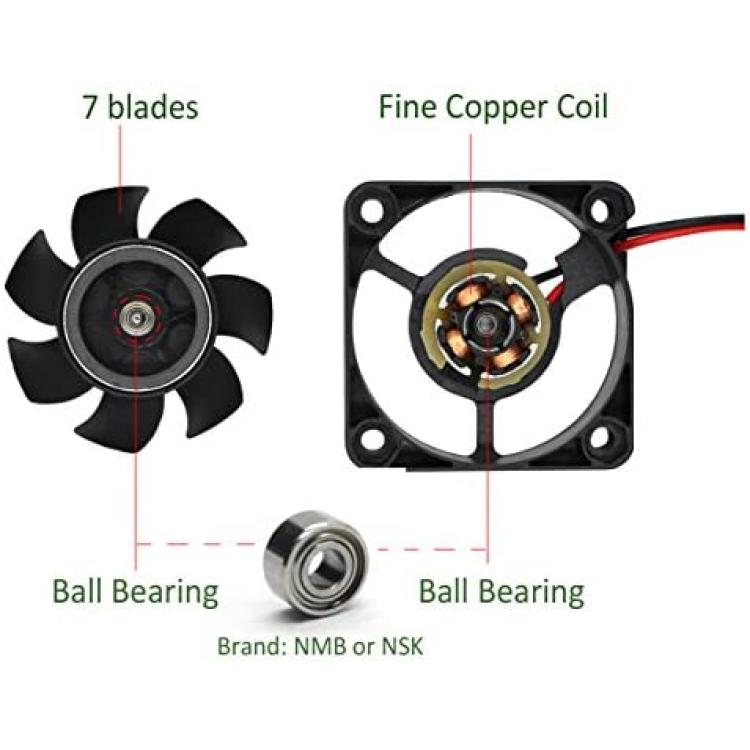

Fan Blade: 7 Blades, Black PBT (UL94V-0)
Bearing System: Two Ball Bearings
Net Weight: 13.7g
Rated Voltage: 12V DC
Operating Voltage Range: 10.8-13.2V DC
Start-up Voltage: 6.0V DC
Rated Current: 0.04A (0.10A Max.)
Rated Power: 0.48W (1.2W Max.)
Rated Speed: 6200PRM
Air Flow: 7.56CFM
Air Pressure: 3.19mmH2O
*Noise Level: 27.50dB(A)
Lift Expectancy: 50000H at 25degree test
*Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.
