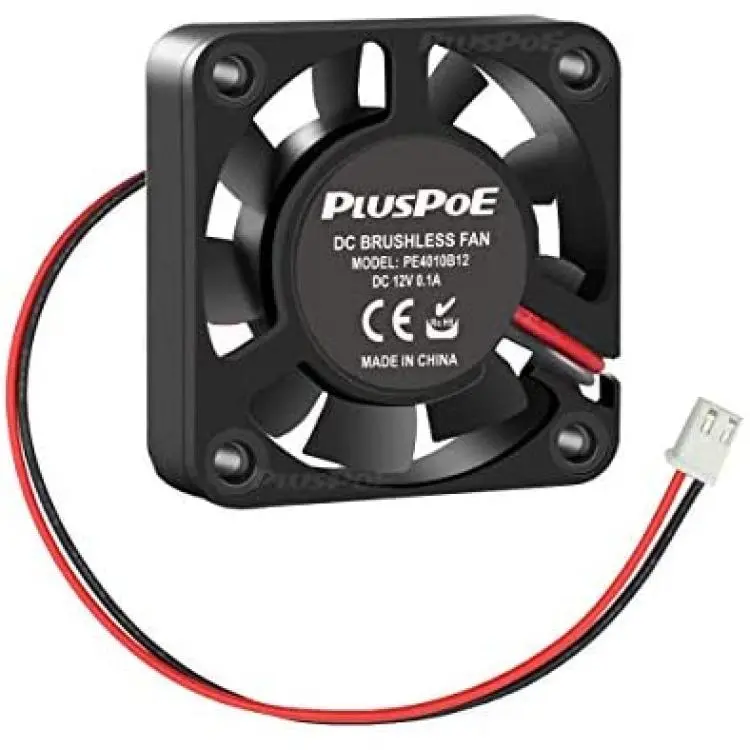

PLUSPOE 40mm x 10mm DC 12V Brushless Cooling Fan, Dual Ball Bearing for Computer case 3D Printer Humidifier and Other Small Appliances Series Repair Replacement
About this product
*Brushless cooling fan 12vdc 0.06A 40mm x 40mm x10mm Speed 6800 RPM Fans for computer case 40mm 3d Printer fan used in humidifier, aromatherapy and other small appliances series; small heat radiating communication equipment; military equipment; intelligent industrial control equipment plate cooling heat, high precision medical equipment cooling; pc cpu server cooling dissipation; electronic cooling fans etc, Repair Replacement
*Airflow: 7.56CFM, Speed: 6200PRM, Noise: 27.50dBA
*DC Brushless Cooling Fan, Rated Voltage: DC 12V, Current: 0.06A; Dimensions: 40x40x10mm (1.6 x 1.6 x 0.36inch)
*Connector: 2 Terminal Connector with 2Pin-ph2.5; Compact motor design, the NF-A4x10s motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10s superior airflow and pressure performance.
*Warranty: two years, Package: 1x 12V DC Brushless Fans
Description
Package Included: 1 x 12V DC brushless fans.
Dimension: 40x40x10mm
Housing: Black PBT (UL94V-0)
Fan Blade: 9 Blades (Provide Bigger Airflow than 7 Blades), Black PBT (UL94V-0)
Bearing System: Two Ball Bearings
Rated Voltage: 12V DC
Operating Voltage Range: 10.8-13.2VDC
Start-up Voltage: 6V DC
Rated Current: 0.04A (0.10A Max.)
Rated Power: 0.48W (1.2W Max.)
Rated Speed: 6800RPM
Air Flow: 7.56CFM
Air Pressure: 3.19mmH2O
*Noise Level: 27.5 dB(A)
Conform to RoHS: Yes
Safety Approvals: CE ROHS
Life Expectancy: 50000H at 25degree test
Net Weight: 18.7g
*Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.
