Pinfox 12V DC 120mm Quiet Cooling Fan Silent, Variable Speed Control by 5V to 12V Input, Dual Ball Bearings 3 Pin for PC Computer Case, Home Theater Cabinet, Receiver DVR Xbox, Incubator
Availability: Pre-Order, Inquiry Price
About this product
*Ultra quiet fan with great volume air flow. Ideal for cooling devices or cabinets that requires minimal noise. In addition, the fans speed can be adjusted by using a different voltage (5-12V), which means that it can work at a lower voltage to achieve a silent effect.
*Dual ball bearing allows continuous operation 24/7 without dust and high temperature concern and have a lifespan of 65,000 hours compare to sleeve bearing. Even more it allows the fans to be laid flat or stand.
*Can be used in both two-wire connection and three-wire connection. It is perfect for noise sensitive applications like case cooling, home theater cabinet cooling, audio video equipments cooling etc.
*Airflow: 52CFM | Noise: 18dBA | Speed: 1500RPM | Voltage: 12VDC | Bearings: Dual Ball
*High quality, and 1 Year Warranty.
Description

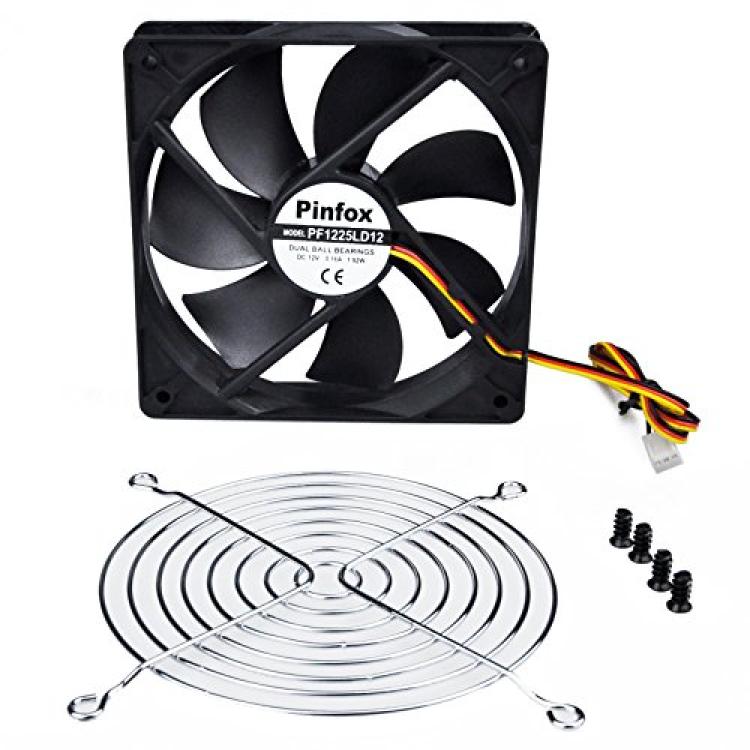

The ultra-quiet cooling fan is designed to maximize airflow CFM to noise dBA ratio. It comes with 0.5m cable with 3 pin plug, one fan guard, and mounting screw set which is easy to install and use. It can be applicable for the custom projects which requires ventilation, cooling, or as a replacement fan for various products.
Tips: tachometric signal is an output signal that can be ignored in two-wire applications.
Features:
Frame Material: plastic
3 Wire Spec: +5V to +12VDC ( Red ) GND ( Black ) Tachometric Signal ( Yellow )
Wire Length: 0.5 m ( 19.7 Inch )
Size: 120 x 120 x 25 mm ( 4.7 x 4.7 x 1 Inch )
Weight: about 107g ( 1.32 lb )
Operating temperature: -10 °C ~+70 °C
Power supply: 5 - 12 VDC
Wattage: 1.2W
Warranty: 1 Year
We offer a variety of fans for different applications. The following table shows parameters of them.
Voltage       Dimension        Airflow     Speed        Noise     Advantage    Amazon ASIN
110VAC  120x120x38mm    96CFM    2650RPM    43dBA    high speed    B06XFBHQKW
110VAC  120x120x25mm    70CFM    2200RPM    42dBA    high speed    B06XFKPLJW
12DC      120x120x25mm    52CFM    1500RPM    18dBA    ultra quiet     B072NCYQRY
Search the Amazon ASIN and see the details of each product page description.
