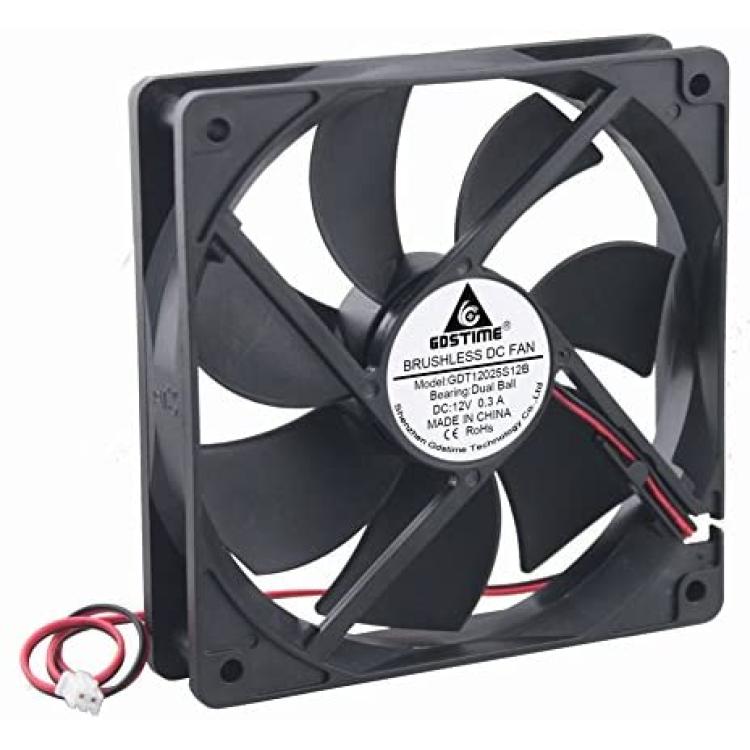

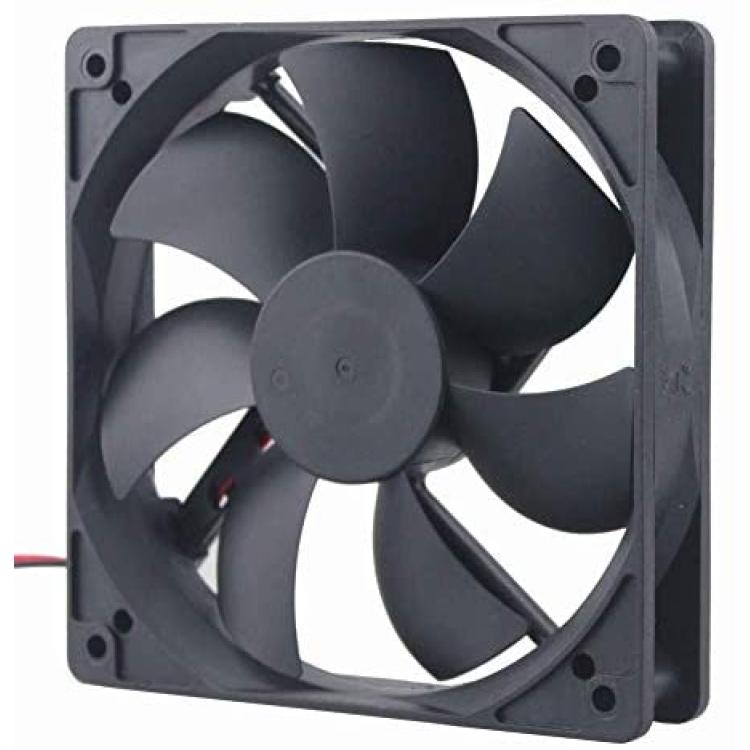

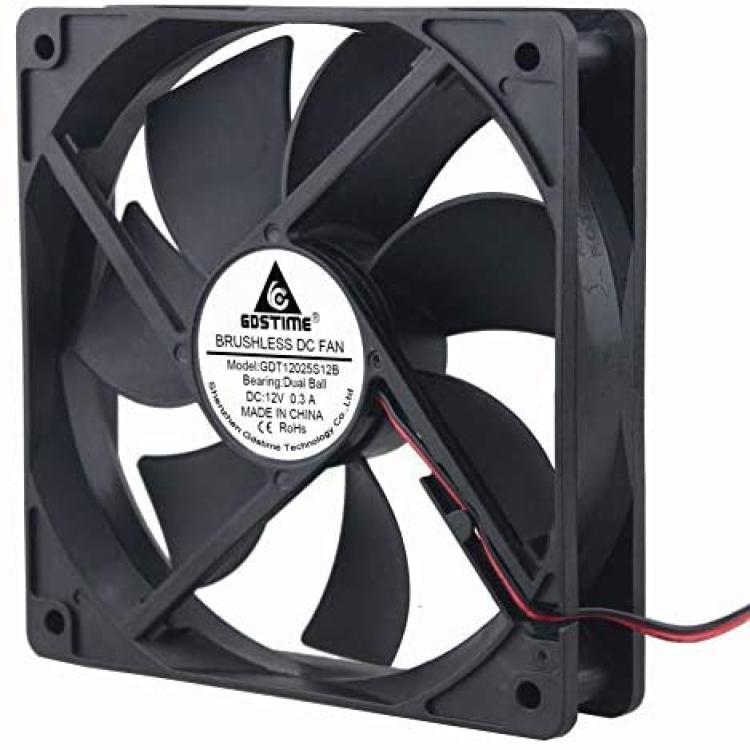

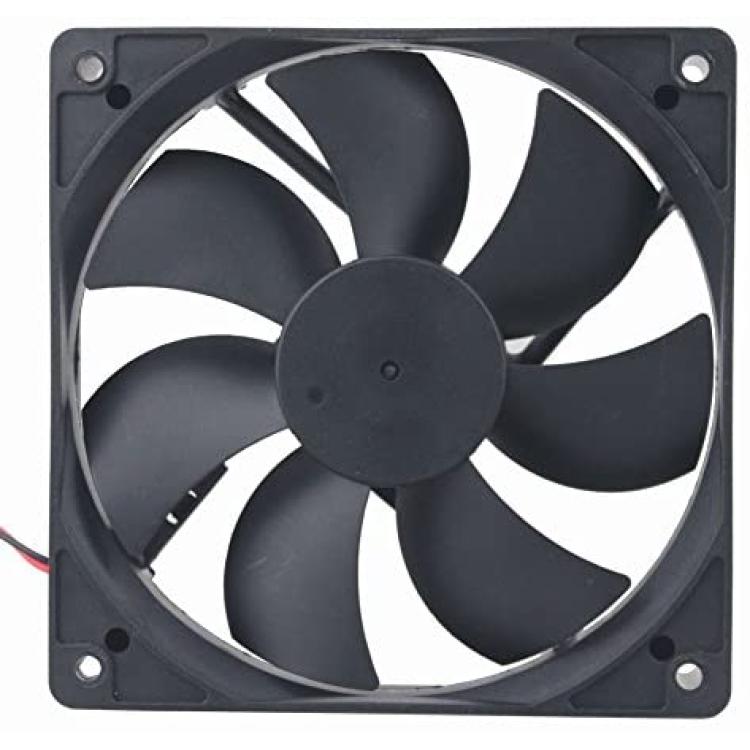

GDSTIME Dual Ball Bearings 120mm x 120mm x 25mm 5 inch 12v Brushless DC Cooling Exhaust Fan

About this product

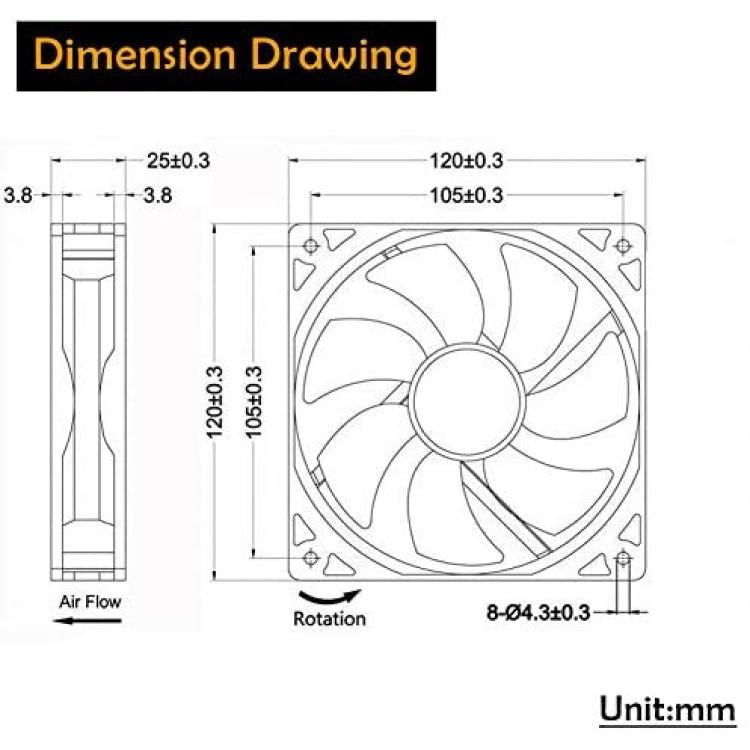

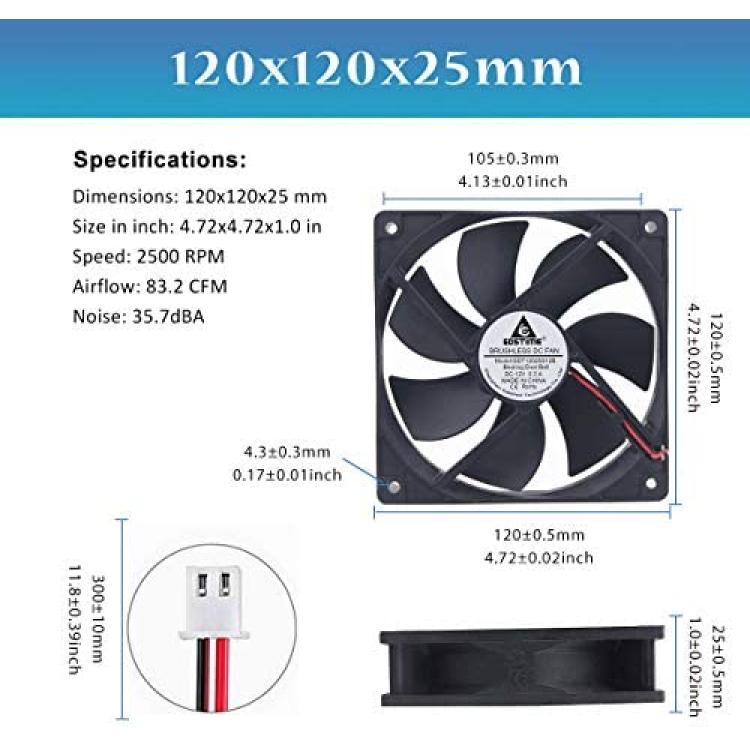

*Dimension of outer the frame is 120mm(L) x 120mm(W) x 25mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1in(H); The center to center distance beween the mountiong holes is 105±0.3mm/4.13in.

*Operating Voltage Range：5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.) The started Voltage is 3.6V.

*Rated Voltage: DC 12V; Rated Current: 0.3Amp ±10% ; Rated Speed: 2500 RPM; Air flow: 83.2CFM; Noise: 35.7dBA; Power: 3.5Watt

*Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.

*Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
