uxcell 8mm Inner Dia H13D16 Rigid Flange Coupling Motor Guide Shaft Coupler Motor Connector for DIY Parts
About this product
*Inner Diameter: 8mm/0.31 inch, Total Height: 13mm/0.51 inch, Cylinder Outer Diameter: 16mm/0.63 inch, Cylinder Height: 10mm/1.31 inch, Base Diameter: 32mm/1.26 inch, Base Height: 3mm/0.12 inch, Mounting Hole Distance: 24mm/0.94 inch,2 x M4 Fastening Screws
*Type: Flange Shaft Coupling, suitable for model shaft connection, perfect accessories for RC Model motor, etc.
*Material: Aluminum Alloy, hardened by heat treatment, and then electroplated. Durable and insulation, make your shaft more stable, easy to install and replace.
*Function: A special coupler, which can fix one shaft to a plane and install other parts on the shaft easily. Double connection points fasten the coupler tightly.
*Package: 1 x 8mm Flange Shaft Coupling, 2 x Fastening Screw( M4 Hex Wrench Not Included Here )
Description
Description:
* Ideal accessories for RC Model motor.
* 100% High quality and Brand new.
* Rigid Flange Shaft Coupling Motor Connector BRASS Joint.
* Parts for RC Airplane Boat ,DIY Model.
Specification:
Product Name: Flange Coupling
Material: Aluminum Alloy
Color: Light Blue

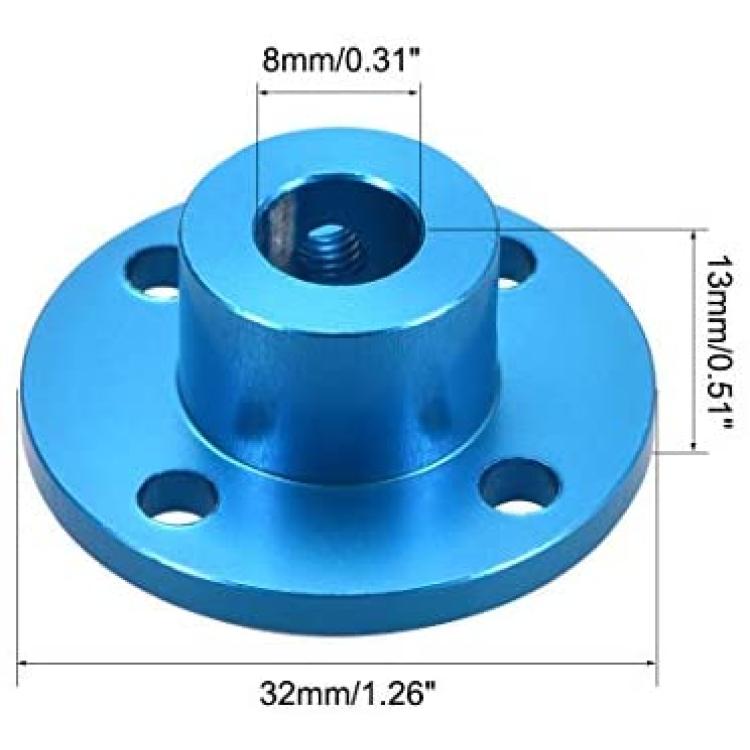

Inner Diameter: 8mm/0.31 inch
Total Height: 13mm/0.51 inch
Cylinder Outer Diameter: 16mm/0.63 inch
Cylinder Height: 10mm/1.31 inch
Base Diameter: 32mm/1.26 inch
Base Height: 3mm/0.12 inch

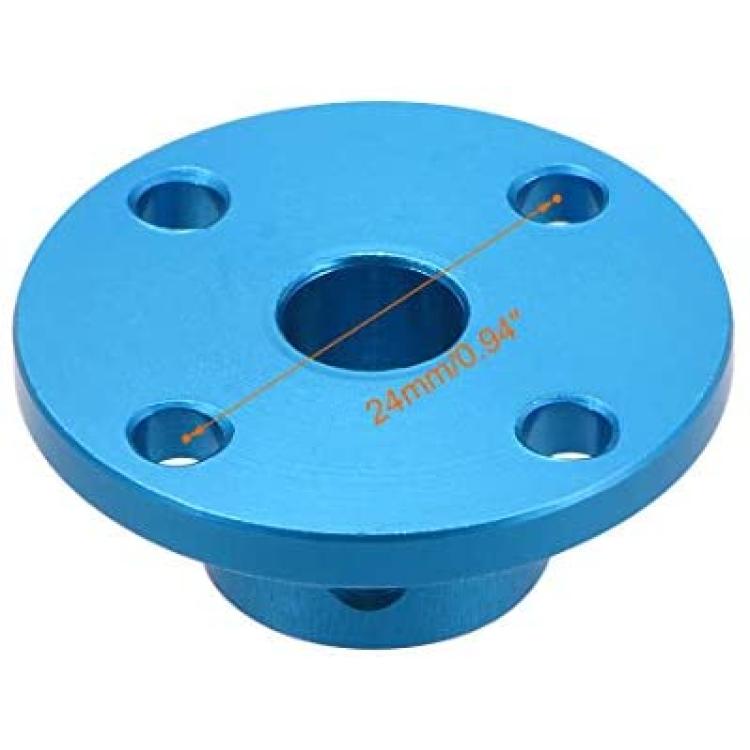

Mounting Hole Distance: 24mm/0.94 inch
Widely used in mold, mechanical drive applications.
Package Including:
1 x 8mm Flange Shaft Coupling, 2 x Fastening Screw( M4 Hex Wrench Not Included Here )
