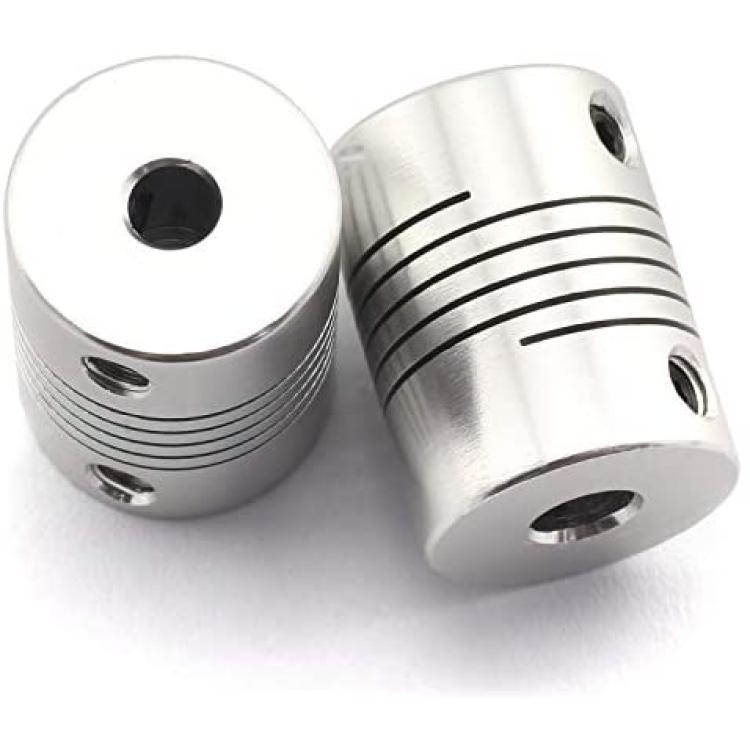

Magic&Shell 2-Pack D19xL25 Shaft Coupler Aluminium 3D Printer Parts Accessory CNC Stepper Motor Encoders Engraving Machine Z Axis Flexible Shaft Coupling 5-6mm
Availability: In Stock
About this product
*Type: 2pcs 3D Printer Shaft Coupler, Coupler Diameter(D): 19mm, Coupler Height(L): 25mm, Top Shaft Diameter: 5mm, Bottom Shaft Diameter: 6mm, Mounting Screws: 4mm, come with a Allen wrench.
*Material: Made of high quality aluminum alloy, integrated molding, oil, rust and corrosion resistance.

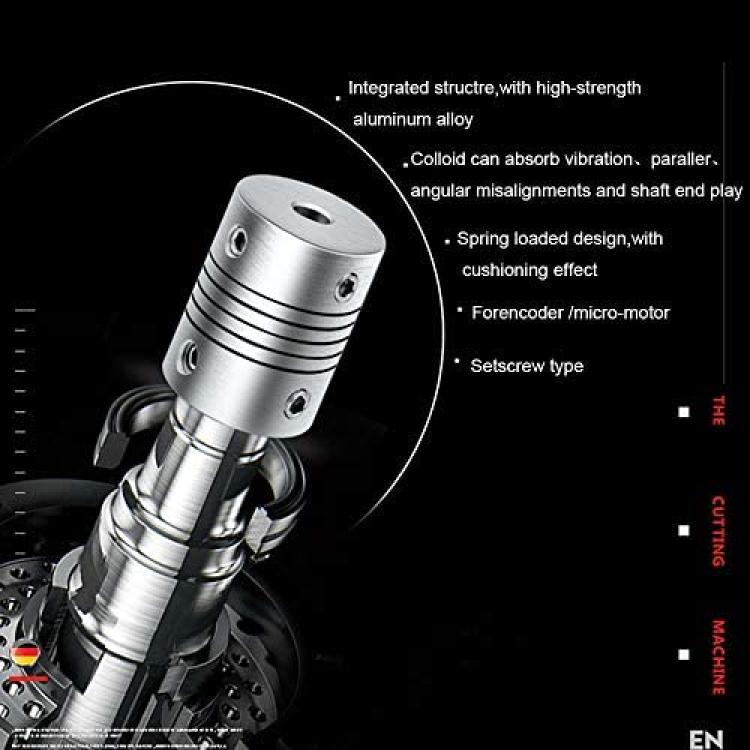

*Function: Flexible metal coupler helps for compensating radial, angular and axial deviations. With the function of buffering, damping and improving the dynamic performance of shafting.
*Feature: Zero clearance transfer motion, exactly the same clockwise and counterclockwise rotary characteristics.
*Use: Often used to connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
Description
Type: 3D Printer Shaft Coupler
Material: Made of high quality aluminum alloy, integrated molding, oil, rust and corrosion resistance.
Function: Flexible metal coupler helps for compensating radial, angular and axial deviations. With the function of buffering, damping and improving the dynamic performance of shafting.
Feature: Zero clearance transfer motion, exactly the same clockwise and counterclockwise rotary characteristics.
Use: Often used to connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.

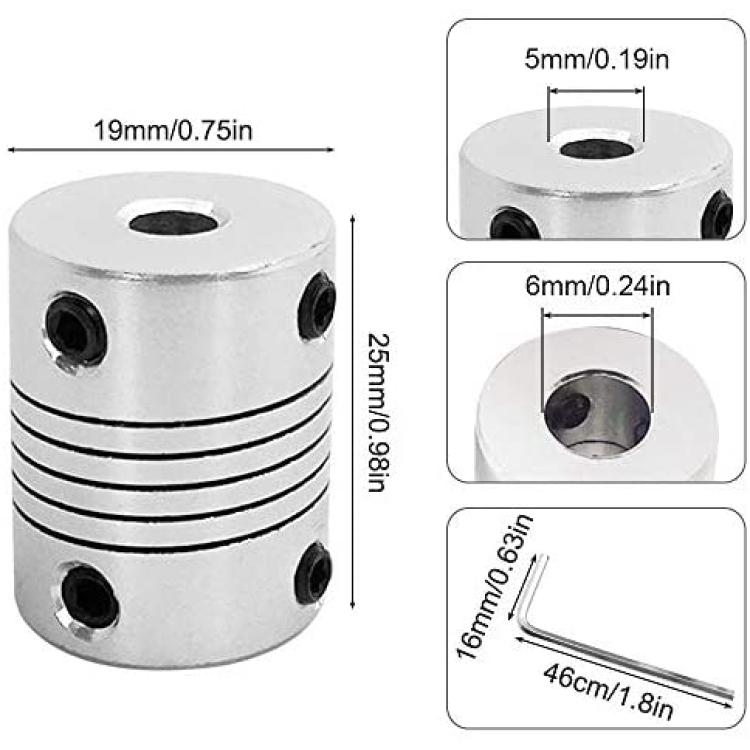

Specification:
Material: Aluminum Alloy
Coupler Diameter(D): 19mm
Coupler Height(L): 25mm
Top Shaft Diameter: 5mm
Bottom Shaft Diameter: 6mm
Mounting Screws: 4mm

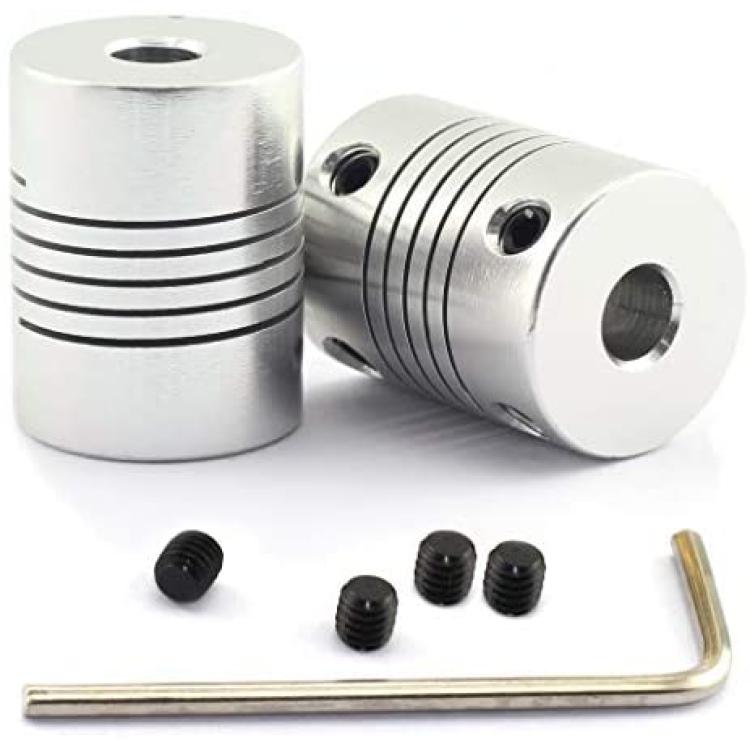

Package:
2 x 5x6x25mm 3D Printer Shaft Coupler
1 x M4 Mini Hex Wrench
