Dia. 4'' 100mm Premium Handwheel with Revolve Knob Handle 1Set[Made in Korea]Replacement Parts of Industry Machines Mill Drillpress Crank Lathe Table&Band Saw Tailstock Vise Wood&Metal Machinery

Dongyang industrial round handle & revolving knob grip

0. Precautions
Machining with machine tool is essential

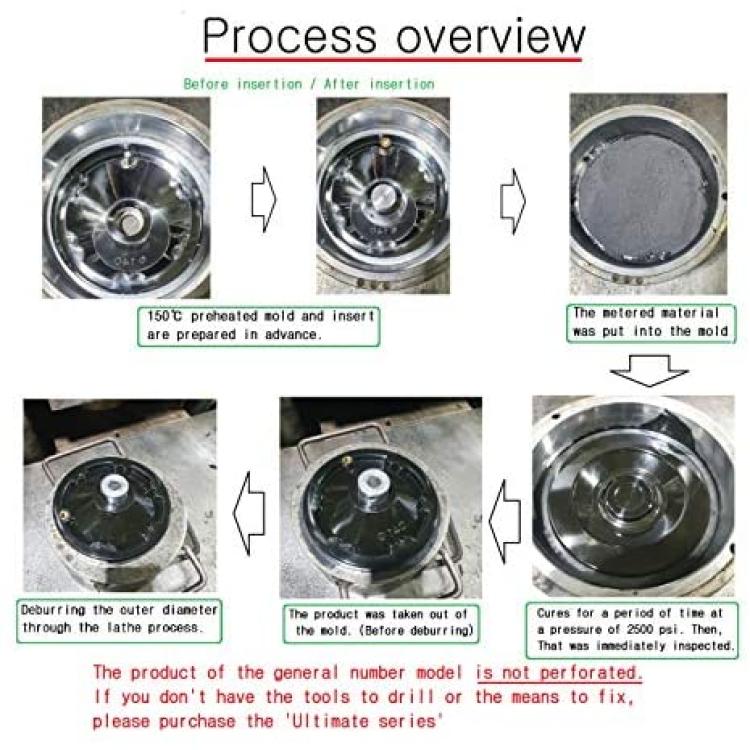

It is not a product made by an automatic injection molding machine.
Each item is produced by a professional Korean technician one by one
(with a mold through a high pressure compression molding machine).
(All items are made in Korea.
Chinese materials cannot even enter our company.)

We thoroughly inspect and export only items that will satisfy our customers.
This handle has been used on Korean locomotives.

The intention of this product is as follows.
The user can replace the broken handle and adjust it.
It reduces the replacement cost compared to ready-made products, and leads to an improvement in appearance and performance.
Why? This is because the user has replaced and modified his equipment.
Of course, I will not deny the annoyance.
When purchasing more than 10 pieces, a customized shaft is prepared and molded.
Then you can use it immediately, but in reality, Korea and the United States are far from the distance, so it is not considered easy.
Contact me later if necessary


Please read before you buy

Industrial handle. Machining is required for assembly, and shaft fixing bolts are not provided.
(It is recommended to use old used products. Or prepare in advance.)
We will prepare fixing screws later. (Expected July 2020)

Since the fixing method is different for each machine, the user should plan the machining and fixing method.

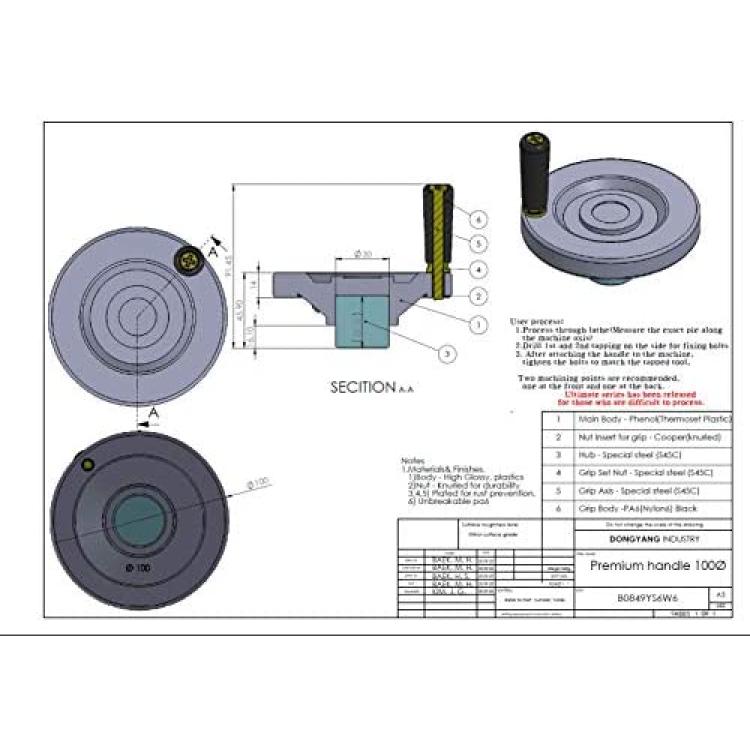

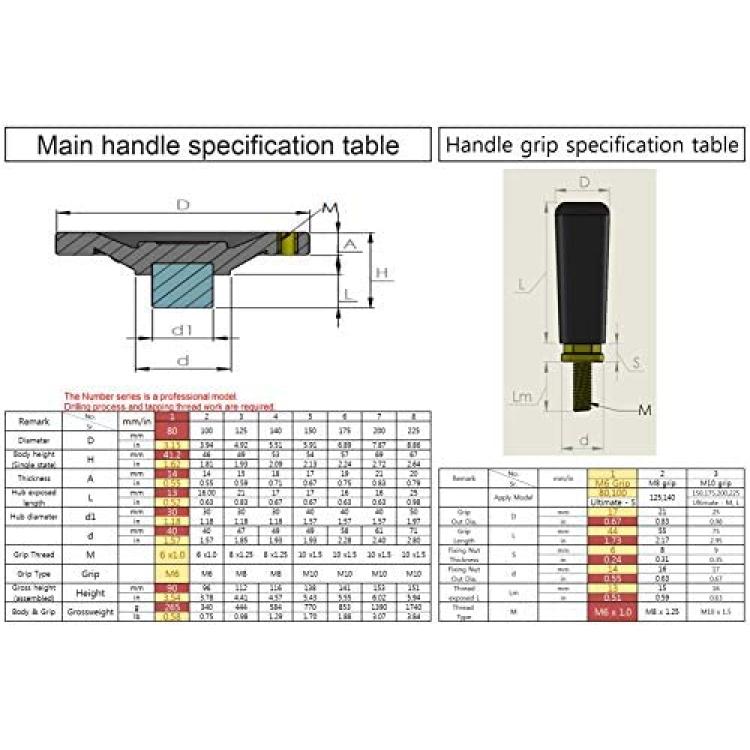

It is necessary to check the existing products before purchase. Or refer to the specification catalog.

1.Components

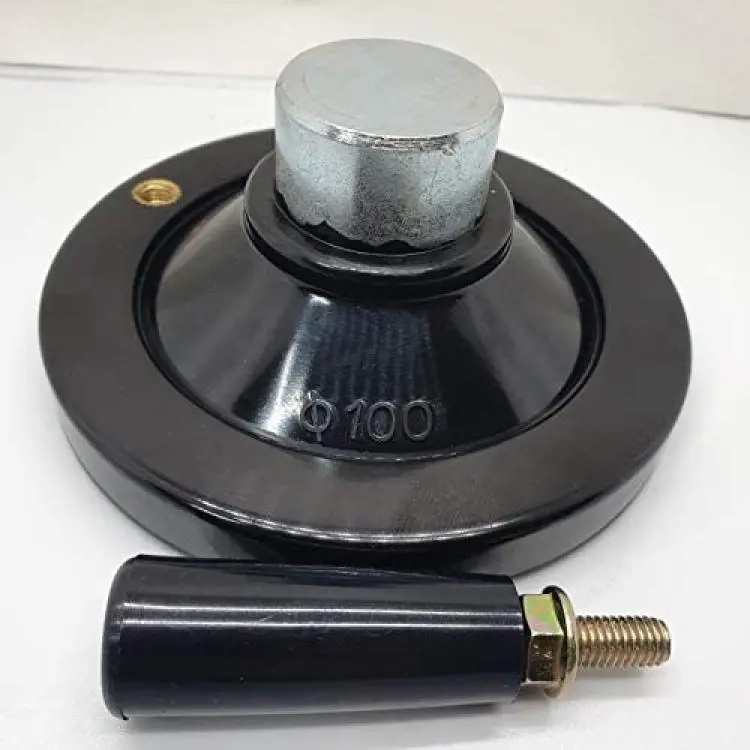

Round wheel handle & knob grip

2.Material
Body - Compression molded bakelite (High gloss phenolic mold compound,Black)
For detailed specifications, please refer to the inspection report.

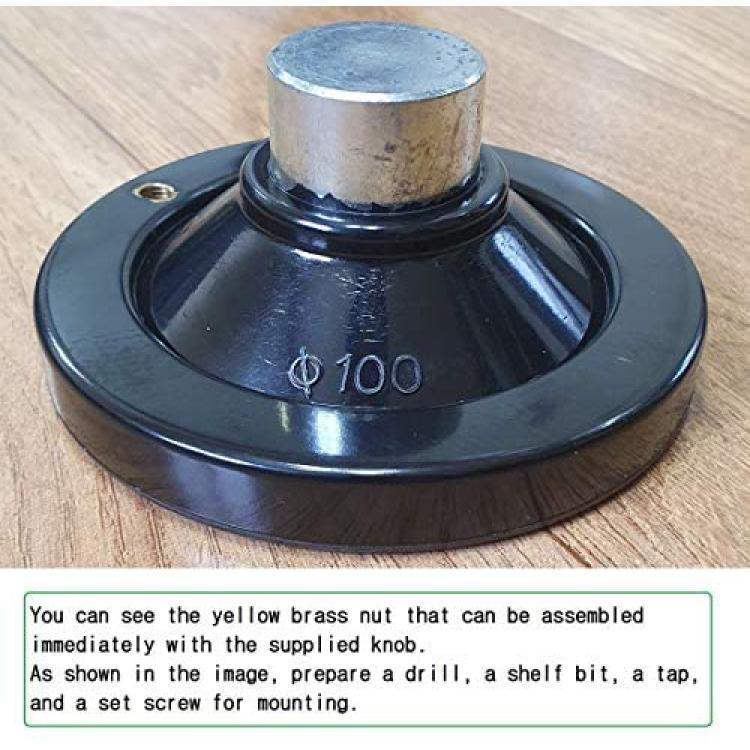

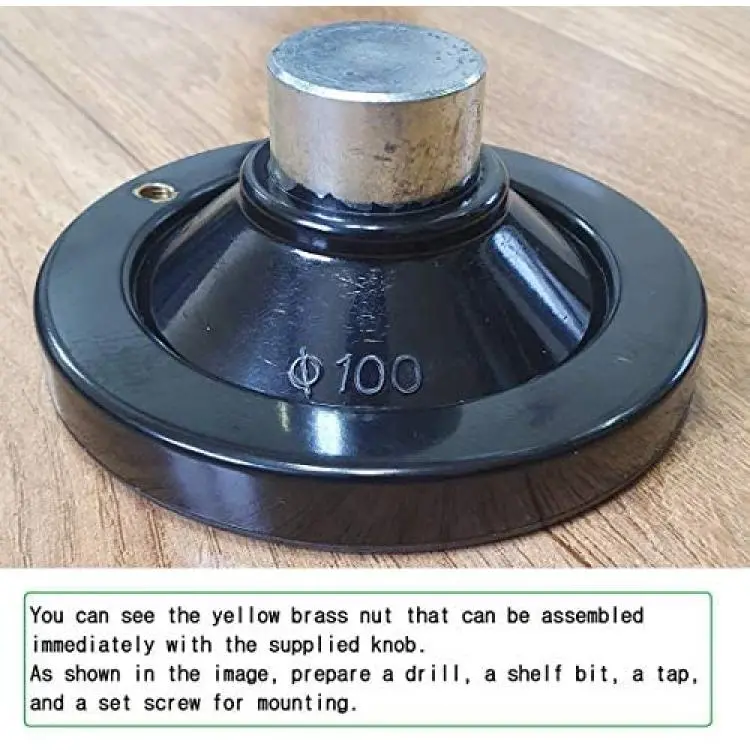

Grip nuts - free cutting brass (C3604)
Knurled for durability

Shaft ? S40C(carbon steel for machinery,)
Finished with nickel plating to prevent corrosion

Center ring ? AL6061(Aluminum, Pressed after bonding treatment)

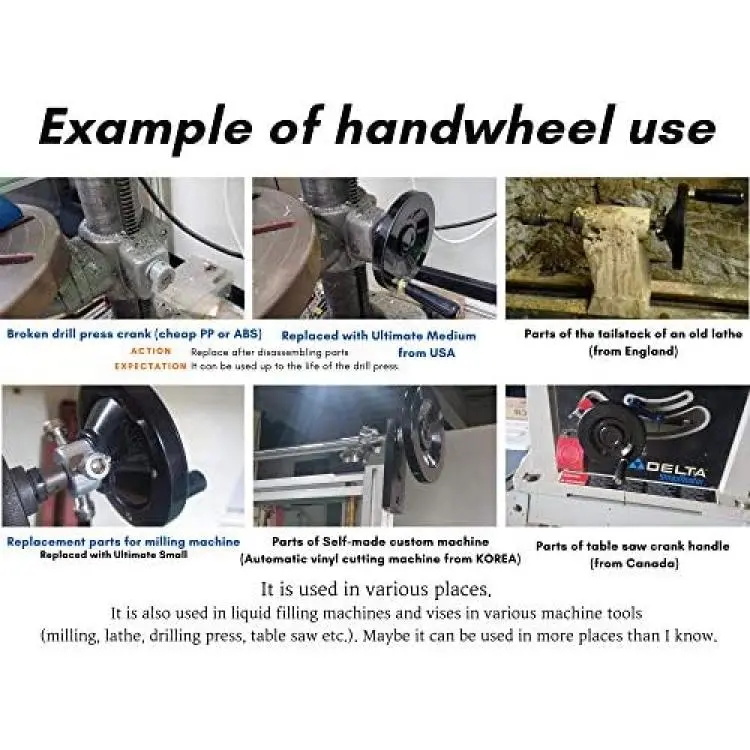

3. Application
Machine tools that require general repetitive rotation

Industrial Machine:Face grinder,Molding and polishing machine, Precision drilling-milling, Turning lathes, Boring,
tapping, drill press, bench lathes, Table saw, workbench, hydraulic vises, Liquid Filling Machine, etc.(You can use it as you intended.)


4. How to install

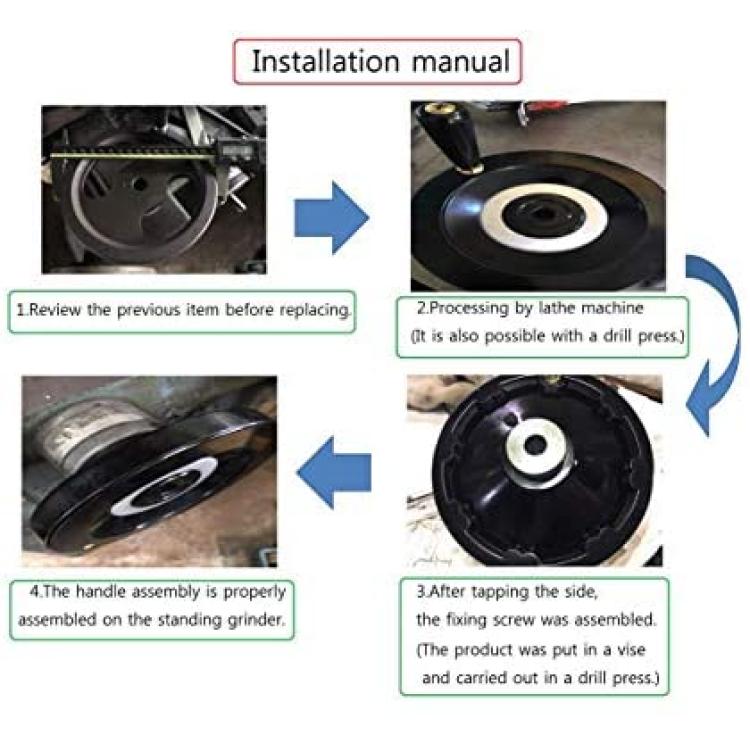

(In the image, I posted an example mounted on a standing grinder.)

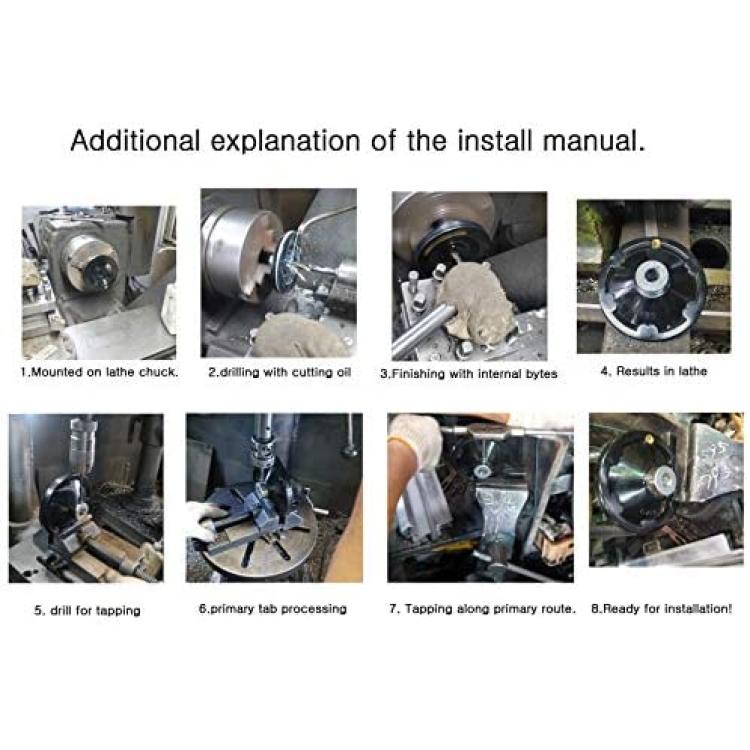

Through hole fixation
1.Penetration through turning machine
2.Counterbore machining
3.handle mounted, then tightened with fixing bolts
Side fixation of the shaft

Cut the pie with depth enough to insert the handle.
Proceed to tapping on the side of the shaft (2 recommended)

Typically, the handles are assembled in these two ways.
It is really difficult to machine a saw tooth with a milling machine. Process at the machining center.
We recommend that you purchase ready-made products.


5.Features

Handle body has high wear resistance.
High heat resistance - Maximum continuous use temperature 220 degrees
Nickel plating on the spindle to prevent rust
Knobs can be assembled quickly using a Phillips screwdriver.( Disassembly and assembly have permanent durability.)
As much as you set yourself, you can be sure of the results.
Just don't drop it.
Instead of very strong abrasion resistance, the impact resistance is slightly weaker. (Danger from 2m or more)
