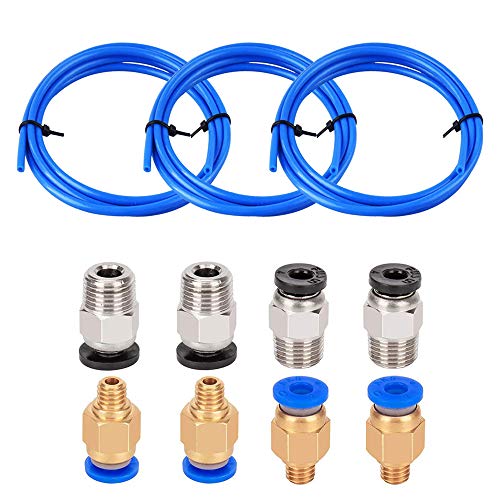

Aokin 3 Pcs Bowden PTFE Tubing (1m/Pcs) for 1.75mm Filament with 4 Pcs PC4-M6 Fittings and 4 Pcs PC4-M10 Pneumatic Fittings for Creality Ender 3/3 Pro/5/CR-10/10S 3D Printer, etc.
Availability: Pre-Order, Inquiry Price
About this product
*Compatibility: fit for 3D Printer 1.75mm Filament and other devices.
*Blue PTFE Tubing: durable PTFE material, safe and odor-free, self-lubricating, high-temperature resistance; Inside diameter 2mm, outside diameter 4mm.
*PC4-M6 fittings: copper and plastic material, durable and sturdy; Thread: 6 mm, inner diameter(blue end): 4mm, fit for the tube whose outer diameter is 4mm.
*PC4-M10 fittings: stainless steel and plastic material, anti-oxidation, anti-corrosion, and high hardness; Thread: 10 mm, inner diameter(black end): 4mm, fit for the tube whose outer diameter is 4mm.
*Easy to Install: the extruder fittings are PC4-M6 and the hotend fittings are PC4-M10, the upper part can be inserted outer diameter 4mm PTFE tube and self-locking.
Description
Tube:
Color: Blue
Length: 3m (1m/Pcs)Â Â
Inside Diameter: 2mm
Outside Diameter: 4mm
Feature:
Smooth surface, Non-stick & Corrosion resistance.
Environmentally friendly and pollution-free & Durable.
Self-lubricating: can convey materials smoothly with the smallest friction coefficient.Â
High&low temperature resistance: usable temperature -190?~260?, almost unaffected by temperature.
An extremely precise internal diameter can reduce the "wiggle room," or buckling, inside the tube, allowing you to print flexible filaments even on the longest Bowden systems.

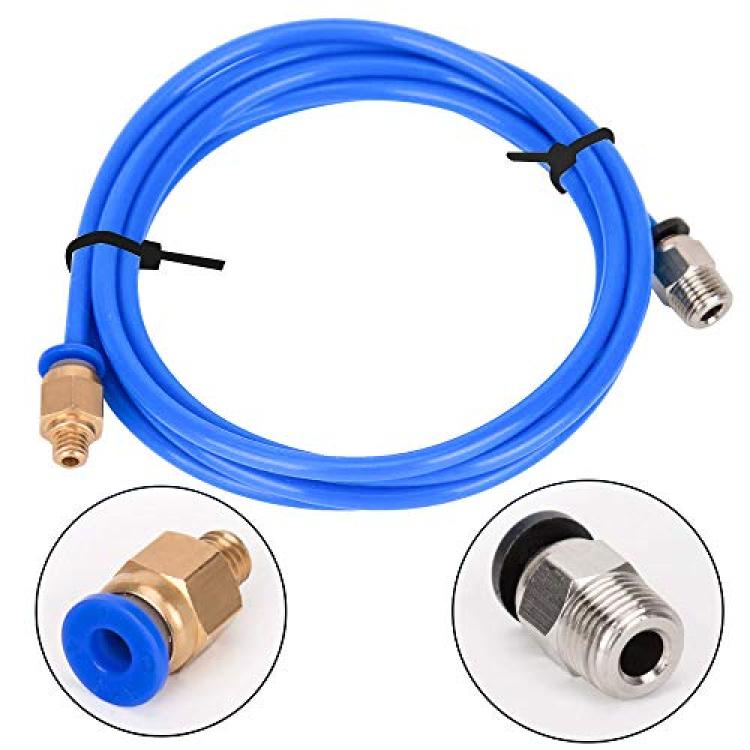

Fittings:
1.PC4-M6 fitting
Inner diameter(blue end): 4mmÂ
Thread:Â 6 mmÂ
Material: copper and plasticÂ
2.PC4-M10 fitting
Inner diameter(black end): 4mmÂ
Thread: 10 mmÂ
Material: stainless steel and plasticÂ
Use:
Install: connecting by the outer thread of the quick fitting.Â

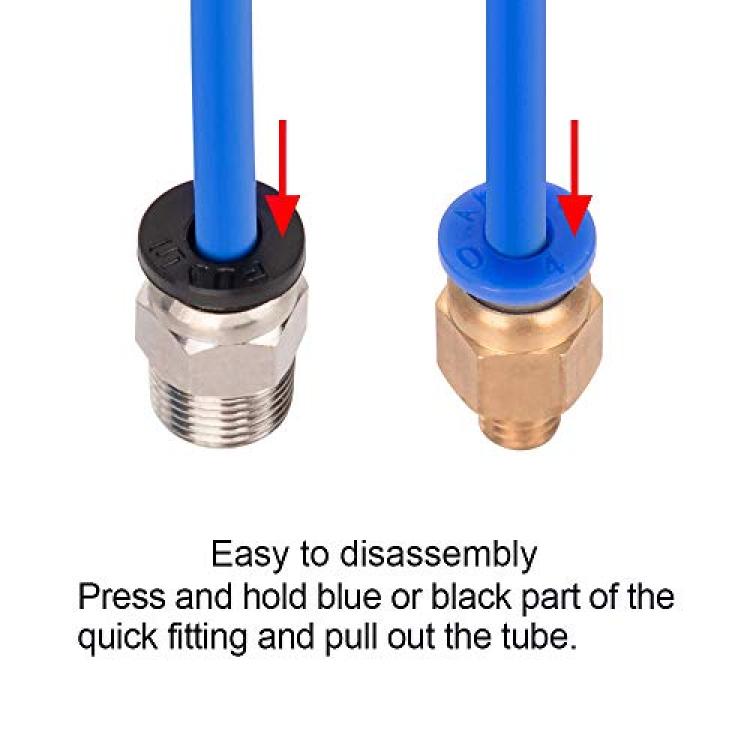

Remove: press and hold the blue or black end of the quick fitting and pull out the tube.Â
Advantage:Â
The upper part can be inserted outer diameter 4mm PTFE tube and self-locking.
2 end connections of quick fittings are able to bear greater and stronger impulse but won't come off.
