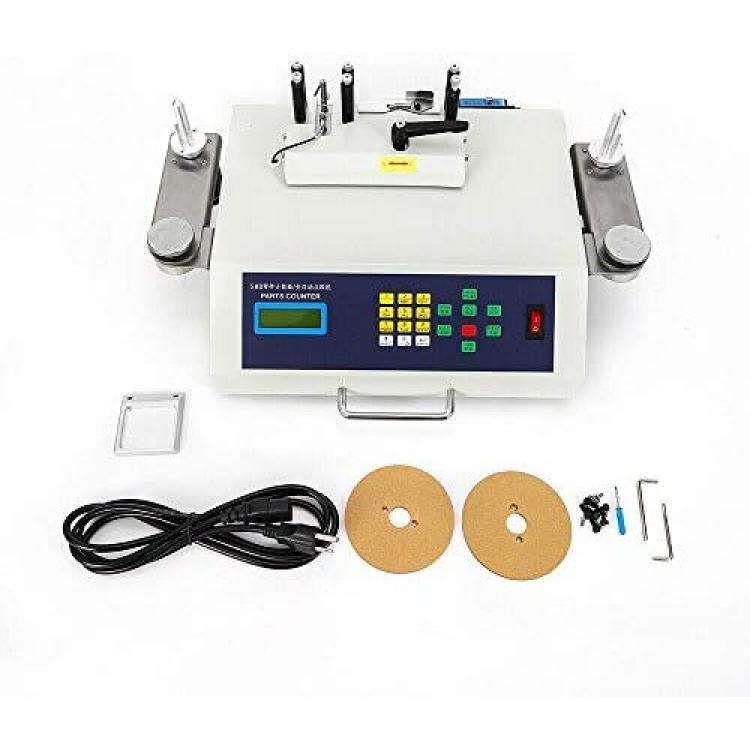

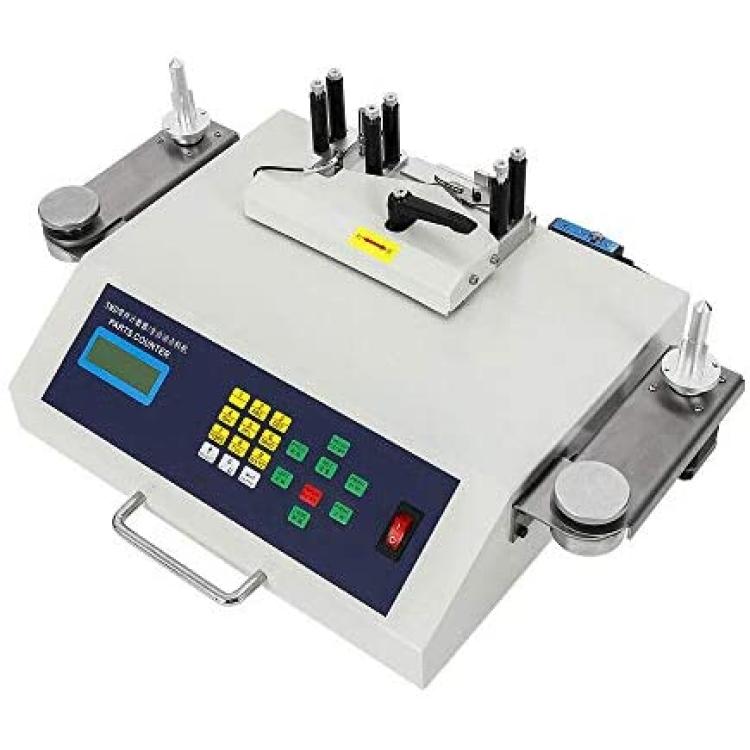

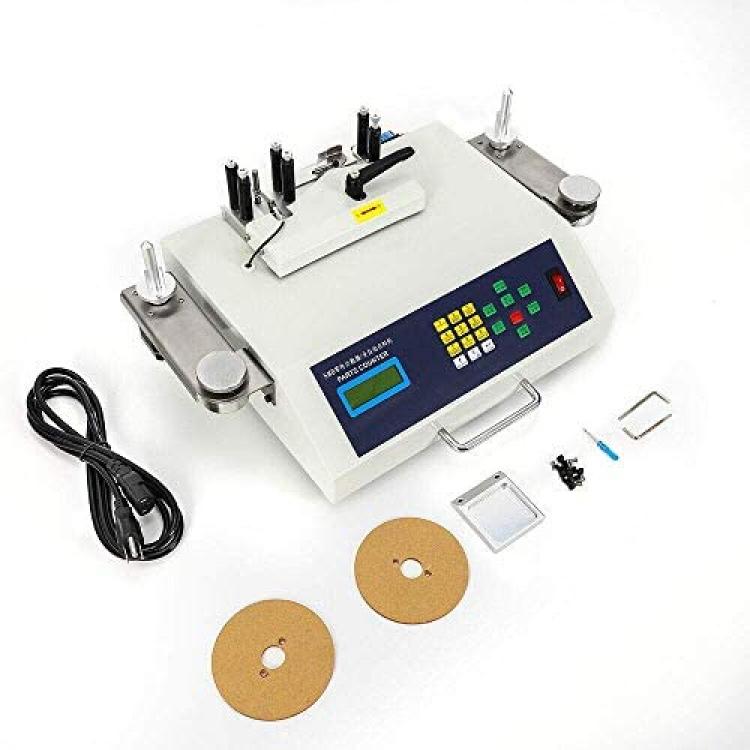

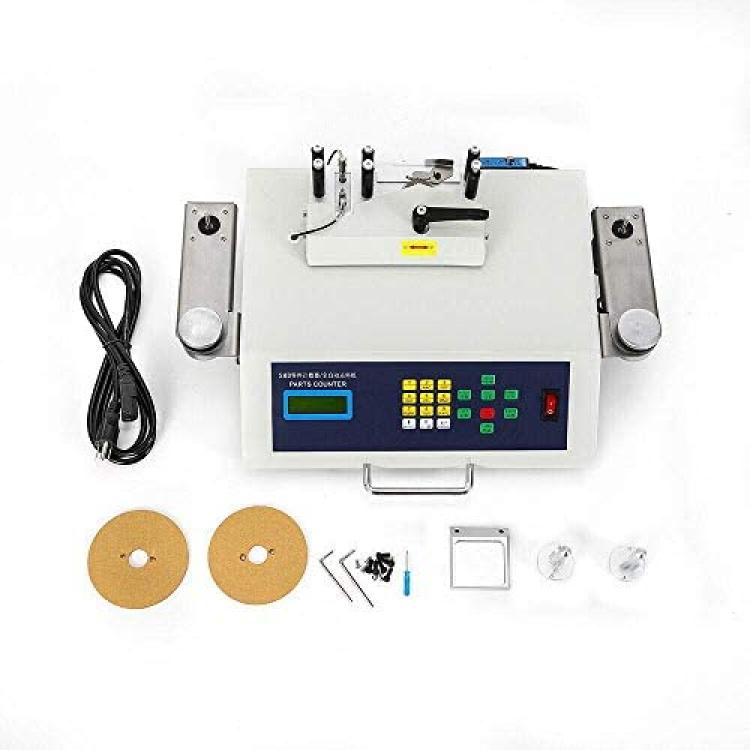

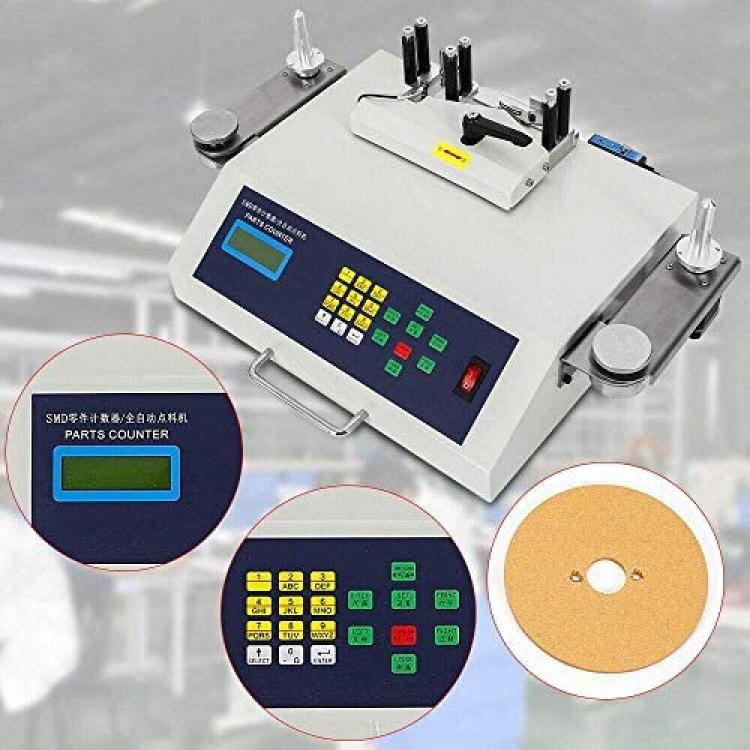

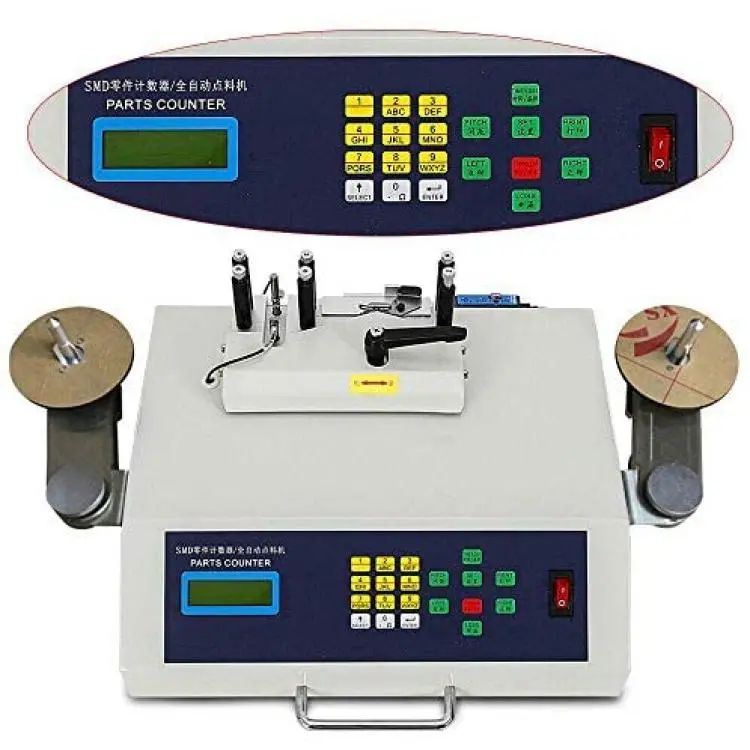

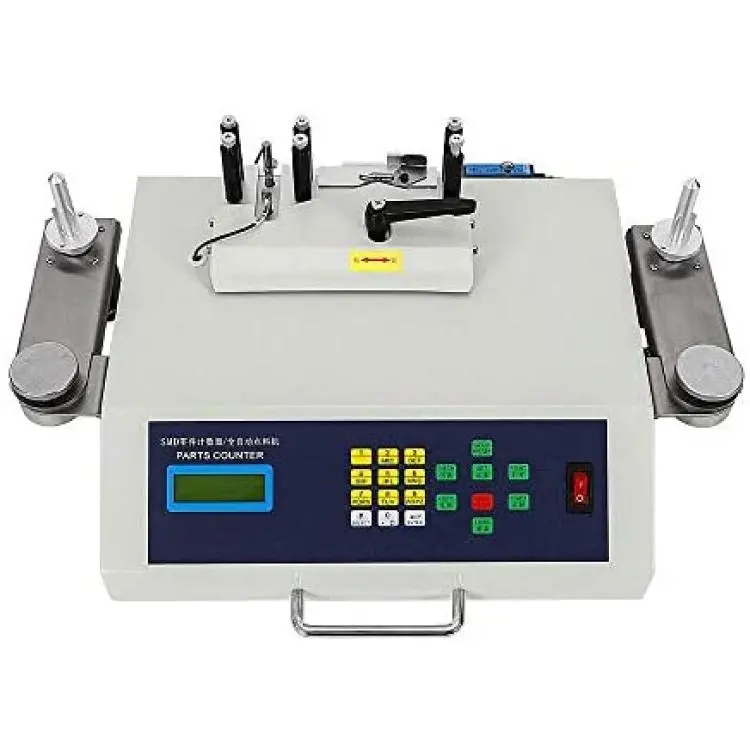

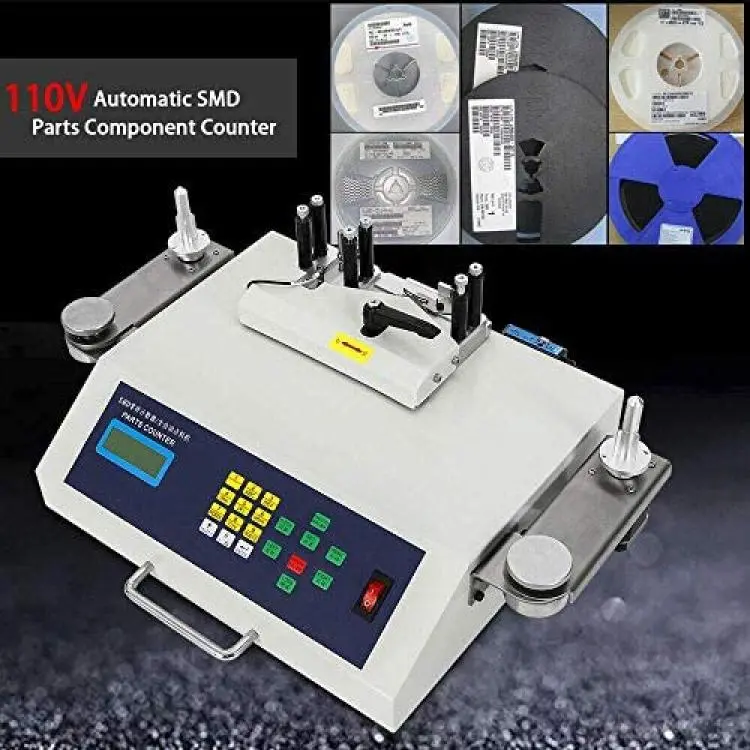

Automatic SMT SMD Parts Component Counter Counting Machine Leak Detection Fit for Any Size Diameter of Belt Wheel
About this product
*【OPERATION SIMPLIFICATION】- Completely automatic way computation components quantity,facilitates a material,sends the material work simplicity of operator. May install the scanning gun and the bar code printer, facilitates the management work.
*【COUNTING PRECISELY】- Forward and reverse all may count, but preinstall quantity, will calculate quantity precisely, zero error. Has a special inventive mind against material belt will fall off the design to reduce to the material belt’s injury to the smallest.
*【PRODUCT DETAILS】- Power supply: AC110V,60HZ , Power: 25W , Counting range: -99999- 99999PCS , Outlook size: 18.5 x 11.8 x 7 (470mm x 300mm x 180mm), Weight: 22lbs / 10kg.
*【APPLICATION】- The SMD material belt type components are all suitable ; Diameter of belt wheel: Any size is all suitable ; PITCH: 1,2,4,8,10,12,16,24,32,44,56 mm ; WIDTH: 4,6,8,12,16,24,32,44,56mm (note: smaller or wider distance can be developed or customized according to demand).
*【ABOUT SHIPMENT】- Our products are shipped from US warehouses. If you have any questions or concerns, please do not hesitate to contact us, we will always stand behind our products and will provide the best suitable solutions for you.
Description
Operation methods:
1)connect the power cord to the host and connect the AC220V power supply
2)turn on the POWER switch of the machine panel, and the LCD panel will shine
3)press PITCH to set the spacing of parts to be counted and press "ENTER". Place the parts to count on the left side tray.
4)manually pull out the material belt and clamp it between the material plate and counting gear, and align the intermediate hole of the first part and blank space to the middle line of the material plate.
5)press the "stop/reset" button for 2 seconds to return the number to zero. Note: when pulling the material belt, the counting gear will rotate and count.
6)press the "setting" button to switch to manual and automatic mode. If you choose automatic mode, you must input the quantity you want to count. Otherwise, press "forward" and the motor will not rotate.
7)pull the material belt by hand and wind it to the empty material plate. Press "forward /RIGHT" to count.
8)the motor will stop when the quantity arrives. Due to the inertia principle, the number of counts may be more or less than the set value of about 1, which can be manually rotated to the LCD display set value in the direction of the material disk, that is, the number of parts.
9)after counting, press "reverse /LEFT" tape and then roll it back to the original LEFT panel, and then stop rotating.
