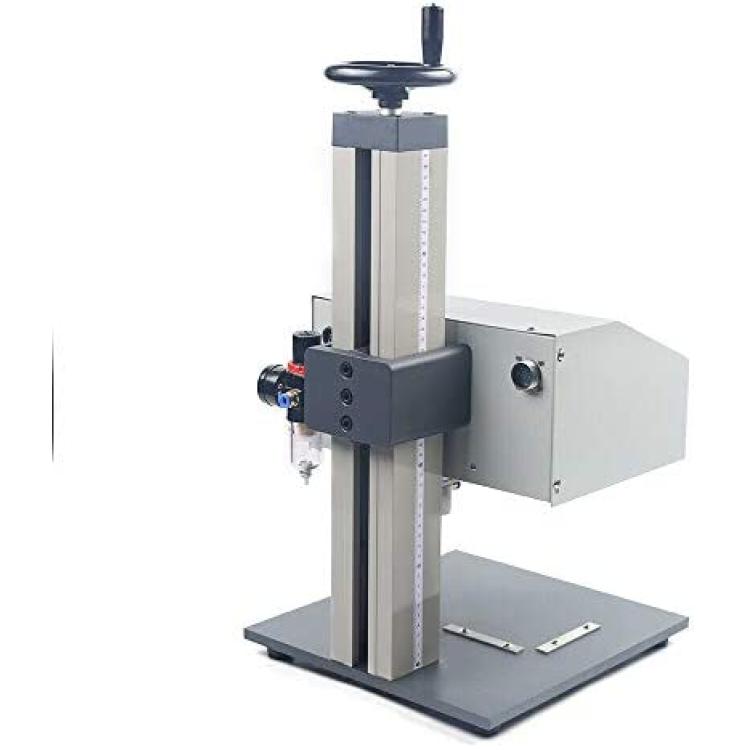

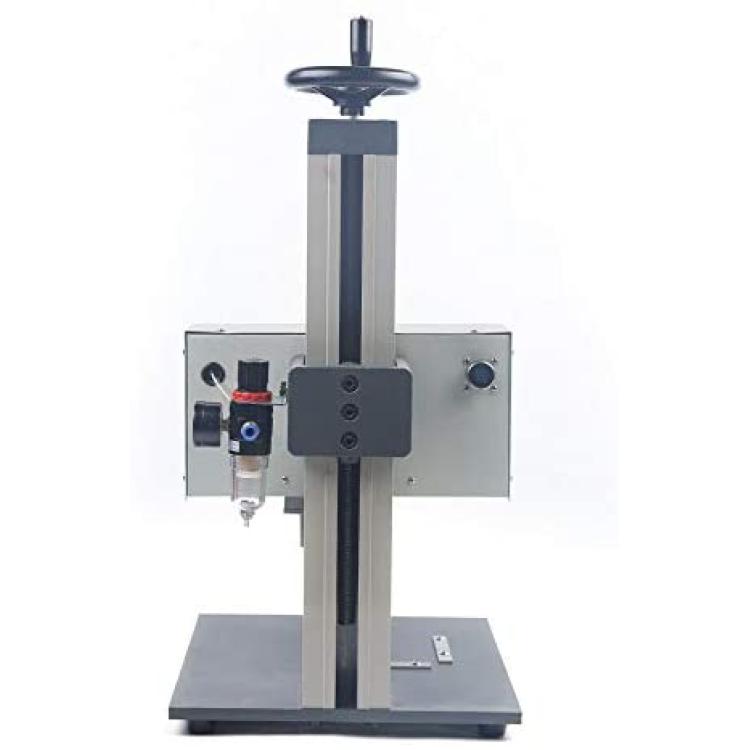

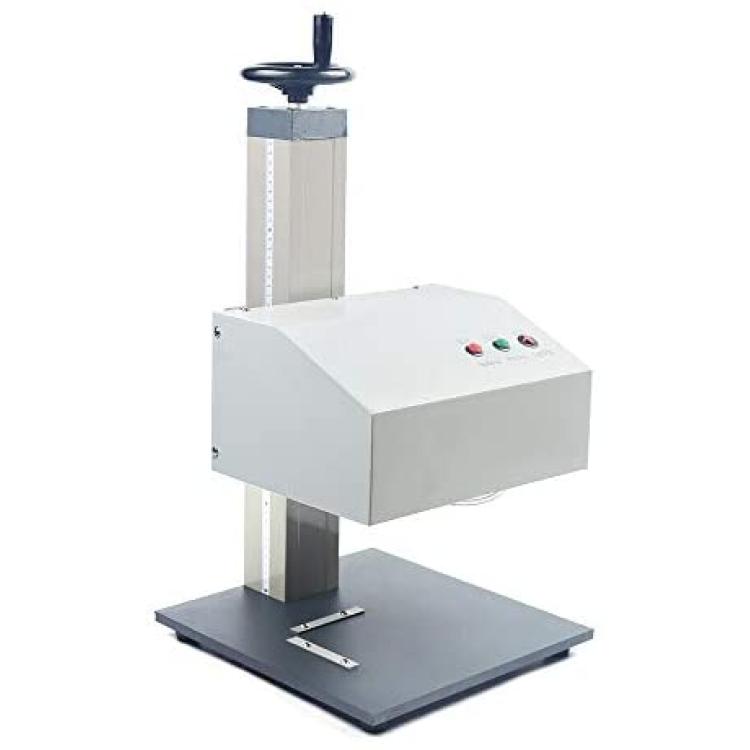

WINUS Pneumatic Marking Machine, Automatic Pneumatic Metal Marking Engraver Machine for Metal Parts Signs 110V
About this product
*★Marking depth: 0.1-0.5mm, depending on the hardness of the material, generally the material with the lower HRC hardness will be carved deeper
*★Main application: Used for automatic printing on the plane of signs and metal products, hard plastics, cast iron, aluminum and epoxy resin
*★Rotary marking function: directly input the diameter of the workpiece, automatically calculate the rotation distance and pay for multi-line and multi-column marking
*★Temperature requirement: computer working environment, -5℃-40℃
*★Others: the marking noise on the nameplate of the marking machine ≤50dB
Description
Product parameters:
1. Printing format: 190*120mm
2. Lifting height: 200mm
3. Marking depth: 0.1-0.5mm, depending on the hardness of the material, generally the material with the lower HRC hardness will be carved deeper
4. Marking speed: ?5 characters/S (2mm high in English or numbers as reference)
5. Marking content: Chinese and English, numbers, punctuation marks, trademark graphics, serial number, date or factory number
6. Main application: Used for automatic printing on the plane of signs and metal products, hard plastics, cast iron, aluminum and epoxy resin.
7. Software interface: Window XP/2000/win7 32-bit or 64-bit
8. Other applications: hard plastic materials, PVC materials, epoxy resin materials, stone black materials can also be marked
9. Dimensions: Marking host: L340×W320×H550mm
10. Weight parameters: Marking host: ?30KG, electric control box: L280×W300×H120mm
11. Voltage: 110V±60HZ,
Software function:
1. The size and spacing of the marked characters can be adjusted arbitrarily within the format
2. There are multiple sets of Chinese and English fonts available, which can be used directly by calling the WIN system fonts and can be added freely
3. Powerful graphics processing capabilities, CAD, COREL, and other graphics formats can be directly called
4. The software comes with barcode, VIN code, time and serial number format variable text, which can be changed automatically after editing once
5. There are two ways to mark the stroke effect: single stroke and double stroke, which can be selected at will
6. The speed of marking can be adjusted by software
7. The software can make dot matrix marking effect, or it can achieve anti-counterfeiting marking function by adding special fonts.
8. The marked text is automatically added to the database, which is convenient for query, call,
