Pneumatic Integrated Dot Peen Metal Marking Machine 120 x 80 mm Pneumatic Metal Marking Machine Tool 110V Pneumatic Dot Peen Marking Machine with High Speed and Deep Marks for Metal Parts
Availability: Pre-Order, Inquiry Price
About this product
*【EFFECTIVE MARKING】Hard marking needle provides a strong intensity, which makes the pneumatic marking machine mark deeper with better effect than the electric marking machine.
*【PORTABLE & COMPACT】Portable and compact, made of durable material; the pneumatic machine is easy to move and work in different places with compact and light-weight design.
*【WIDE APPLICATION】The name plate marking machine can be used to mark codes, English letters, logos, graphics, serial numbers, VIN codes on various metals such as aluminum, steel, stainless steel, copper, brass, gold, iron, etc.
*【STRONG COMPATIBILITY】This metal label nameplate engraving machine is equipped with CD software with a friendly interface and easy operation.
*【VARIOUS APPLICATION】The nameplate marking and engraving equipment is mainly used for engraving and marking of parts, car chassis, car number, tubes, castings, forging, rods, engines, tools, gears, pumps, etc.
Description
Product Description:
This pneumatic marking machine can print any graphics and characters on parts of various materials, edit and adjust the character size at will, and automatically print the date, serial code, and VIN code. The worktable of this product adopts precision mold casting, 64 subdivision drives, imported linear guides, high-precision stepping motors to improve reliability, printing accuracy, and repeatability.
Key Features:
1.High Hardness Needle
Made of high-hardness tungsten alloy, the hardness of marking needle can reach HRC60°, providing a long service life.
2.Manual Lifting Wheel
The handwheel can be adjusted manually, and the marking height can be adjusted at will. The maximum height of the item: 30 cm.
3.Large Printing Size
Unlike other products on the market, our nameplate machine's effective marking area, which can meet your most marking needs.

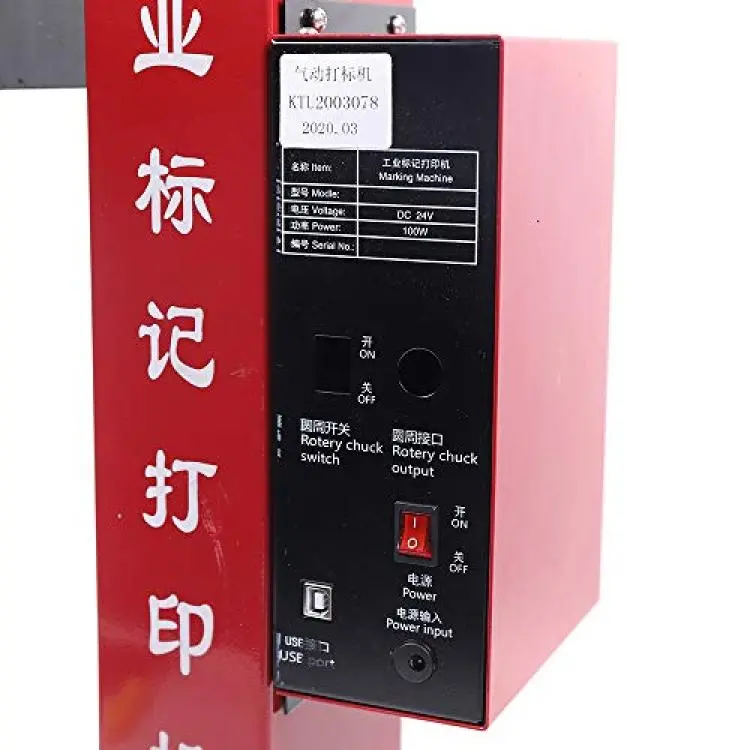

4.Convenient Control Button
The control panel of this pneumatic marking machine is very concise and easy to operate. Buttons are corresponding to lighting, needle out & printing, allowing for precise and simple operation.
Specifications:
Product:Pneumatic marking machine
Marking size: 120 x 80 mm
Voltage: AC 110V
Power: 150W
Air pressure: 0.2-0.6 Mpa
Lifting range: 300mm
The marking speed: 30-40 mm/s
The marking depth:0-2 mm (according to the material)
Working temperature: -5 ~ 45 ?
Package size: 650 x 410 x 310 mm
Gross weight: 24 kg

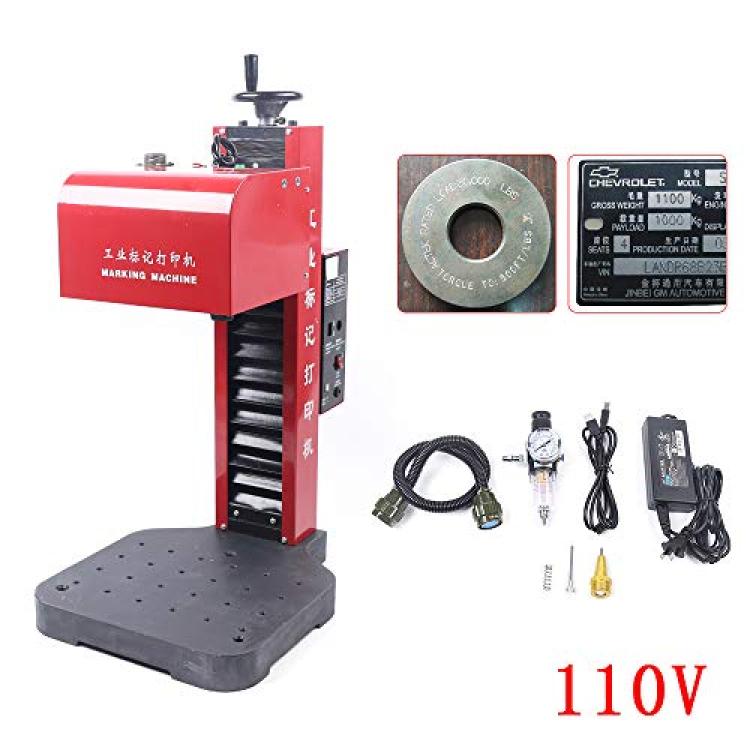

Package Content: 1 x Pneumatic Marking Machine
