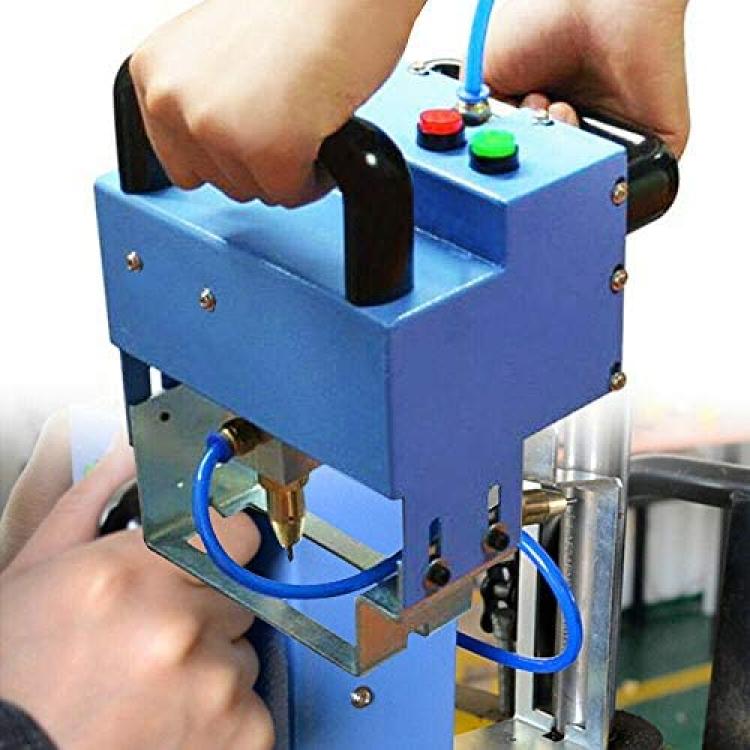

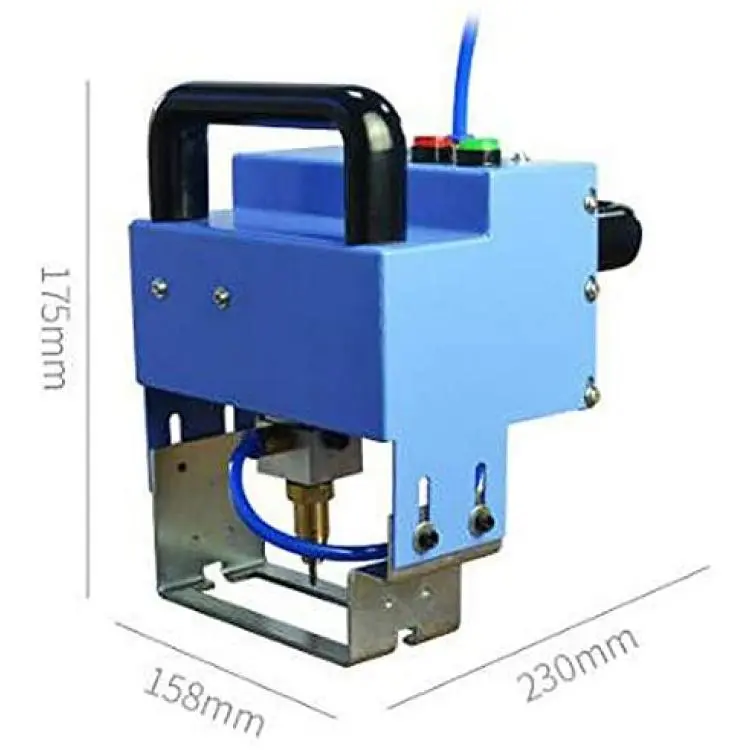

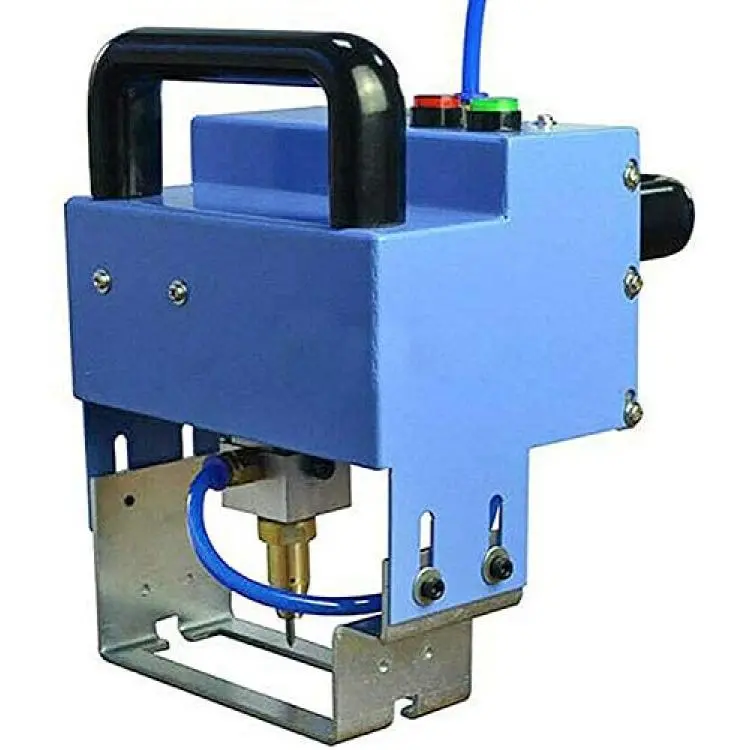

Pneumatic Dot Peen Marking Machine 110V Portable Pneumatic Metal Marking Lettering Machine Handheld Cutting Plotter for Metal Parts VIN Code Number

Specifications?



Name: Portable cutting plotter

Print depth: 0.1-1mm

Printing speed: English or number: 1-4 / sec (adjustable)

Working pressure: 0.3-0.5MP

Repeat printing accuracy: 0.04mm

Pair of needles: Measuring pair of needles

Print range: 80*20mm/3.15*0.79inch

Print hardness: ?HRC60°C

Operating Voltage: 110V

Package dimensions: 57*40.5*25cm/22.44*15.97*9.84inch

Package weight: 9KG/19.84LB



Advantage:

(1). Small size, portable

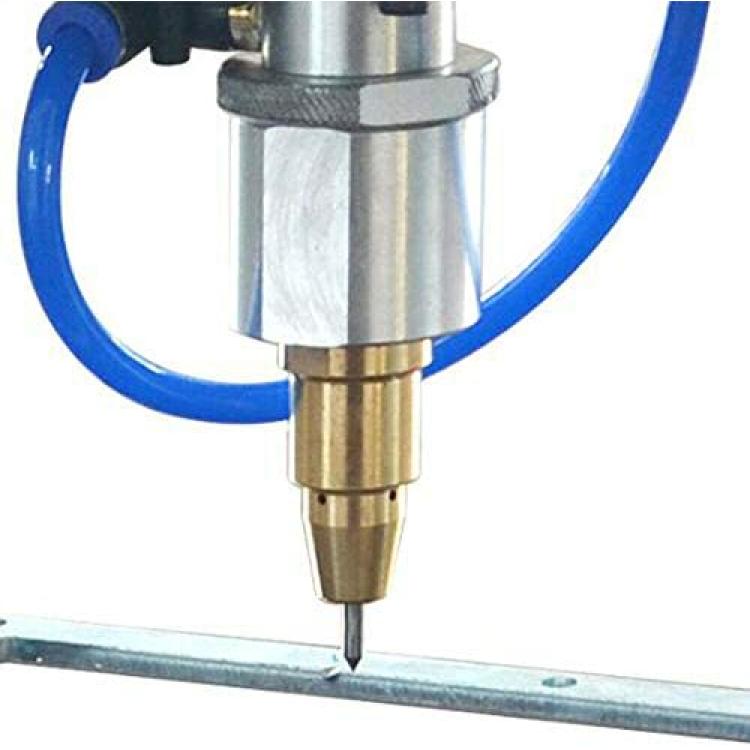

(2). Carbide needle

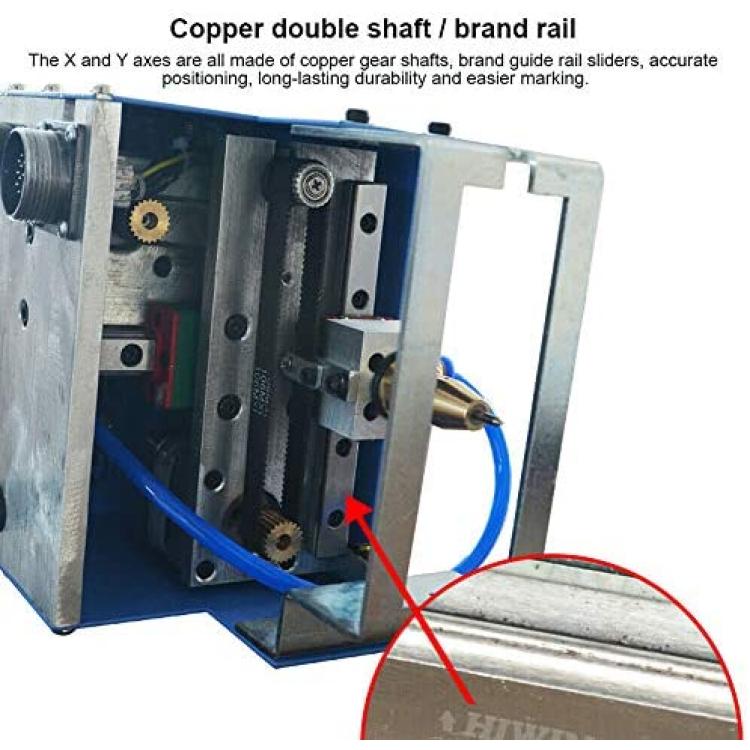

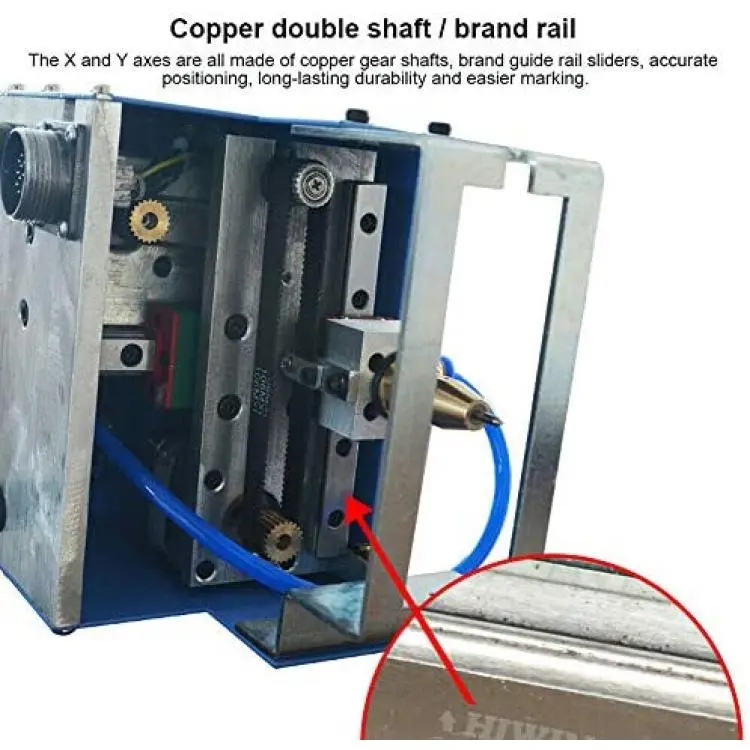

(3). High-precision gears and guides for the X and Y axes

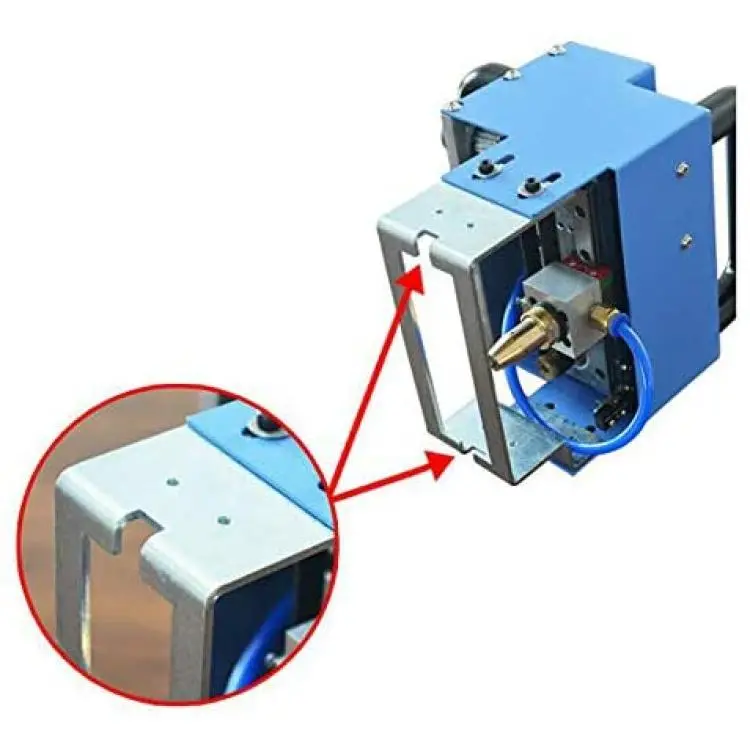

(4). Bracket snap design

(5). 80*20mm print range

(6). 1-4/sec (adjustable) print speed (number or letter)



Benefit for you:

(1). Portable size, easy to carry, can be used with one hand. Can be used for mobile use.

(2). Full-hard alloy printing needle, the printing hardness can be less than HRC60 °C, the needle strength is 20% higher than the ordinary printing needle, the printing font is clear, durable.

(3). The X and Y axes use high-precision gears and guide rails. Guaranteed printing accuracy, repeated printing accuracy: 0.04mm.

(4). 80*20mm print range, free to print.

(5). 1-4/sec (adjustable) print speed (number or letter). Fast print speed for increased productivity

(6). Using high-quality stepping motor, the printing font has high precision and fast speed.



Package Included :

1*Pneumatic cutting plotter

1*Controller

1*spring

1*Seal ring

1*Needle

1*Navigation line

1*Data line
