XLX 3 Sets 16mm 5 Pin Metal Momentary Latching Push Button Switch 1NO 1NC Self-Locking 12V DC On Off Stainless Steel Flat Head Waterproof LED Ring Illuminated Switch with Wire Socket Plug

XLX 3 Sets 16mm 5 Pin Metal Momentary Latching Push Button Switch 1NO 1NC Self-Locking 12V DC On Off Stainless Steel Flat Head Waterproof LED Ring Illuminated Switch with Wire Socket Plug

Product Code: MPM6804
Availability: Pre-Order, Inquiry Price

US$6.49

- +

For Bulk Order, Get Better Price.

About this product

*Durable material: Metal appearance, the button housing is made of copper-plated nickel, stainless steel, beautiful appearance, sturdy. It is long lasting and durable for you to use.

*Package including: Include 1pcs power self-locking red connector, 1pcs self-locking green connector, 1pcs self-locking blue connector, 3pcs wire Socket Plug and 3pcs O-ring. Contact Configuration: 1NO1NC. 12 volt switch. Momentary switch: Push & Hold,ON; Release,OFF.

*Precise designs: 16mm Latching Switch. Silver stainless steel ring LED; LED voltage: 12V, hole size required: 0.63/16mm. Precision thread, high-precision instrument lathe processing, smooth nut installation, uniform force, and firm installation

*High quality: Standard models, high life, compact design, to achieve a light touch. With a long time to maintain a stable contact and in the use of insulated gold-plated profiles. You can install the key top on a convex plunger.

*A wide range of applications: Widely used in electromagnetic starter, relay, doorbell, horn button switch, PC power switch or any circuit controls, computers, remote-controller, digital products, communications products, household appliances, toys, fitness equipment, medical equipment, etc.

Description

Switch performance and features:
Metal appearance
The button housing is made of copper-plated nickel, stainless steel, beautiful appearance, sturdy
Precision thread
High-precision instrument lathe processing, smooth nut installation, uniform force, and firm installation
Momentary push switch
When the finger presses the button, the switch is turned on. When the finger releases the button, the switch is automatically reset and closed.

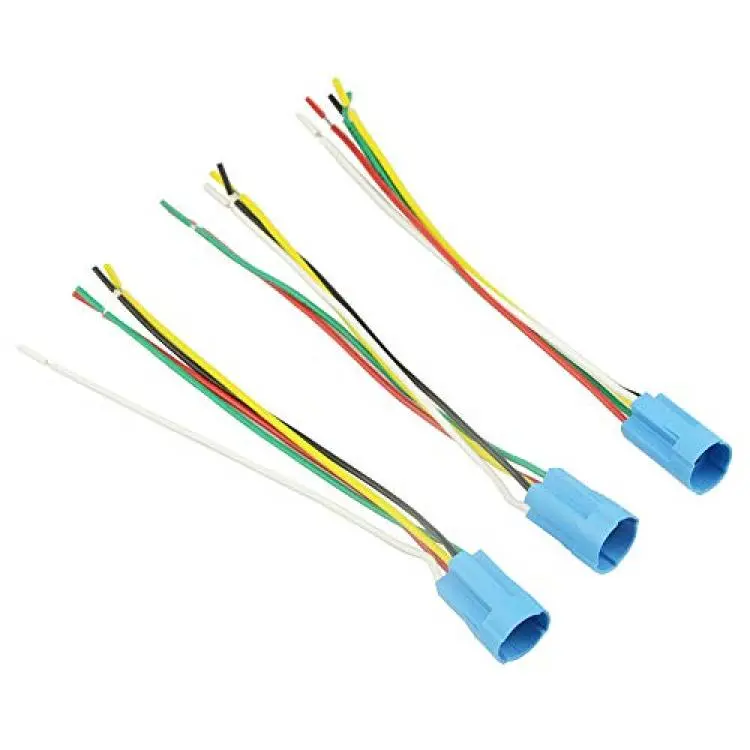

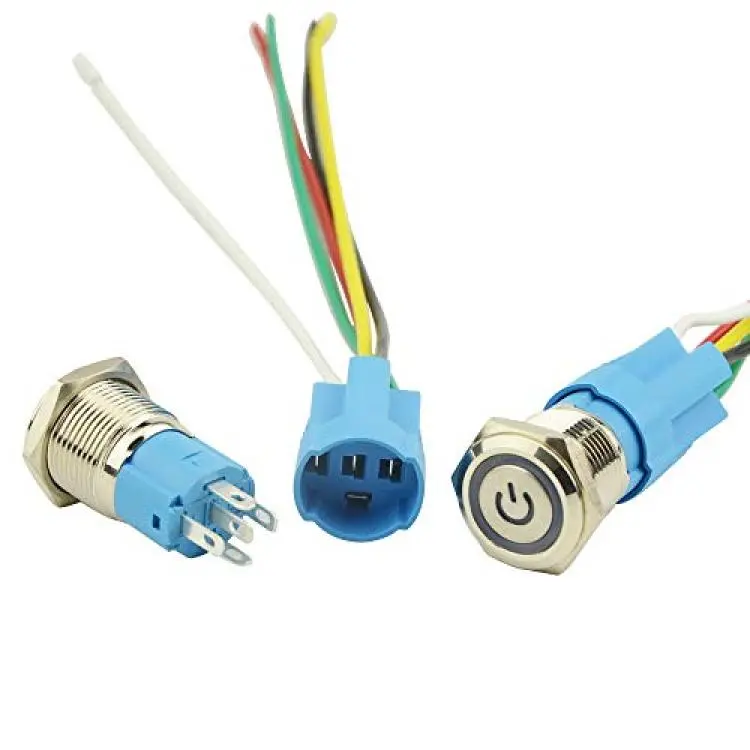

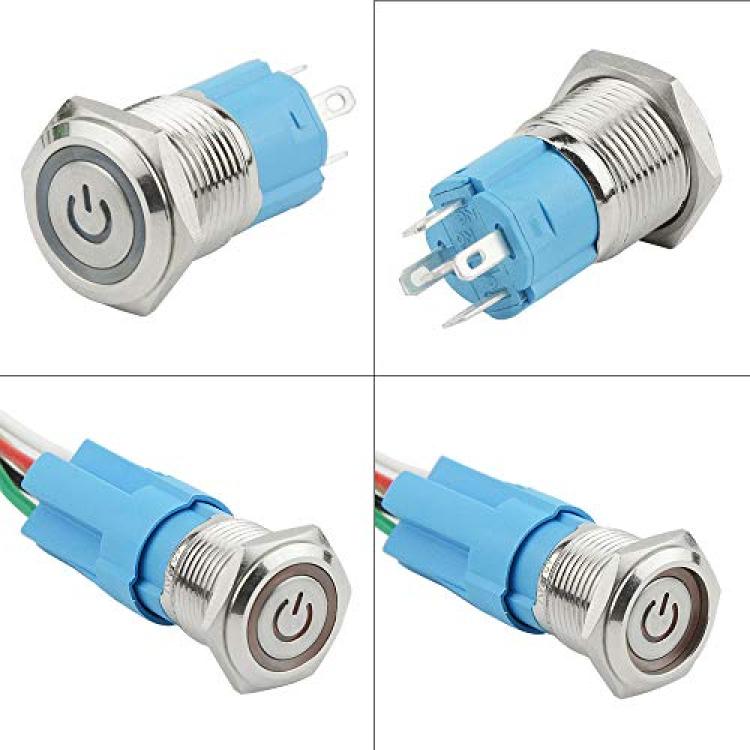

Wire Connector Socket
With the wire connector plug, no need to solder the terminal, which makes the installation very convenient, saves the welding problem of the switch.
Just disconnect the switch from the socket and replace the switch at any time.
Waterproof performance
The waterproof seal button fits the contact surface of the panel, and the front of the button is built with waterproof silicone to prevent water from entering the switch.

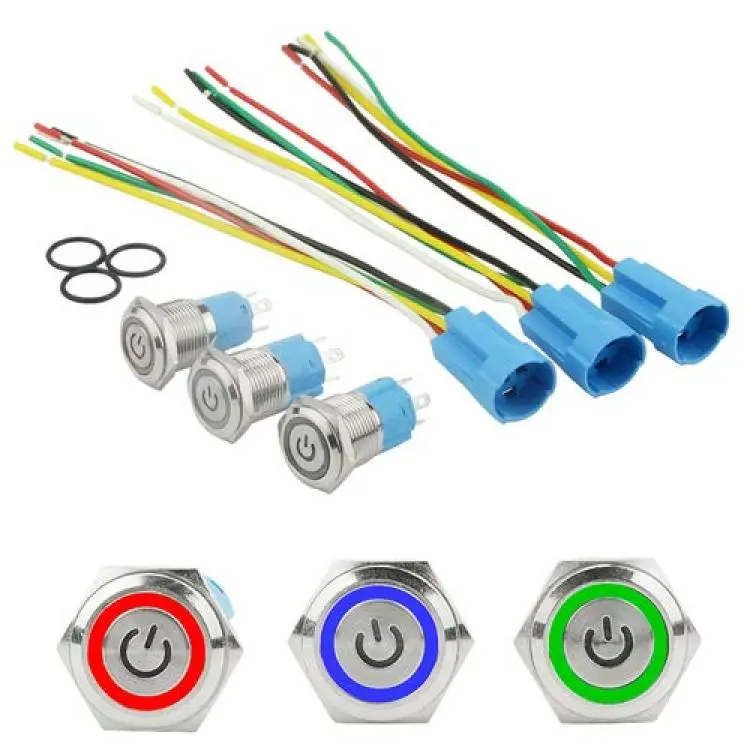

Package including:Â

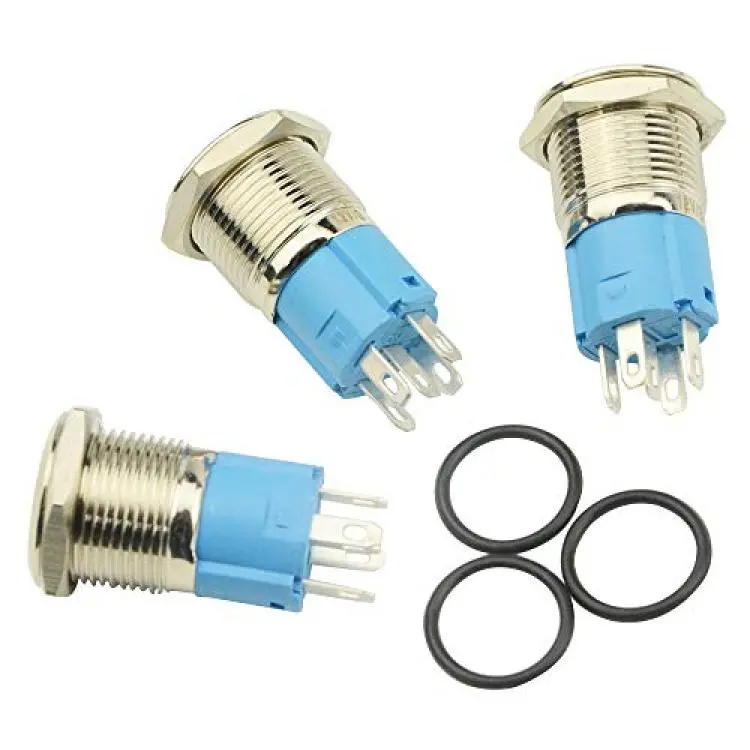

3. x Metal LED Push Button Switch
3 x Switch Socket Plug
3 x O-ring

Specification:
1.Product name: LED push button switch with socket plug wire
2.Contact rated operating current: 12VDC
3. The material of front ring: Made of stainless steel
4.Switch Rating: 5A/250VACÂ
5.Operation Temperature: -20?~ +55?Â
6.Switch Combination: 1 NC, 1 NO
7.Contact Material:Â Silver alloy
8.Button Material:Â Stainless SteelÂ

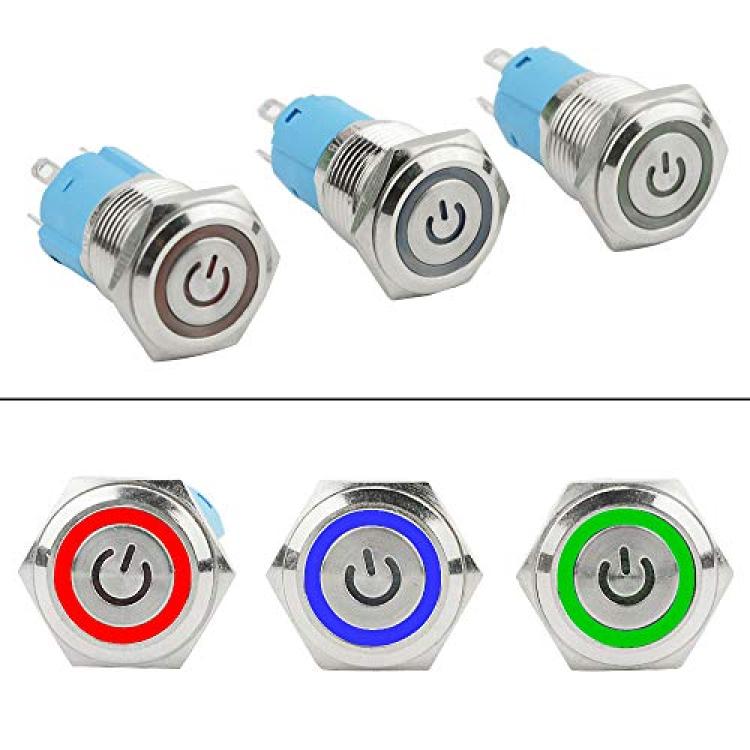

9.LED color: Red, blue and green
10.Head Shape: Flat head.

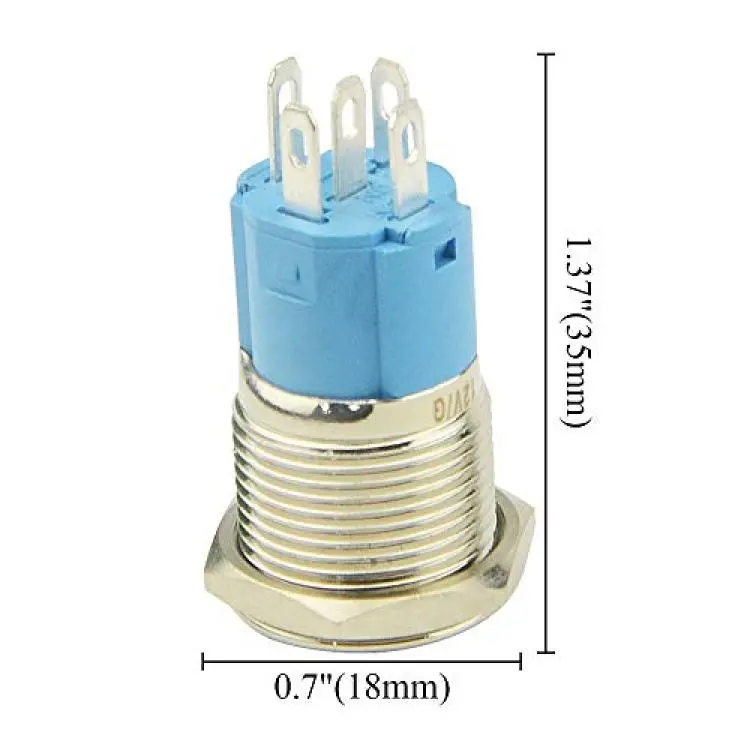

11.Head Diameter: 0.87" (22mm)
12.Mounting Cut Hole: 16mm/0.5in, height 34mm
13.Â Terminal Type: 5 Pins, with socket plug wire
14.Protection Level: IP67, IK10
15.Mechanical life: 1,000,000 cyclesÂ
16.Electrical life: 200,000 cyclesÂ
17.Contact Resistance: ?50m?
18.Insulation Resistance: ?1000m?
19.Weight: 50g
