TWTADE 22mm Waterproof Latching Power Metal Push Button Switch 7/8 10A DC12V Stainless Steel Shell (Blue) LED Ring Switch 1NO 1NC with Wire Socket Plug YG-GQ22AF-D-L-B

About this product

*This Push Button Switch Exquisite workmanship ,Quality assurance for 5 years. If there are quality problems within 5 years, no man-made damage, you can send us email. We will send you new ones .

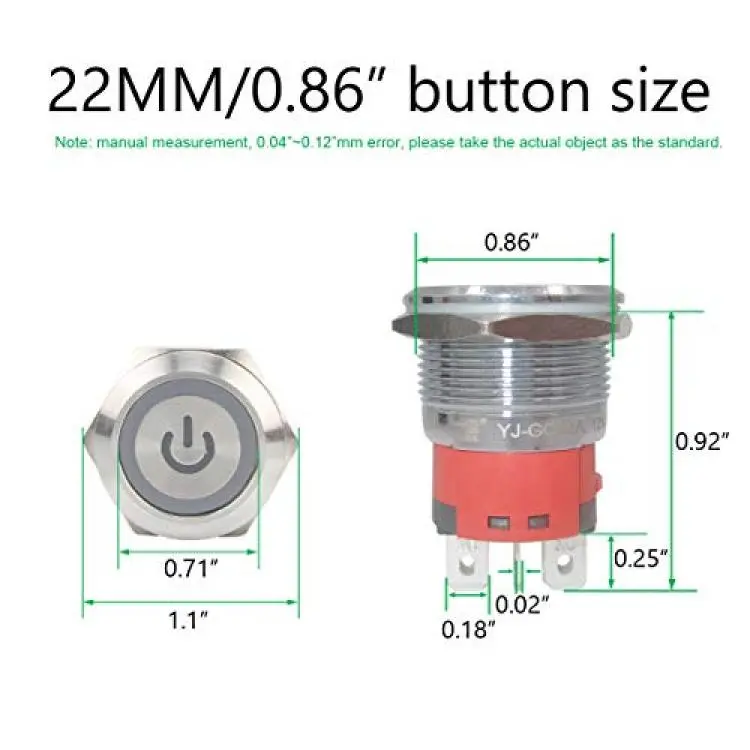

*Mounting Hole Size : 7/822mm ，LED voltage: 13V DC; Blue LED Light;Maximum use current: 10A ；Switch Rating: 10A/250VAC ；Operation Type: Latching- Switch.

*Shell Metarial: metal material & IP65 waterproof protection；Mechanical life : 1000,000 cycles ；Electrical life: 200,000 cycles.

*Latching switch: Press the button switch work ; Press the button again switch stop work . Configuration: 1NO 1NC。

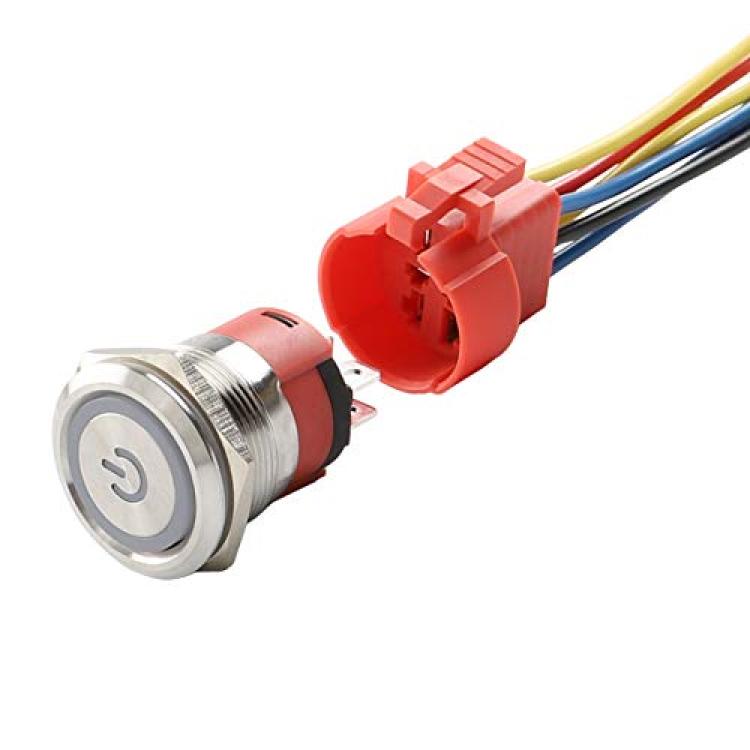

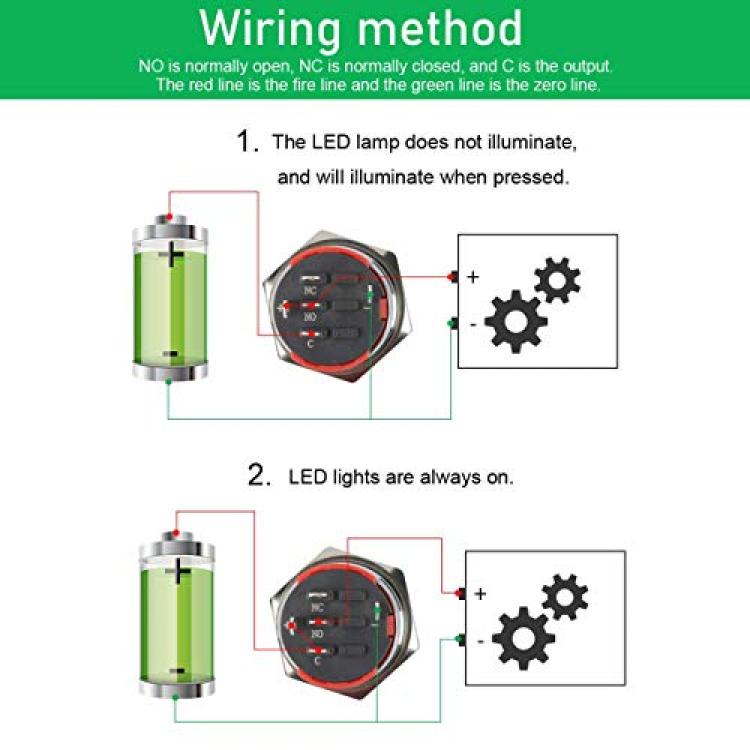

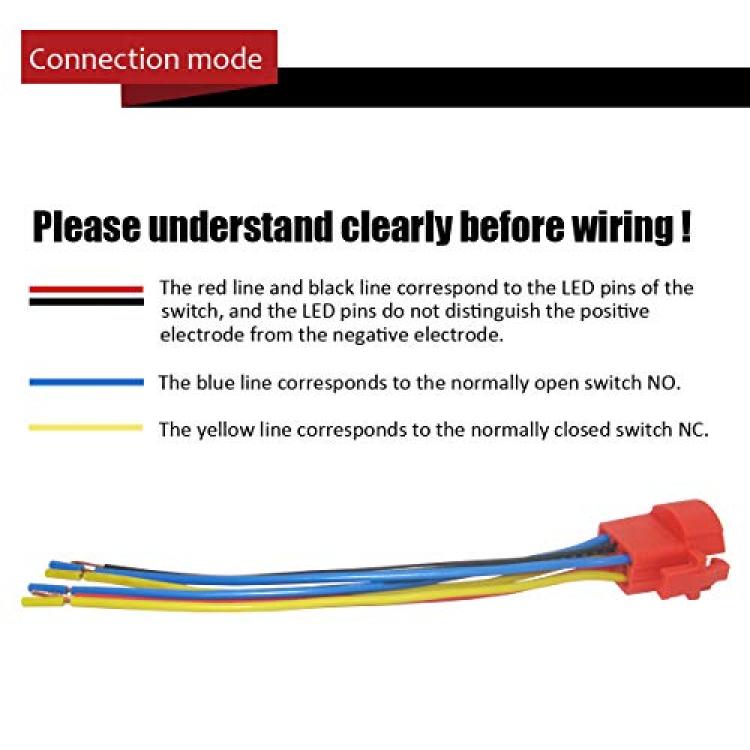

*Package Content : 1 x Blue Metal Button Switch+ 1 xPower supply socket。The switch and LED are separated, LED can be on all the time or only on when switch is on, depending on how you wire it。
