SUDEG Hole Punches Pressure Pneumatic Punch Press Machine 200KG/440LB Pneumatic Milling Machine Desktop Punching Press Machine,0.4-0.7 Mpa Operation Pressure

SUDEG Hole Punches Pressure Pneumatic Punch Press Machine 200KG/440LB Pneumatic Milling Machine Desktop Punching Press Machine,0.4-0.7 Mpa Operation Pressure

Brand: SUDEG
Product Code: MPM7657
Availability: Pre-Order, Inquiry Price

US$84.64

- +

For Bulk Order, Get Better Price.

About this product

*✅【PNEUMATIC PUNCH】-- - Powered by compressed air and equipped with foot pedal, this punch press is of easy operation and high efficiency, thus reducing labor. Air pressure: 0.4 to 0.7Mpa, Nominal force: 2kN, Cylinder stroke: 75mm (50mm Adjustable), Maximum air consumption: 0.62L / time.

*✅【HIGH PERFORMANCE】-- - No noise in hydraulic system or under standby status. This will save electricity consumption and lower production cost.

*✅【EASY TO USE】*--- - Simple structure, convenient operation, cheap price, superior performance, no noise produced during the hydraulic system and electric standby, can save electricity consumption reduce production cost, has the very high cost performance.

*✅【MACHINABLE MATERIALS】--- - For sheet, strip, coil to shear, punching, blanking, forming, bending, riveting, etc;Suitable for non-ferrous metal, plastic parts processing.

*✅【APPLICATION】--- - Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats

Description

Description:

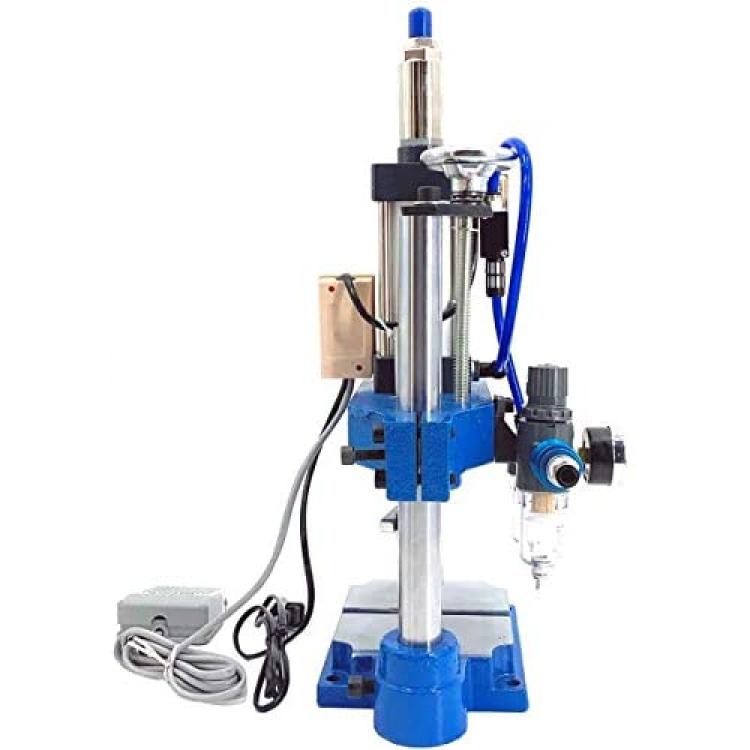

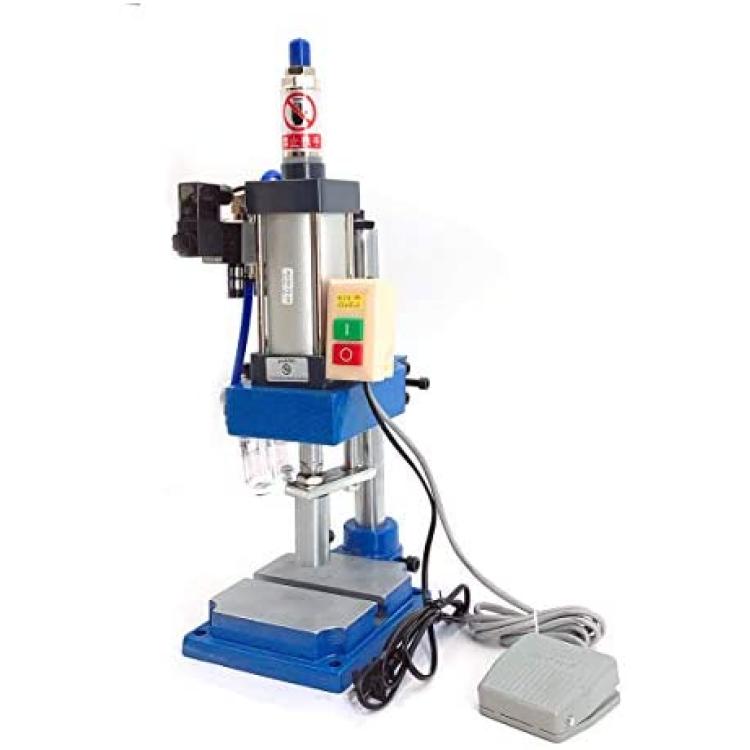

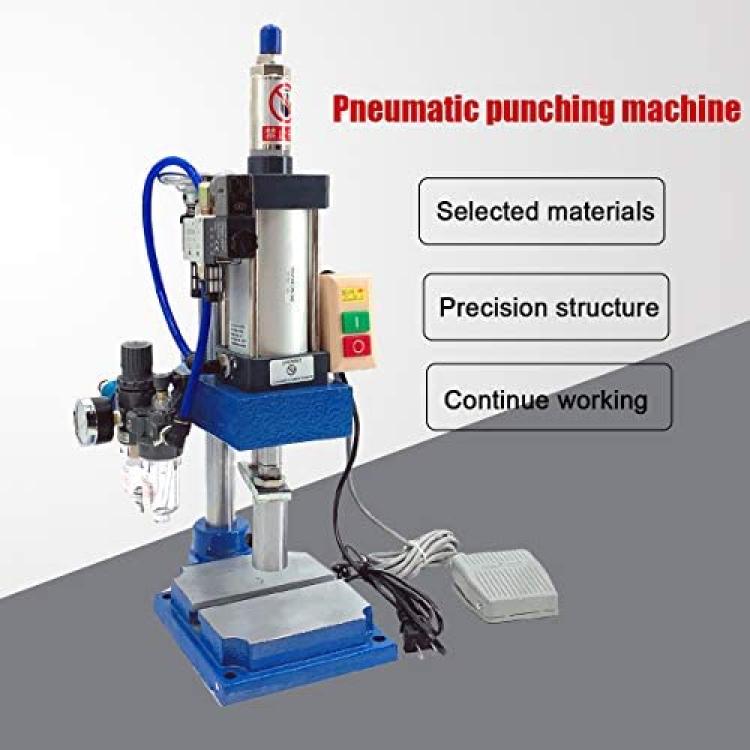

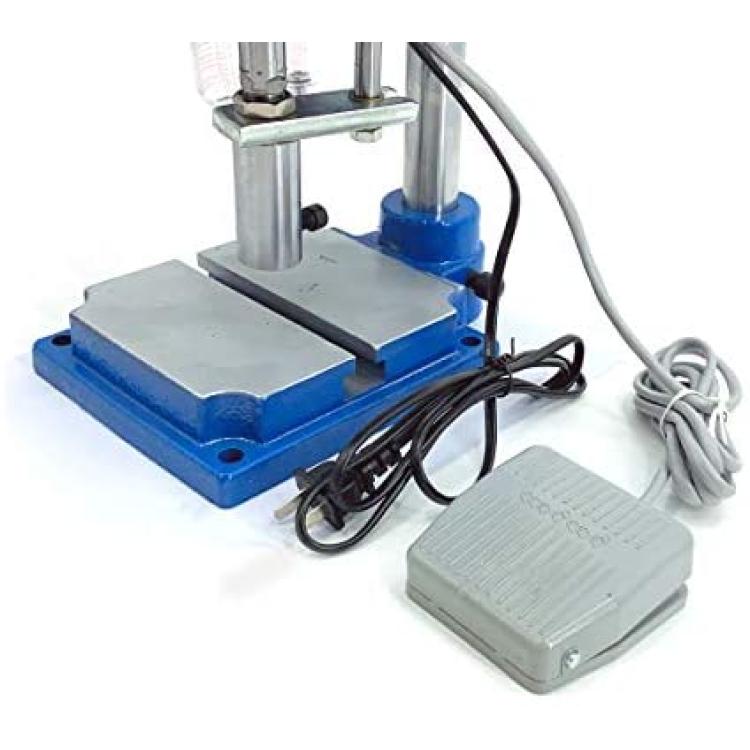

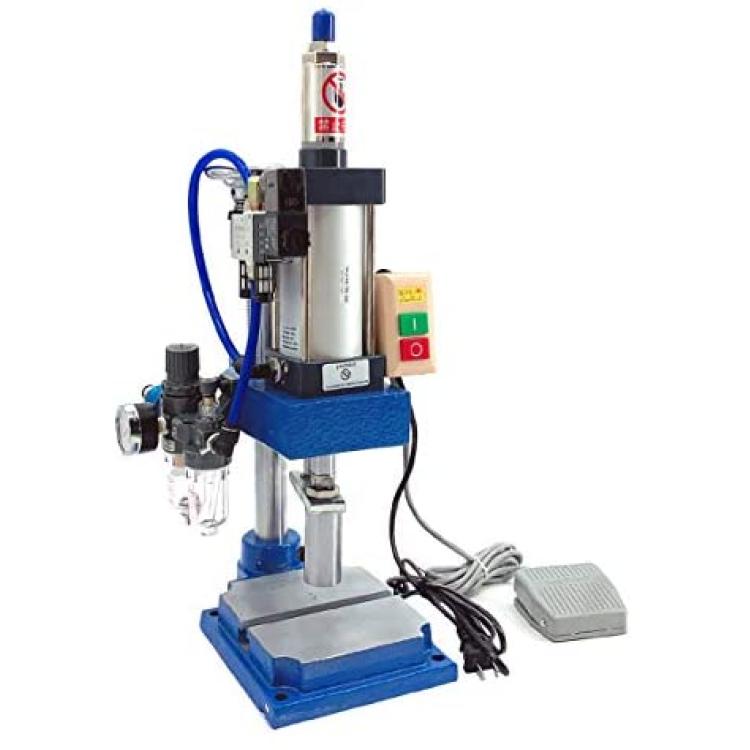

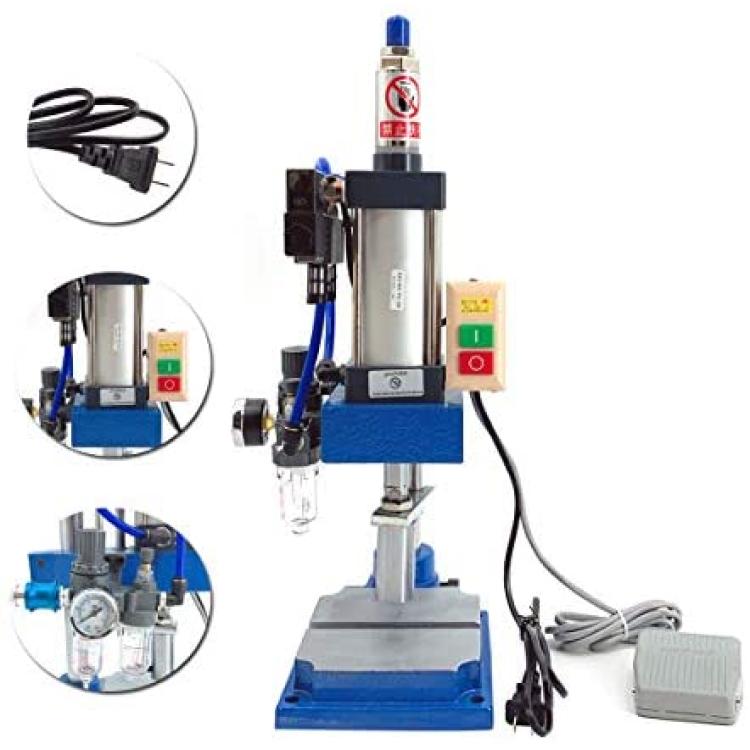

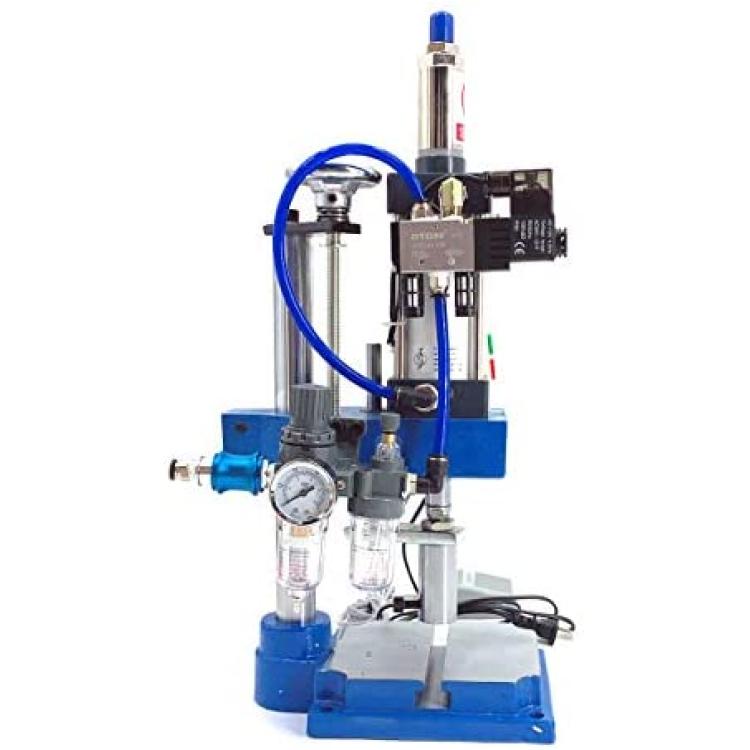

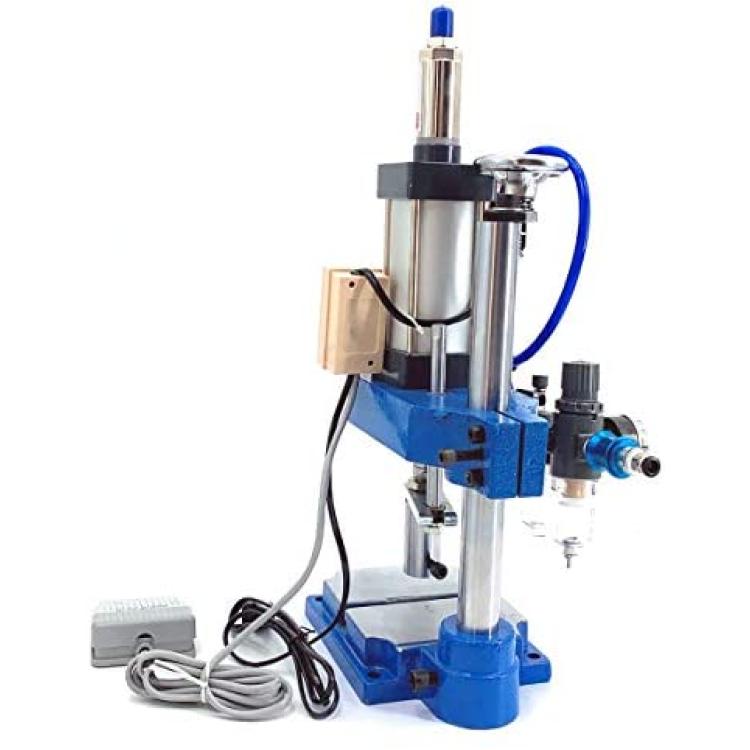

Pneumatic punch press machine, powered with compressed air, is of high efficiency and easy operation. Suitable for manual operation integration and automated assembly line application. It is suitable for the processing of stamping parts in electronics, electrical appliances, instruments, instruments, jewelry, watches, hardware, medicine, clothing, shoes and hats, lighters and other industries.

Superiority:
No noise in hydraulic system or under standby status.
Output pressure easy adjustable.
High accuracy rotational resistance guide rod and guide plate.
Saves electricity consumption and lowers production cost.

Function:
Blanking, cutting, punching, bending, shallow drawing, forming, closing, flanging, riveting, embossing, etc.

Specifications:
Voltage: 110V
Current: 50mA
Power Source: Pneumatic
Nominal force: 2kN
Cylinder bore: 63mm (2.5")
Cylinder stroke: 75mm (50mm Adjustable)
Air pressure: 0.4 to 0.7Mpa
Maximum air consumption: 0.62L / time
Holding time: 0.1s to 99.9s
Operating temperature: -20~55?
Depth of Throat: 80mm ( 3.15")
Maximum enclosed height: 200mm ( 7.87")
Workbench size: 130×150mm (5.3" x 5.9")
Workbench thickness: 35mm (1.38")
Mold hole size: 16mm ( 0.63")
Tracheal Size: 8mm (0.3")
Dimensions: 15×24×35cm (5.9×9.4×13.7")
Package size: 66×33×30cm
Gross weight: 16kg
