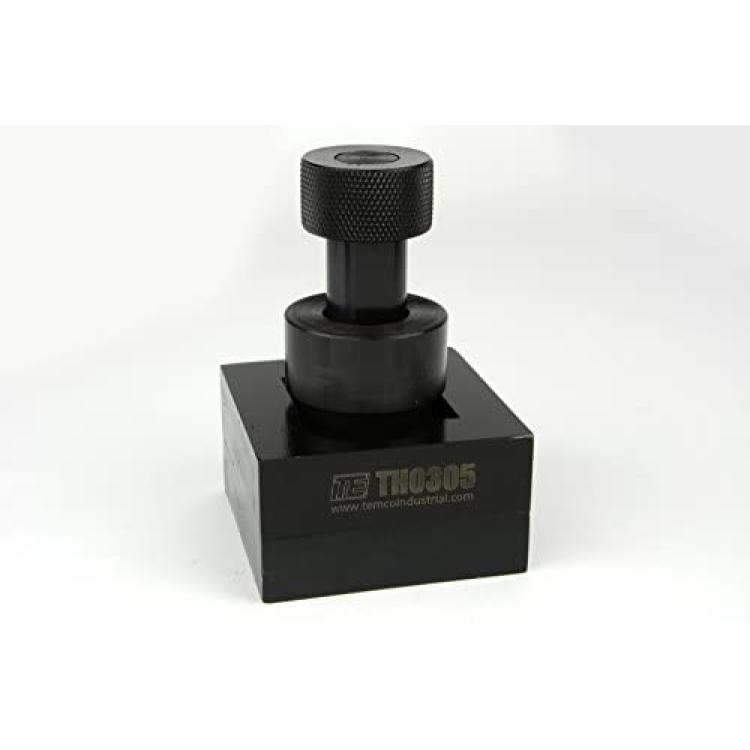

TEMCo Industrial TH0305 Square 45mm x 45mm 1/16 DIN Panel Meter Punch Dies 1.772'' x 1.772''

Brand: TEMCo Industrial
Product Code: MPM8443
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

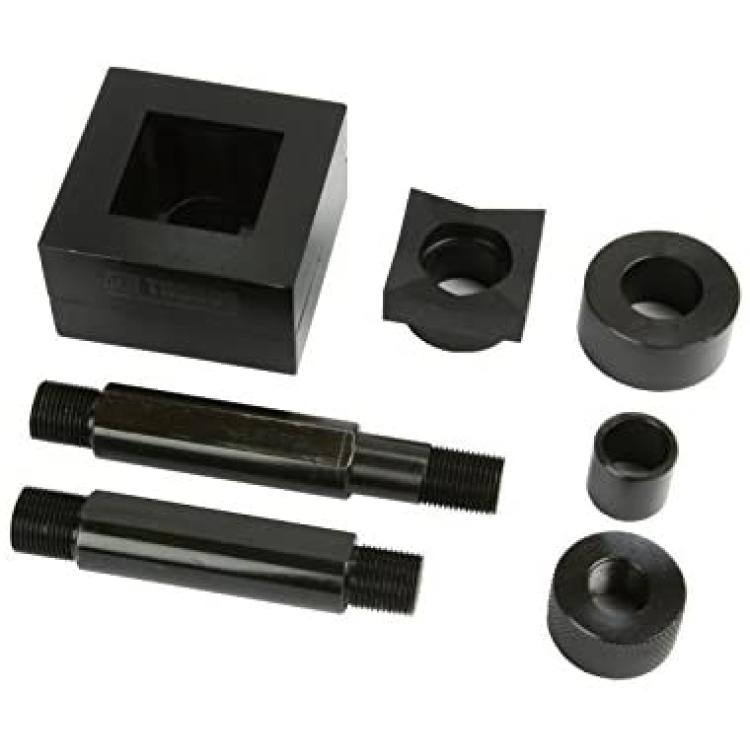

*Square DIN Punch Die Set for 45mm x 45 mm (1/16 DIN)

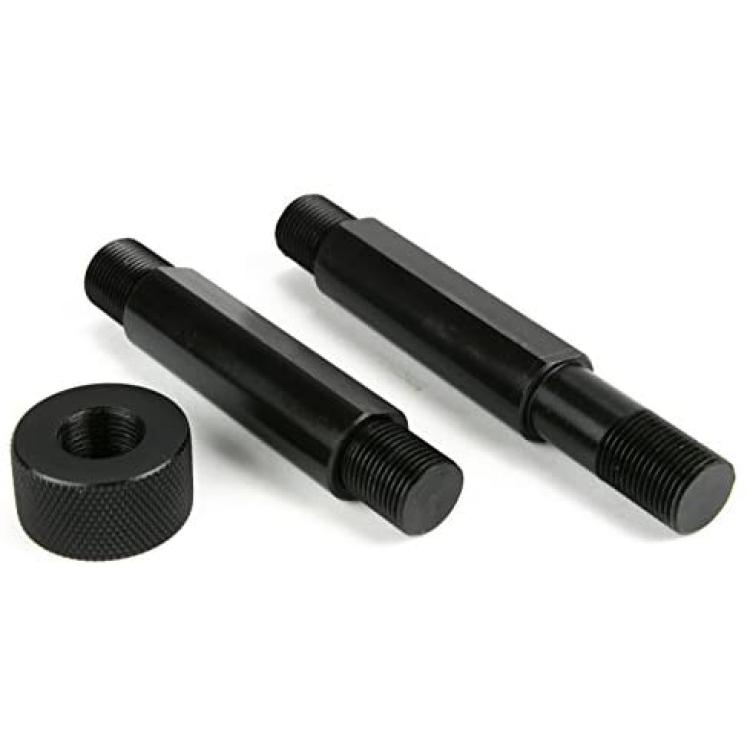

*Fits TEMCo Industrial, Greenlee and other English punch sets (3/4-16") OR Fits other import metric punch sets (20 x 1.5mm). Draw studs and spacers are included for all of the above specifications.

*Required Punching Force: 12 US Tons

*Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16" Stainless Steel. Punches Materials: Steel, Stainless Steel, Brass, Copper, Aluminum (soft alloys only, not for use with 7075 or other super alloys), Fiberglass, Plastic and more.

*TEMCo Industrials 1 year no-questions-asked return policy and 5 year warranty

Description

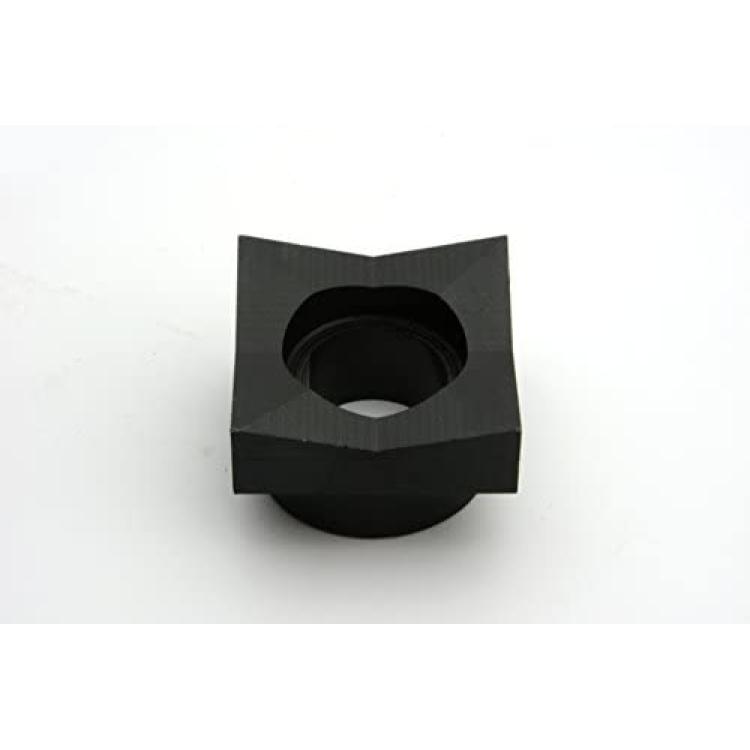

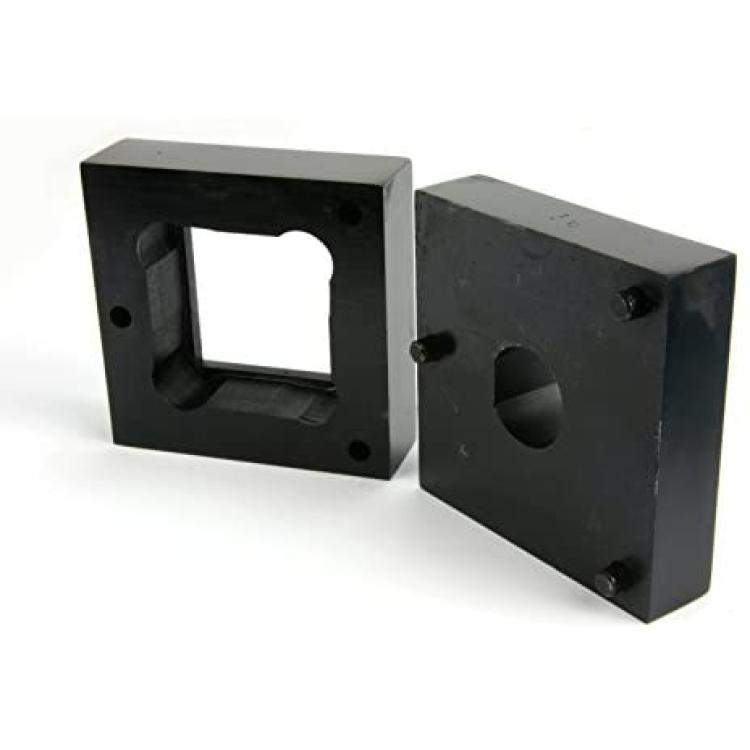

This punch set is designed for punching holes in panels for common fractional DIN sized meters, gauges and process controllers. The unique design uses an indexed mandrel for male-to-female die rotational alignment ensuring high quality punching repeatability. This set requires the use of a hydraulic punch ram with a capacity of at least 12 US Tons. We recommend this product be used with our TEMCo Industrial TH0037 knockout punch driver set.
