Fromann Electric Recliner Lift Chair Motor Okin Deltadrive Actuator Model 1.28.000.131.30 Replacement Kit
Availability: In Stock
About this product
*Okin DeltaDrive 1.28.000.131.30 Recliner Motor, Check Label Before Ordering

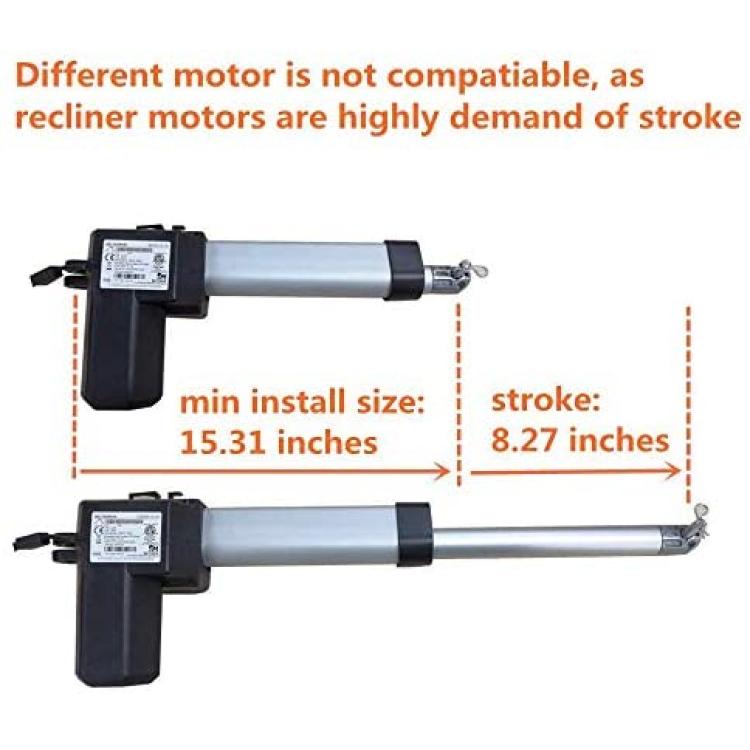

*Min install size: 15.31 inches, Stroke: 8.27 inches

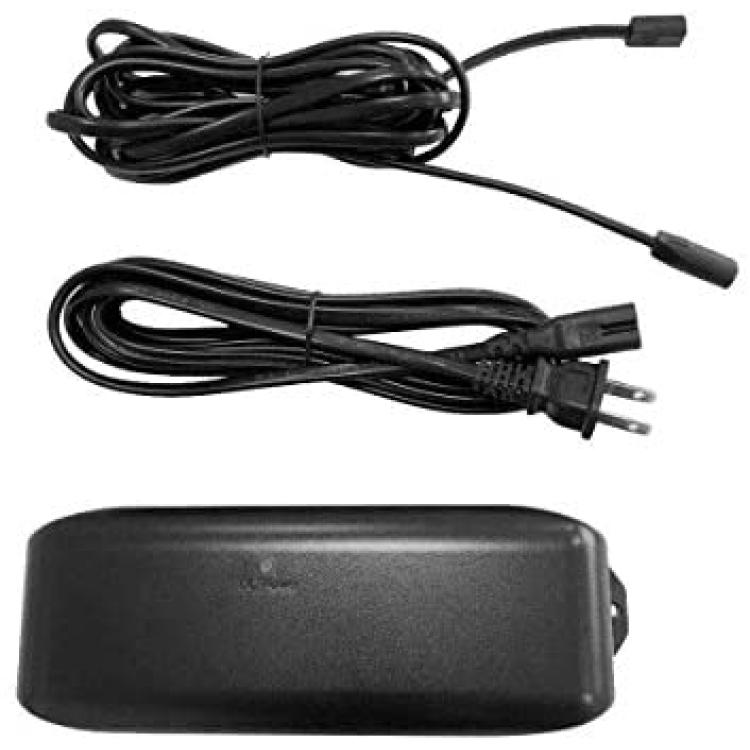

*Okin Power Recliner or Lift Chair Power Supply Replacement Transformer Kit (Batteries not included), Including AC Power Cord 13.1ft and Motor Cable 11.5ft

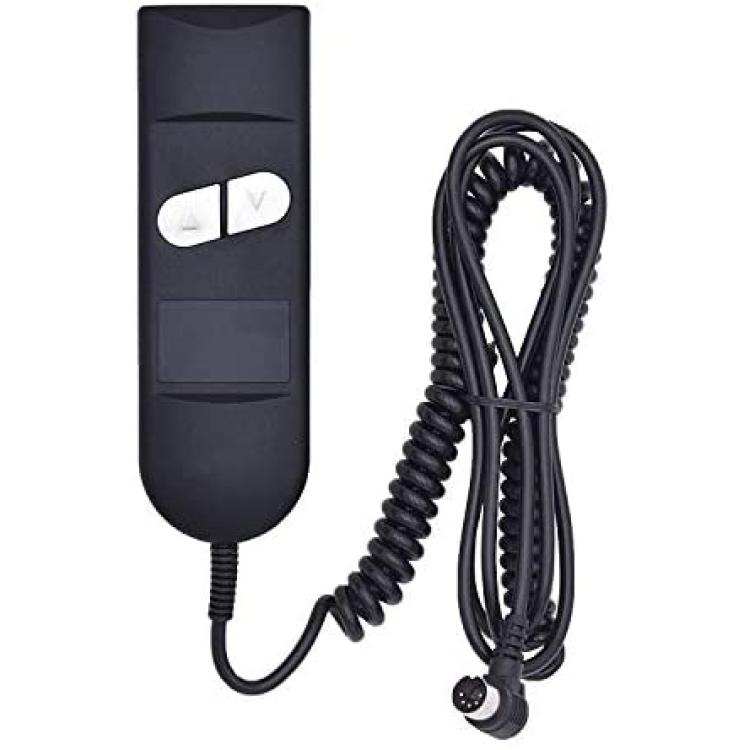

*Fromann Okin Lift Chair Power Recliner Remote Hand Control with 2 Button 5 pin Connection
*This motor is made for quiet, safe operation using a low 24 volt. 2.2A
Description

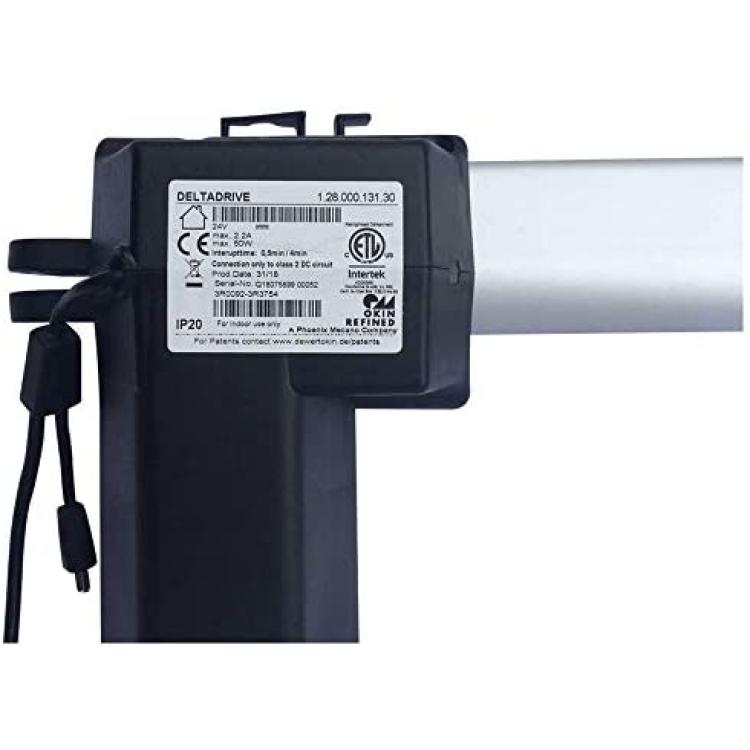

This is Okin DeltaDrive Part Number:1.28.000.131.30.
This Power Recliner Lift Chair Linear Actuator Motor Will Open and Close The Lift Mechanism of Power Recliner or Lift Chair.
This motor is made for quiet, safe operation using a low 24 volt.
2.2A Smooth transition for safe positioning.
Standard Lift Chair Motor for 2 Position and 3 Position Lift Chairs.
Used on many brands of lift chairs such as Action Lift Chairs,La-Z-Boy, Pride, Golden, Med-Lift and Berkline Lift Chairs.
Technical data:
Appearance: Black?PA?,silver white?aluminum?
Motor: Low-voltage DC motor?24V?
Operation frequency: On 1 min/Off 8min
Stroke: 210mm max
Minimum dimensions: 389mm min
Load: 4000N max
Speed: 42mm/sec max
Control of stroke: The Stroke is controlled by limit swith, and the tolerance is ± 2mm

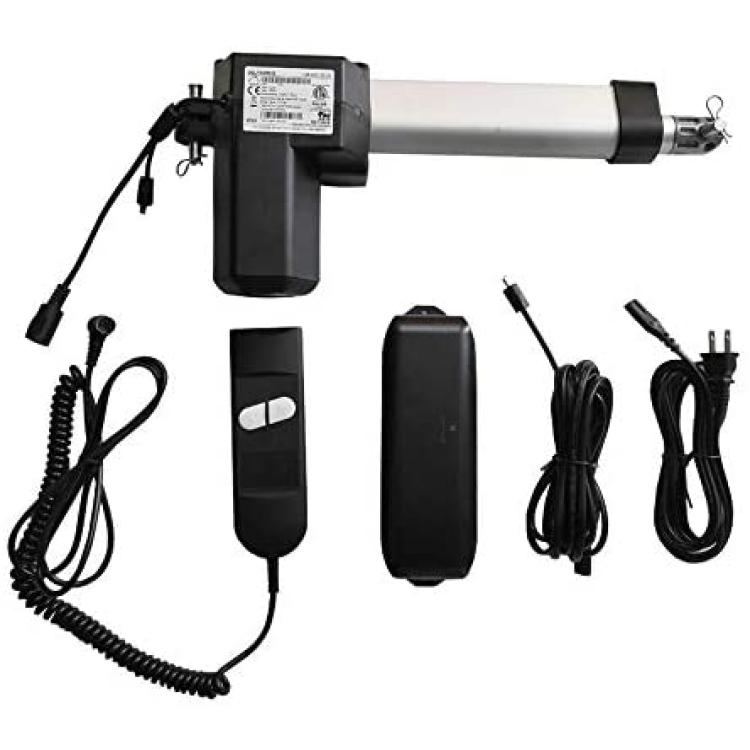

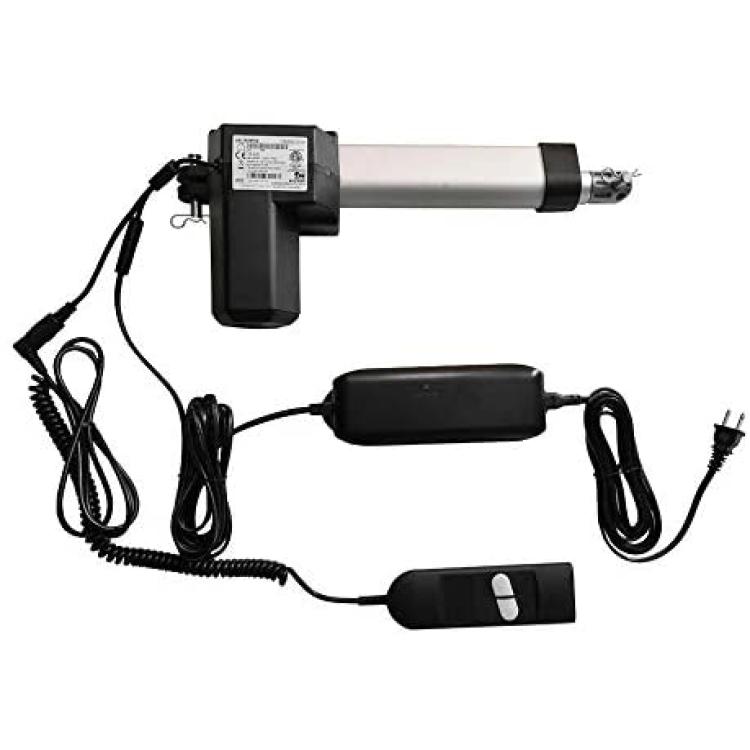

Package included :Â
1x Fromann Okin DeltaDrive Linear Actuator Motor
1x Okin Power Recliner or Lift Chair Power Supply Replacement Transformer Kit (Batteries not included)
1x Fromann Okin Lift Chair Power Recliner Hand Control with 2 Button 5 pin Connection
