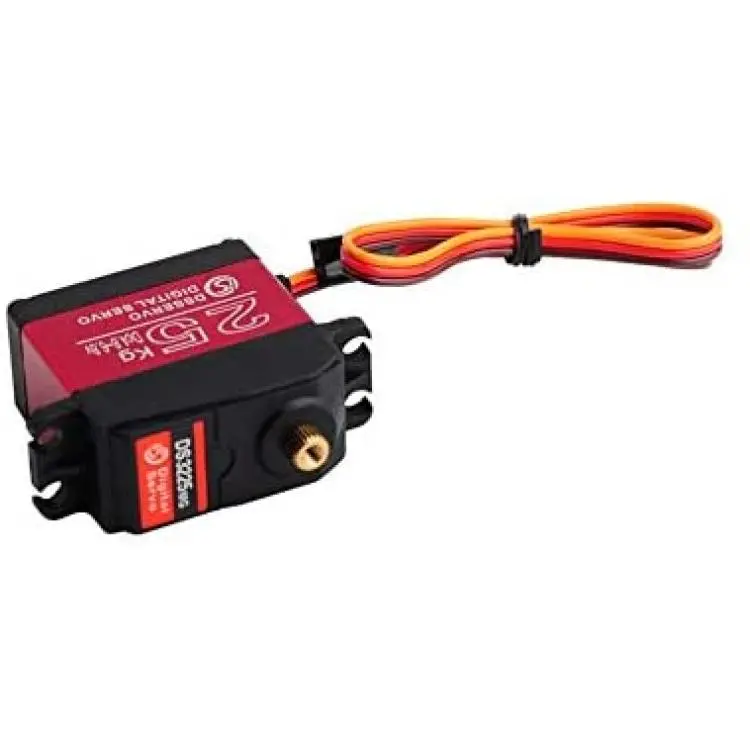

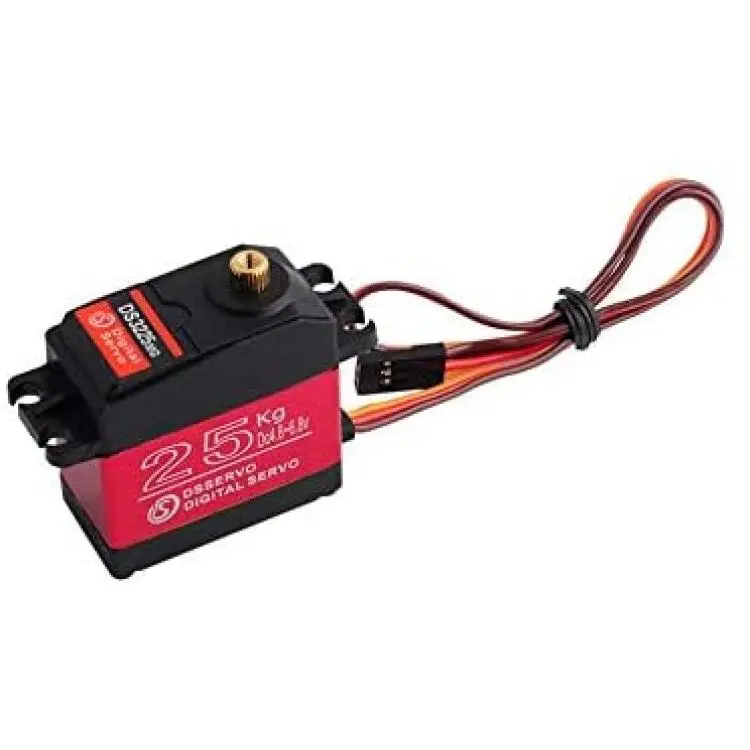

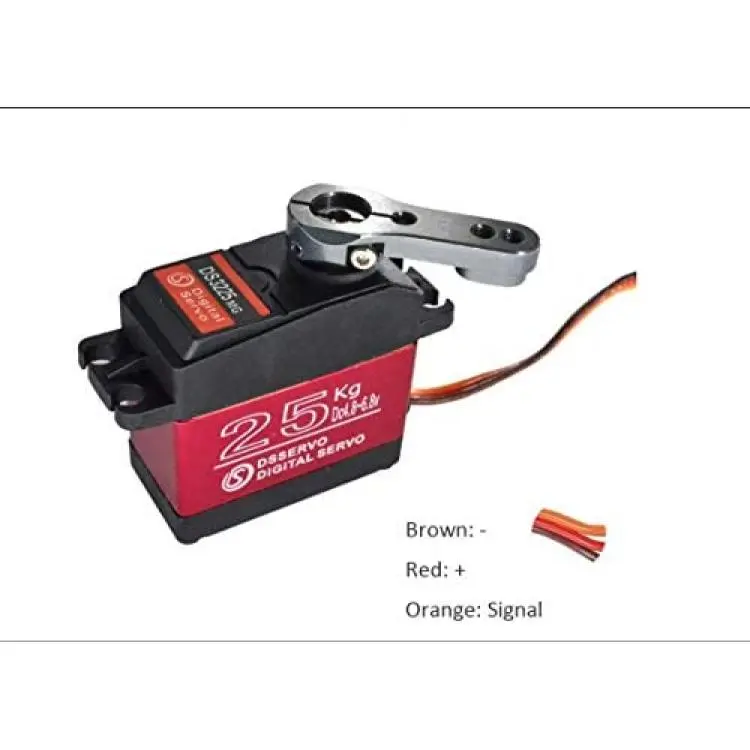

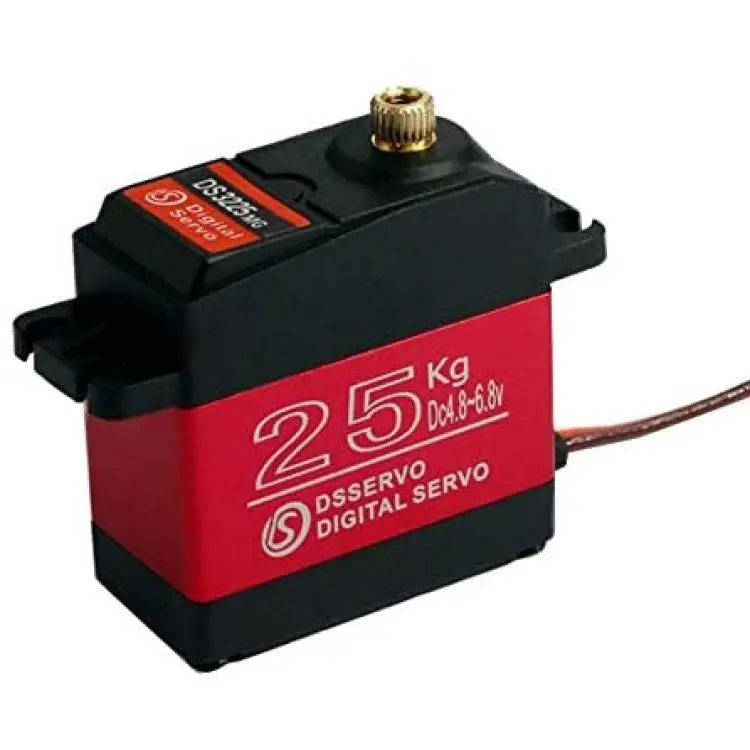

25kg Metal Gear high Torque Waterproof Digital servo DS3225 Update High Torque RC servo with 25T Servo Horn for RC Robotic Arm Model DIY Baja Car 1/10 Scale Crawler Truck 180 Degree
About this product
*Large torque:maximum torque can up to 25kg.cm (6.8V)
*Waterproof: It is a drip-proof servo that does not affect the operation when it gets a little water. But it cannot be submerged in water.
*High torque steering servo for robot arm, boats, vehicles and remote control toys.Suitable for 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
*High-precision metal gear with hard anodizing for better accuracy and longer service life.
*CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
Description
Description:
Sepcification:
Item: DS3225 25KG Large Torque Digital Servo
Operating Voltage: 4.8 ~ 6.8 DC Volts
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall Torque (5V): 21 kg/cm (291.5oz/in)
Stall Torque (6.8V): 24.5 kg/cm (340.1 oz/in)
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 180° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 50-333Hz
Weight: 60 g (2.12 oz)
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Connector wire: 17.7inches(450mm)

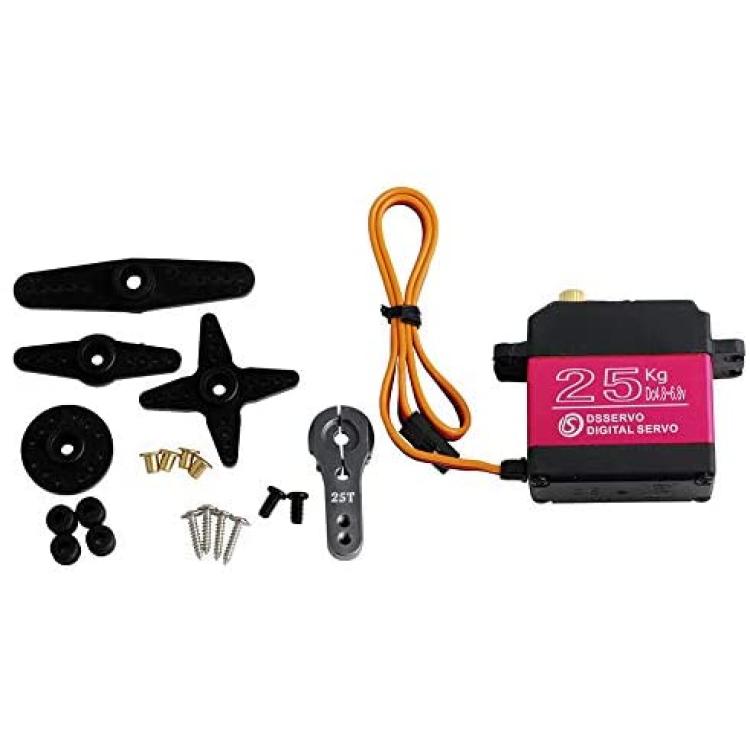

Package Included:
1 x DS3225 25KG Large Torque Digital Servo

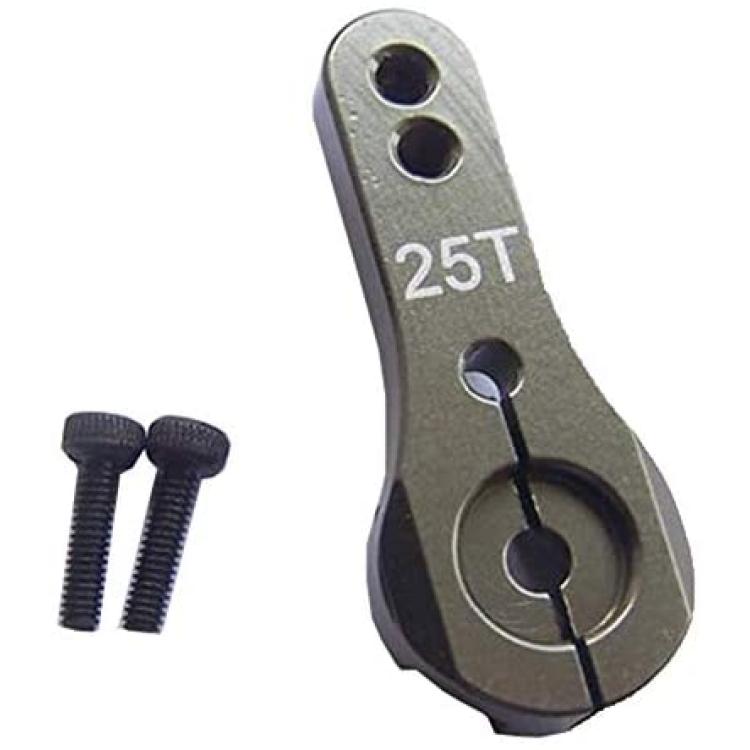

1 x 25T Adjustable metal servo arm
1 X set of Screw
