Fan Model FS-25W 25KG/.07S Waterproof High Torque Metal Gear Coreless Digital Servo for RC Car Crawler Truck Robot

Feature
- Used For: 1/8, 1/10, 1/12 Scale Crawler / Truck / RC Car / Robot / Boat and any application where waterproof standard servos are used
- The Coreless motor provides high speed, response, incredible efficiency and low power consumption.
- High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, high precision, control is more delicate and smooth operation.
- Full waterproof servo to maintain good water tightness in wet conditions.

Specifications
Torque(4.8v/6.0v/7.4V): 22.0 kg-cm (306 oz/in) ?24.0 kg-cm (333 oz/in) ? 25.0 kg-cm (347 oz/in)
Speed(4.8v/6.0v/7.4V): 0.10 sec/60° ?0.08 sec/60° ? 0.07 sec/60°
Operating Voltage Range: 4.8 ~ 7.4 DC Volts
No-Load Current: <500mA
Spline: 25T(6mm diameter)
Motor Type?Coreless Motor
Bearing Type: Ball Bearing x 2

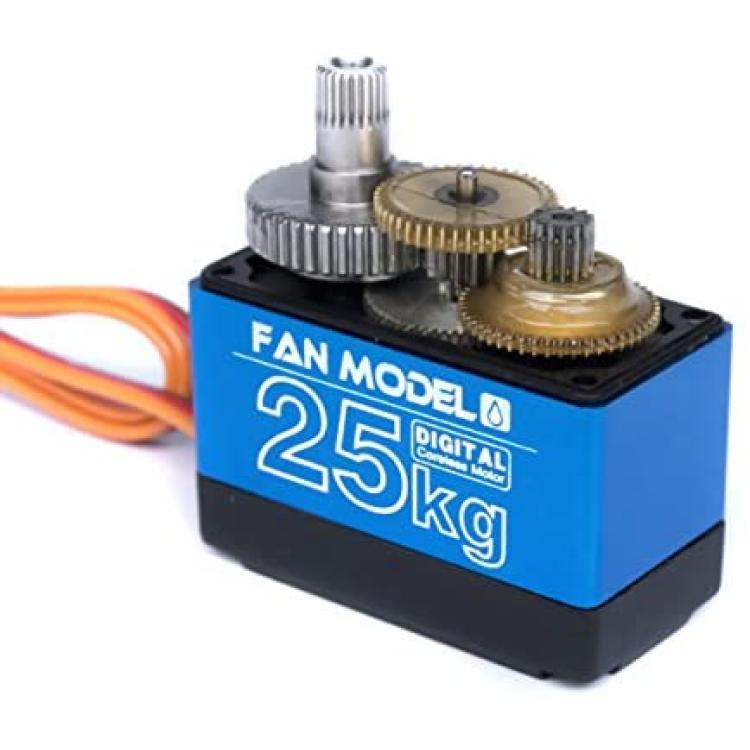

Gear Type: Steel & Copper
Temperature: -20?~60?
Connector Wire Length: 320mm/12.6inch
Case: Plastic & Aluminium
Weight: 65 g (2.3 oz)

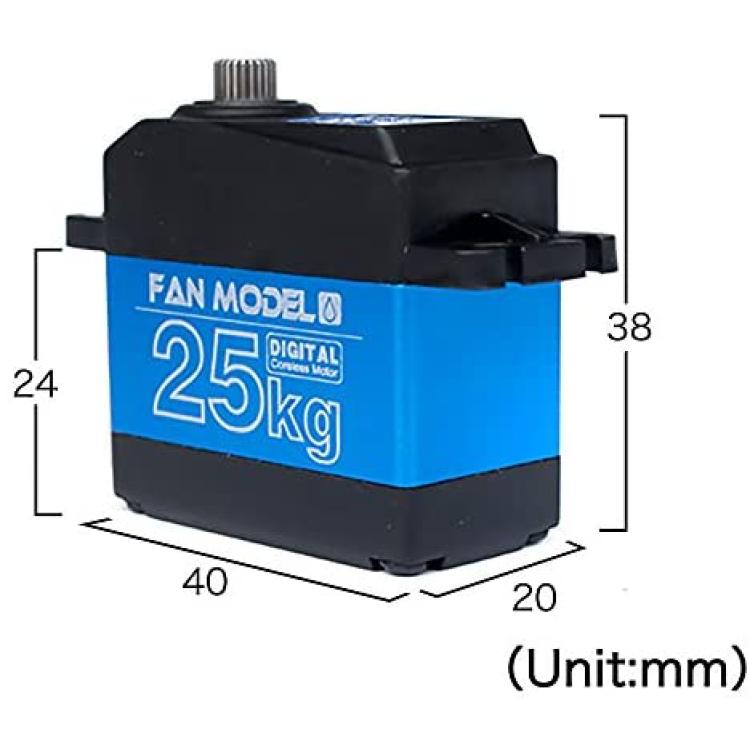

Dimensions: 40 x 20.5 x 38.5 mm ( 1.57 x 0.78 x 1.50 in)

Control Specifications:
Limit angle: 180°± 10°
Operating travel: 90°(1000~2000 ?sec)
Control Method: PWM
Pulse Width Range(0°~180°): 500~2500 ?sec
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms
Dead band width: 2 ?sec

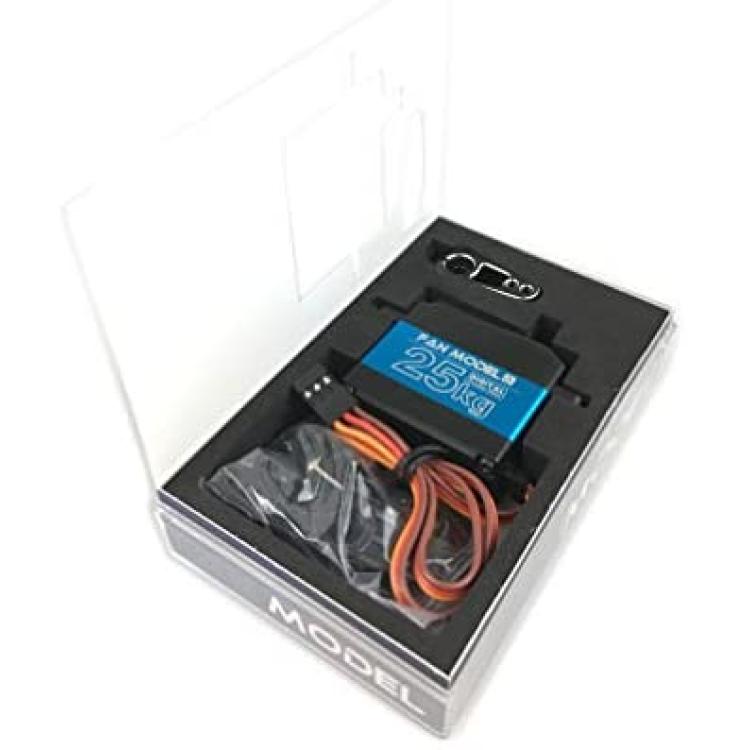

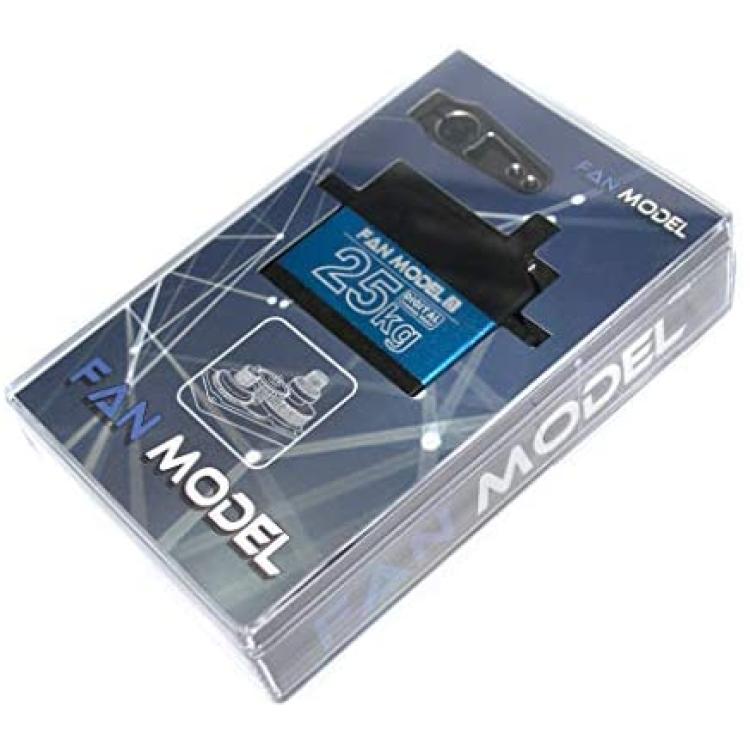

Include

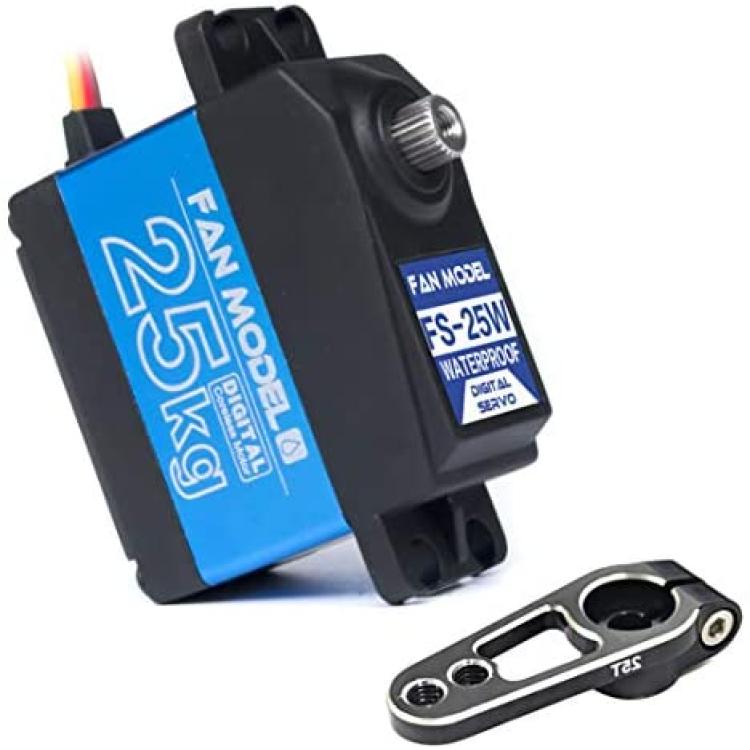

1 x Fan Model FS-25W Waterproof Coreless Digital Servo
1 x Metal servo horn
1 x Servo horn kit(as shown in the figure)

Note:
- Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased several times and the temperature increases, servo will burn out.
