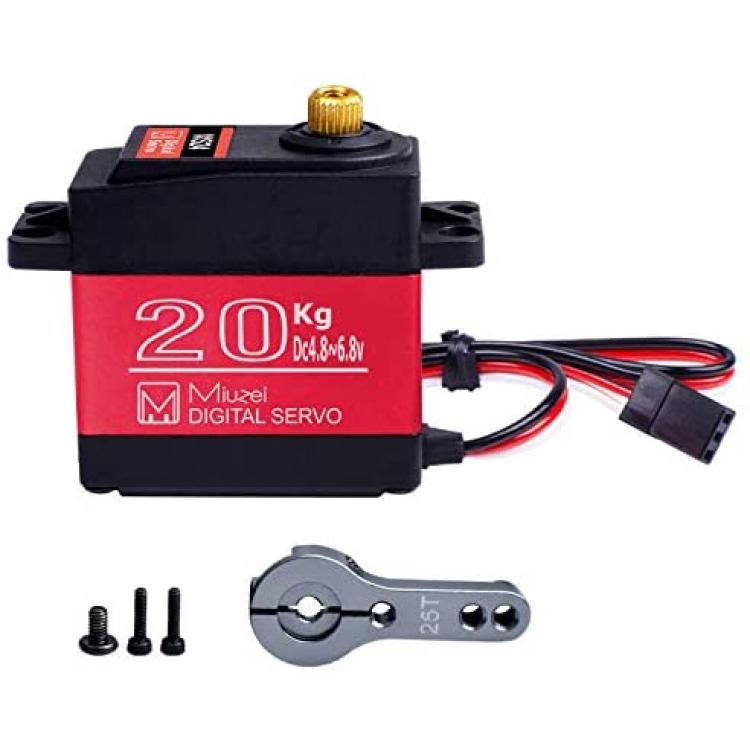

Miuzei 20KG Digital RC Servo Motor High Torque Servo Metal Gear Waterproof Servo for R/C Car Robot, DS3218MG Control Angle 270°
About this product
*DS3218 20kg digital servo,accuracy with precision potentiometers, high quality leads and center nicely.
*High torque steering servo for robot arm,boats,vehicles and remote control toys.
*Size:40*20*40.5mm Weight: 60g Operating voltage range(4.8-6.8V) Dead band width:3 μsec
*Stall torque (at locked):18 kg-cm(5V)/21.5 kg-cm(6.8V) Waterproof performance: IP66
*Please Note: The servo has a pulse width signal of 500 to 2500 μsec; when the input signal is 500usec, the angle is 0 degrees, and at 2500 μsec, the angle is 270 degrees.
Description

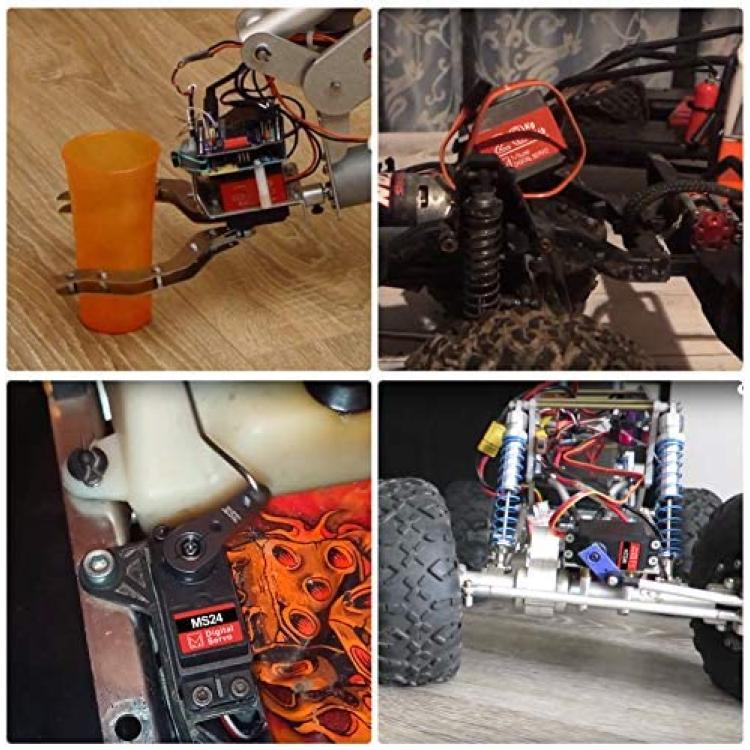

High torque steering servo, commonly use in RC car like climbing cars, robots, mechanical arms,rock crawler vehicles & remote control toys.

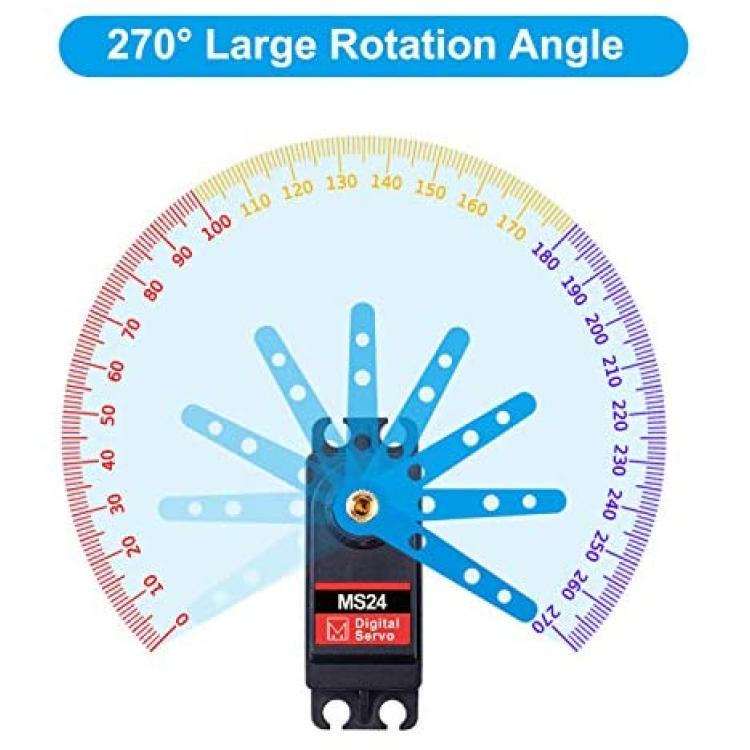

270 degree rotation perfect for robot joint activities.
Apply Environmental Condition:
Storage Temperature Range(-30??80?)
Operating Temperature Range(-15??70?)
Operating Voltage Range(4.8-6.8V)
Mechanical Specification:

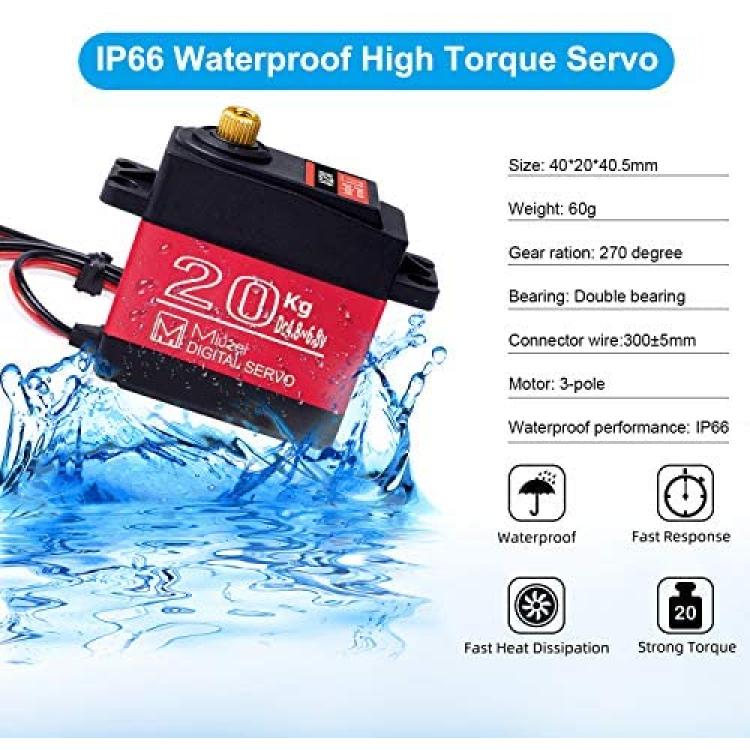

Size:40*20*40.5mm
Weight:60g
Gear ratio:275

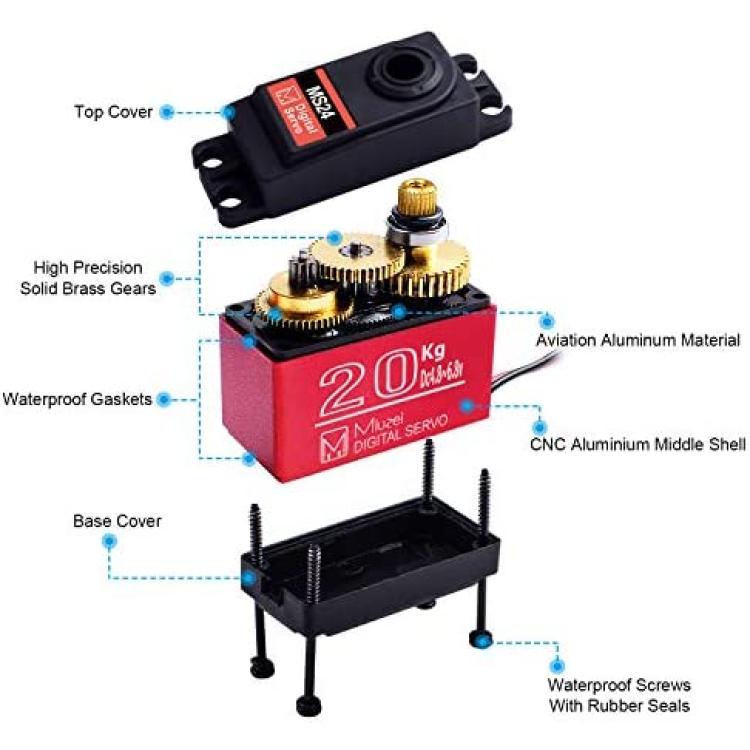

Bearing:Double bearing

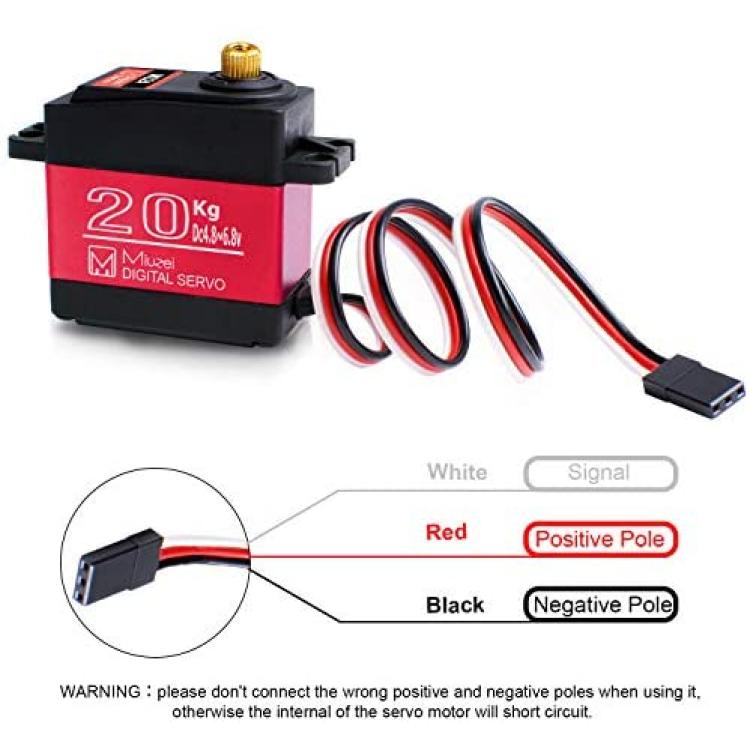

Connector wire:300±5mm
Motor:3-pole
Waterproof performance:IP66
Electrical Specification:
Idle current(at stopped):4mA(5V)/5mA(6.8V)
Operating speed (at no load):0.16 sec/60°(5V)/0.14sec/60°(6.8V)
Stall torque (at locked):18 kg-cm(5V)/21.5 kg-cm(6.8V)
Stall current (at locked):2100mA±10%(4.8)/2700mA±10%(7.2V)
Control Specification:
Control System:PWM(Pulse width modification)
Pulse width range:500?2500?sec
Neutral position:1500?sec
Running degree:180°or 270°(when 500?2500?sec)
Dead band width:3 ?sec
Operating frequency:50-330Hz
Rotating direction:Counterclockwise(when 500?2500 ?sec)
