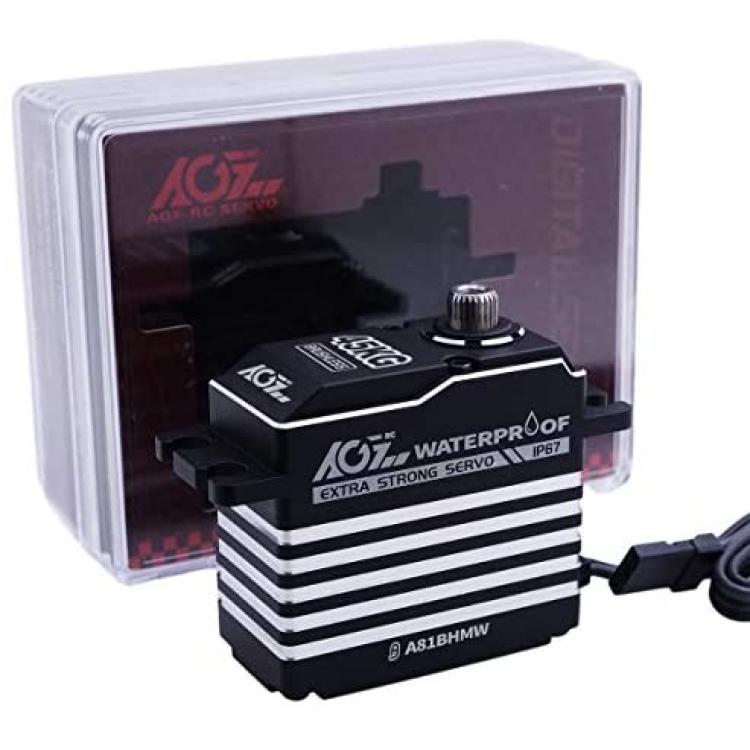

AGFRC 45KG IP67-Waterproof Steering-Servo High-Torque-Programmable - Full Metal Gear Digital Brushless Servo for 1/8 1/10 RC Models, 180 Degrees (A81BHMW&AGF-SPV2)
Product Code: MPM17304
Availability: Pre-Order, Inquiry Price
About this product
*【UPGRADE&PROGAMMABLE】This upgrade high torque servo is PROGRAMMABLE by the AGF-SPV2 servo programmer to change the torque, speed, angle, etc. The AGF-SPv2 only can be used for AGFRC servo with ASS or PRPGRAMMABLE mark. Please read the instructions carefully before use.
*【WATERPROOF DESIGN】AGFRC RC steering digital servo motor uses high-precision production technology to reduce production deviation and improve product tightness, used IP67 Waterproof design, good choice for 1/8 1/10 Buggy /Monster Trucks/RC car/boat/plane/helicopter/robot. Size: 40*20*37.5mm (1.57*0.79*1.48in)
*【HIGH PRECISION&TORQUE】Advanced linearity and accuracy, stable, low noise, waterproof, dust-proof. The maximum torque of this steering servo is up to 45 kg/cm (597 oz/in) @8.4V and speed up to 0.085sec/60°@8.4V.
*【HIGH QUALITY&PERFORMANCE】Standard 45KG Waterproof high torque servo equipped with full Aluminium housing, three ball bearing, and patent reinforced steel gear with PINS in order to anti-slip and reinforcement; and using magnetic angular position sensor which is low power consumption and can instantaneous angle sensing.
*【SATISFIED CUSTOMER SERVICE】Please read the detail description of this brushless programmable servo motor first, if any ideas about our high torque digital servo, contact us first & We will provide you a better solution, and make you satisfied.
Description

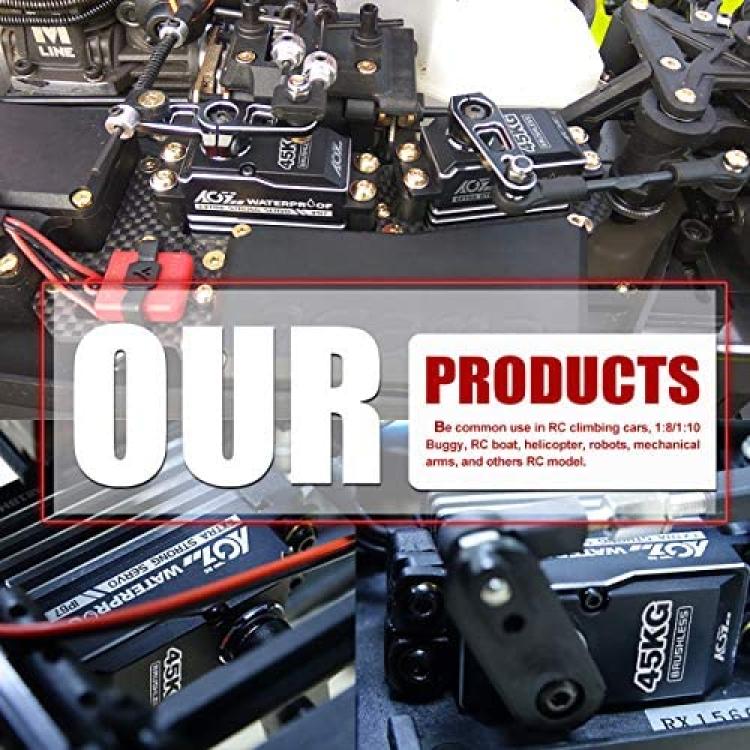

AGFRC monster torque servo can be common use in RC climbing cars, 1:8/1:10 Buggy, RC boat, helicopter, robots, mechanical arms, and others RC model.
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.
Features

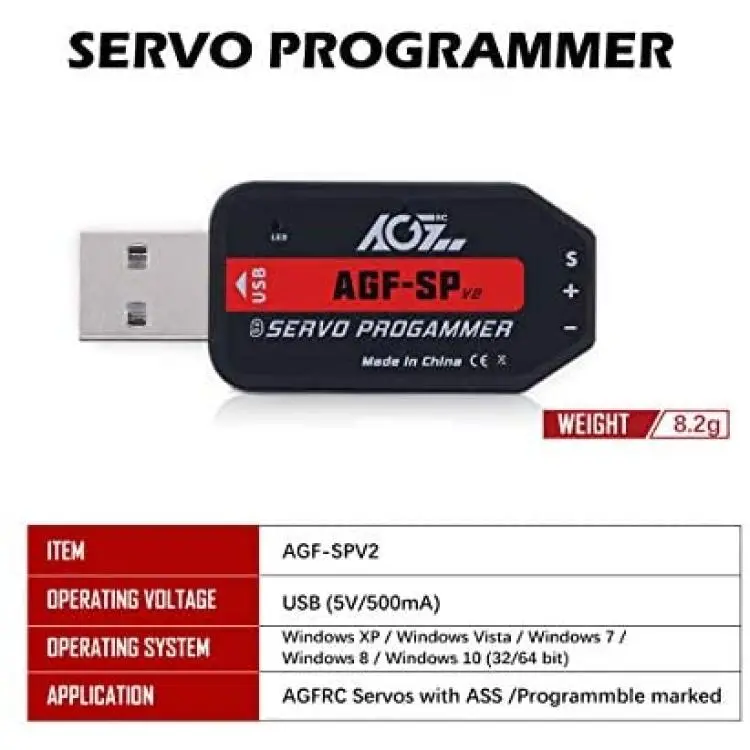

1.Programmable by the AGF-SPv2 servo programmer to change the torque, speed, angle, etc.Â
2.The whole case is made of Aluminium, and it adopts AGFRC patented strengthen stainless steel gear.
3.Unique groove surface design for fast heat dissipation of waterproof servo, 45kg high torque, strong compatibility and sensitive response, etc.
4.Contactless magnet angle sensor for a longer using life.
5.IP67 waterproof design and waterproof rubber seals screws.
Stall Torque
28kg-cm (375oz-in)@4.8V
34kg-cm (458oz-in)@6.0V
39kg-cm (528oz-in)@7.4V
45kg-cm (597oz-in)@8.4V
Operating Speed
0.140sec/60°@4.8V
0.115sec/60°@6.0V
0.100sec/60°@7.4V
0.085sec/60°@8.4V

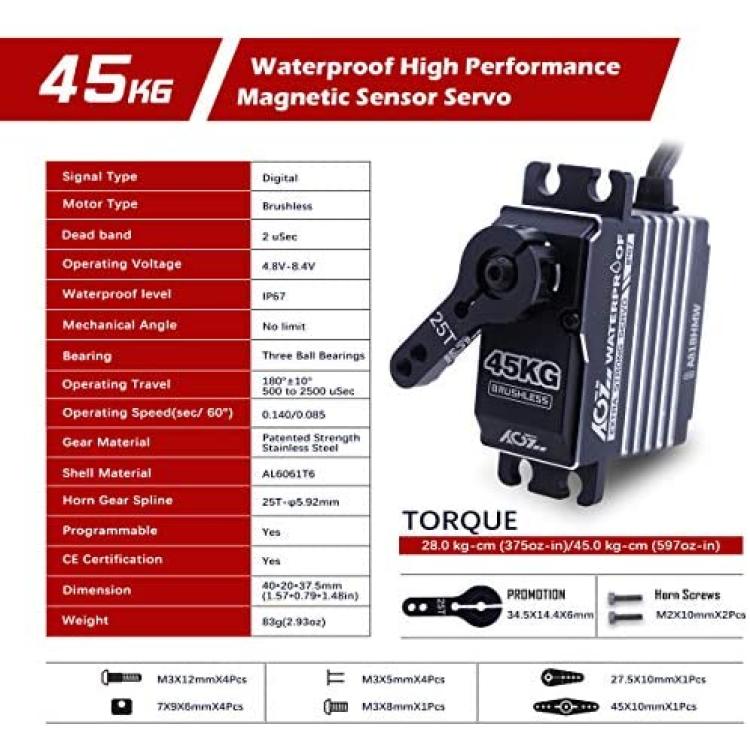

Specification
Brand: AGFRC
Control System: PWM, 1520uS/333hz
Waterproof Level: IP67
Dead band: 2 uSec
Mechanical Angle: No limit
Operating Travel: 180°±10 °, 500 to 2500 uSec
Horn Gear Spline: 25T-?5.92mm
Bearing: Three Ball Bearing
Case Material: Aluminium 6061T6

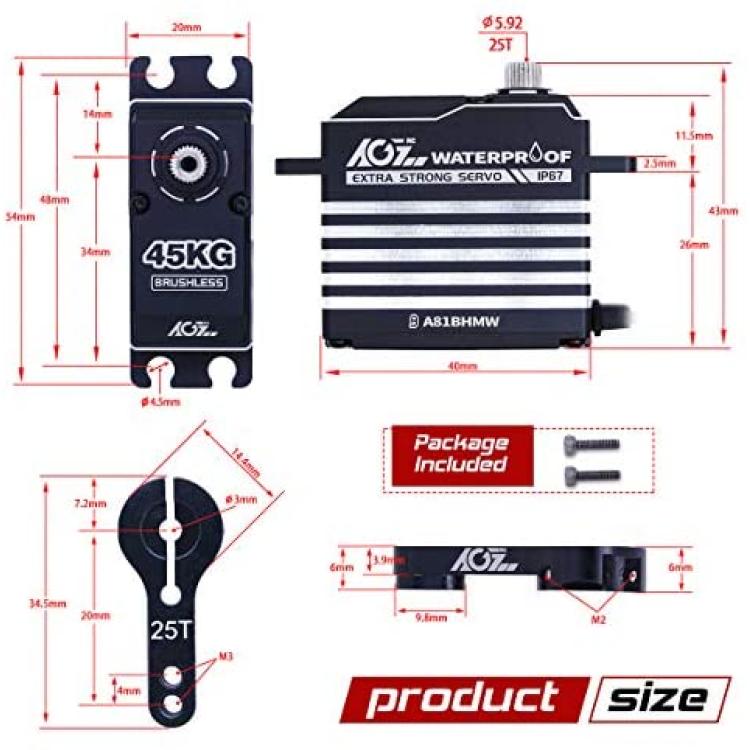

Size: 40*20*37.5mm (1.57*0.79*1.48in)
CE Certification: Yes
Weight: 83g

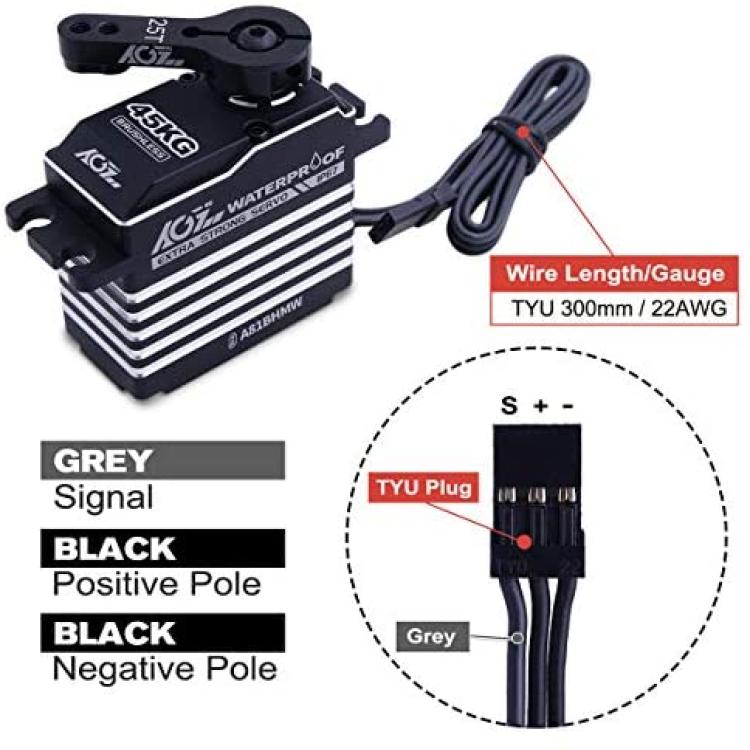

Wire: TYU 300mm/22AWG

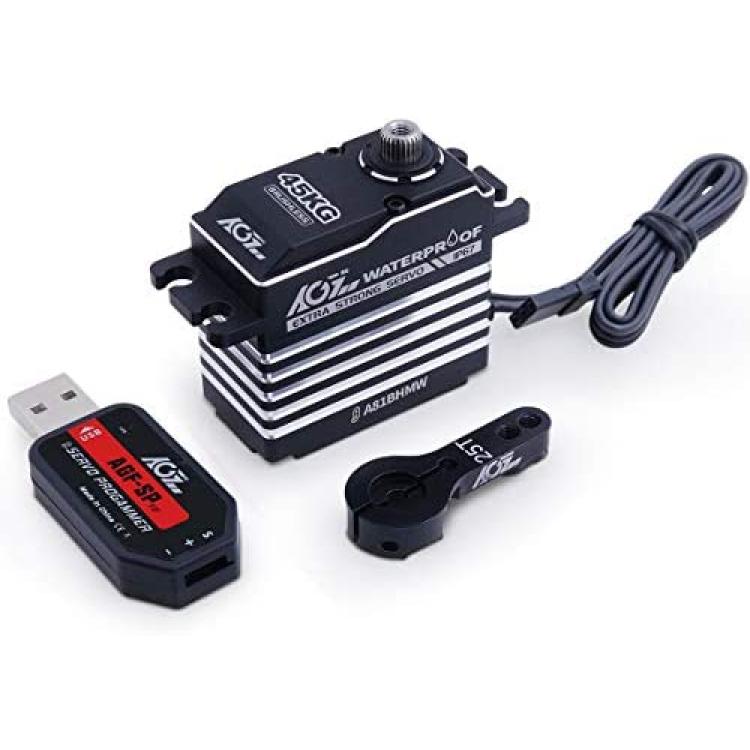

Package included
1 x AGFRC A81BHMW Programmable Servo
1 x USB AGF-SPv2 Servo Programmer
1Â x 25T Black Metal Servo Horn
2 x 25T Plastic Servo Horn
