ANNIMOS 35KG Coreless Digital Servo Motor HV 7.4V Stainless Steel Gear High Torque Waterproof Standard Baja Servos for Robotic DIY RC Cars - 270 Degrees
About this product
*Best rc servo upgrade,ideal for 1:10/1:8/1:12 robot or r/c crawlers
*Operating speed:0.07sec/60°;Stall torque:25.5kg-cm (at 7.4V)
*Coreless motor driven provides high speed, incredible efficiency, and low power consumption

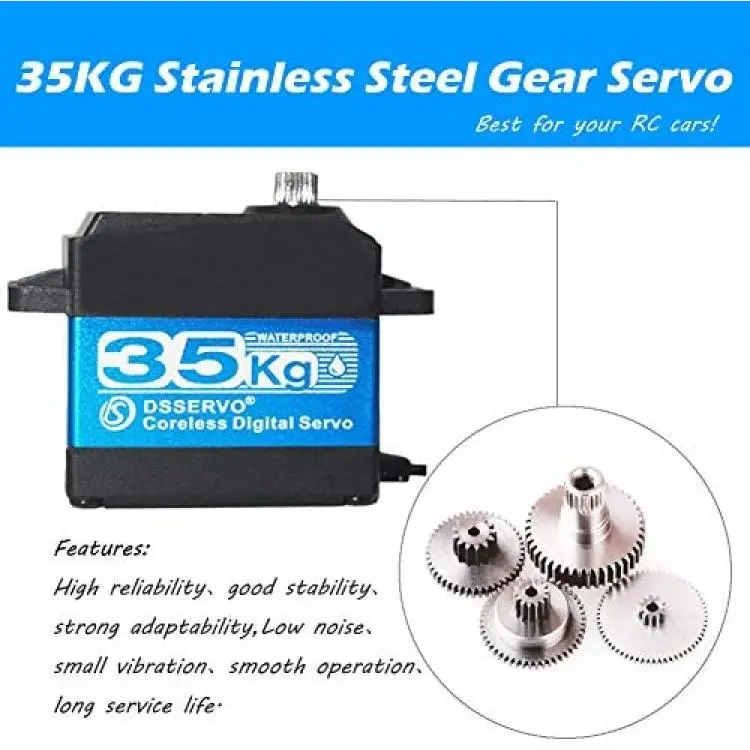

*IP66 waterproof performance for worry free operation;extremely strong unique stainless steel & Aluminum gears ensure long life and durability

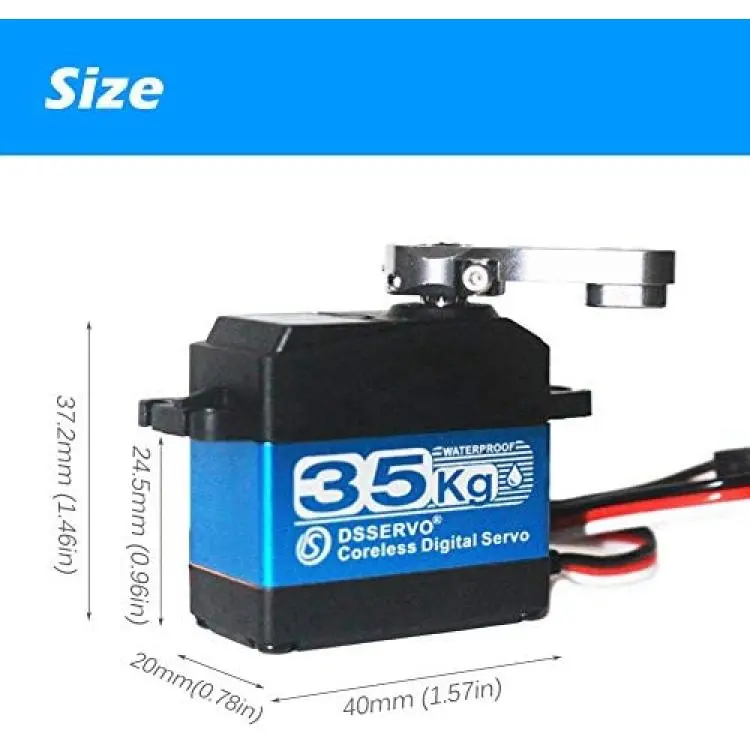

*light-weight,small size but strong.Dimensions:40x20x38.5mm,weight: 60g
Description

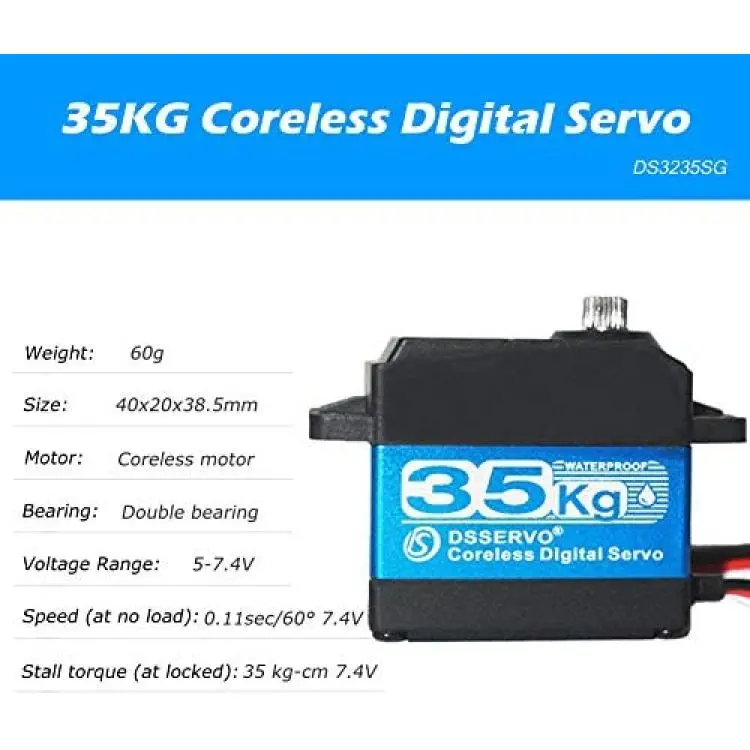

Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degrees
Operating speed ( 6.0V ): 0.12 sec/60 degrees
Operating speed ( 7.4V ): 0.11 sec/60 degrees
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 270° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)

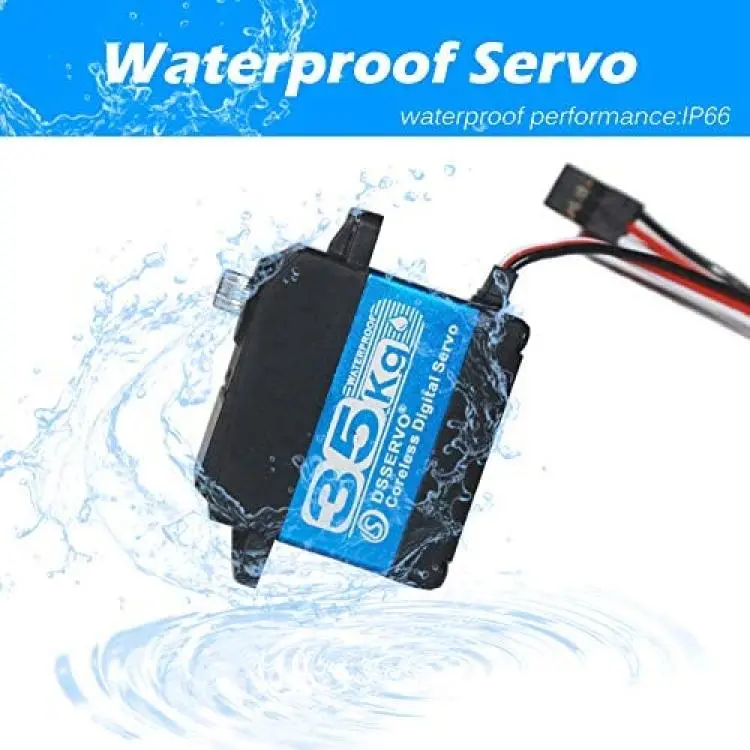

Waterproof performance: IP66

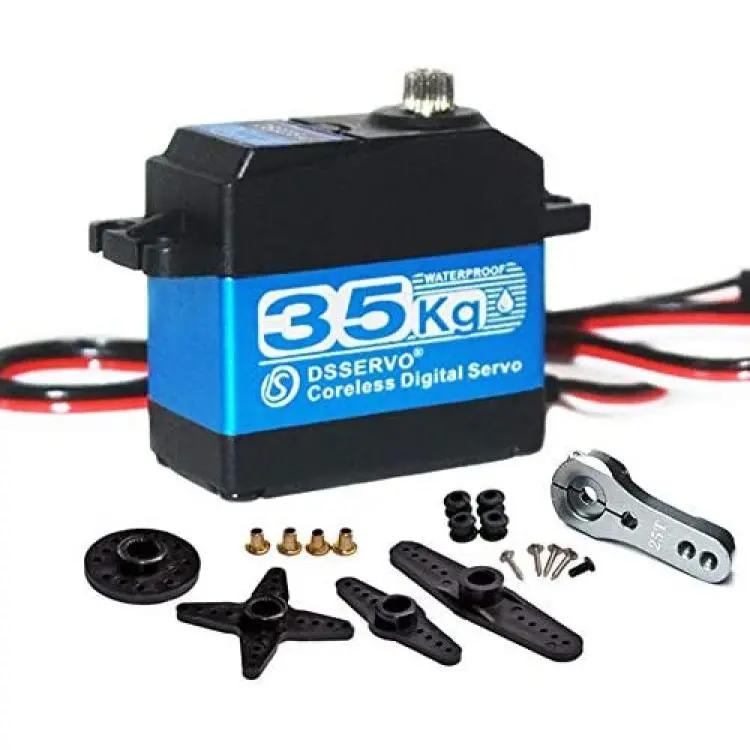

Package:
1 x DS3235SSG Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
?25KG Coreless servo 270°,please search ASIN: B07SSNJ6Y5
?20KG Control Angle 270°,please search ASIN: B076CNKQX4
?25KG Control Angle 180°,please search ASIN: B07KTSLGJ7
?20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
?60kg Control Angle 270°,Please search ASIN: B07KTSCN4J
