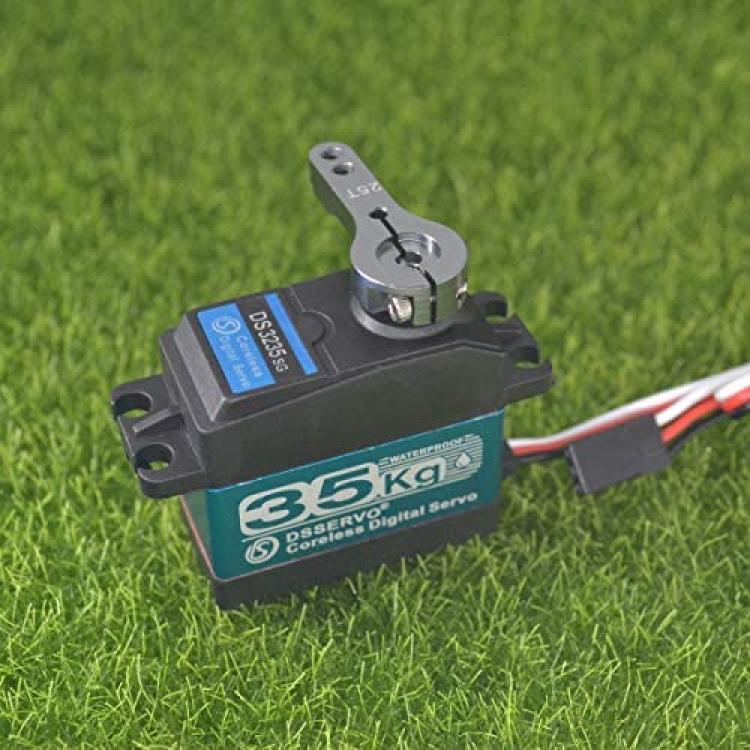

DS3235 35KG 270 Degree Coreless Digital RC Motor Servo, Miuezuth Stainless Steel & Aluminum Metal Gear – High Speed High Efficiency High Torque Waterproof Servo for Baja Cars RC Robot
About this product
*Suitable for: 1/8 1/10 1/12 scale RC Crawler / Buggy / Truck and any application where waterproof standard servos.
*High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
*Advantage of coreless motor servo: High reliability、good stability、strong adaptability, Low noise、small vibration、smooth operation、long life. Full waterproof servo to maintain good water tightness in wet conditions.

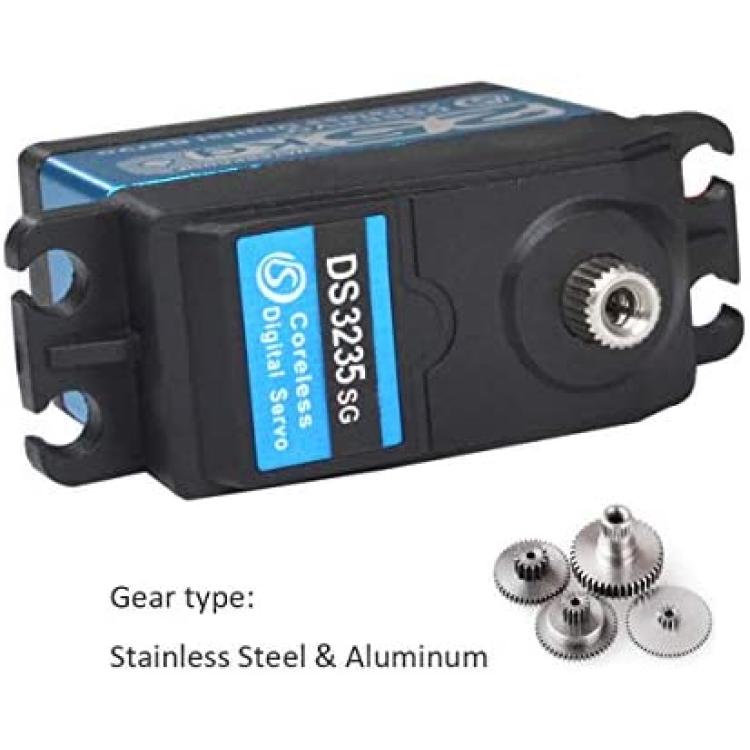

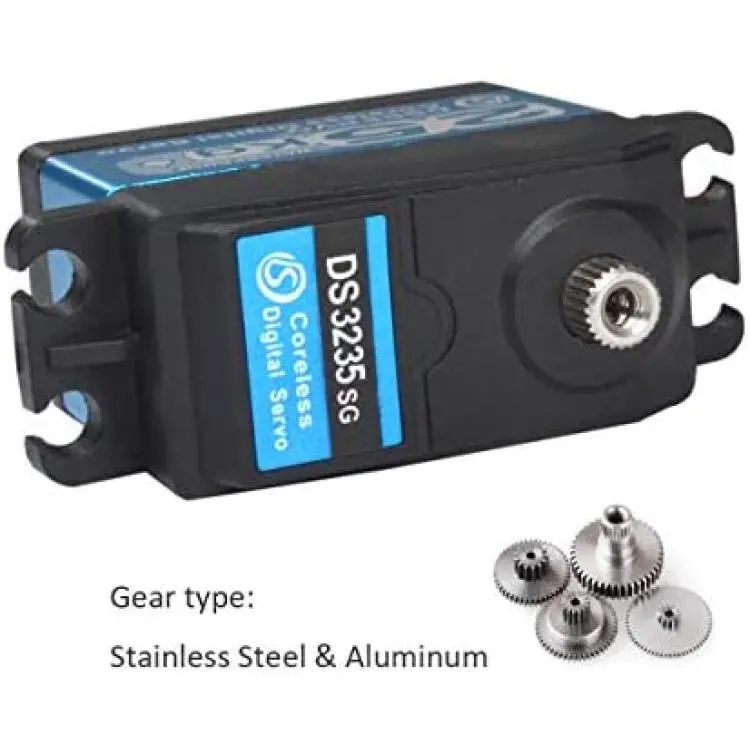

*Gear type is Stainless Steel & Aluminum. The Coreless motor provides high speed, response, incredible efficiency and low power consumption.

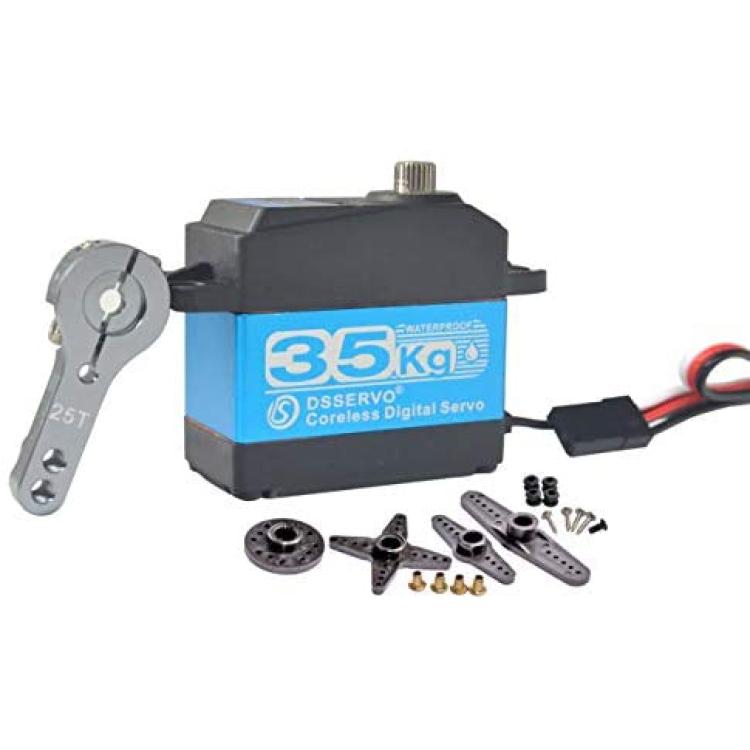

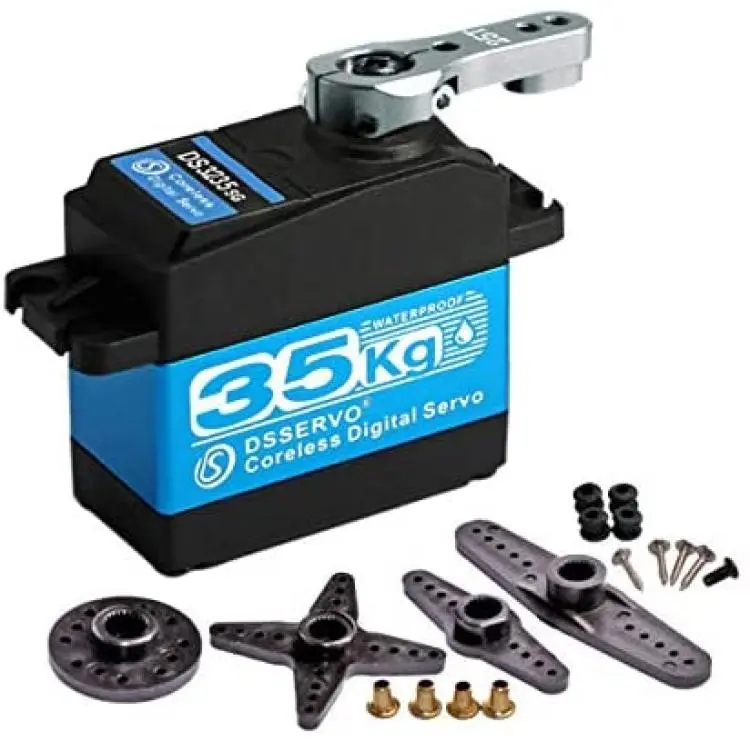

*Packing List: 1 x DS3235 270 Degree 35KG Coreless Digital Servo, 1 x Servo horn kit. 3 Years Warranty Time and Life Limited Friendly Customer Service. Any Question, please click “Miuezuth” to contact us. Thank you.
Description
Features
-Suitable for: 1/10 1/8 scale RC Crawler / Buggy / Truck and any application where waterproof standard servos.
High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
Full waterproof servo to maintain good water tightness in wet conditions.
The Coreless motor provides high speed, response, incredible efficiency and low power consumption.
Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 270° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)

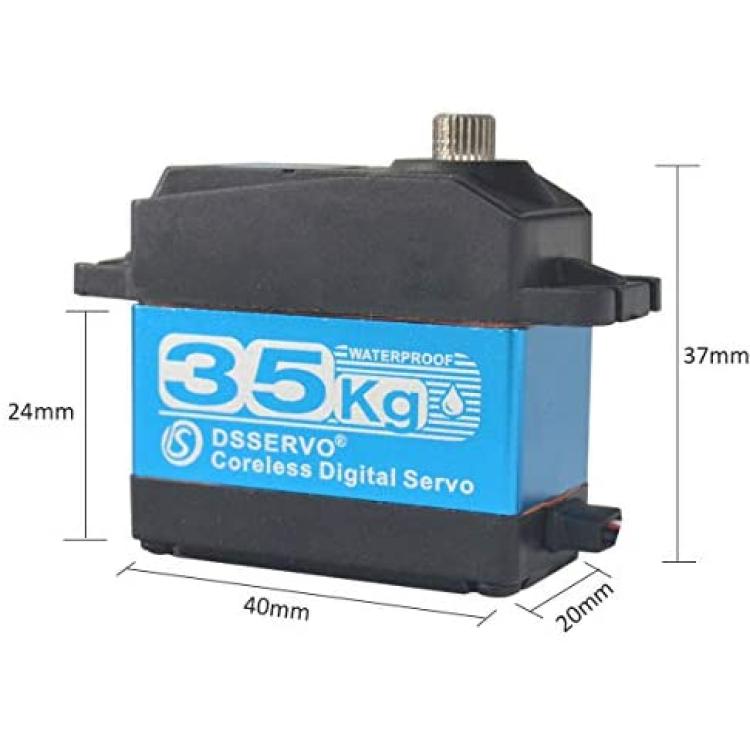

Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
25KG Coreless servo 270°, please search ASIN: B07RNFQYD2
30KG Control Angel 270°, please search ASIN: B07VN6F179
20KG Control Angle 270°, please search ASIN: B07PG8M4G9
20KG Control Angle 180°, please search ASIN: B07R4SJYY2
