JX Servo PDI-HV5523MG 23KG Large Torque HV Servo Metal Gear Digital Standard Servo for RC Crawler Car Airplane Robot RC Parts

Feature:

-- High Voltage

-- High performance HV digital standard servo

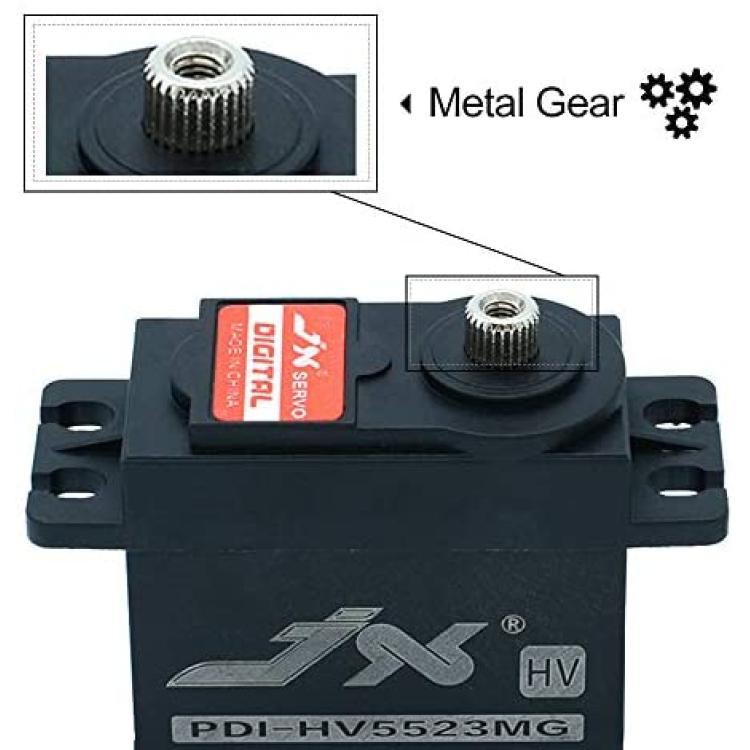

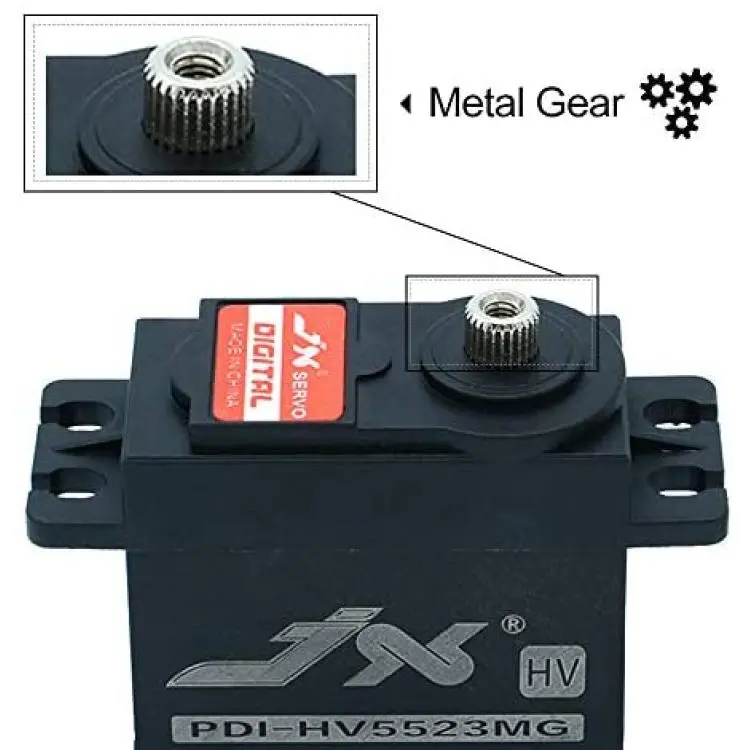

-- High-precision Taiwan-made aluminum gears with hard anodizing

-- Dual ball bearings

Specification:

Dead band: 2?s

Working frequency: 1520?s / 330hz

Operating Speed (6.0V): 0.18 sec/60°

Operating Speed (8.4V): 0.16 sec/60°

Stall Torque (6.0V):  19.2 kg.cm

Stall Torque (8.4V):  23 kg.cm

Dimensions: 40.5X20.2X38mm

Weight:  62 g

Connector Wire Length:  JR 265 mm

Bearing: 2BB

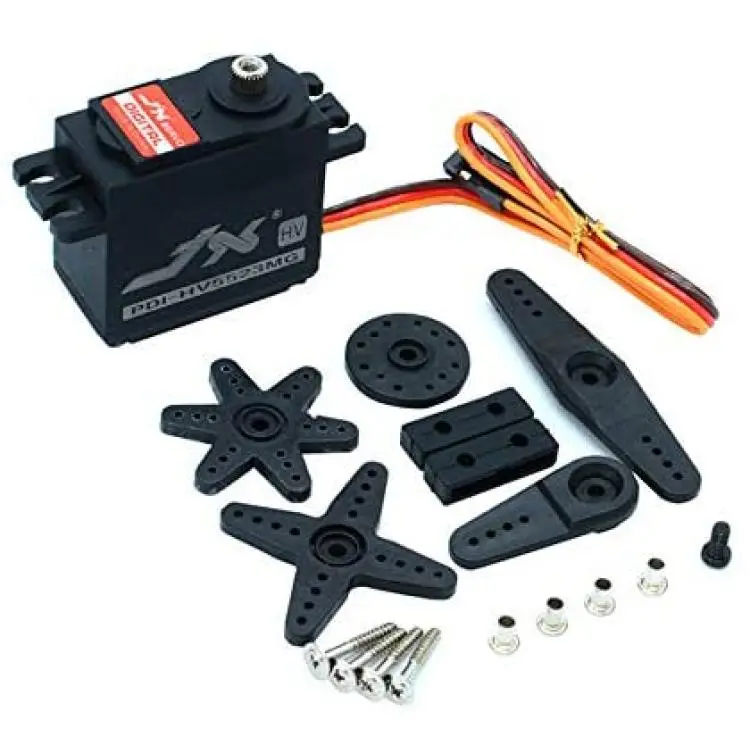

Package content:

1 x JX PDI-HV5523MG HV Servo

1 x Accessories kit

Package information:

Package weight: 80g

Package size: 6.4 * 4.9 * 3.8cm
