JX Servo PS-5513MG 13KG / PS-5515MG 15KG 120° Large Torque Metal Standard Steering Gear servo for RC Helicopter Drone Robot Tank Car Parts (15KG)
About this product
*Dead zone: 7?s ; Maximum pulse width: 900-2100us (suitable for remote control) ; Maximum angle: 120° ; Motor: iron core
*13KG Servo Speed: (4.8V) 0.20sec/60° , (6V) 0.18 sec/60°
*15KG Servo Speed: (4.8V) 0.18 sec/60°, (6V) 0.16 sec/60°
*13KG Servo Torque: (4.8V) 11.75kg.cm (163.21oz/in) , (6V) 13.06 kg-cm (181.40 oz/in)
*15KG Servo Torque: (4.8V) 14.25 kg.cm (197.93 oz/in) , (6V) 15.32 kg-cm (212.79 oz/in)
Description

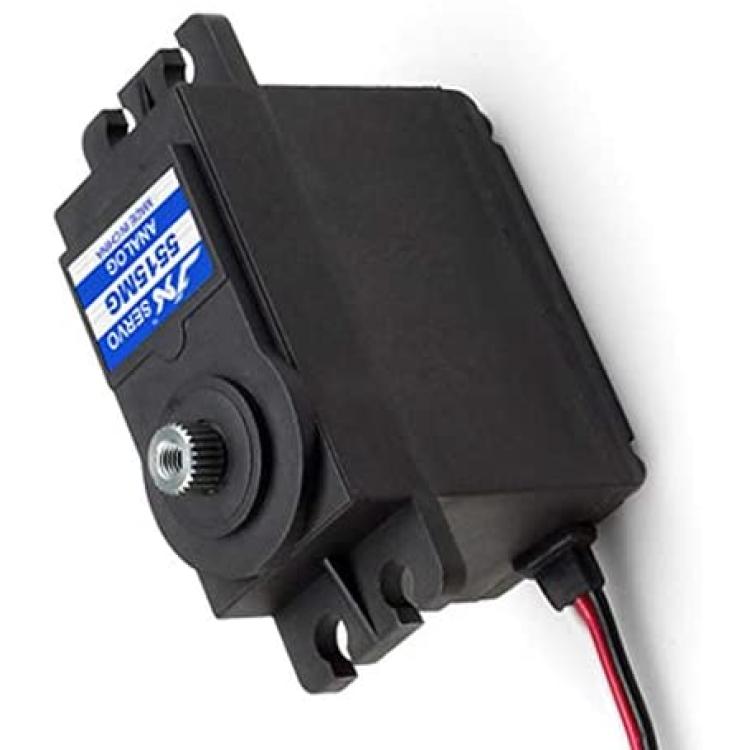

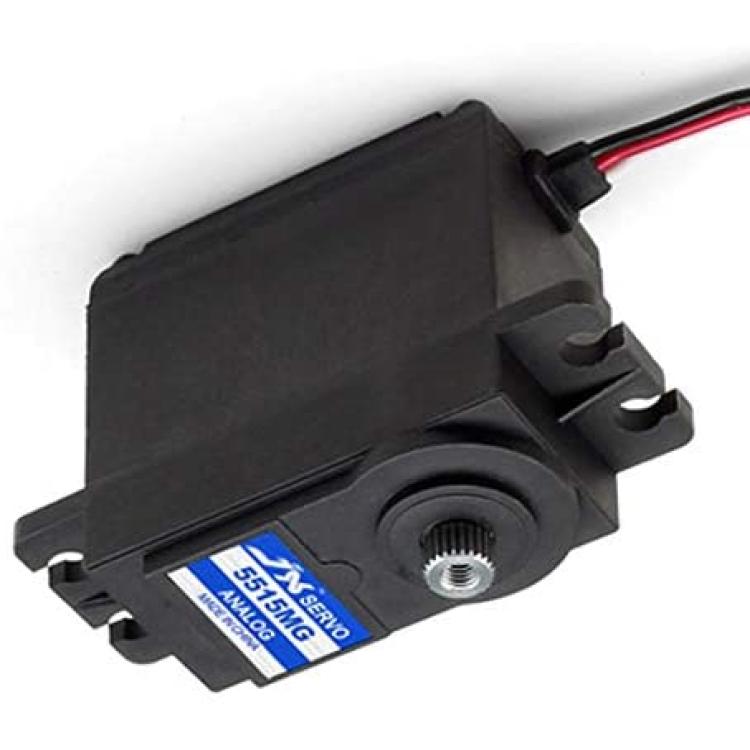

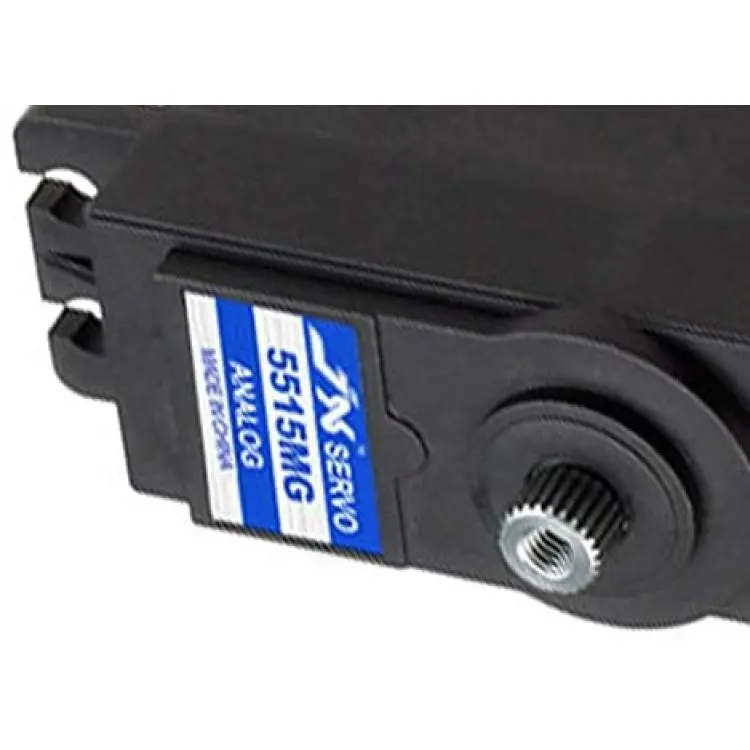

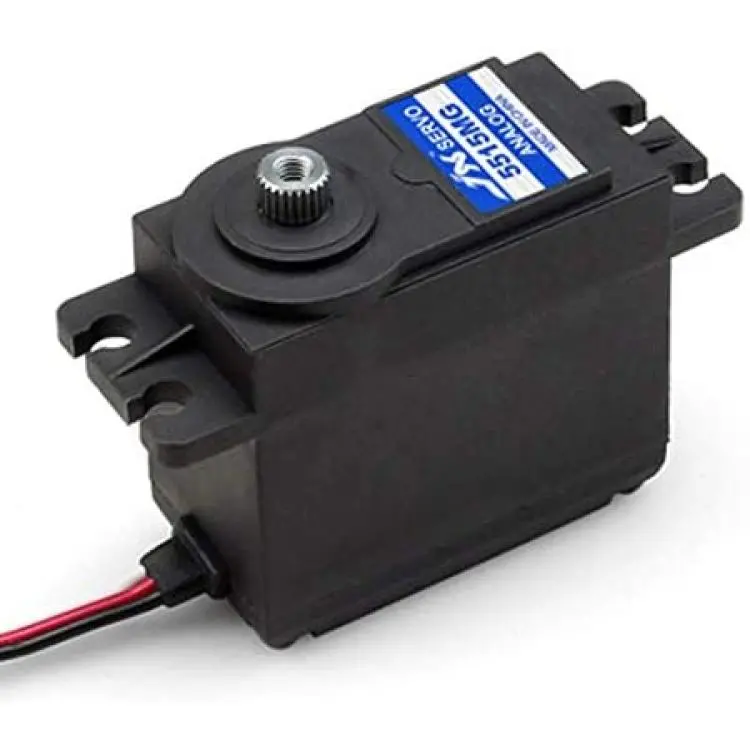

JX Servo PS-5513MG 13KG PS-5515MG 15KG 120°Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts
PS-5513MG/13KG detailed specifications:
Dead zone: 7?s
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: iron core
Speed (4.8V): 0.20sec/60°
Speed (6V): 0.18 sec/60°
Torque (4.8V): 11.75kg.cm (163.21oz/in)
Torque (6V): 13.06 kg-cm (181.40 oz/in)
Size: 40.5X20.2X38mm/1.59X0.80X1.49 in
Weight: 55.6 g (1.96oz)
Connection cable: JR 265 mm (10.43in)
Bearing: 1BB
PS-5515MG/15KG detailed specifications:
Dead zone: 7?s
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: iron core
Speed (4.8V): 0.18 sec/60°
Speed (6V): 0.16 sec/60°
Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Torque (6V): 15.32 kg-cm (212.79 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
Connection cable: JR 265 mm (10.43in)
Bearing: 1BB
The package contains:
1xservo
1xservo spare parts set
