JX Servo PDI-6215MG/15kg 120° High Torque Metal Gear Steering Gear Servo for RC Helicopter Drone Tank Climbing Car Robot Parts
About this product
*Product name: Digital Core Motor Metal Gear servo ; Dead setting: 2?s
*Maximum pulse width: 500-2500?s subtle ; Working frequency: 330Hz ; Motor : Core Motor /iron core motor
*Operating speed (4.8v): 0.18sec/60° ; Operating speed (6.0v): 0.16sec/60°
*Torque (4.8v): 14.25kg/cm(197.87oz/in) ; Torque (6.0v): 15.32kg/cm(212.73oz/in)
*Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models
Description
JX PDI-6215MG/15kg 120° High Torque Metal Gear Steering Gear Servo For RC Helicopter Drone Tank Climbing Car Robot Parts
Brand: JX
Model: PDI-6215HB
Product name: Digital Core Motor Metal Gear servo
Working voltage: DC4.8-6.0v
Working temperature: -20 to +60?
Dead setting: 2?s
Maximum pulse width: 500-2500?s subtle
Maximum angle: 120°
Working frequency: 330Hz
Motor or motor: Core Motor iron core motor
Operating speed (4.8v): 0.18sec/60°
Operating speed (6.0v): 0.16sec/60°
Torque (4.8v): 14.25kg/cm(197.87oz/in)
Torque (6.0v): 15.32kg/cm(212.73oz/in)
Size: 40.5mm*20.2mm*38mm
Weight: 62g (2.18oz)
Cable length: JR 265MM (10.43inch)
Gear material: Metal Gear
Bearing: 2BB
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models

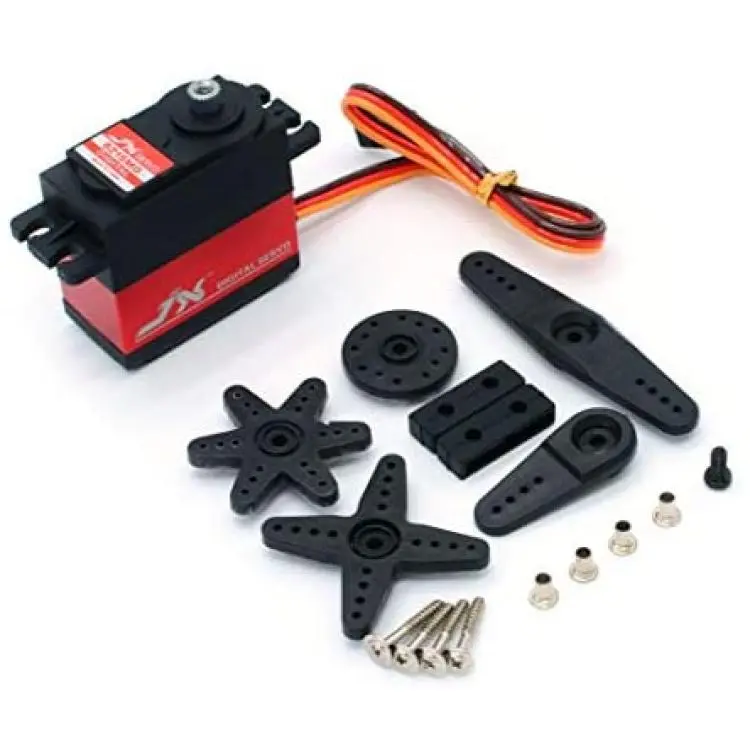

The package contains:
1xservo
1xservo spare parts set
