JX B70 72KG Full Metal Brushless 12V Servo for RC Racing Drone Spare Part
About this product
*For RC Cars, Trucks, Helicopters.
*High-precision Taiwan-made steel gears with hard anodizing
*Operating Speed (11.1V): 0.12sec/60° Operating Speed (12.0V): 0.10sec/60°
*Stall Torque (11.1V): 61 kg.cm Stall Torque (12.0V): 72kg.cm
*Connector Wire Length: JR 265 mm Bearing: 2BB
Description
Description:
Brand: JXÂ
Item: B70 Digital Servo
Voltage Scope: 11.1V-15V
PPS Width: 1000-2000?s=90°
PPS Width: 500-2500?s=180°
Dead Band: 2?s 1520?s / 330hz
Motor: Coreless Motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (12.0V): 0.10sec/60°
Stall Torque (11.1V): 61 kg.cm
Stall Torque (12.0V): 72kg.cm
Connector Wire Length: JR 265 mm
Bearing: 2BB
Weight: 87g
Dimensions: 40X20X43.3mm
Application: For RC Cars, Trucks, Helicopters.
Package:

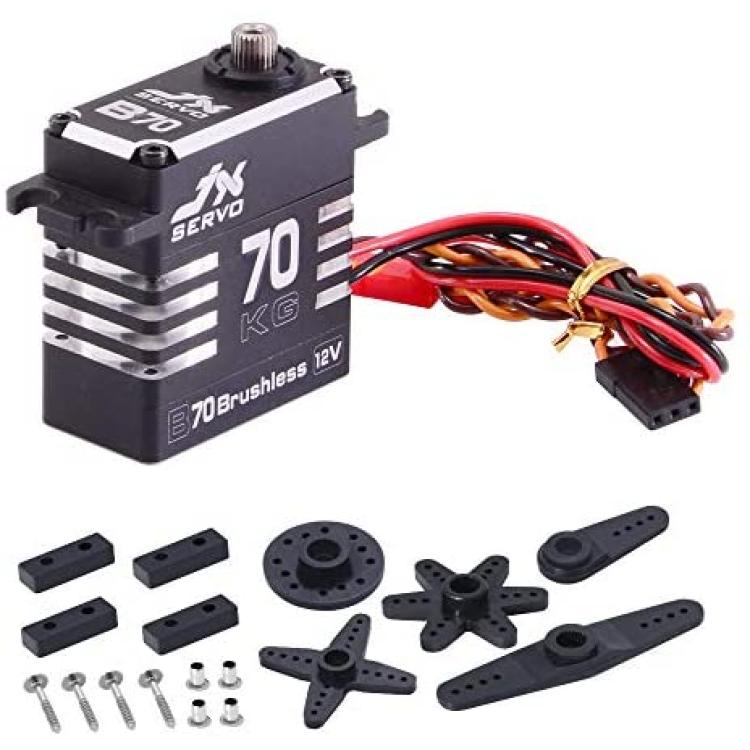

1X JX Servo B70 Digital Servo
1X Servo Arm Set
