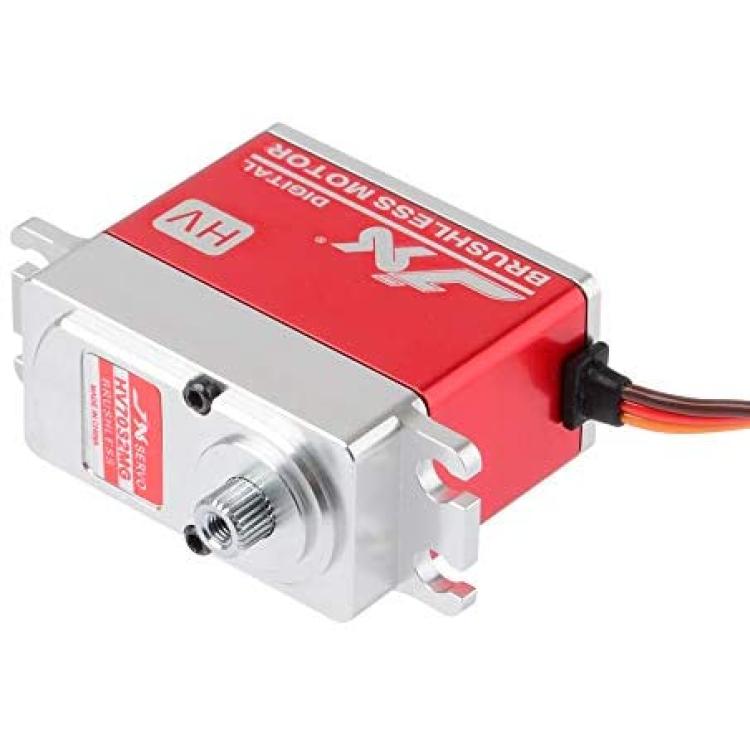

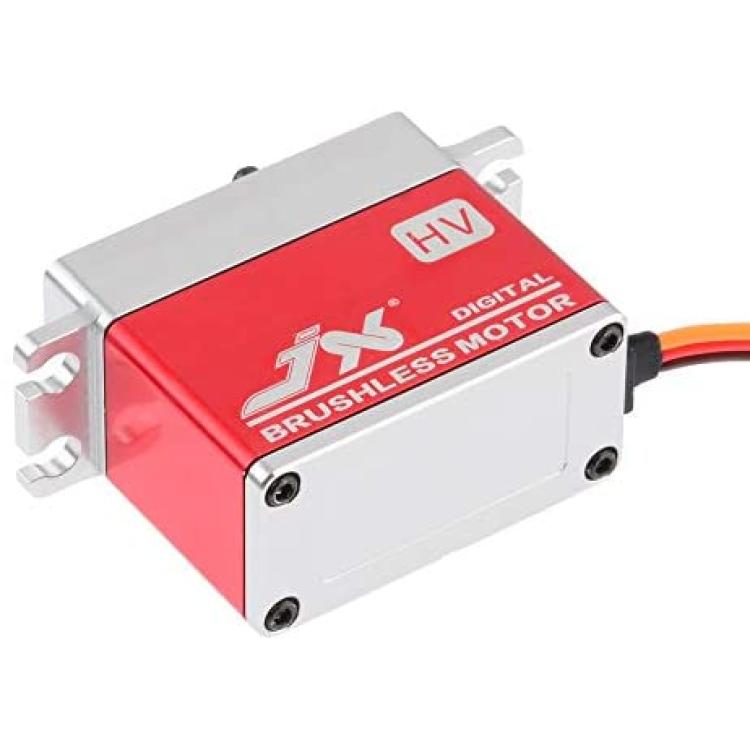

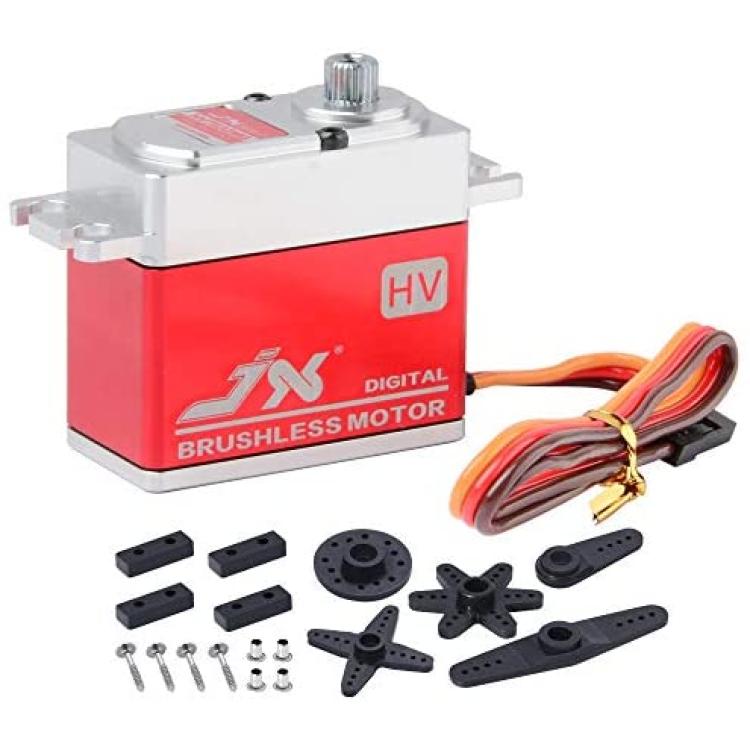

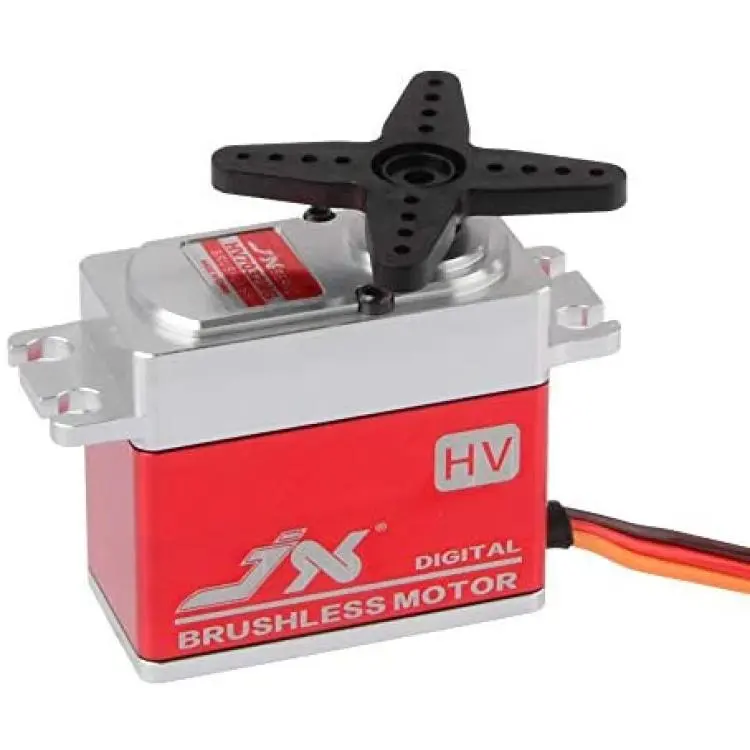

JX Servo BLS-HV7032MG 32kg Large Torge Full Metal CNC High Voltage Digital Servo for RC Car Helicopter Drone Parts
About this product
*High-performance and high-voltage standard digital servo.
*High-precision alloy hard anodizing metal gear.
*Brushless motor and dual ball bearing.
*Full CNC material mesochite.
*Operating Speed: (6.0V) 0.09 sec/60°; Operating Speed: (8.4V) 0.07 sec/60°.
Description
Description:
Dead band: 1?s 1520?s / 330hz
Motor: Brushless motor

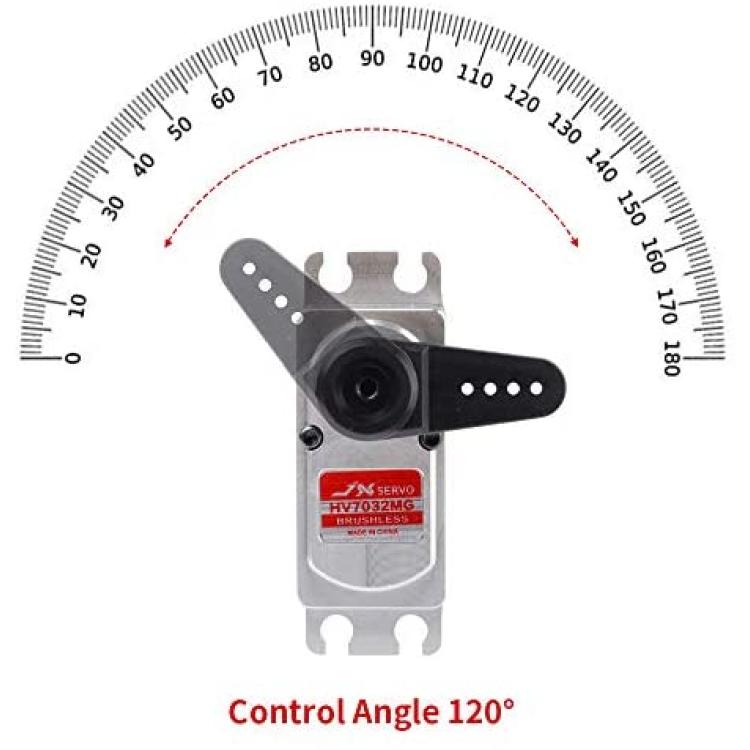

Max angle: 180°
Operating Voltage: DC 4.8V-8.4V
Operating Speed: (6.0V) 0.09 sec/60°
Operating Speed: (8.4V) 0.07 sec/60°
Stall Torque: (6.0V) 26.3 kg.cm (364.96oz/in)
Stall Torque: (8.4V) 32.51kg-cm 451.18 oz/in)
Dimensions: 40.5X20.5X36mm /1.59 X0.80X1.43 in
Weight: 70g
Bearing: 2BB
Connector Wire Length: JR 265mm
Fearture:
High-performance and high-voltage standard digital servo.
High-precision alloy hard anodizing metal gear.
Brushless motor and dual ball bearing.
Full CNC material mesochite.Â
