JX Servo BLS-HV7146MG 46kg Brushless High Precision Steel Gear Full CNC Digital Servo Motor for RC Car Robot Arm Helicopter Airplane Parts
About this product
*Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
*Dead band: 1μs,Working frequence: 1520μs / 330hz
*Motor: brushless motor
*Operating Speed (6V): 0.12sec/60°;Operating Speed (7.4V): 0.10sec/60°
*Stall Torque (6V): 37.6kg.cm ;Stall Torque (7.4V): 47.8kg.cm
Description
46kg Brushless High Precision Steel Gear Full CNC Digital Servo Motor for RC Car Robot Arm Helicopter Airplane Parts -- JX Servo BLS-HV7146MG
Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys
Product Specification
Brand:JX Servo
Mode Number?BLS-HV7146MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
High voltage
High performance programmable digital brushless standard servo

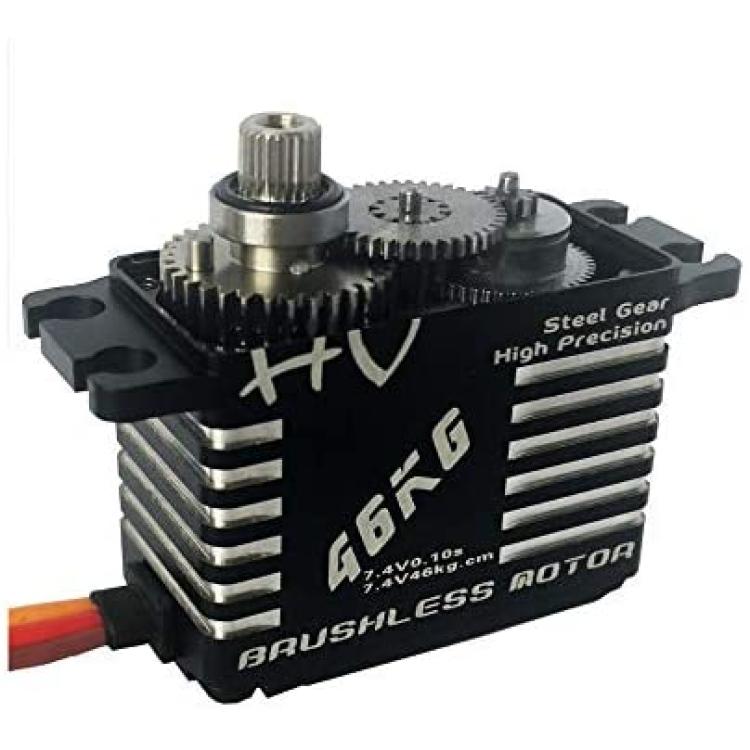

High-precision Taiwan-made steel gears with hard anodizing
Full CNC aluminium Shell structure
Dual ball bearings
Waterproof
SPECIFICATIONS:
Dead band: 1?s
Working frequence: 1520?s / 330hz
Motor: brushless motor
Operating Speed (6V): 0.12sec/60°
Operating Speed (7.4V): 0.10sec/60°
Stall Torque (6V): 37.6kg.cm
Stall Torque (7.4V): 47.8kg.cm

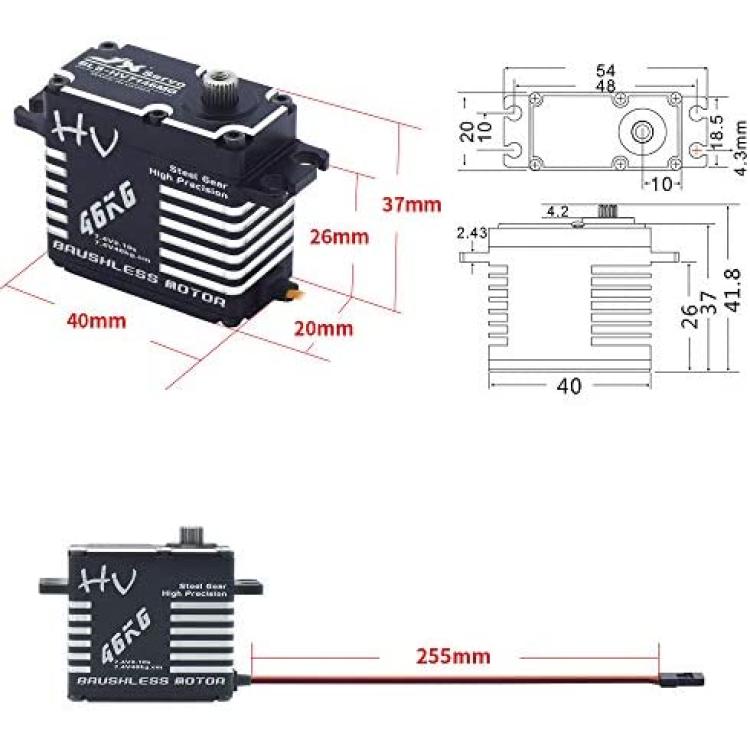

Dimensions: 40.5X20.5X36mm
Gear Teeth:25T
Control Angle:120 Degree
Weight: 71 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

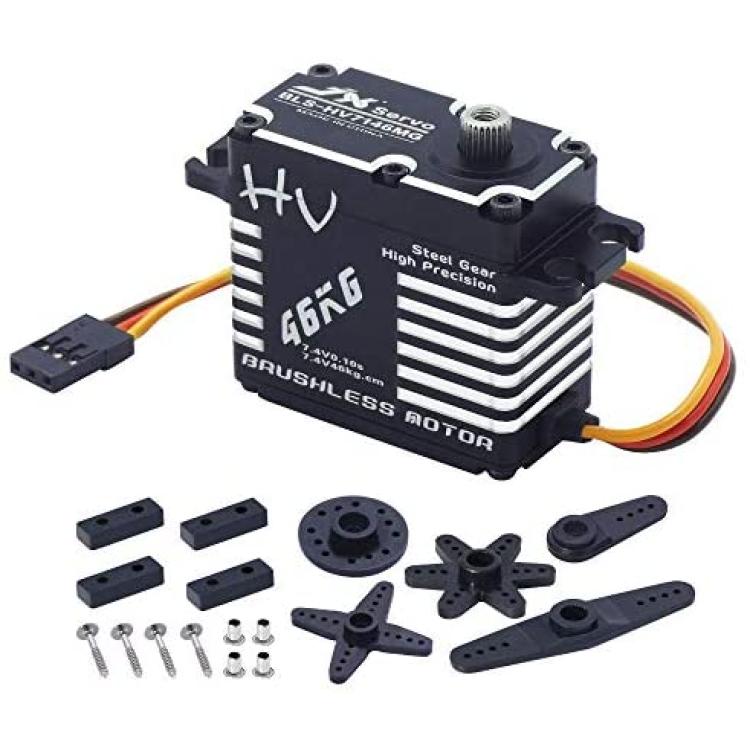

Package include:
1x JX Servo BLS-HV7146MG(with accessories)
