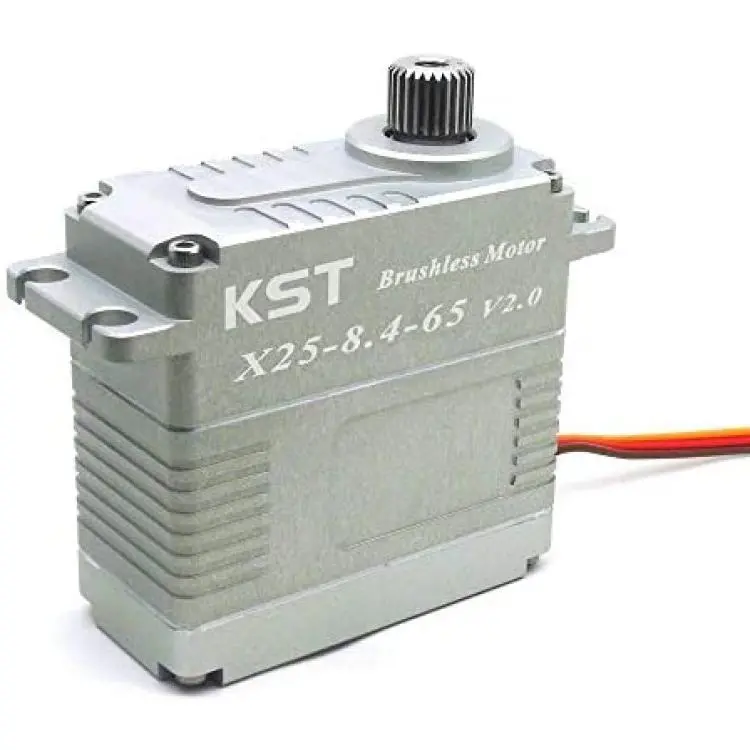

KST X25-8.4-65 V2 (2019) 78kg High Torque Full Metal Digital Servo Motor for UAV Drone Helicopter Airplane Parts
About this product
*KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
*Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys and Arduino experiments.
*Torque: 60Kg.cm at 6.0V 70kg.cmat 7.4V 78kg.cmat 8.4V
*Speed: 0.24 sec/60°at 6.0V 0.20 sec/60°at 7.4V 0.18 sec/60°at 8.4V
*Weight: 280g ;Dimensions: 65*30*63mm .
Description
KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys and Arduino experiments.
Product Specification
Brand:KST
Mode Number? X25-8.4-65 V2 (2019)
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
SPECIFICATIONS:
Operating Voltage(rated): DC7.4V
Operation Voltage Range: DC6.0~8.4V
Torque:
60Kg.cm at 6.0V
70kg.cmat 7.4V
78kg.cmat 8.4V
Speed: 0.24 sec/60°at 6.0V
0.20 sec/60°at 7.4V
0.18 sec/60°at 8.4V
Weight: 280g
Motor: Coreless

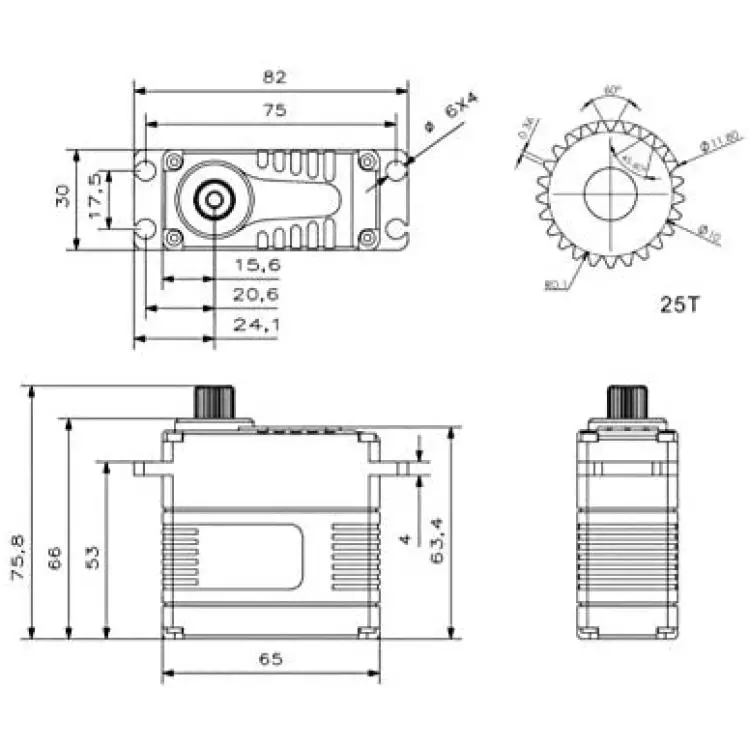

Case Dimensions: 65*30*63mm
Working Frequency: 1520 us/333HZ, 900us~2100us
Package include:
1x KST X25-8.4-65 V2 (2019)Servo Motor (with accessories)
